MS20028T11B4PC: DescriptionMIL Series Connector, 4 Contact(s), Aluminum Alloy, Male, Solder Terminal, Plug; CategoryThe connector The connector; File Size329KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MS20028T11B4PC Overview

MIL Series Connector, 4 Contact(s), Aluminum Alloy, Male, Solder Terminal, Plug

MS20028T11B4PC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STANDARD: MIL-C-27599, EMI SHIELDED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	MS20028T
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	11
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

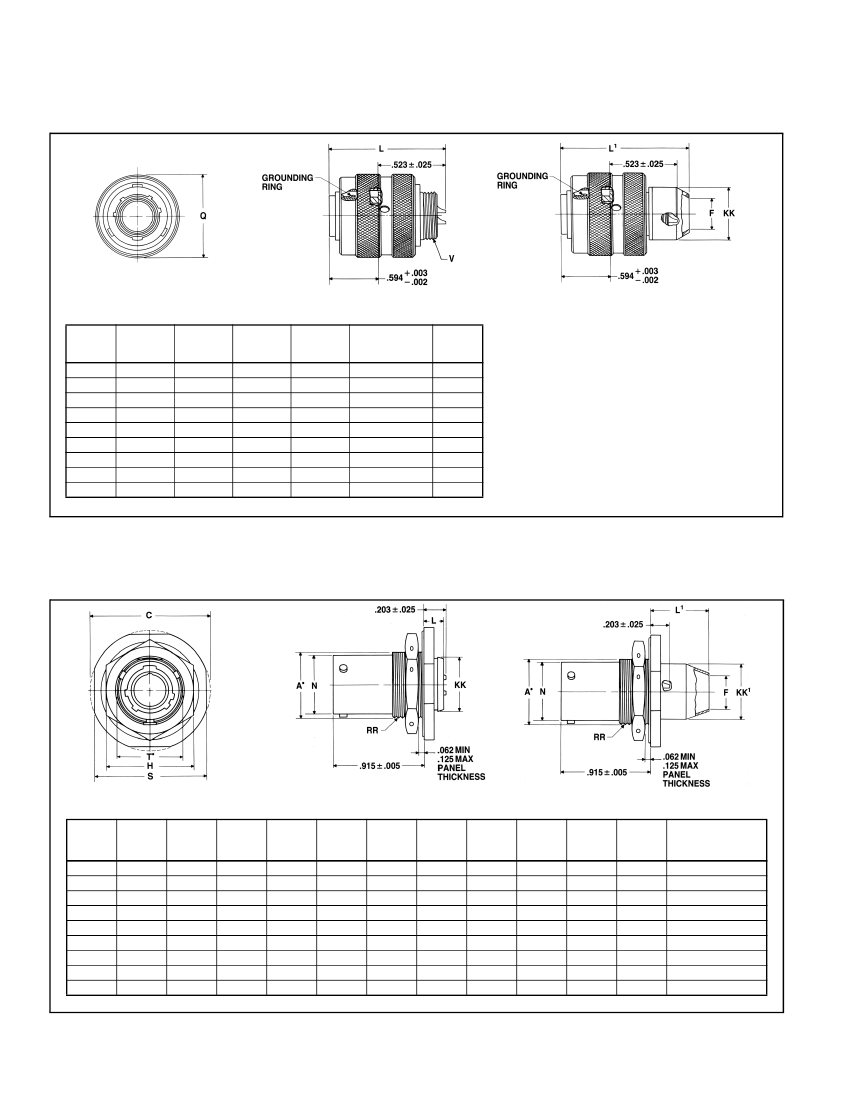

LJT06 (MS20028)

– solder

straight plug

* To complete order number see page 7..

*LJT06T-XX-XXX (MS20028T)

*LJT06P-XX-XXX

Shell

Size

F

Dia.

L

Max.

L

1

Max.

Q

Max.

V Thread

Class 2A

UNEF (Plated)

KK

Dia.

Max.

9

11

13

15

17

19

21

23

25

.327

.444

.558

.683

.808

.909

1.034

1.159

1.284

1.128

1.191

1.488

1.566

1.644

.844

.969

1.141

1.266

1.391

1.500

1.625

1.750

1.875

.4375-28

.5625-24

.6875-24

.8125-20

.9375-20

1.0625-18

1.1875-18

1.3125-18

1.4375-18

.608

.734

.858

.984

1.110

1.234

1.360

1.484

1.610

All dimensions for reference only.

LJT07 (MS20029)

– solder

jam nut receptacle

•

“D” shaped mounting hole dimensions

* To complete order number see page 7.

*LJT07T-XX-XXX (MS20029T)

*LJT07P-XX-XXX (MS20029P)

Shell

Size

A

•

+.000

–.010

C

Max.

F

Dia.

H Hex

+.017

–.016

L

Max.

L

1

Max.

N

+.001

–.005

S

±.016

T

•

+.010

–.000

KK

+.011

–.000

KK

1

Dia.

Max.

RR Thread

Class 2A

(Plated)

9

11

13

15

17

19

21

23

25

.669

.769

.955

1.084

1.208

1.333

1.459

1.580

1.709

1.199

1.386

1.511

1.636

1.761

1.949

2.073

2.199

2.323

.327

.444

.558

.683

.808

.909

1.034

1.159

1.284

.875

1.000

1.188

1.312

1.438

1.562

1.688

1.812

2.000

.234

.266

.625

.656

.750

.572

.700

.850

.975

1.100

1.207

1.332

1.457

1.582

1.062

1.250

1.375

1.500

1.625

1.812

1.938

2.062

2.188

.697

.822

1.007

1.134

1.259

1.384

1.507

1.634

1.759

.516

.642

.766

.892

1.018

1.142

1.268

1.392

1.518

.608

.734

.858

.984

1.110

1.234

1.360

1.484

1.610

.6875-24UNEF

.8125-20UNEF

1.0000-20UNEF

1.1250-18UNEF

1.2500-18UNEF

1.3750-18UNEF

1.5000-18UNEF

1.6250-18UNEF

1.7500-18UNS

All dimensions for reference only.
