88417-010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88417-010

88417-010: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size155KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

88417-010 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

88417-010 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Is Samacsys	N
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (15) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	88417
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94VE-0
Base Number Matches	1

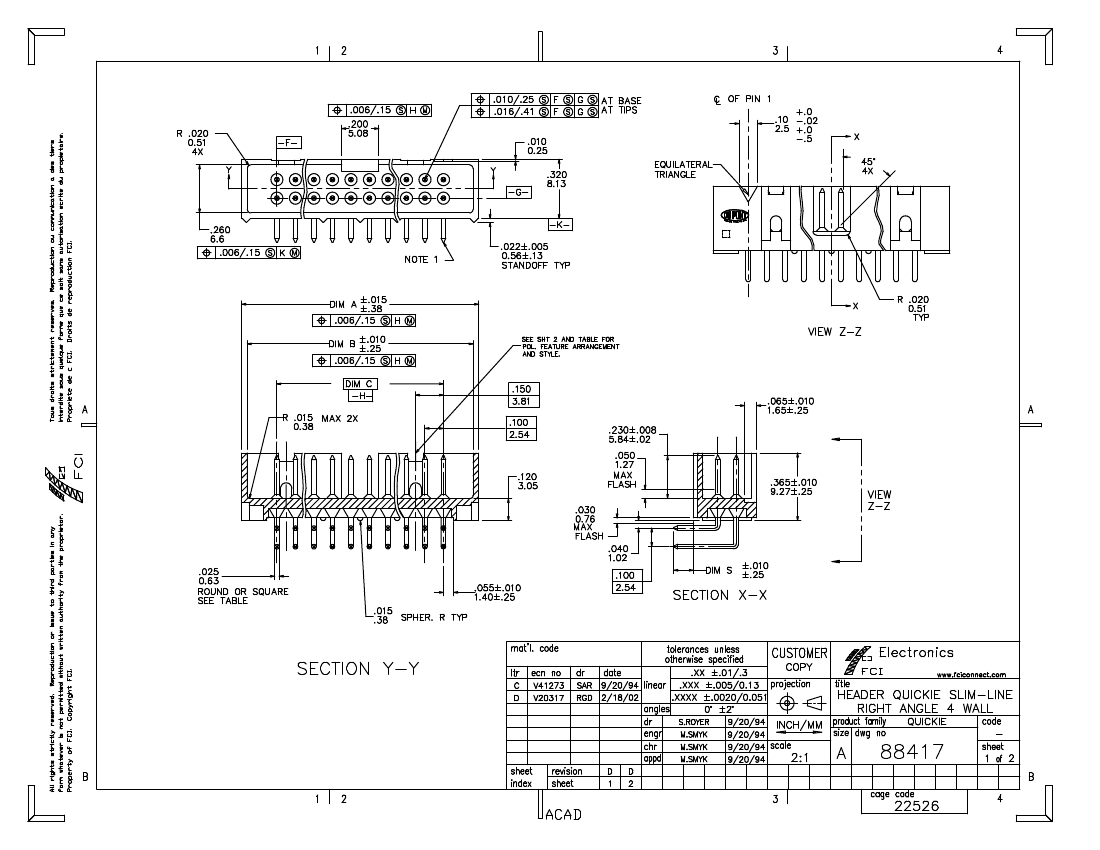

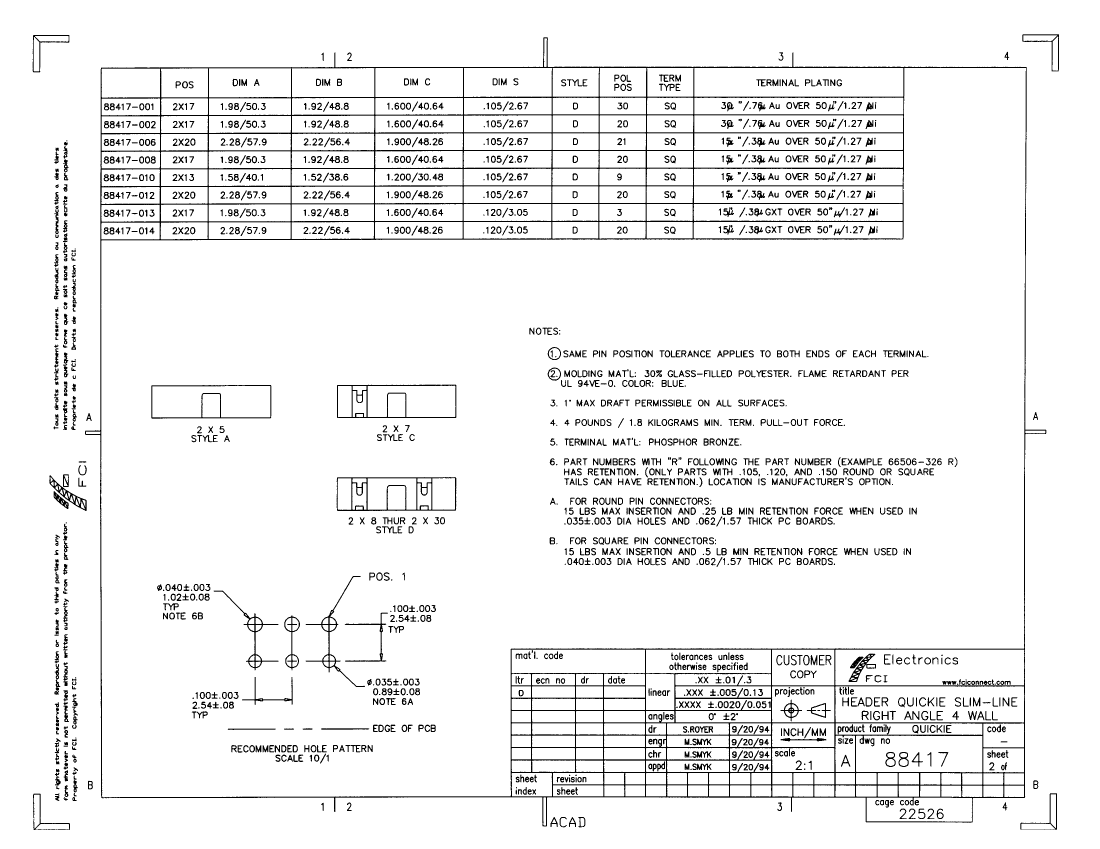

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Apr 04, 2003

88417-010 Related Products

	88417-010	88417-001	88417-002	88417-006	88417-008	88417-012	88417-013	88417-014
Description	Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Is Samacsys	N	N	N	N	N	N	N	N
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	GOLD (15) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (15) OVER NICKEL	NICKEL PALLADIUM GOLD (15)	NICKEL PALLADIUM GOLD (15)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	88417	88417	88417	88417	88417	88417	88417	88417
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	26	34	34	40	34	40	34	40
UL Flammability Code	94VE-0	94VE-0	94VE-0	94VE-0	94VE-0	94VE-0	94VE-0	94VE-0
Base Number Matches	1	1	1	1	1	1	1	1
