HM2P07PDE340N9LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P07PDE340N9LF

HM2P07PDE340N9LF: DescriptionBoard Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size128KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P07PDE340N9LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HM2P07PDE340N9LF	-	-	View	Buy Now

HM2P07PDE340N9LF Overview

Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P07PDE340N9LF Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2P07PDE340
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	110
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

HM2P07PDE340----

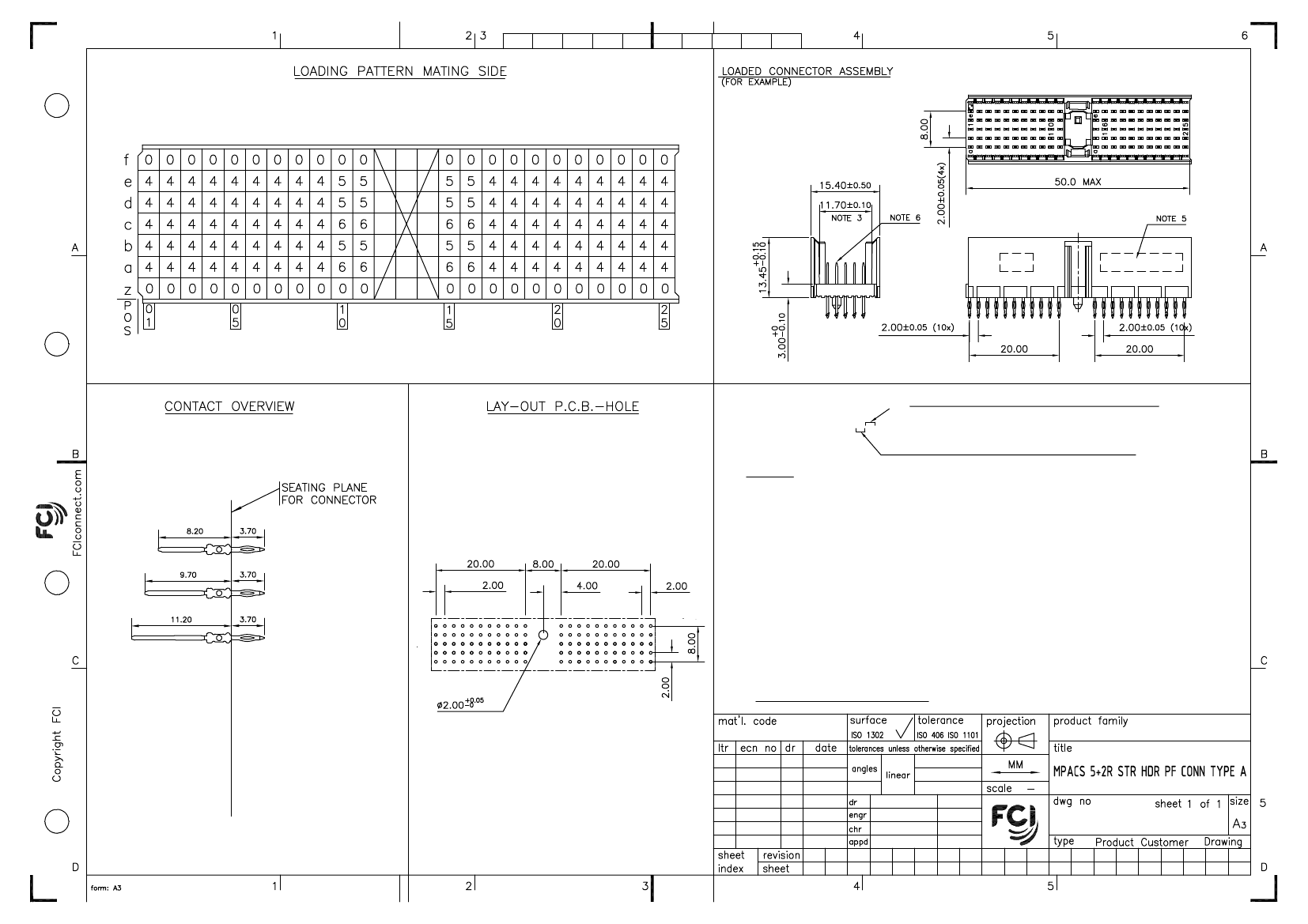

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

CATALOG NO: HM2P07PDE340----

SEE NOTE 4

I04-0031

I05-0188

I06-0090

MINI 2004/04/22

MINI

2005/10/13

0°±1°

MINI K VANDANATH 2004/04/22

BIJU K PAUL

2004/04/22

2006/06/27

MINI 2006/06/27

.0±0.2

.00±0.1

MILLIPACS

BS, C ,203028, 128

PDM: Rev:C

STATUS:

Released

Printed: Dec 03, 2007
