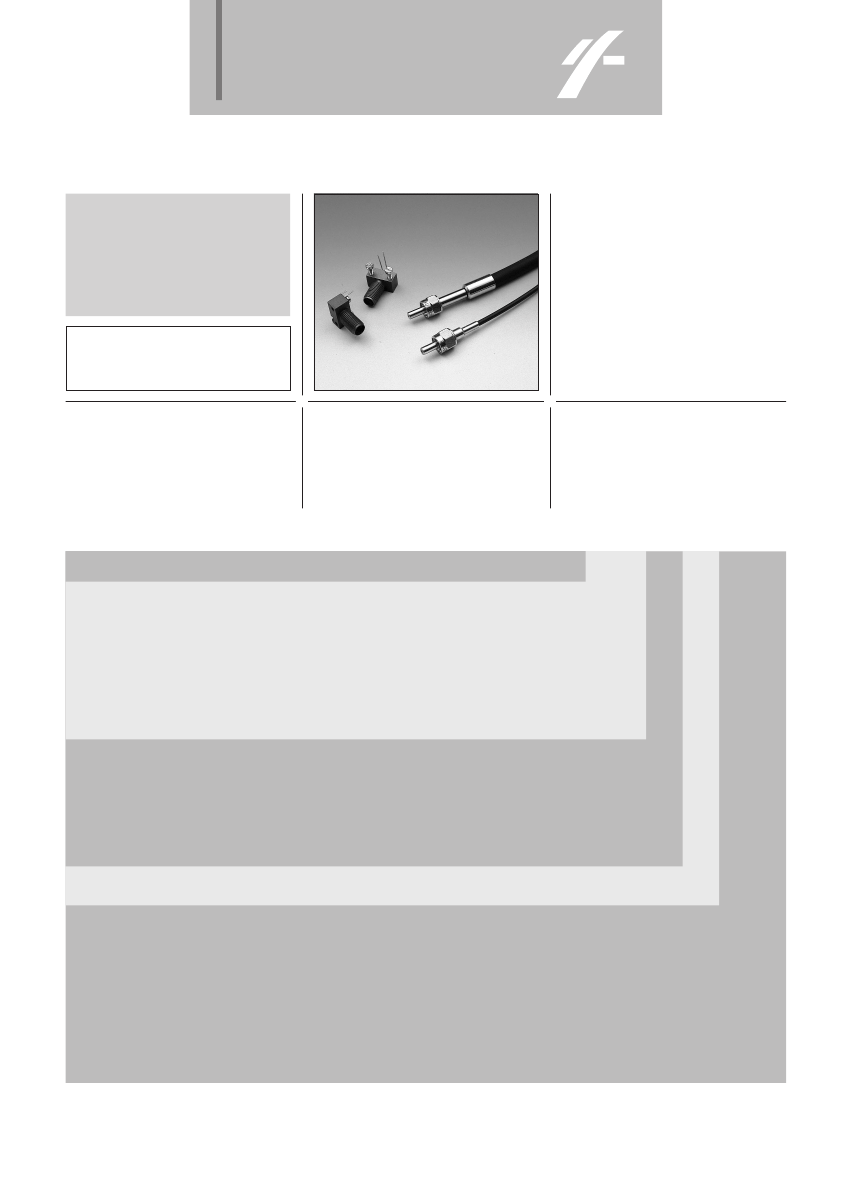

SOURIAU
FSMA 8005
Application
FSMA 8005 connectors can connect
most optical fibres for a variety of
applications such as :
- computer industry,
- industrial links,
- instrumentation,
- aeronautical and military applications
Description
FSMA 8005 connectors range includes :
plugs, in line couplers, thru-bulkhead
adaptators, and device housings to
accomodate led’s and photo diodes for
printed circuit board mounting.
Jumpers and active device housings can be
supplied regarding customer requirement.
Standards
mil C 83522
UTE CF 02 - NFC 93813
IEC SC 86 B
Characteristics
• Performances :
attenuation at typical : 850 nm
50/125 µ : 1,5 dB
100/140 µ : 1 dB
Materials :
connector in arcap, rust proof material,
alignment by precision drilled jewel or fully
metallic probe.
Electrical :
• Temperature range : depends on the cable
and fibre used :
- 20 to + 70° C for standard applications
- 40 to + 85° C for military and aeronautical
applications
Ordering information
basic series
plugs
51
- gluing / polishing (silica fibre)
53
- crimping / polishing (plastic fibre)
59
- sealed version plug
Couplers
device
housings
Fibres type
Arcap
AU4G Anodized
25
- thru-bulkhead / coupler
26
- square flange / coupler
33
- PC red receptacle (Emitter)
43
- PC blue receptacle (Receiver)
8005
5
1
G
0
2
7
G - 50/125 - 62.5/125 µ silica fibre
H - 100/140/250 to 500 µ silica fibre
R - 200/230/500 µ HCS
J - 1000 µ plastic fibre
Z - for device housings and couplers
Other fibres :
consult us
modification code * depending on the version :
please consult us
cables type
Cable diameters
(mm)
61
62
27
23
36
For other cable types,
Ø 1.5
Ø 2.2 (Plastic fiber)
Ø 2.7
Ø3
Ø 6 (reinforcement plastic fiber Ø 2.2)
consult us
For adaptors, leave blank.
Device housings details
Centering rings depend on component type, please consult us for the part number.
442
SOURIAU
FSMA 8005
Dimensions
Plug series 5
thru-bulkhead coupler
23.5/
.925
Ø 3.175/
.125
33/
1.299
5.9
.232
device housing
9.6 A/F
.378
2.56 UNC 2B
.101
3.7/
.146
8 A/F
.315
17.2/
.677
P/N : 8005 25 Z0 - arcap
P/N : 8005 33 Z0 - Red anodized
aluminium
8005 43 Z0 - Blue anodized
aluminium
P/N : 8005 51 XXX
square flange coupler
protective caps
for plugs
for device housing
and coupler
10/
.394
23.5/
.925
1.6
.063
12.7/
.5
5.9
.232
13
.512
9/
.354
9/
.354
Ø 2.6
.102
8.64
.340
cord lenght 45mm/
1.772
P/N : 8005 26 Z0 - arcap
P/N : 8005 0138
P/N : 8005 0139
Fibre termination
• Technology
- gluing / polishing for fibre types G, H, R
- crimping and polishing for fibre type J
• Options can be ordered separately to complete the tool kit :
- microscope/high magnification
-
-
-
-
microscope adapter
crimping plier for cable type 23 or 27
crimping plier for cable type 62 or 36
crimping plier for cable type 61
X200
X400
P/N : 80-WL0007
P/N : 80-WL0001
P/N : 80-WL0020
P/N : 80-WS0003
P/N : 80-WS0019
P/N : 80-WS0002
• Tool kit
P/N : 80 MG-0018
The tool kit contains all necessary tools to terminate plugs in gluing
/ polishing technic.
- stripping pliers
- polishing tools (coarse and final)
- curing oven
- miscellaneous tool
NB : the crimping tool must be ordered separately depending on the
cable diameter (type 23, 27 or 61)
•Consumable kit
P/N : 80-KG0009
• Tool kit
P/N : 80-MS0002
The consumable kit contains all necessary materials to terminate
about 50 plugs such as :
- polishing disks
- glue
- syringes and needles
- ethanol
- dry air canned
- miscellaneous
The tool kit contains all necessary tools to terminate plugs for plastic
fiber (type J) such as :
- stripping pliers
- polishing tool
- miscellaneous tool
NB : the crimping tool must be ordered separately depending on the
cable diameter (type 62 or 36)
• Cleaning kit
P/N : 80-KN0002
- The cleaning Kit contains all necessary items to clean either plugs,
couplers or device housings such as :
- ecological cleaning spray
- dry air canned
- ethanol
- paper sticks
- cleaning paper
9.3/
.366
12.7/
.05
443
