A6TN-9104: DescriptionSlide Dip Switch, 9 Switches, SPST, Latched, 0.025A, 24VDC, Solder Terminal, Through Hole-straight, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size358KB，4 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

A6TN-9104 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A6TN-9104	-	-	View	Buy Now

A6TN-9104 Overview

Slide Dip Switch, 9 Switches, SPST, Latched, 0.025A, 24VDC, Solder Terminal, Through Hole-straight, ROHS COMPLIANT

A6TN-9104 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	7.5 mm
body height	4.25 mm
Body length or diameter	24.8 mm
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	.025A@24VDC
Maximum contact voltage (DC)	24 V
Electrical life	1000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT
Number of switching segments	9
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
method of packing	TUBE
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	SLIDE DIP SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

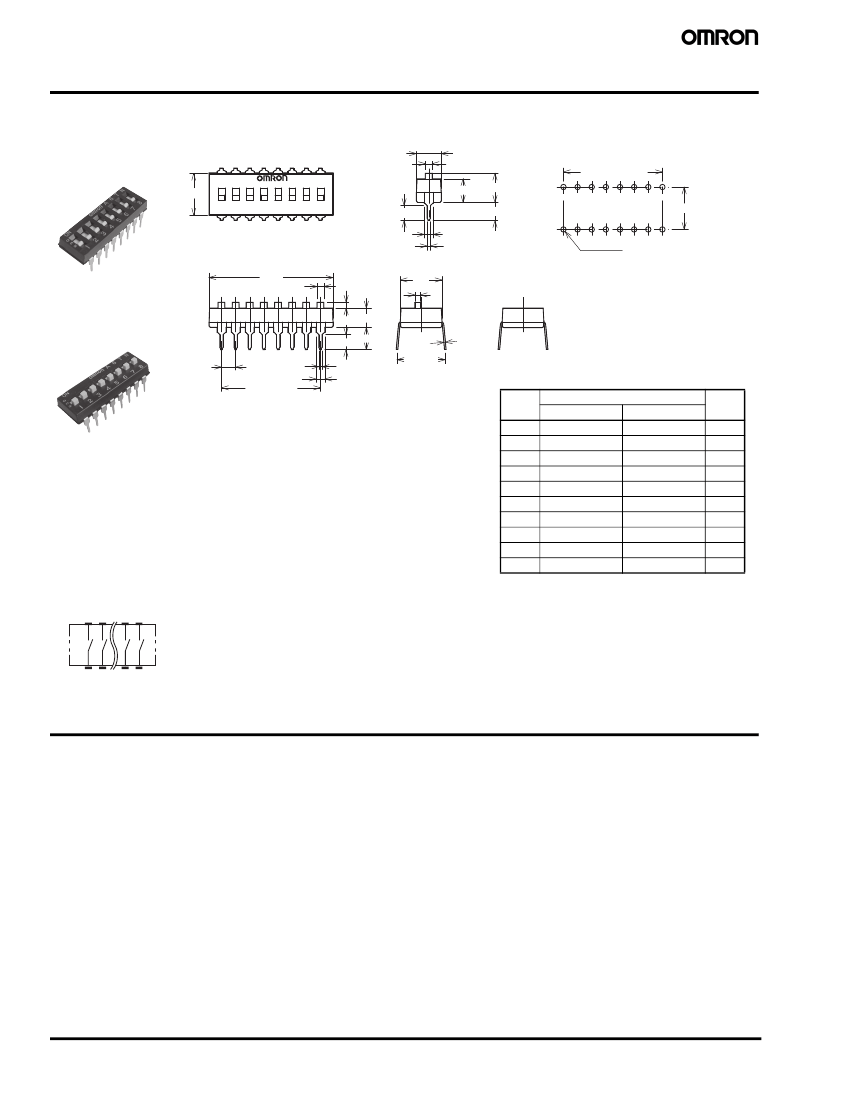

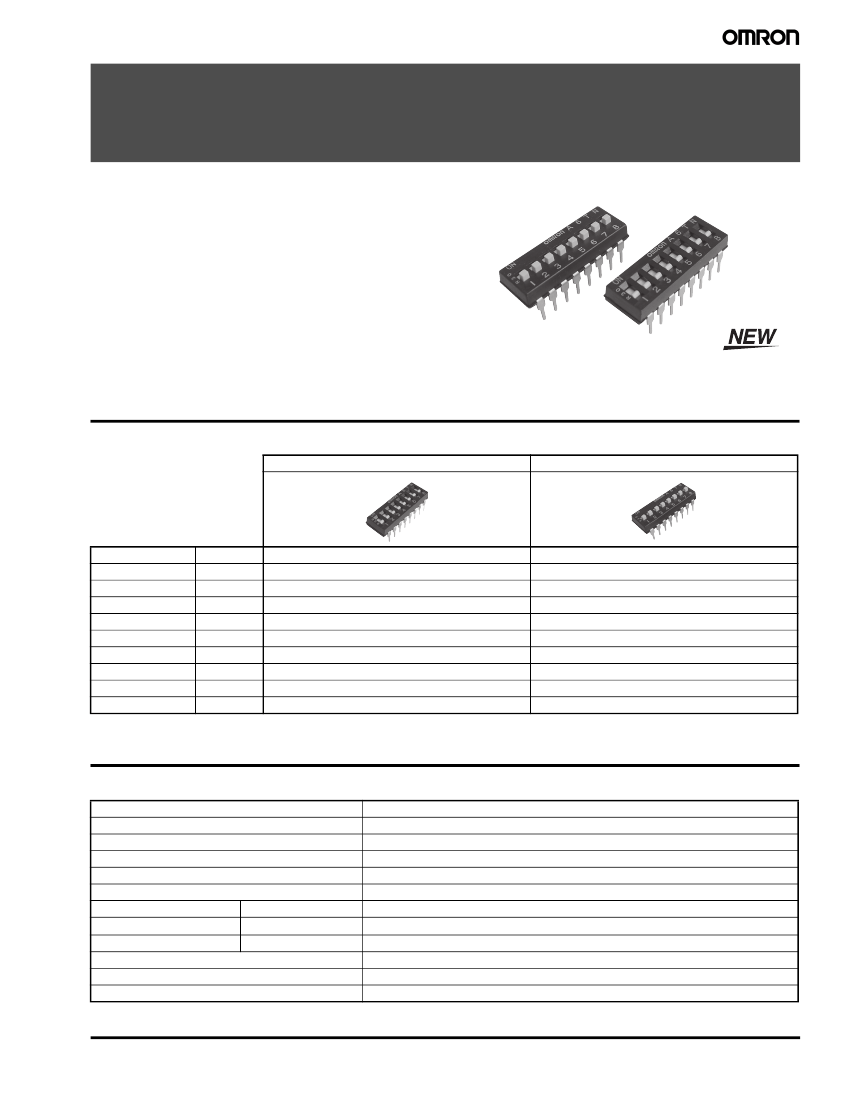

DIP Switch

A6TN

Knife-edge high pressure mechanics.

• Knife-edge high pressure mechanics ensures high

reliability.

• Knife-edge high pressure mechanics enables washing

without seal tape.

• Temperature-resistance resin allows at peak soldering

temperature of 265

°C.

• RoHS Compliant

Ordering Information

■

Models in Tube Packages

Flat actuator

Raised actuator

No.of poles

Quantity

per stick

100

A6TN-1101

A6TN-2101

A6TN-3101

A6TN-4101

A6TN-5101

A6TN-6101

A6TN-7101

A6TN-8101

A6TN-9101

A6TN-0101

A6TN-1104

A6TN-2104

A6TN-3104

A6TN-4104

A6TN-5104

A6TN-6104

A6TN-7104

A6TN-8104

A6TN-9104

A6TN-0104

Note:

Order in multiples of the quantities given for each package.

Specifications

■

Characteristics

Switching capacity

Minimum permissible load

Contact resistance

Insulation resistance

Dielectric strength

Operating force

Vibration resistance

Shock resistance

Service life

Ambient operating humidity

Weight

Note:

Data shown are of initial value

25 mA at 24 VDC

μA

at 3.5 VDC

200 mΩ max.

100 MΩ min. (at 100 VDC)

300 VAC for 1 min between terminals

100 to 806 gf (0.98 to 7.9 N)

Malfunction Durability

10 to 55 Hz, 1.5-mm double amplitude

Malfunction Durability

490 m/s

min. (approx. 49.9G min.)

Electrical

1,000 operations min.

–30 to 85°C at 60% RH max. (with no icing or condensation)

35% to 95% (at 5 to 35°C)

0.31 g (2 poles), 0.58 g (4 poles), 0.84 g (6 poles), 1.1 g (8 poles), 1.36 g (10 poles)

Ambient operating temperature

DIP Switch

A6TN
