MS27484E10A98PC datasheet, PDF

Datasheet> All Categories > The connector> The connector> MS27484E10A98PC

MS27484E10A98PC: DescriptionMIL Series Connector, 6 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug; CategoryThe connector The connector; File Size197KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MS27484E10A98PC Overview

MIL Series Connector, 6 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug

MS27484E10A98PC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-38999, COMPATIBLE CONTACT: M39029/58-363
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	MS27484E
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	10
Termination type	CRIMP
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

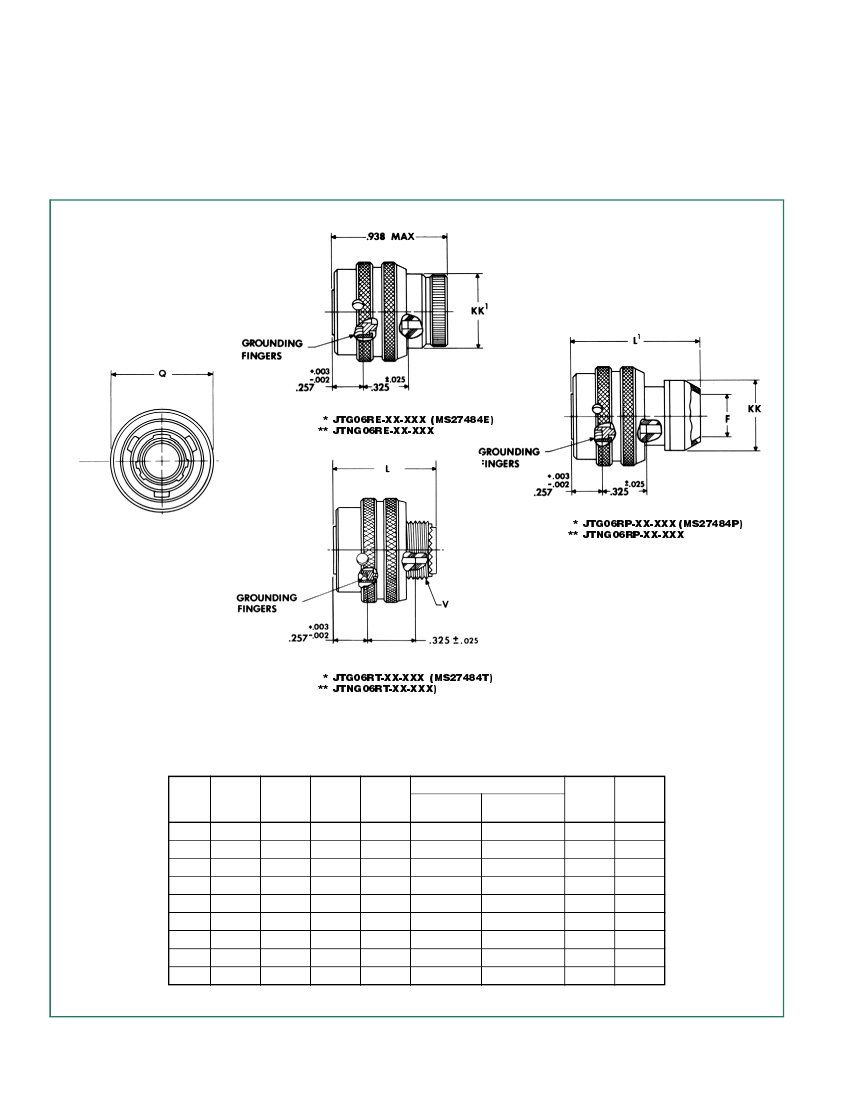

JTG06R (MS27484)

— crimp

straight plug (with grounding fingers)

* JTG06RE-XX-XXX (MS27484E)

** JTNG06RE-XX-XXX

* JTG06RP-XX-XXX (MS27484P)

** JTNG06RP-XX-XXX

* JTG06RT-XX-XXX (MS27484T)

** JTNG06RT-XX-XXX)

* To complete order number see page 49.

** Clear iridite finish (gold color), N

resistant; to complete order number see page 49.

Dia.

Max.

V Thread Modified

Class 2A

UNEF

Modified

Major Dia.

Dia.

Max.

Dia.

Max.

Shell

Size

Dia.

Max.

.444

.558

.683

.808

.909

1.034

1.159

1.284

1.409

.891

1.000

1.062

.734

.844

1.016

1.141

1.265

1.391

1.500

1.625

1.750

.4375-28

.5625-24

.6875-24

.8125-20

.9375-20

1.0625-18

1.1875-18

1.3125-18

1.4375-18

.421 – .417

.542 – .538

.667 – .663

.791 – .787

.916 – .912

1.034 – 1.030

1.158 – 1.154

1.283 – 1.279

1.408 – 1.404

.625

.750

.875

1.000

1.125

1.250

1.375

1.500

1.625

.578

.703

.828

.953

1.078

1.203

1.328

1.453

1.578

All dimensions for reference only.
