D37P34A4PL00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D37P34A4PL00

D37P34A4PL00: DescriptionD Subminiature Connector, 37 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size104KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D37P34A4PL00 Overview

D Subminiature Connector, 37 Contact(s), Male, Solder Terminal

D37P34A4PL00 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	D37P34A4PL00
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0
Base Number Matches	1

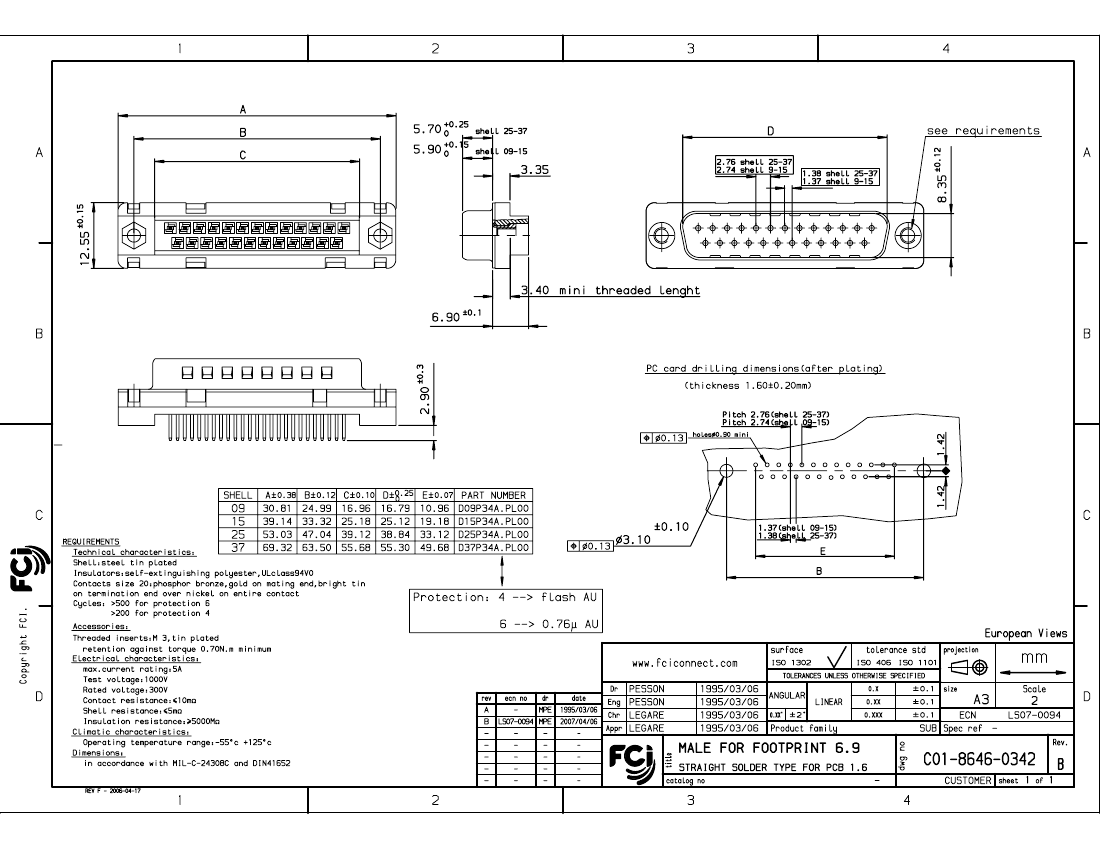

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Apr 24, 2007

D37P34A4PL00 Related Products

	D37P34A4PL00	D15P34A4PL00	D15P34A6PL00	D37P34A6PL00	D09P34A4PL00	D09P34A6PL00	D25P34A4PL00	D25P34A6PL00
Description	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	unknown	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	D37P34A4PL00	D15P34A4PL00	D15P34A6PL00	D37P34A6PL00	D09P34A4PL00	D09P34A6PL00	D25P34A4PL00	D25P34A6PL00
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	4/C	2/A	2/A	4/C	1/E	1/E	3/B	3/B
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	37	15	15	37	9	9	25	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	-	Amphenol	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol
