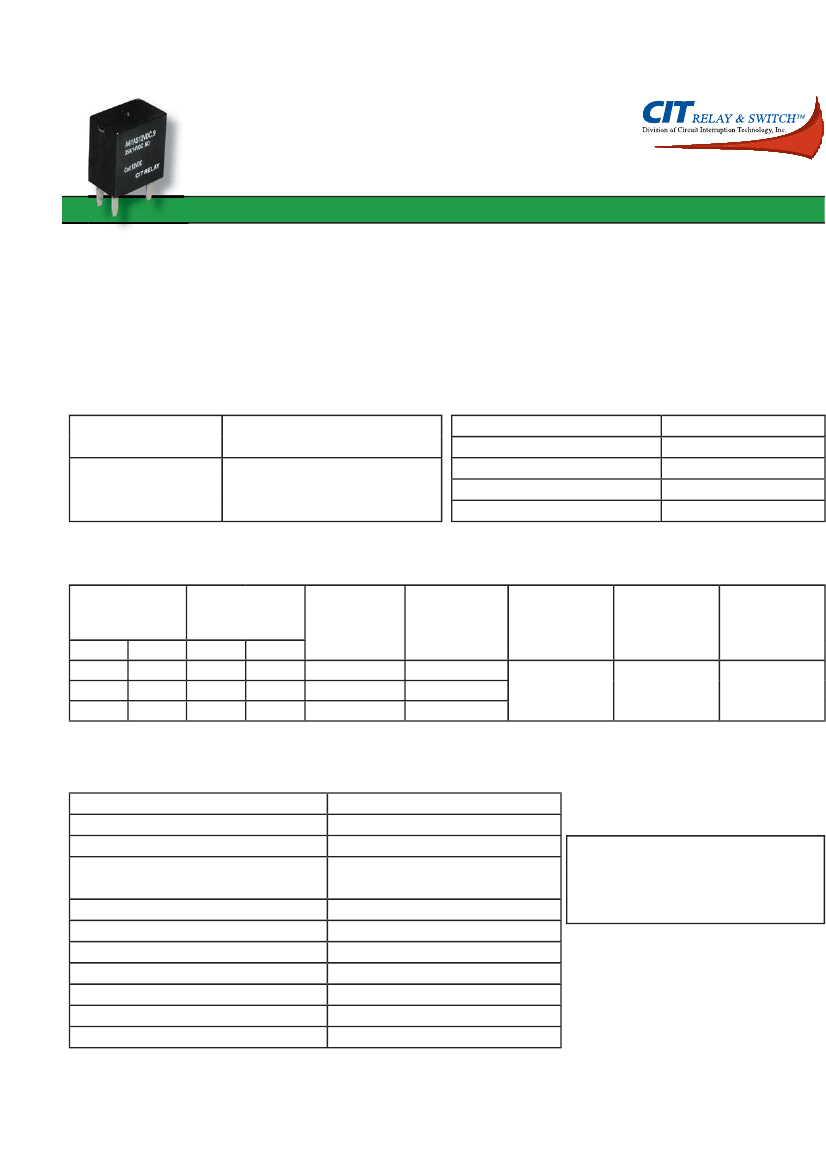

RoHS Compliant
22.5 x 15.0 x 25.2 mm
A6
Features
•
•
•
•
•
Low coil power consumption
Small size and light weight
Switching current up to 35A
Suitable for household appliances, automotive applications
1A & 1C contact configurations available
Contact Data
Contact Arrangement
Specifications and availability subject to change without notice.
1A = SPST N.O.
1C = SPDT
1A : 35A @ 14VDC
1C : 35A @ 14VDC N.O.
1C
: 25A @ 14VDC N.C.
Contact Resistance
Contact Material
Maximum Switching Power
Maximum Switching Voltage
Maximum Switching Current
< 50 milliohms initial
AgSnO
2
560W
75VDC
35A
Contact Rating
Coil Data
Coil Voltage
VDC
Rated
6
12
24
Max
7.8
15.6
31.2
Coil Resistance
Ω
+/- 10%
.9W
40
160
640
1.3W
27
109
436
Pick Up Voltage Release Voltage
VDC (max)
VDC (min)
70% of rated
voltage
4.20
8.40
16.80
10% of rated
voltage
.6
1.2
2.4
.90 or 1.30
5
2
Coil Power
W
Operate Time
ms
Release Time
ms
Dimensions shown in mm. Dimensions are shown for reference purposes only.
General Data
Electrical Life @ rated load
Mechanical Life
Insulation Resistance
Dielectric Strength, Coil to Contact
Contact to Contact
Shock Resistance
Vibration Resistance
Terminal (Copper Alloy) Strength
Operating Temperature
Storage Temperature
Solderability
Weight
100K cycles, typical
10M cycles, typical
100M
Ω
min. @ 500VDC
500V rms min. @ sea level
500V rms min. @ sea level
100m/s
2
for 11 ms
1.27mm double amplitude 10~40Hz
10N
-40
o
C to +85
o
C
-40
o
C to +155
o
C
260
o
C for 5 s
21g
Caution
1. The use of any coil voltage less than the
rated coil voltage may compromise the
operation of the relay.
www.citrelay.com
phone - 763.535.2339
fax - 763.535.2194
A6
Ordering Information
1. Series
A6
2. Contact Arrangement
1A = SPST N.O.
1C = SPDT
3. Sealing Option
S = Sealed
C = Dust Cover
4. Coil Voltage
6VDC
12VDC
24VDC
Dimensions shown in mm. Dimensions are shown for reference purposes only.
A6
1C
S
12VDC
.9
5. Coil Power
.9 = .9W
1.3 = 1.3W
6. Coil Suppression
Blank = Standard
D = Diode (1N4005) Cathode on “86” terminal
R = Resistor
* Consult factory if other values are needed
Dimensions
Units = mm
Specifications and availability subject to change without notice.
Schematics & PC Layouts
Bottom Views
1A
www.citrelay.com
phone - 763.535.2339
fax - 763.535.2194
1C
