COMMUNICATIONS TEST & MEASUREMENT SOLUTIONS
Fiber Optic Test Adapters and Cables
Key Features
•A
complete range of adapters and cables suitable for all
JDSU products with optical interfaces
•Ready
for all common 2.5 and 1.25 mm connectors
•Suitable
for both PC and APC
•Accurate
power measurements with built-in reflection
trap (2014 series)
•2150
and 2060 adapters for physical contact ports (PC,
APC)

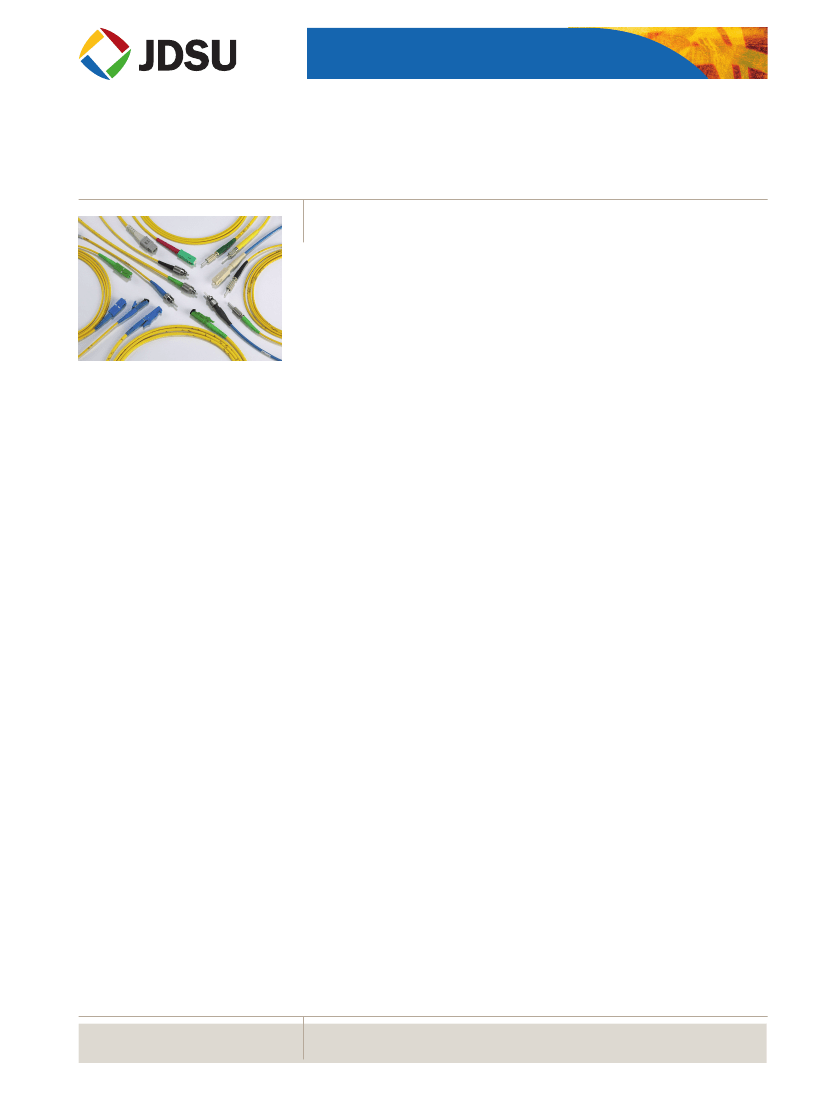

JDSU offers a wide range of adapters and cables for connecting fiber optic test equipment to
the various fiber optic connector systems used today. The universal adapters are very easy to
use and ready for future standards. It is very easy to adapt existing instrument to new con-
nector systems. The adapters allow simple access for cleaning or inspection. Adapters and
cables are available for multimode and singlemode applications.
2060 universal test adapters
The 2060 test adapter system is designed for precise fiber to fiber coupling. The port of the
instrument has a ferrule with a fiber inside. The test cable is connected to this fiber with
physical contact and the 2060 adapter system guarantees a precise alignment of the fiber
from the connector of the external test cable with the fiber in the instrument’s port. 2060
universal test adapters work with physical contact (PC) and angled physical contact (APC).
2150 universal test adapters
Like the 2060 adapters the 2150 universal test adapters are designed for precise fiber to fi-
ber coupling and also the 2150 system guarantees a perfect alignment of the fiber from the
instrument’s port with the fiber from the external connector. With its quick-lock technology,
the 2150 adapter system speeds up the time for changing the adapters.
2014 universal test adapters
The 2014 adapters are designed for instruments with direct coupling of the test cable to a
photo detector. They are also available for various connector standards. A built-in reflection
trap in the adapters prevents multiple reflections between the connector’s end face and the
detector, which would cause incorrect results. This guarantees constant high measurement
accuracy regardless of the reflectivity and quality of the surface of the connector. The 2014
universal push pull adapters (UPP) are available for 2.5 or 1.25 mm connectors.
One 2.5 mm UPP adapter fits to all 2.5 mm fiber optic connectors as well as the 1.25 mm
UPP adapter fits to all 1.25 mm connectors. So the UPP adapters reduce the numbers of
adapters needed for power meters.
All 2014 adapters are designed to be used with PC and with APC connectors.
WEBSITE:
www.jdsu.com
Fiber Optic Test Adapters and Cables
2
Specifications
Fixed attenuators/mating sleeves
The S31XX series of fiber optic mating
sleeves complement the test adapters and
cables. They are used to connect two fiber
optic connectors together, e.g. connect two
jumper cables.
K30XX, K31XX test and adapter cables
Fiber optic jumper cables are used to con-
nect the device under test (DUT) with the
instrument or for connecting instruments
together. The series of K20XX cables are
comprised of multimode fiber and the
K31XX are comprised of singlemode fiber.
The cables are available with various con-
nectors. If equipped with different connec-
tors at both ends they could be used as an
adapter from one connector standard to
another.
Singlemode fixed attenuators
JDSU offers several optical fixed attenuators
with different connectors and different at-
tenuation values.
PC (Physical Contact)
Refers to an optical connector that allows
the fiber ends to physically touch. Used
to minimize back reflection and insertion
loss.
Rounded finish
Air gap coupling

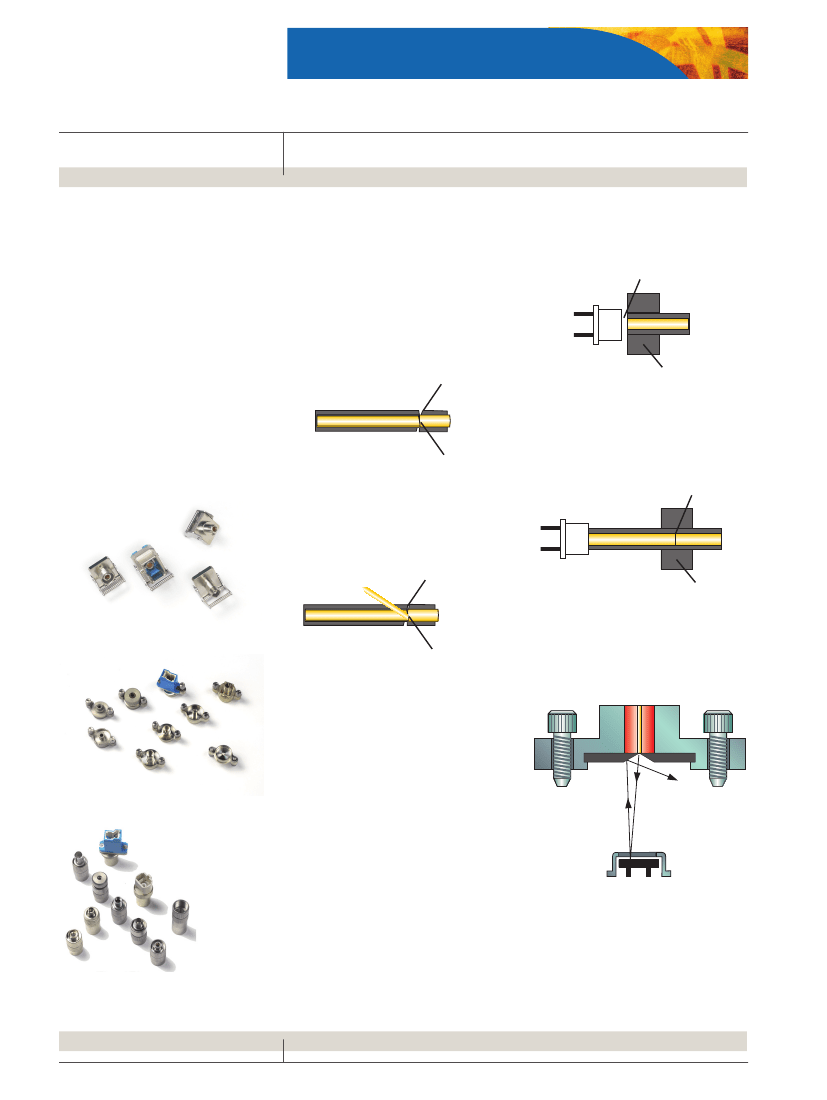

Principle of air gap coupling between fiber
and photo diode used with 2014 adapters.
Air gap
Precise sleeve
Fiber to fiber coupling
Principle of fiber to fiber coupling for laser,
LED or photo diodes used with 2060 or
2150 adapters.
Physical contact
Physical contact
APC (Angled Physical Contact)
A style of fiber optic connector with a 5° to
15° angle on the connector tip for the mini-
mum possible back reflection.
Angled finish
Precise sleeve
Optical test adapters BN 2150
Reflection trap
Angled surfaces touch
The reflection trap in 2014 adapters avoids
multiple reflections to provide highest ac-
curacy.
Optical test adapters BN 2014
Optical test adapters BN 2060
Fiber Optic Test Adapters and Cables
3
Specifications
Test adapters
Connector type
FC-PC, FC-APC
SC-PC, SC-APC
LC, F-3000
ST
F-SMA
DIN 47256
E-2000
UPP for FC, SC, ST, DIN
UPP for FC, SC, ST, DIN and Optifit MST
UPP for LC, MU, F-3000
Ferrule diameter
2.5 mm
2.5 mm
1.25 mm
2.5 mm
3.175 mm
2.5 mm
2.5 mm
2.5 mm
2.5 mm
1.25 mm
Order number
2014 adapter
2014/00.09
2014/00.24
2014/00.29
2014/00.21
2014/00.02
2014/00.17
2014/00.26
2014/00.27
2014/00.31
2014/00.28
Order number
2060 adapter
2060/00.51
2060/00.58
2060/00.59
2060/00.32
2060/00.36
2060/00.50
2060/00.53
n.a.
n.a.
n.a.
Order number
2150 adapter
2150/00.51
2150/00.58
2150/00.59
2150/00.32
n.a.
2150/00.50
n.a.
n.a.
n.a.
n.a.
Other connector types and bare fiber adapters are available on request.
K30xx, K31xx test and adapter cables
50/125 µm multimode, 2 m length
Type
ST–ST
ST–FC-PC
ST–SC-PC
ST–DIN 47256
ST–F-SMA (3.175 mm)
Order
number
K3027
K3023
K3026
K3025
K3029
9/125 µm singlemode, 2 m length
Type
E2000-PC–E2000-PC
E2000-PC–E2000-APC
E2000-PC–DIN 47256
DIN45256–DIN 47256
DIN 47256–HRL-10
HRL-10–HRL-10
SC-PC–SC-PC
SC-PC–SC-APC
SC-APC–SC-APC
ST-PC–ST-PC
Order
number
K3137
K3138
K3134
K3100
K3113
K3118
K3110
K3125
K3127
K3122
Fixed attenuators/mating sleeves
Singlemode fixed attenuators
Type
Attenuation
(at 1310/1550
nm)
3 dB
6 dB
10 dB ± 1 dB
15 dB ± 2 dB
20 dB ± 2 dB
3 dB
6 dB
10 dB
15 dB + 2 dB
Order
number
2239/90.35
2239/90.37
2239/90.30
2239/90.33
2239/90.32
2239/90.34
2239/90.36
2239/90.38
2260/00.61
62.5/125 µm multimode, 2 m length
Type
ST–ST
ST–FC-PC
ST–SC-PC
ST–F-SMA (3.175 mm)
Order
number
K3028
K3024
K3031
K3030
9/125 µm singlemode, 0.35 m length
(1)
Type
DIN 47256–DIN 47256
FC-PC–FC-PC
SC-PC–SC-PC
Order
number
K3120
K3123
K3131
FC-PC
FC-PC
FC-PC
FC-PC
FC-PC
SC-PC
SC-PC
SC-PC
SC-PC
Singlemode mating sleeves
Type
DIN 47256,
FC-PC, FC-APC
F-SMA
ST
SC-PC, SC-APC
E2000-PC
E2000-APC
LC
Ferrule
diameter
2.5 mm
2.5 mm
3.175 mm
2.5 mm
2.5 mm
2.5 mm
2.5 mm
1.25 mm
Order
number
S3100
S3101
S3102
S3109
S3111
S3118
S3119
S3120
9/125 µm singlemode, 2 m length
Type
FC-PC–FC-PC
FC-PC–FC-APC
FC-APC–FC-APC
FC-PC–SC-PC
FC-PC–SC-APC
FC-PC–DIN 47256
FC-PC–E2000
FC-PC–E2000-APC
FC-PC–ST-PC
FC-PC–LC
FC-APC–DIN 47256
Order
number
K3112
K3129
K3130
K3139
K3141
K3101
K3132
K3135
K3133
K3140
K3121
(1) e.g. for connection between different ONT modules
Other cable types are available on request.
