UPD70337L-8-XXX

Description
Microcontroller, 16-Bit, MROM, 8MHz, CMOS, PQCC84, PLASTIC, LCC-84
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size445KB,11 Pages
ManufacturerNEC Electronics
Download Datasheet Parametric Compare View All

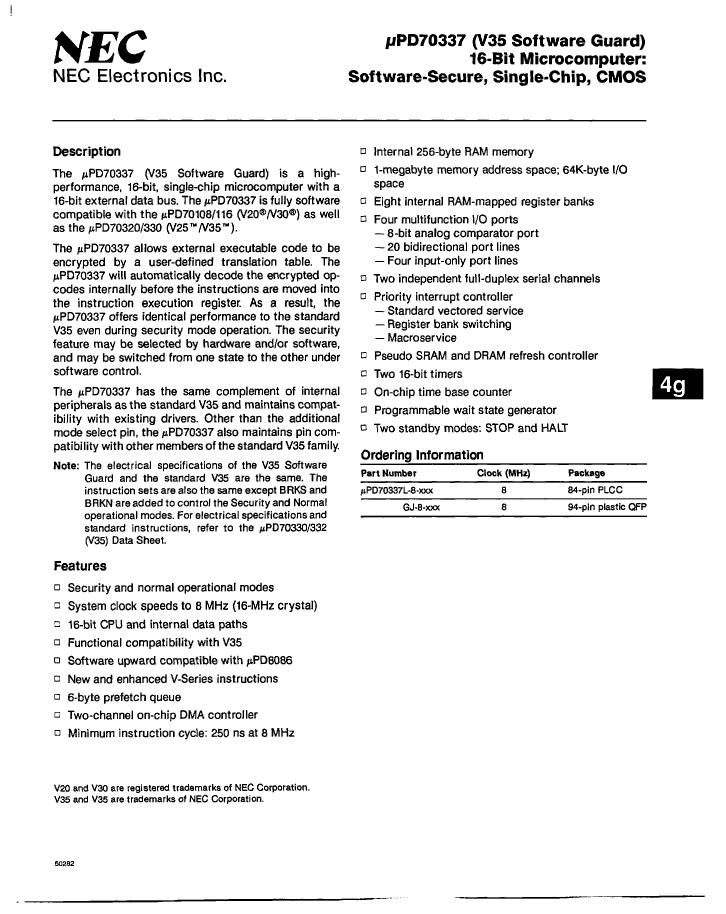

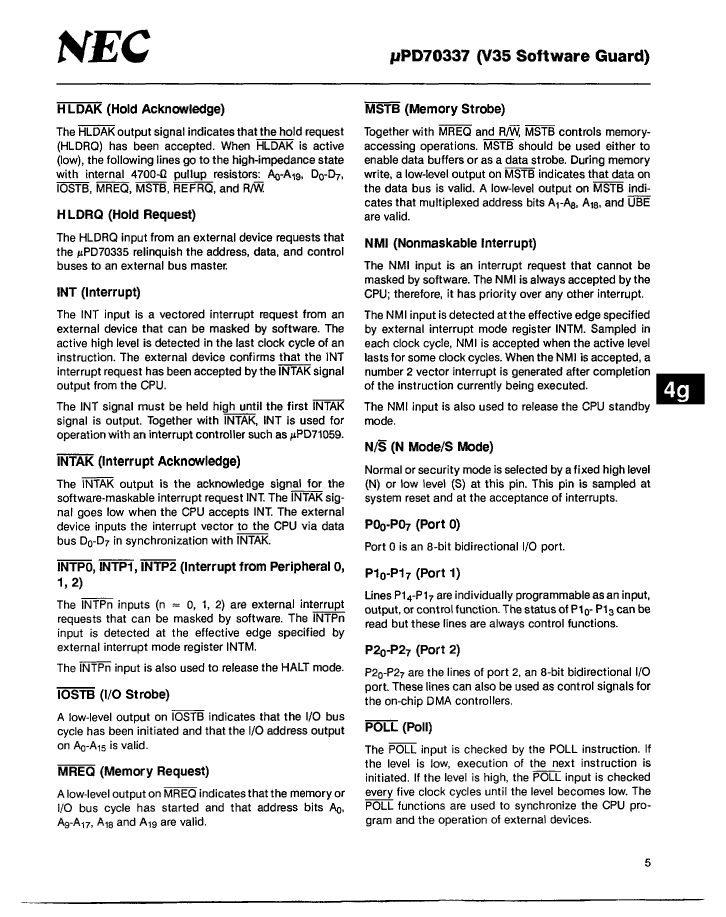

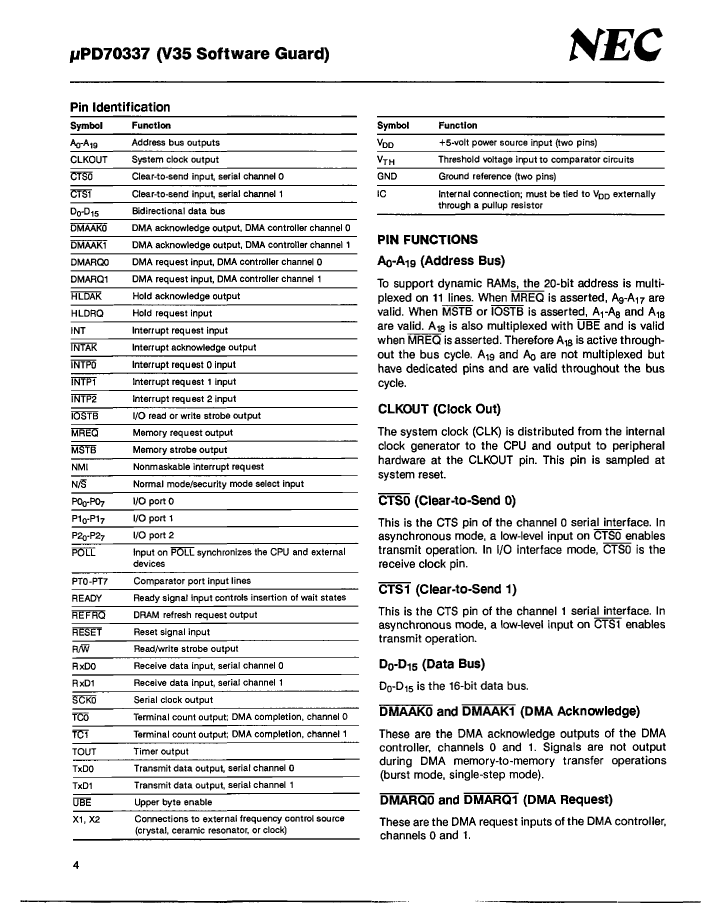

UPD70337L-8-XXX Overview

Microcontroller, 16-Bit, MROM, 8MHz, CMOS, PQCC84, PLASTIC, LCC-84

UPD70337L-8-XXX Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible

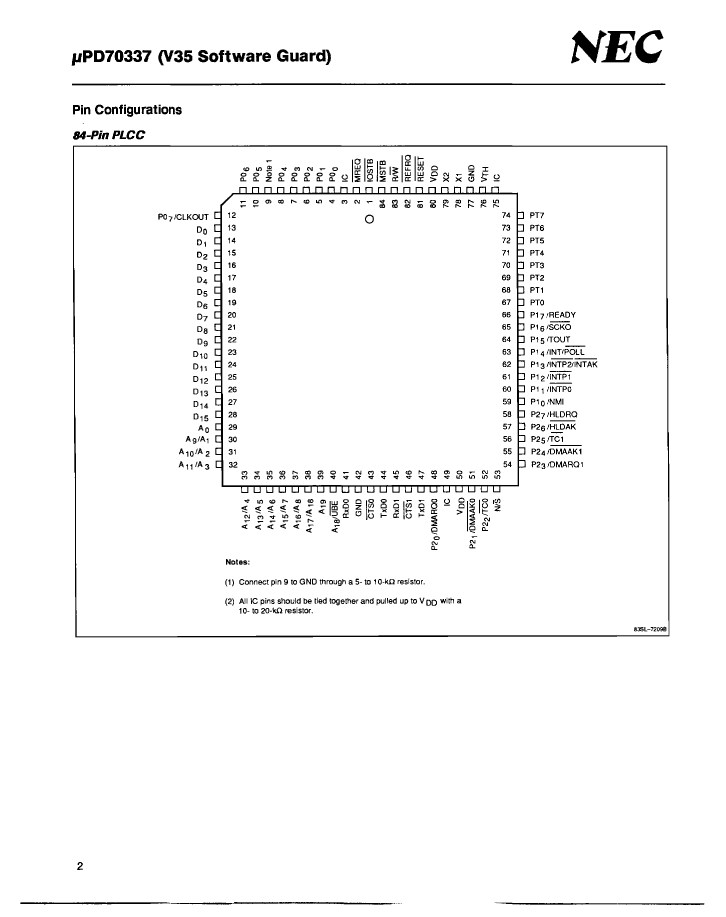

package instructionPLASTIC, LCC-84
Reach Compliance Codecompliant
Has ADCNO
Address bus width20
bit size16
maximum clock frequency16 MHz
DAC channelNO
DMA channelYES
External data bus width16
JESD-30 codeS-PQCC-J84
JESD-609 codee0
length29.28 mm
Number of I/O lines20
Number of terminals84
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
PWM channelNO
Package body materialPLASTIC/EPOXY
encapsulated codeQCCJ
Package shapeSQUARE
Package formCHIP CARRIER
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
ROM programmabilityMROM
Maximum seat height4.6 mm
speed8 MHz
Maximum slew rate120 mA
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTIN LEAD
Terminal formJ BEND
Terminal pitch1.27 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
width29.28 mm
uPs/uCs/peripheral integrated circuit typeMICROCONTROLLER
Base Number Matches1

UPD70337L-8-XXX Related Products

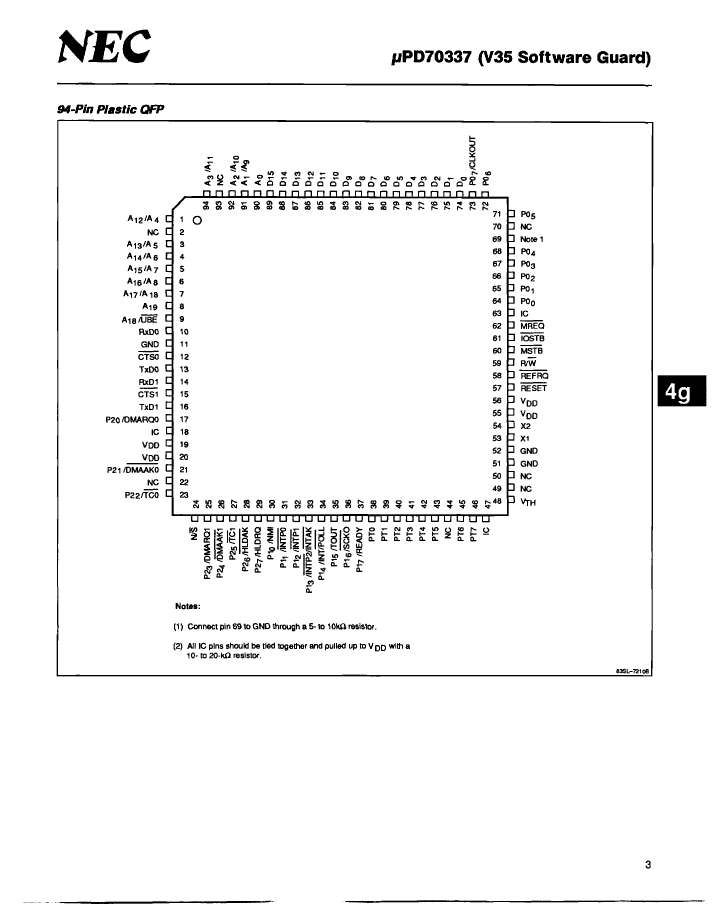

UPD70337L-8-XXX UPD70337GJ-8-XXX
Description Microcontroller, 16-Bit, MROM, 8MHz, CMOS, PQCC84, PLASTIC, LCC-84 Microcontroller, 16-Bit, MROM, 8MHz, CMOS, PQFP94, PLASTIC, QFP-94
Is it Rohs certified? incompatible incompatible
package instruction PLASTIC, LCC-84 QFP,
Reach Compliance Code compliant compliant
Has ADC NO NO
Address bus width 20 20
bit size 16 16
maximum clock frequency 16 MHz 16 MHz
DAC channel NO NO
DMA channel YES YES
External data bus width 16 16
JESD-30 code S-PQCC-J84 S-PQFP-G94
JESD-609 code e0 e0
length 29.28 mm 20 mm
Number of I/O lines 20 20
Number of terminals 84 94
Maximum operating temperature 70 °C 70 °C
Minimum operating temperature -10 °C -10 °C
PWM channel NO NO
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code QCCJ QFP
Package shape SQUARE SQUARE
Package form CHIP CARRIER FLATPACK
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified
ROM programmability MROM MROM
Maximum seat height 4.6 mm 4 mm
speed 8 MHz 8 MHz
Maximum supply voltage 5.5 V 5.5 V
Minimum supply voltage 4.5 V 4.5 V
surface mount YES YES
technology CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL
Terminal surface TIN LEAD TIN LEAD
Terminal form J BEND GULL WING
Terminal pitch 1.27 mm 0.8 mm
Terminal location QUAD QUAD
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
width 29.28 mm 20 mm
uPs/uCs/peripheral integrated circuit type MICROCONTROLLER MICROCONTROLLER
Base Number Matches 1 1
