91596-318LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 91596-318LF

91596-318LF: DescriptionMinitek® 2.00mm, Board to Board Connector, PCB Mounted Receptacle , Vertical , Surface Mount, Bottom Entry, Double row, 18 Positions, 2.00mm (0.079in) Pitch.; CategoryThe connector The connector; File Size208KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

91596-318LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	91596-318LF	-	-	View	Buy Now

91596-318LF Overview

Minitek® 2.00mm, Board to Board Connector, PCB Mounted Receptacle , Vertical , Surface Mount, Bottom Entry, Double row, 18 Positions, 2.00mm (0.079in) Pitch.

91596-318LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1799099316
package instruction	LEAD FREE
Contacts	18
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.4
Other features	BOTTOM ENTRY; LOW PROFILE
body width	0.157 inch
subject depth	0.091 inch
body length	0.706 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.807 N
Insulation resistance	1000000000 Ω
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	91596
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
Evacuation force-minimum value	.1946 N

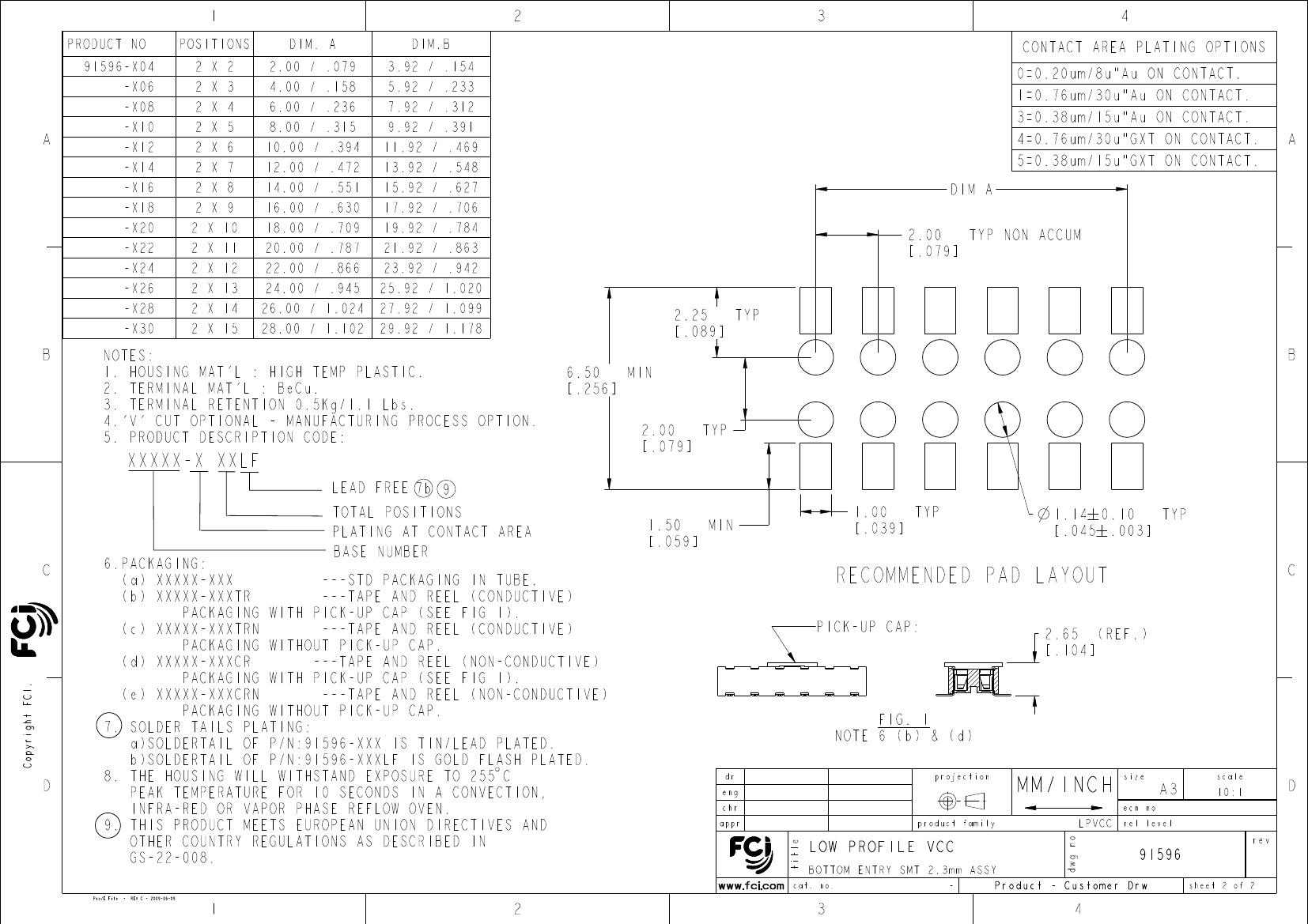

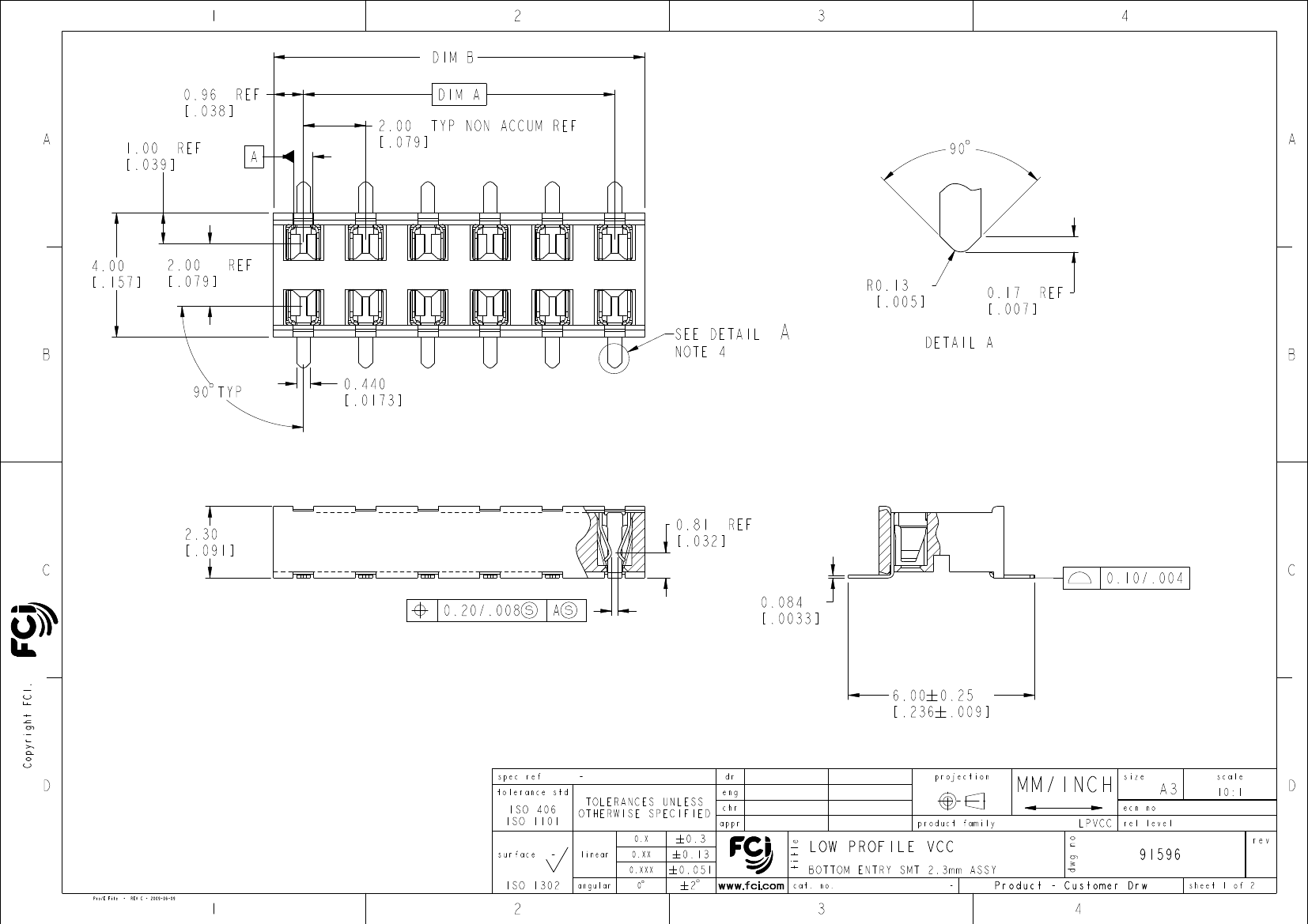

Preview

Download Datasheet

View All

Andrew Yong

Guo-Min Sun

Rick Bian

2010/10/21

2013/01/29

2013/01/30

ELX-N-13923-1

Released

PDS: Rev :Y

STATUS:Released

Printed: Jan 30, 2013
