PLQ16R8-5A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> PLQ16R8-5A

PLQ16R8-5A: DescriptionOT PLD, PAL-Type, BICMOS, PQCC20,; CategoryProgrammable logic devices Programmable logic; File Size814KB，16 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

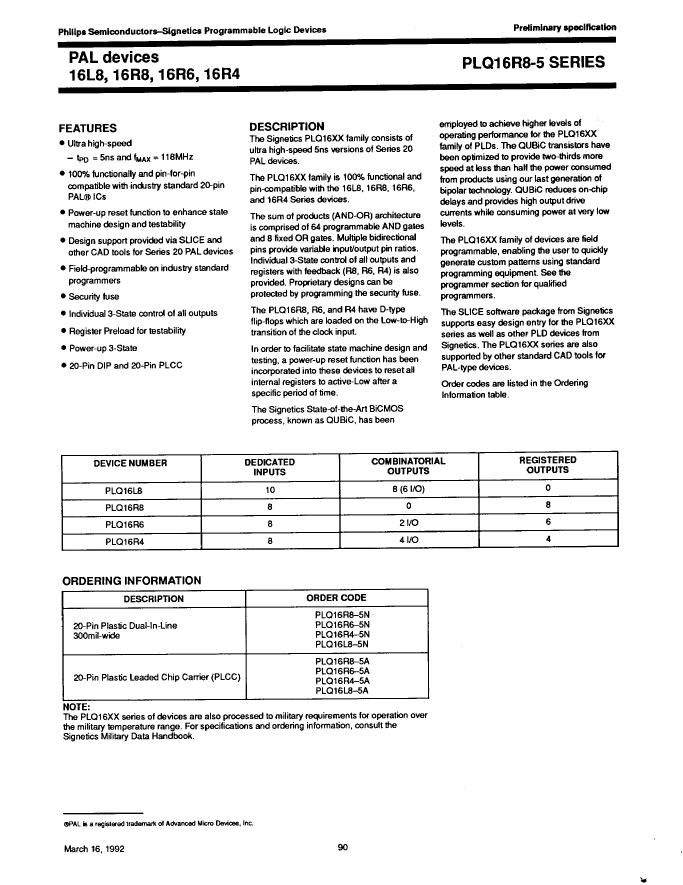

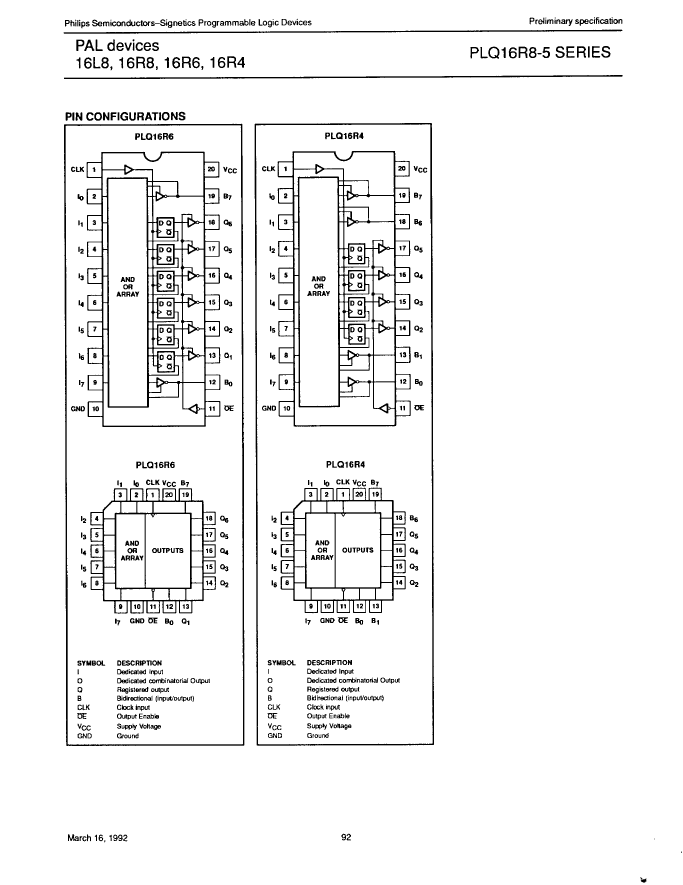

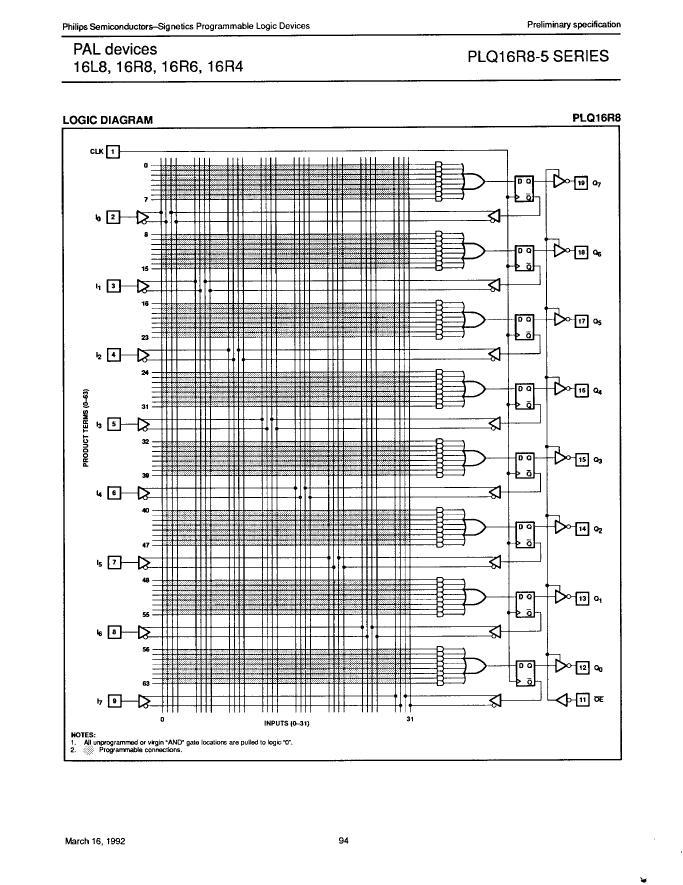

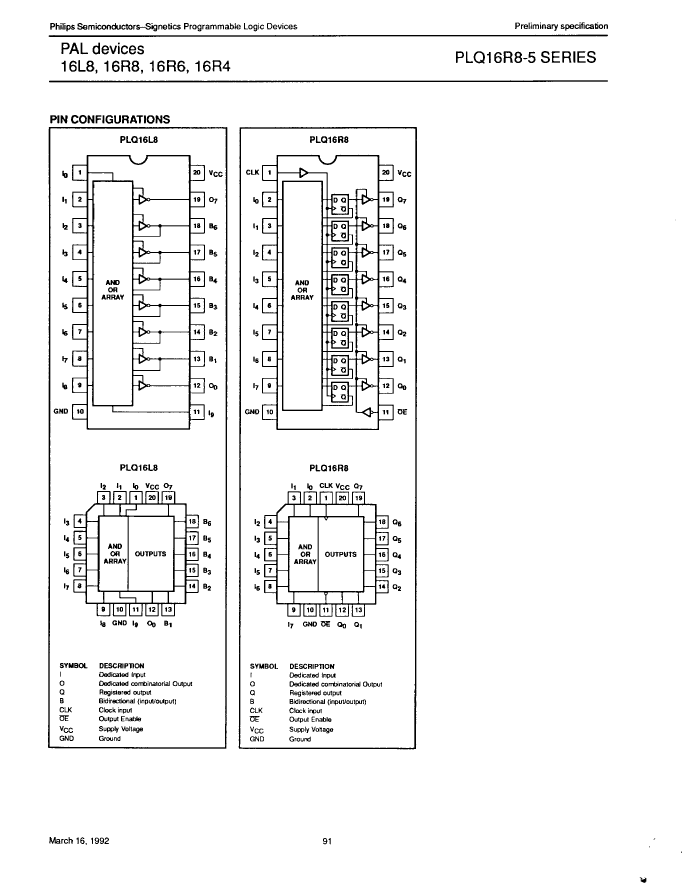

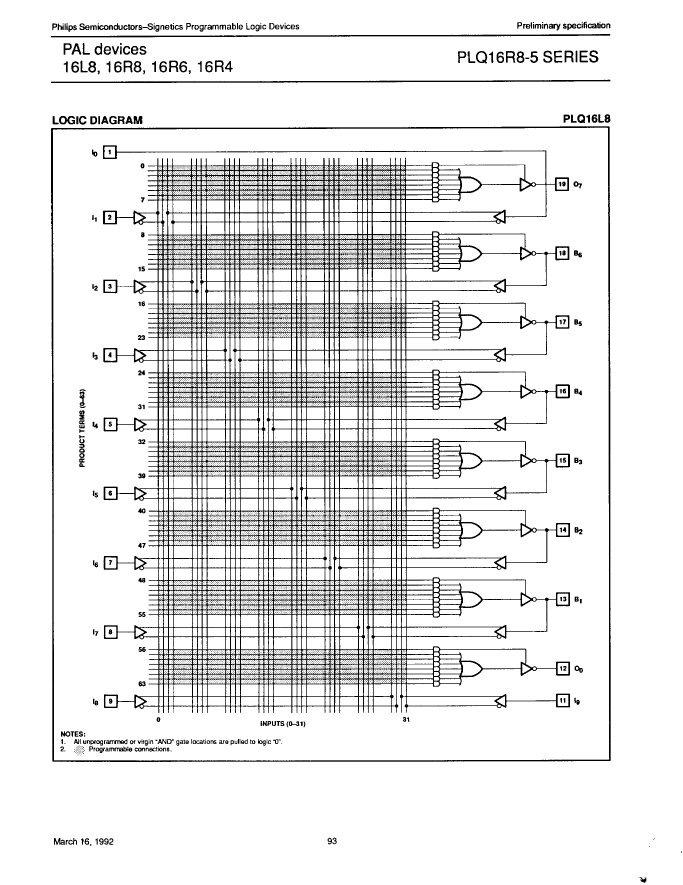

PLQ16R8-5A Overview

OT PLD, PAL-Type, BICMOS, PQCC20,

PLQ16R8-5A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCJ, LDCC20,.4SQ
Reach Compliance Code	unknown
Architecture	PAL-TYPE
maximum clock frequency	118 MHz
JESD-30 code	S-PQCC-J20
JESD-609 code	e0
Number of entries	8
Output times	8
Number of product terms	64
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output function	REGISTERED
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC20,.4SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Programmable logic type	OT PLD
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

Preview

Download Datasheet

View All

PLQ16R8-5A Related Products

	PLQ16R8-5A	PLQ16L8-5N	PLQ16L8-5A	PLQ16R8-5N	PLQ16R6-5A	PLQ16R6-5N	PLQ16R4-5N	PLQ16R4-5A
Description	OT PLD, PAL-Type, BICMOS, PQCC20,	OT PLD, 5ns, PAL-Type, BICMOS, PDIP20,	OT PLD, 5ns, PAL-Type, BICMOS, PQCC20,	OT PLD, PAL-Type, BICMOS, PDIP20,	OT PLD, PAL-Type, BICMOS, PQCC20,	OT PLD, PAL-Type, BICMOS, PDIP20,	OT PLD, PAL-Type, BICMOS, PDIP20,	OT PLD, PAL-Type, BICMOS, PQCC20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	QCCJ, LDCC20,.4SQ	DIP, DIP20,.3	QCCJ, LDCC20,.4SQ	DIP, DIP20,.3	QCCJ, LDCC20,.4SQ	DIP, DIP20,.3	DIP, DIP20,.3	QCCJ, LDCC20,.4SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Architecture	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE
JESD-30 code	S-PQCC-J20	R-PDIP-T20	S-PQCC-J20	R-PDIP-T20	S-PQCC-J20	R-PDIP-T20	R-PDIP-T20	S-PQCC-J20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of entries	8	16	16	8	10	10	12	12
Output times	8	8	8	8	6	6	8	8
Number of product terms	64	64	64	64	64	64	64	64
Number of terminals	20	20	20	20	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output function	REGISTERED	COMBINATORIAL	COMBINATORIAL	REGISTERED	REGISTERED	REGISTERED	REGISTERED	REGISTERED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	QCCJ	DIP	QCCJ	DIP	DIP	QCCJ
Encapsulate equivalent code	LDCC20,.4SQ	DIP20,.3	LDCC20,.4SQ	DIP20,.3	LDCC20,.4SQ	DIP20,.3	DIP20,.3	LDCC20,.4SQ
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programmable logic type	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	NO	NO	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL	QUAD
maximum clock frequency	118 MHz	-	-	118 MHz	118 MHz	118 MHz	118 MHz	118 MHz
Base Number Matches	1	1	1	1	1	1	1	-
