A41-80-24: DescriptionSPLIT BOBBIN POWER TRANSFORMER, 80 VA; CategoryPower/power management; File Size147KB，2 Pages; ManufacturerSUPERWORLD; Websitehttp://www.superworld.com.sg/

Download Datasheet Parametric View All

A41-80-24 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A41-80-24	-	-	View	Buy Now

A41-80-24 Overview

SPLIT BOBBIN POWER TRANSFORMER, 80 VA

A41-80-24 Parametric

Parameter Name	Attribute value
state	Active
Transformer type	SPLIT BOBBIN POWER TRANSFORMER
vals	UL; CSA; VDE
Center Tap Feature 1	NO
Center tap feature 2	NO
Isolation voltage	4000 V
Manufacturer Series	A41
Installation features	CHASSIS MOUNT
Number of secondary coils	2
Rated operating frequency	50/60 HZ
utput_current_1	4 A
utput_current_2	4 A
utput_voltage_1	10 V
Output voltage 2	10 V
Dimensions	63.5mm X 60.3mm X 76.2mm
Rated coil	DUAL 115V
Rated VA	80 VA
heigh	76.2 mm
length	63.5 mm
width	60.3 mm

Preview

Download Datasheet

View All

SPECIFICATION FOR APPROVAL

Product Name

Superworld Part No:

Features

Power Transformer (Lead Free)

A41 (F) Series

Page

Rev No

1

0

Bobbins and shrould made of material to meet UL94V-0

flammability requirements.

Insulating shroud provides 4000V RMS test voltage.

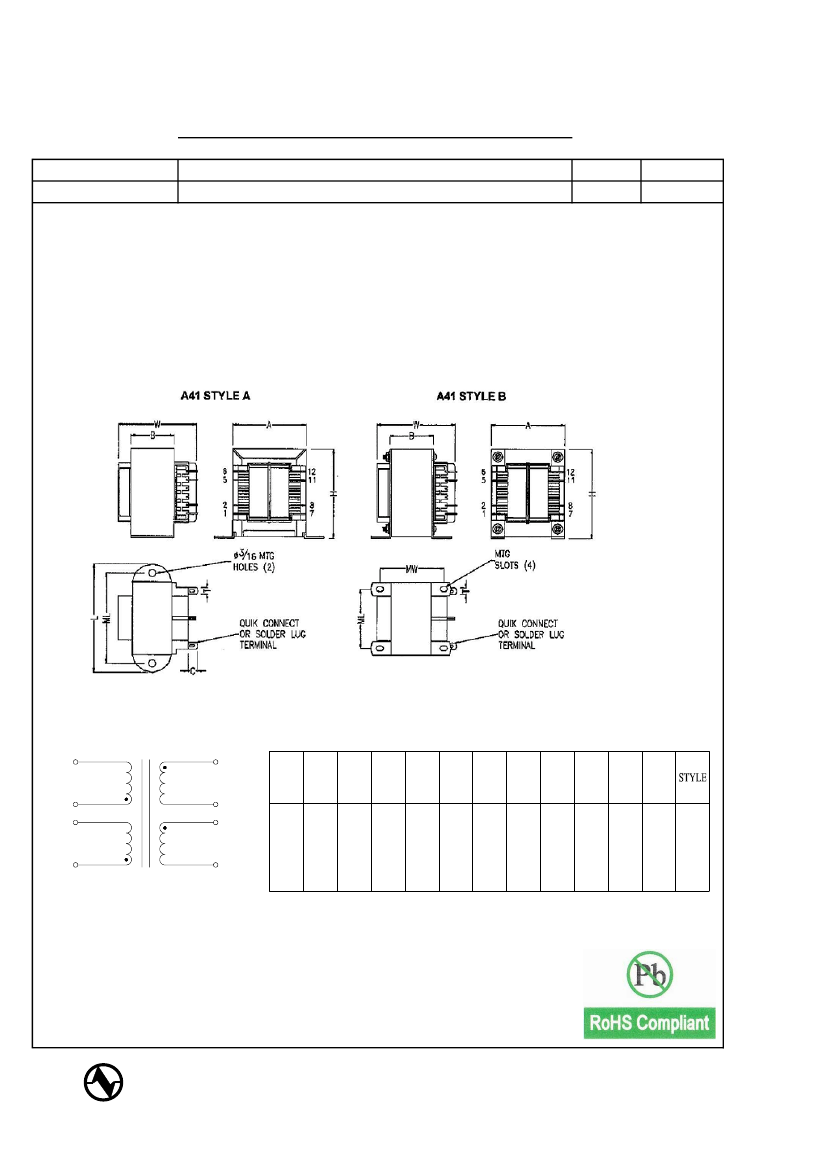

Mechanical Drawing

Schematic

6

115V

50/60Hz

5

2

115V

50/60Hz

1

12

8

11

7

Mechanical Dimensions

VA

25

43

80

130

175

WT

1.25

1.60

2.80

4.10

6.50

L

2.812

3.125

2.500

2.812

3.125

W

1.875

2.062

2.375

2.875

H

A

B

C

T

ML

MW MTG

#6

#8

A

B

2.312 2.000 1.125 0.312 0.187 2.375 -

2.687 2.250 1.125 0.312 0.187 0.187 -

3.000 - 1.375 0.312 0.187 0.187 2.18

3.375 - 1.625 0.375 0.250 0.250 2.50

3.750 - 1.625 0.375 0.250 0.250 2.50
