87021-620TRLF

Description
Ribcage®, Board to Board connector, Surface Mount PCB Receptacle, 40 Positions, Plain Mounting style
CategoryThe connector    The connector
File Size161KB，3 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

87021-620TRLF Online Shopping

Suppliers Part Number Price MOQ In stock
87021-620TRLF - - View Buy Now

87021-620TRLF Overview

Ribcage®, Board to Board connector, Surface Mount PCB Receptacle, 40 Positions, Plain Mounting style

87021-620TRLF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1613896157
package instructionLEAD FREE
Contacts40
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL9.4
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch1.27 mm
Termination typeSURFACE MOUNT
Total number of contacts40
UL Flammability Code94V-0

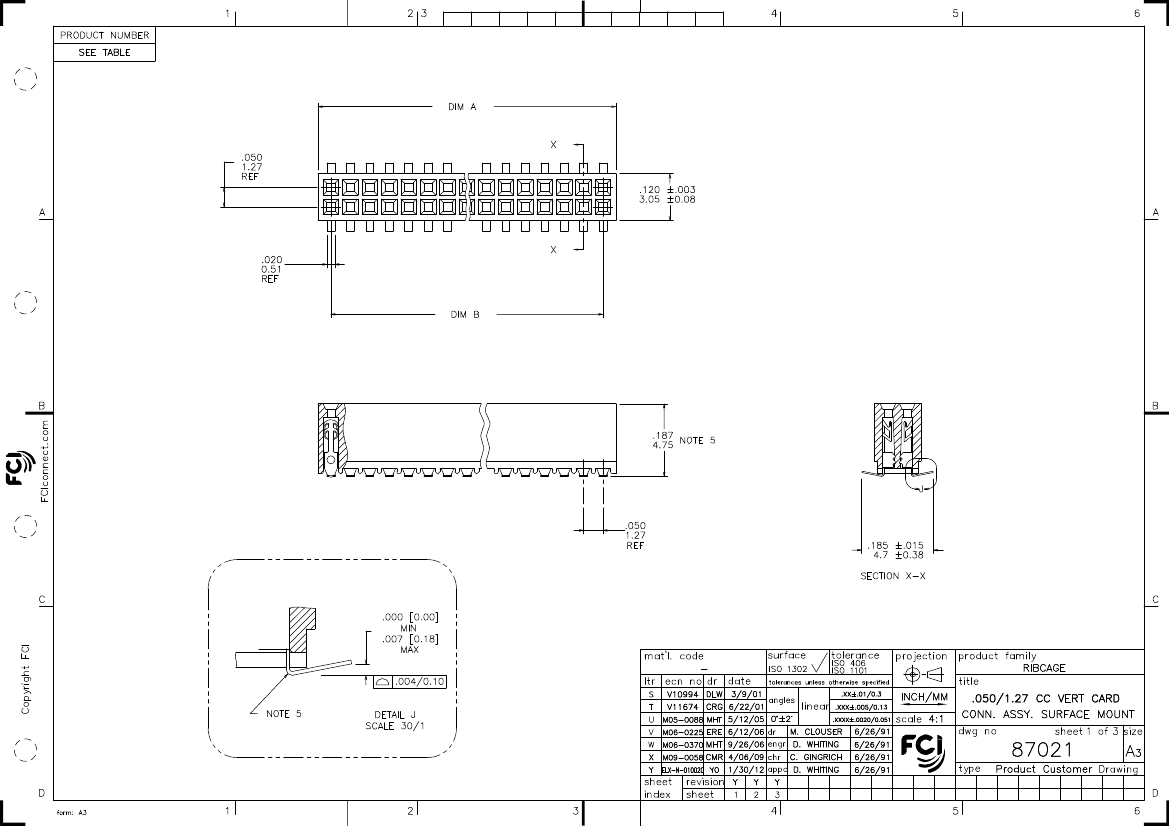

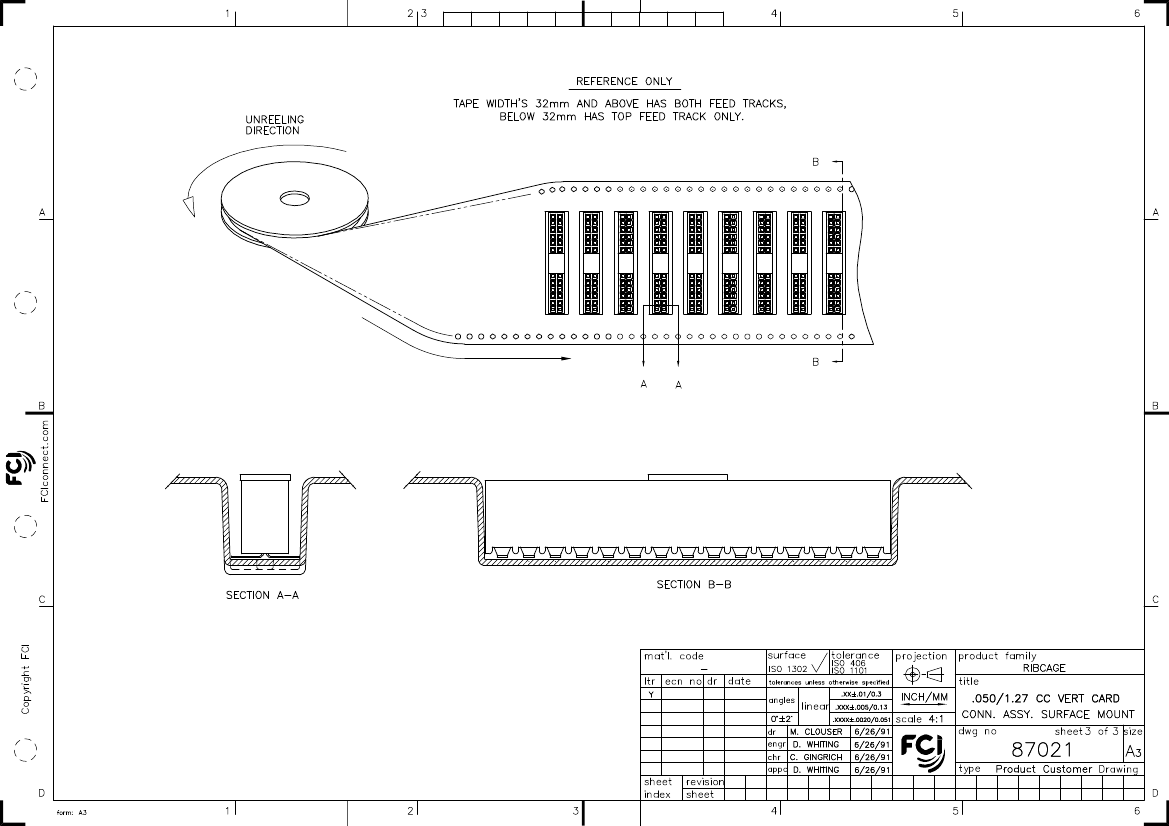

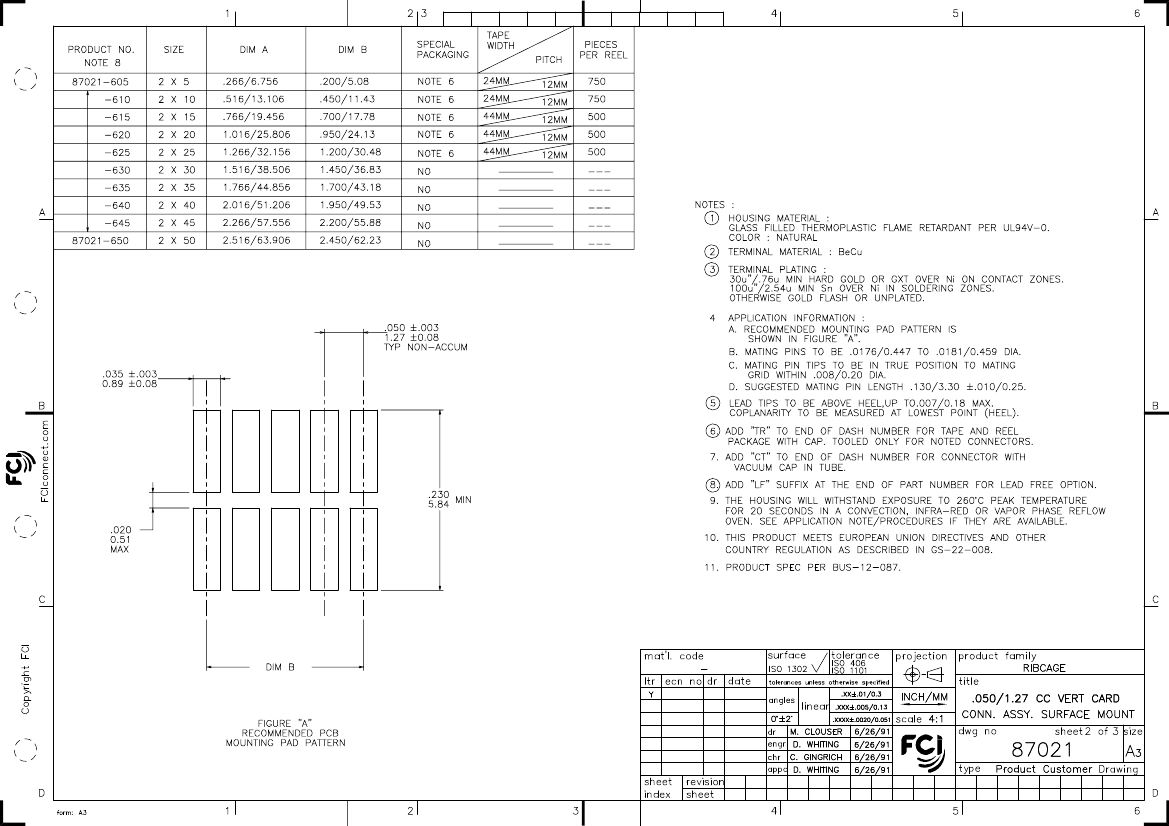

Preview

Download Datasheet
PDS: Rev :Y
STATUS:Released
Printed: Sep 11, 2013

87021-620TRLF Related Products

87021-620TRLF 87021-615TRLF 87021-640LF 87021-645LF 87021-620LF 87021-625LF 87021-625 87021-630LF 87021-605LF 87021-610LF
Description Ribcage®, Board to Board connector, Surface Mount PCB Receptacle, 40 Positions, Plain Mounting style Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE Board Connector, 90 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE
Is it Rohs certified? conform to conform to conform to conform to conform to conform to incompatible conform to conform to conform to
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (30) OVER NICKEL GOLD (30) OVER NICKEL GOLD (30) OVER NICKEL GOLD (30) OVER NICKEL GOLD (30) OVER NICKEL GOLD (30) OVER NICKEL GOLD (30) OVER NICKEL GOLD (30) OVER NICKEL GOLD (30) OVER NICKEL GOLD (30) OVER NICKEL
Contact completed and terminated TIN OVER NICKEL TIN (100) OVER NICKEL TIN (100) OVER NICKEL TIN OVER NICKEL TIN (100) OVER NICKEL TIN (100) OVER NICKEL Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier TIN OVER NICKEL TIN (100) OVER NICKEL TIN (100) OVER NICKEL
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER
DIN compliance NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
JESD-609 code e3 e3 e3 e3 e3 e3 e0 e3 e3 e3
MIL compliance NO NO NO NO NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 2 2 2 2 2 2 2 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 40 30 80 90 40 50 50 60 10 20
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
package instruction LEAD FREE LEAD FREE LEAD FREE LEAD FREE LEAD FREE LEAD FREE - LEAD FREE LEAD FREE LEAD FREE
ECCN code EAR99 - - EAR99 EAR99 - - EAR99 EAR99 EAR99
Is it lead-free? - Lead free Lead free - Lead free Lead free Contains lead - Lead free Lead free
Manufacturer's serial number - 87021 87021 - 87021 87021 87021 - 87021 87021
Base Number Matches - 1 1 - 1 1 1 - 1 1
Other features - - RIB-CAGE RIB-CAGE RIB-CAGE RIB-CAGE TUBE PACKAGING RIB-CAGE RIB-CAGE RIB-CAGE
body width - - 0.12 inch 0.12 inch 0.12 inch 0.12 inch 0.12 inch 0.12 inch 0.12 inch 0.12 inch
subject depth - - 0.187 inch 0.187 inch 0.187 inch 0.187 inch 0.187 inch 0.187 inch 0.187 inch 0.187 inch
body length - - 2.016 inch 2.266 inch 1.016 inch 1.266 inch 1.266 inch 1.516 inch 0.266 inch 0.516 inch
Body/casing type - - RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE PLUG RECEPTACLE RECEPTACLE RECEPTACLE
contact mode - - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance - - 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ
Contact style - - SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Durability - - 200 Cycles 200 Cycles 200 Cycles 200 Cycles 200 Cycles 200 Cycles 200 Cycles 200 Cycles
maximum insertion force - - 1.529 N 1.529 N 1.529 N 1.529 N 1.112 N 1.529 N 1.529 N 1.529 N
Insulation resistance - - 50000000000 Ω 50000000000 Ω 50000000000 Ω 50000000000 Ω 50000000000 Ω 50000000000 Ω 50000000000 Ω 50000000000 Ω
Insulator color - - NATURAL NATURAL NATURAL NATURAL NATURAL NATURAL NATURAL NATURAL
insulator material - - GLASS FILLED THERMOPLASTIC GLASS FILLED POLYETHYLENE GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED POLYETHYLENE GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
Plug contact pitch - - 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch
Match contact row spacing - - 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch
Plug information - - MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE - MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Installation option 1 - - LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Number of connectors - - ONE ONE ONE ONE ONE ONE ONE ONE
PCB row number - - 2 2 2 2 2 2 2 2
Maximum operating temperature - - 130 °C 130 °C 130 °C 130 °C 130 °C 130 °C 130 °C 130 °C
Minimum operating temperature - - -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
PCB contact pattern - - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing - - 3.175 mm 3.175 mm 3.175 mm 3.175 mm 3.175 mm 3.175 mm 3.175 mm 3.175 mm
Plating thickness - - 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch
polarization key - - POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) - - 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A
Guideline - - UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA
reliability - - COMMERCIAL - COMMERCIAL COMMERCIAL COMMERCIAL - COMMERCIAL COMMERCIAL
Evacuation force-minimum value - - .417 N .417 N .417 N .417 N .417 N .417 N .417 N .417 N
