MC6844P

Description
4 CHANNEL(S), 1MHz, DMA CONTROLLER, PDIP40, PLASTIC, DIP-40
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size2MB，20 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

MC6844P Overview

4 CHANNEL(S), 1MHz, DMA CONTROLLER, PDIP40, PLASTIC, DIP-40

MC6844P Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeDIP
package instructionDIP, DIP40,.6
Contacts40
Reach Compliance Codeunknown
Address bus width16
Bus compatibility6800; 68000; 6809
maximum clock frequency1 MHz
External data bus width8
JESD-30 codeR-PDIP-T40
JESD-609 codee0
length52.07 mm
Number of DMA channels4
Number of terminals40
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP40,.6
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum slew rate16 mA
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountNO
technologyNMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width15.24 mm
uPs/uCs/peripheral integrated circuit typeDMA CONTROLLER
Base Number Matches1

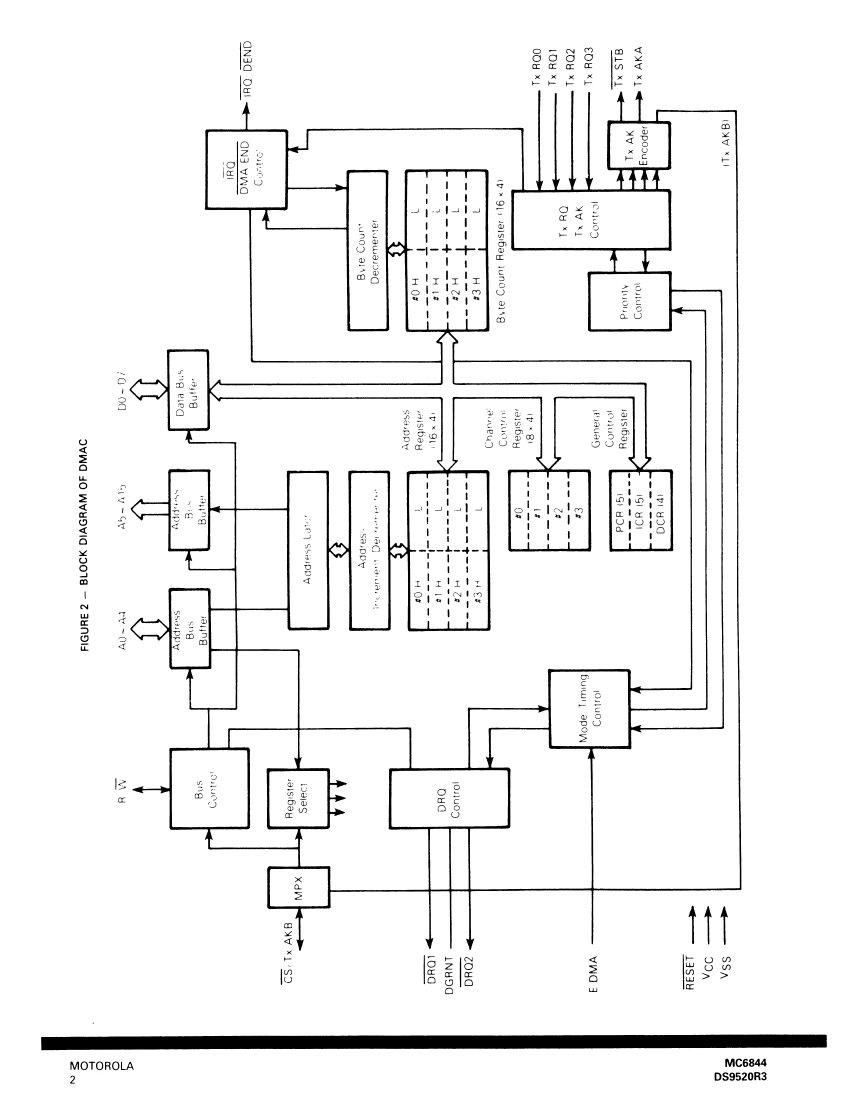

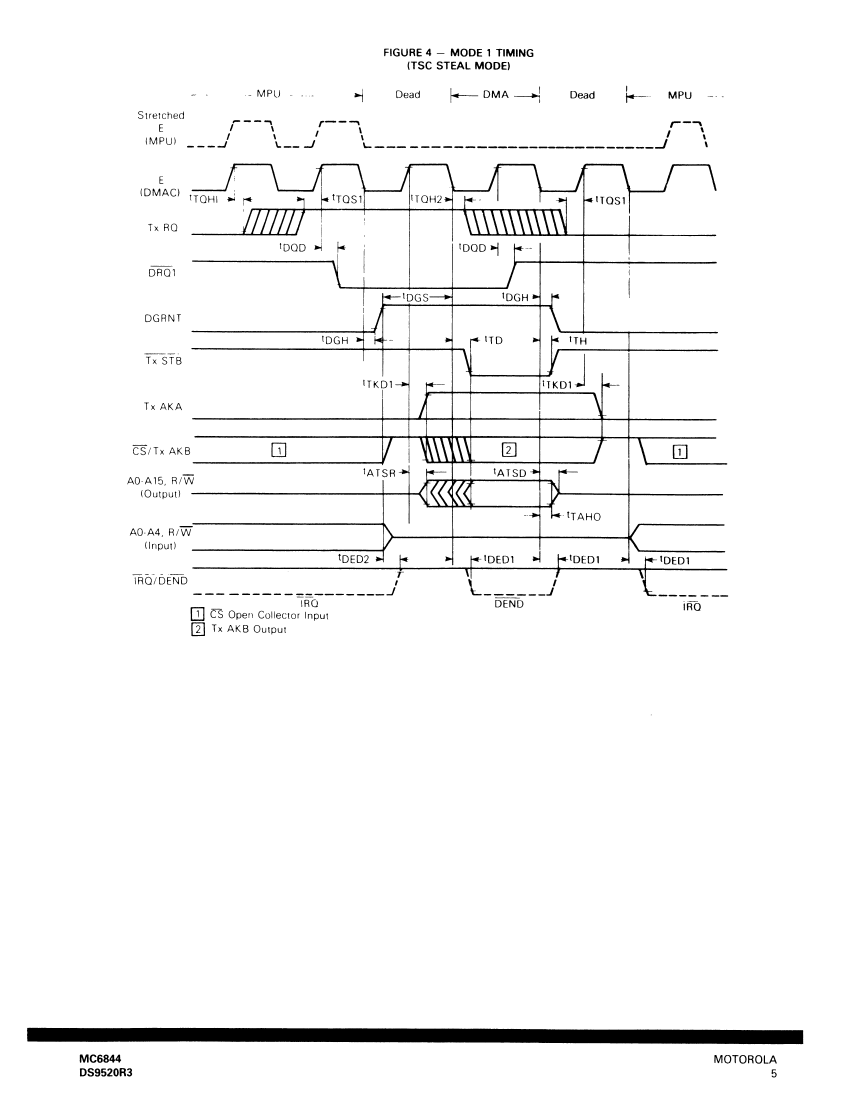

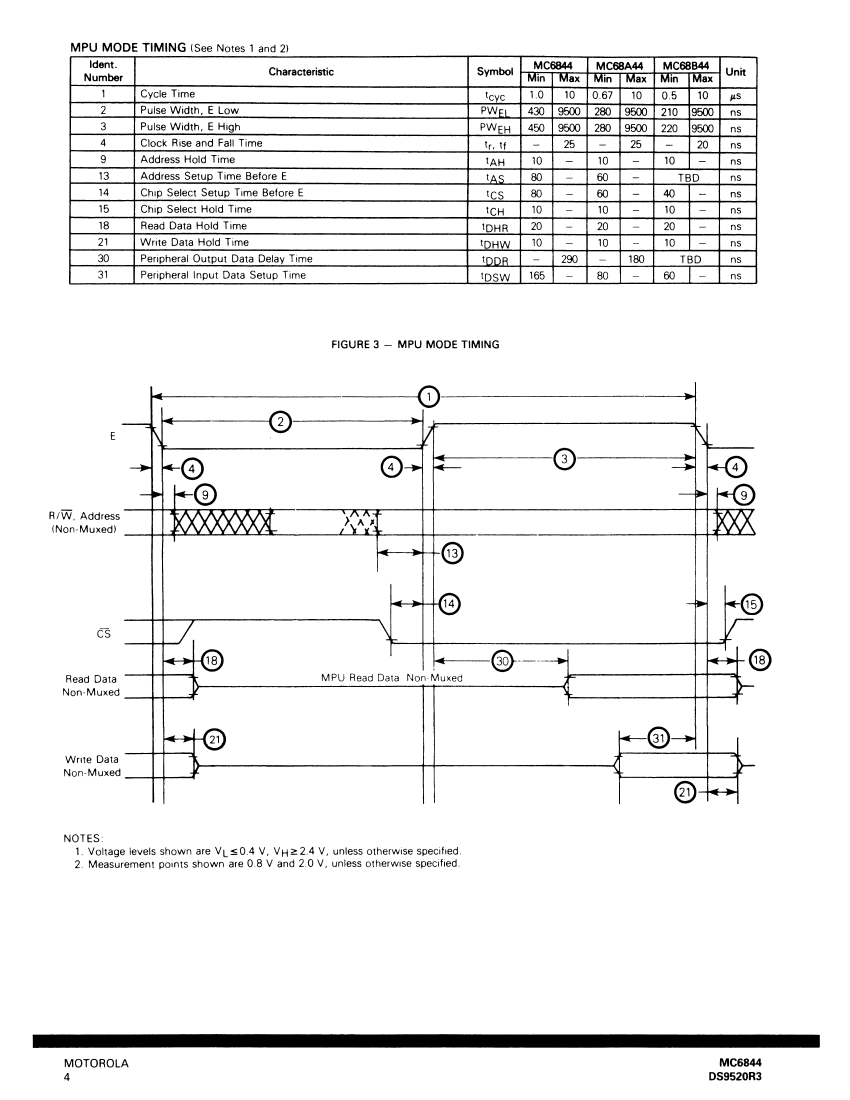

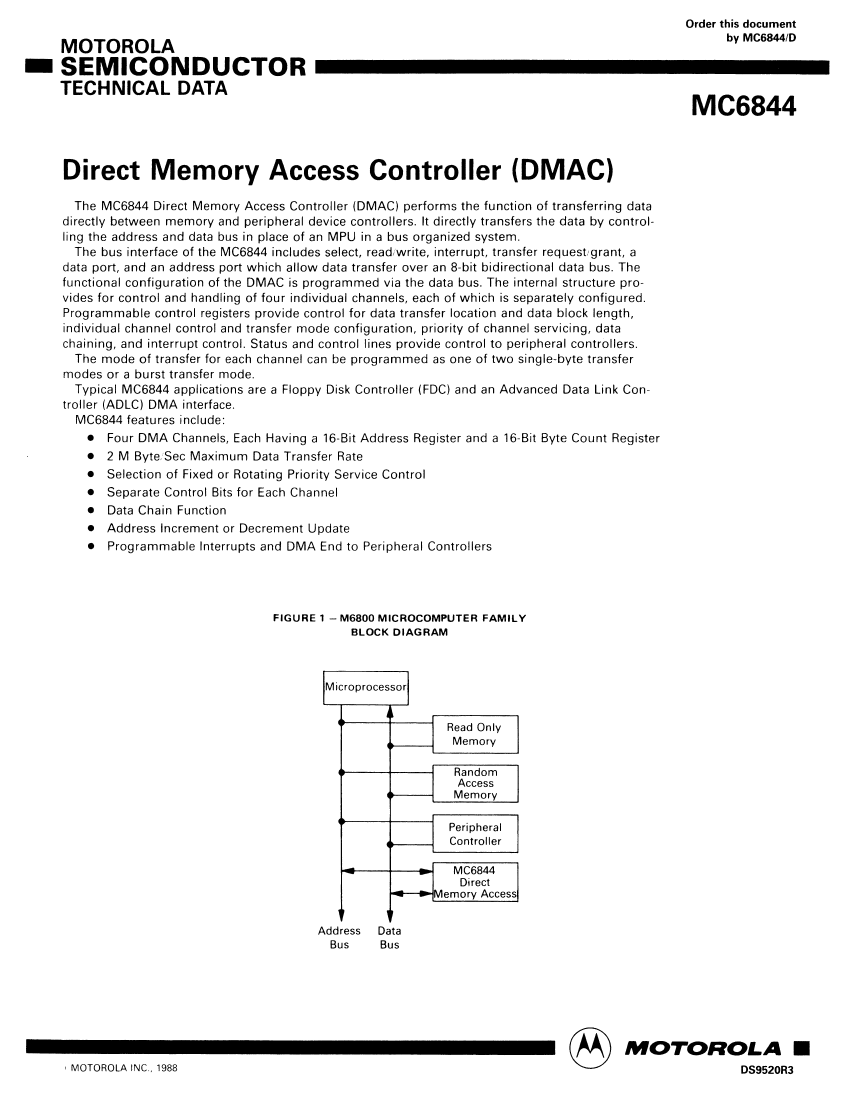

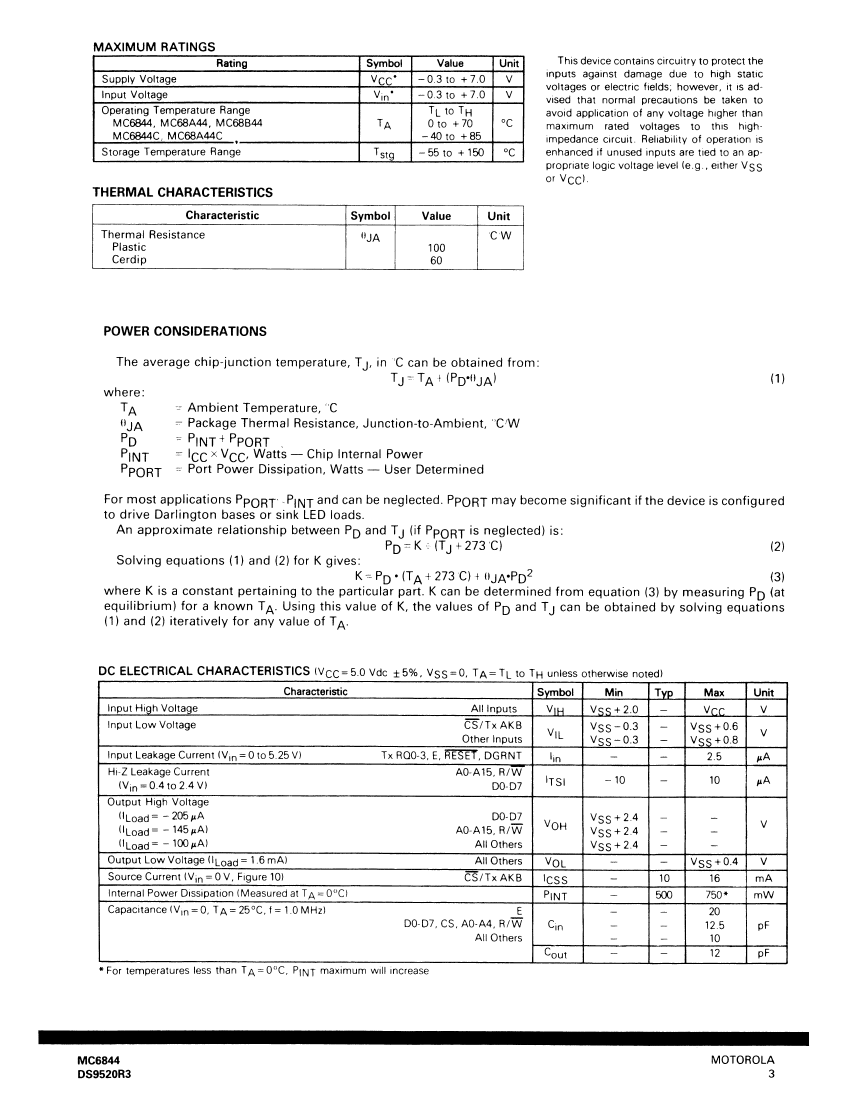

Preview

Download Datasheet

MC6844P Related Products

MC6844P MC6844CP MC6844S MC68A44CP MC68A44P MC68A44CS MC6844CS MC68A44S MC68B44S MC68B44P
Description 4 CHANNEL(S), 1MHz, DMA CONTROLLER, PDIP40, PLASTIC, DIP-40 4 CHANNEL(S), 1MHz, DMA CONTROLLER, PDIP40, PLASTIC, DIP-40 DMA Controller, 4 Channel(s), 1MHz, NMOS, CDIP40, CERAMIC, DIP-40 DMA Controller, 4 Channel(s), 1.5MHz, NMOS, PDIP40, PLASTIC, DIP-40 DMA Controller, 4 Channel(s), 1.5MHz, NMOS, PDIP40, PLASTIC, DIP-40 DMA Controller, 4 Channel(s), 1.5MHz, NMOS, CDIP40, CERAMIC, DIP-40 DMA Controller, 4 Channel(s), 1MHz, NMOS, CDIP40, CERAMIC, DIP-40 DMA Controller, 4 Channel(s), 1.5MHz, NMOS, CDIP40, CERAMIC, DIP-40 DMA Controller, 4 Channel(s), 2MHz, NMOS, CDIP40, CERAMIC, DIP-40 4 CHANNEL(S), 2MHz, DMA CONTROLLER, PDIP40, PLASTIC, DIP-40
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
package instruction DIP, DIP40,.6 DIP, DIP40,.6 CERAMIC, DIP-40 PLASTIC, DIP-40 PLASTIC, DIP-40 CERAMIC, DIP-40 CERAMIC, DIP-40 CERAMIC, DIP-40 CERAMIC, DIP-40 DIP,
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknow
Address bus width 16 16 16 16 16 16 16 16 16 16
Bus compatibility 6800; 68000; 6809 6800; 68000; 6809 6800; 68000; 6809 6800; 68000; 6809 6800; 68000; 6809 6800; 68000; 6809 6800; 68000; 6809 6800; 68000; 6809 6800; 68000; 6809 6800; 68000; 6809
maximum clock frequency 1 MHz 1 MHz 1 MHz 1.5 MHz 1.5 MHz 1.5 MHz 1 MHz 1.5 MHz 2 MHz 2 MHz
External data bus width 8 8 8 8 8 8 8 8 8 8
JESD-30 code R-PDIP-T40 R-PDIP-T40 R-GDIP-T40 R-PDIP-T40 R-PDIP-T40 R-GDIP-T40 R-GDIP-T40 R-GDIP-T40 R-GDIP-T40 R-PDIP-T40
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 e0 e0
length 52.07 mm 52.07 mm 52.275 mm 52.07 mm 52.07 mm 52.275 mm 52.275 mm 52.275 mm 52.275 mm 52.07 mm
Number of DMA channels 4 4 4 4 4 4 4 4 4 4
Number of terminals 40 40 40 40 40 40 40 40 40 40
Maximum operating temperature 70 °C 85 °C 70 °C 85 °C 70 °C 85 °C 85 °C 70 °C 70 °C 70 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY CERAMIC, GLASS-SEALED PLASTIC/EPOXY PLASTIC/EPOXY CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED PLASTIC/EPOXY
encapsulated code DIP DIP DIP DIP DIP DIP DIP DIP DIP DIP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 5.08 mm 5.08 mm 5.84 mm 5.08 mm 5.08 mm 5.84 mm 5.84 mm 5.84 mm 5.84 mm 5.08 mm
Maximum slew rate 16 mA 16 mA 16 mA 16 mA 16 mA 16 mA 16 mA 16 mA 16 mA 16 mA
Maximum supply voltage 5.25 V 5.25 V 5.25 V 5.25 V 5.25 V 5.25 V 5.25 V 5.25 V 5.25 V 5.25 V
Minimum supply voltage 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V
Nominal supply voltage 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
surface mount NO NO NO NO NO NO NO NO NO NO
technology NMOS NMOS NMOS NMOS NMOS NMOS NMOS NMOS NMOS NMOS
Temperature level COMMERCIAL INDUSTRIAL COMMERCIAL INDUSTRIAL COMMERCIAL INDUSTRIAL INDUSTRIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
width 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm
uPs/uCs/peripheral integrated circuit type DMA CONTROLLER DMA CONTROLLER DMA CONTROLLER DMA CONTROLLER DMA CONTROLLER DMA CONTROLLER DMA CONTROLLER DMA CONTROLLER DMA CONTROLLER DMA CONTROLLER
Encapsulate equivalent code DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 -
power supply 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V -
Maker - - Motorola ( NXP ) - - Motorola ( NXP ) Motorola ( NXP ) Motorola ( NXP ) Motorola ( NXP ) Motorola ( NXP )
