D25S81C4PX00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D25S81C4PX00

D25S81C4PX00: DescriptionD Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal; CategoryThe connector The connector; File Size327KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

D25S81C4PX00 Overview

D Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal

D25S81C4PX00 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	D
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	PRESS FIT
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

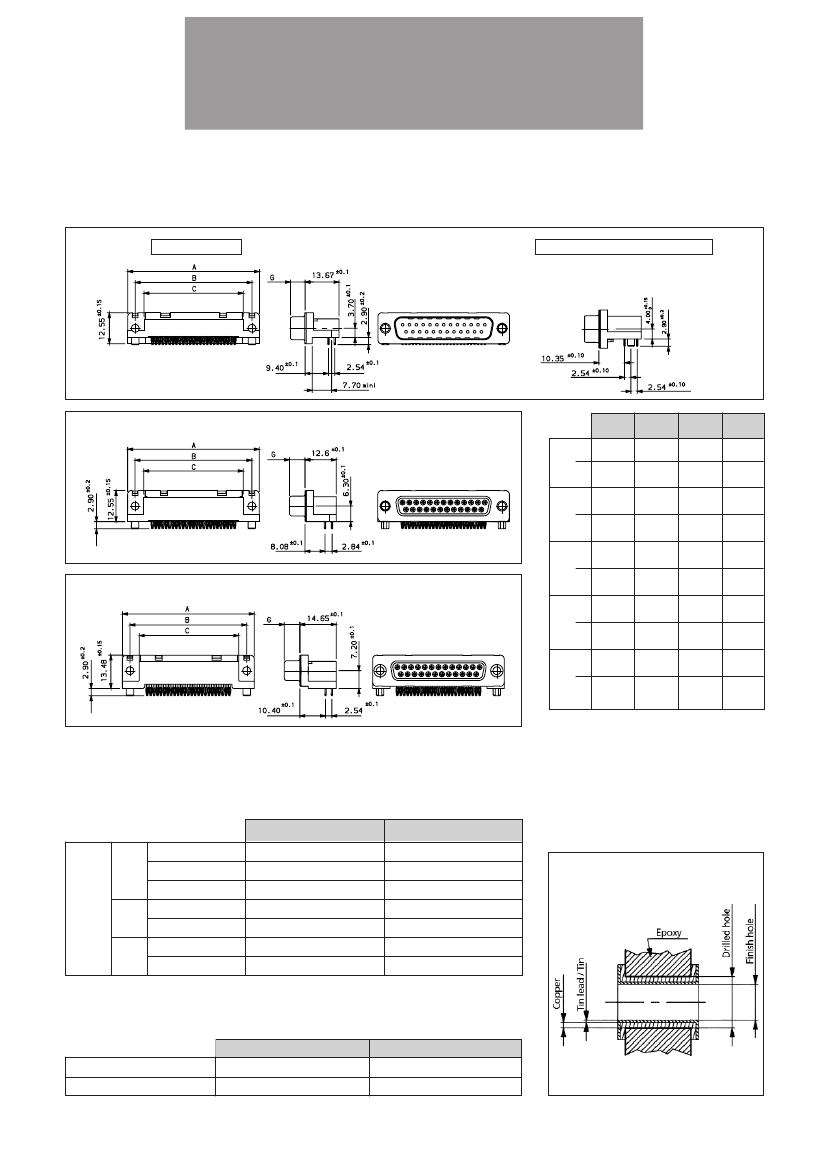

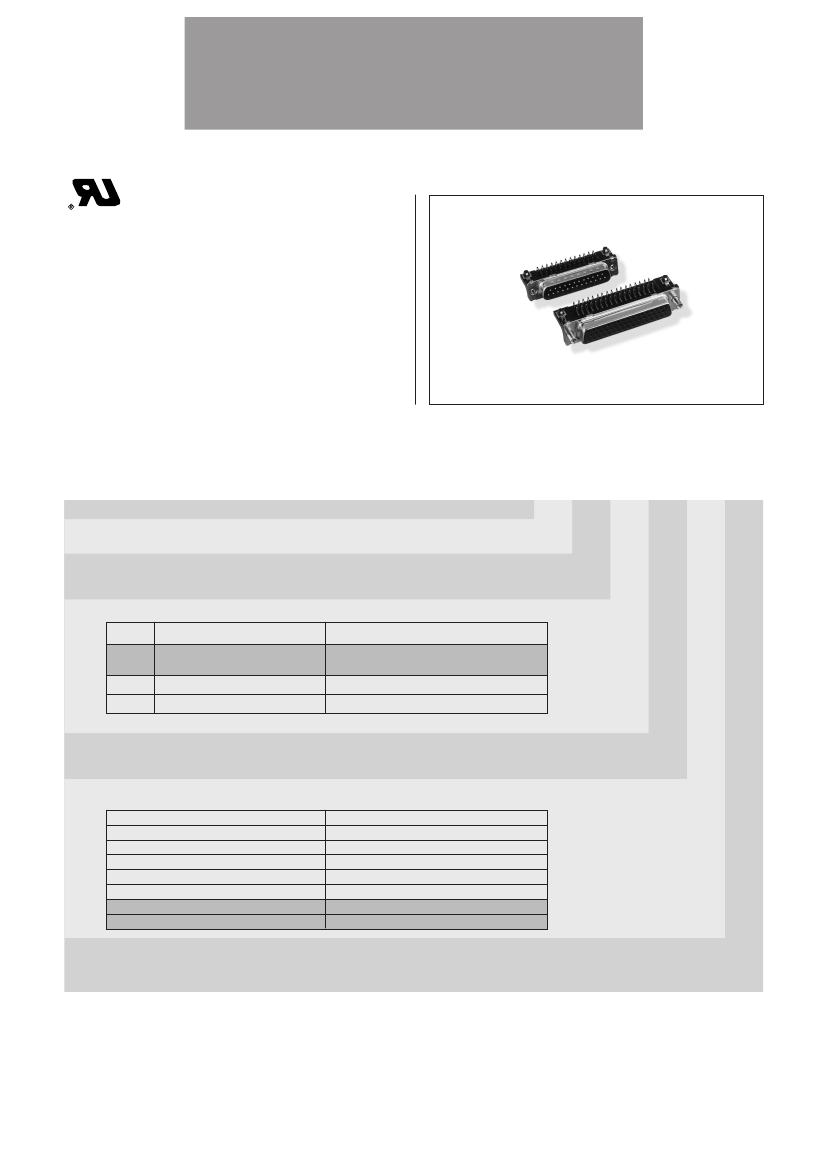

DELTA D

Right angle press-fit

UL Recognized File E 118235 (R)

Ordering information

Series

Number of contacts

09, 15, 25, 37, 50 (only for Eurostyle version)

Contacts

Socket

82 C

PA 00LF

Termination type

Code

Type

Eurostyle

US standard

Europe standard*

Foot print / Pitch

9.4 / 2.54

10.3 / 2.54

8.08 / 2.84

10.4 / 2.54

9 to 37 way

50 way

9 to 37 way

☺

82 C

80 C

81 C

Plating

Standard class (≥ 200 mating / unmating)

High performance class (≥ 500 mating / unmating)

Mounting options

(see cover page 61)

Options

☺

Standard hole

Threaded insert M3

Threaded insert UNC 4-40

Female screw UNC 4-40

Harpoons + insert M3

Harpoons + insert UNC 4-40

Harpoons + Female screw UNC 4-40

Other options

Standard, non RoHS compatible

00LF :

Standard, RoHS compatible

Technical characteristics – page 6

☺

Preferred option
