D25P24B6RX22LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D25P24B6RX22LF

D25P24B6RX22LF: DescriptionD Subminiature Connector, 25 Contact(s), Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size286KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D25P24B6RX22LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D25P24B6RX22LF	-	-	View	Buy Now

D25P24B6RX22LF Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, ROHS COMPLIANT

D25P24B6RX22LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41652
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Series

Tape and Reel

For connector with cap

6 = 500 Mating / Unmating Mini

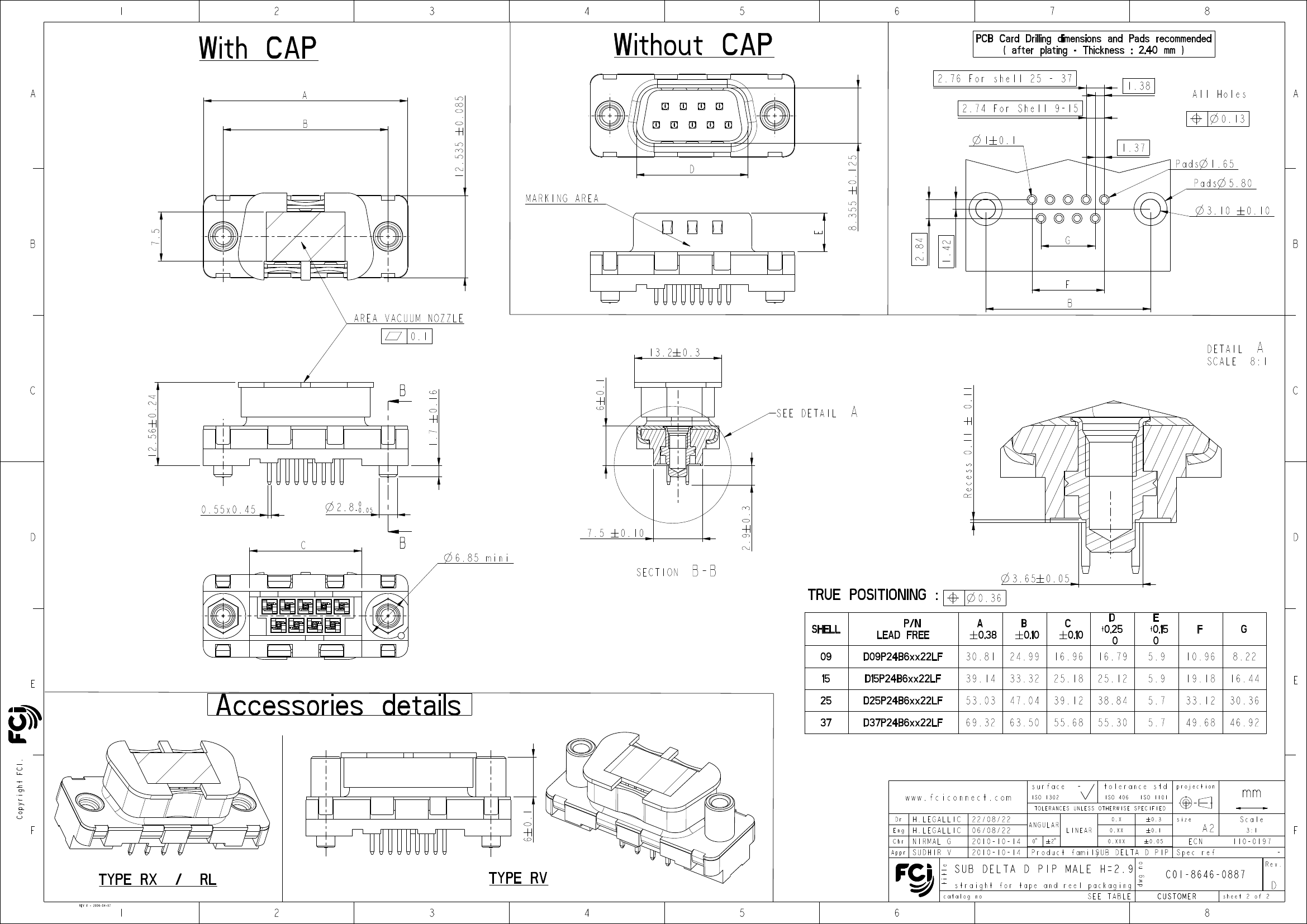

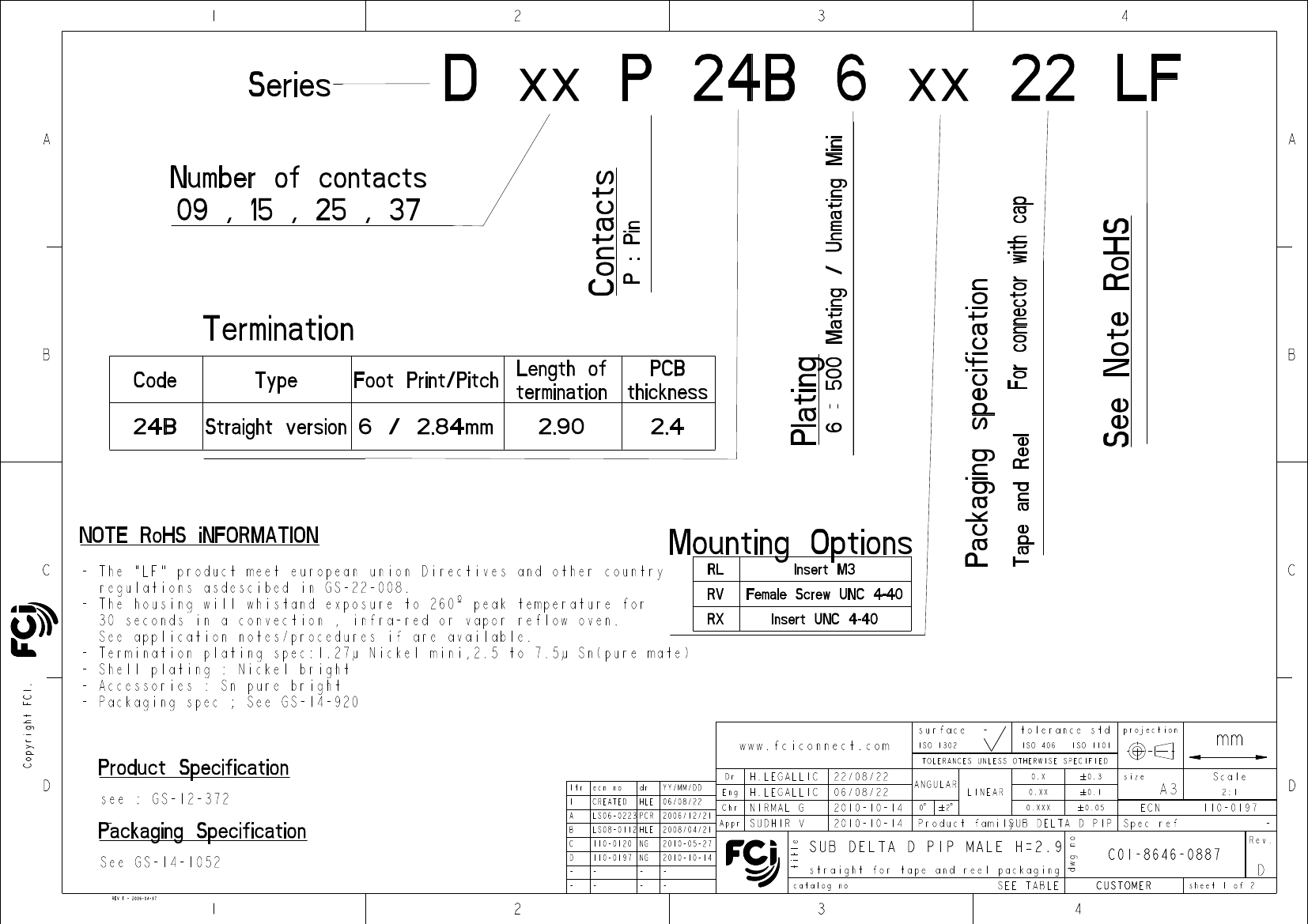

D xx P 24B 6 xx 22 LF

Contacts

Packaging specification

Termination

Code

24B

Type

Length of PCB

Foot Print/Pitch

termination

thickness

2.90

2.4

Straight version 2.84mm

6 /

See Note RoHS

P : Pin

Number of contacts

09 , 15 , 25 , 37

Plating

NOTE RoHS iNFORMATION

Mounting Options

Insert M3

Female Screw UNC 4-40

Insert UNC 4-40

- The "LF" product meet european union Directives and other country

regulations asdescibed in GS-22-008.

- The housing will whistand exposure to 260º peak temperature for

30 seconds in a convection , infra-red or vapor reflow oven.

See application notes/procedures if are available.

- Termination plating spec:1.27µ Nickel mini,2.5 to 7.5µ Sn(pure mate)

- Shell plating : Nickel bright

- Accessories : Sn pure bright

- Packaging spec ; See GS-14-920

surface

tolerance std

ISO 406

ISO 1101

projection

www.fciconnect.com

ISO 1302

Scale

2:1

Product Specification

see : GS-12-372

ltr

REV F - 2006-04-17

TOLERANCES UNLESS OTHERWISE SPECIFIED

ecn no

CREATED

HLE

YY/MM/DD

06/08/22

2006/12/21

2008/04/21

2010-05-27

2010-10-14

Eng

Chr

Appr

H.LEGALLIC

NIRMAL G

SUDHIR V

title

22/08/22

06/08/22

2010-10-14

ANGULAR

0.X

0.3

0.1

0.05

size

LINEAR

0.XX

0.XXX

ECN

Rev.

dwg no

Packaging Specification

See GS-14-1052

LS06-0223 PCR

LS08-0112 HLE

I10-0120 NG

I10-0197 NG

I10-0197

Product family

SUB DELTA D PIP Spec ref

SUB DELTA D PIP MALE H=2.9

straight for tape and reel packaging

SEE TABLE

C01-8646-0887

CUSTOMER

sheet

1 of 2

catalog no

PDM: Rev:D

STATUS:

Released

Printed: Jan 18, 2011

D25P24B6RX22LF Related Products

	D25P24B6RX22LF	D25P24B6RV22LF	D25P24B6RL22LF	D37P24B6RL22LF	D37P24B6RV22LF	D37P24B6RX22LF
Description	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	3/B	3/B	4/C	4/C	4/C
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	25	25	37	37	37
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
