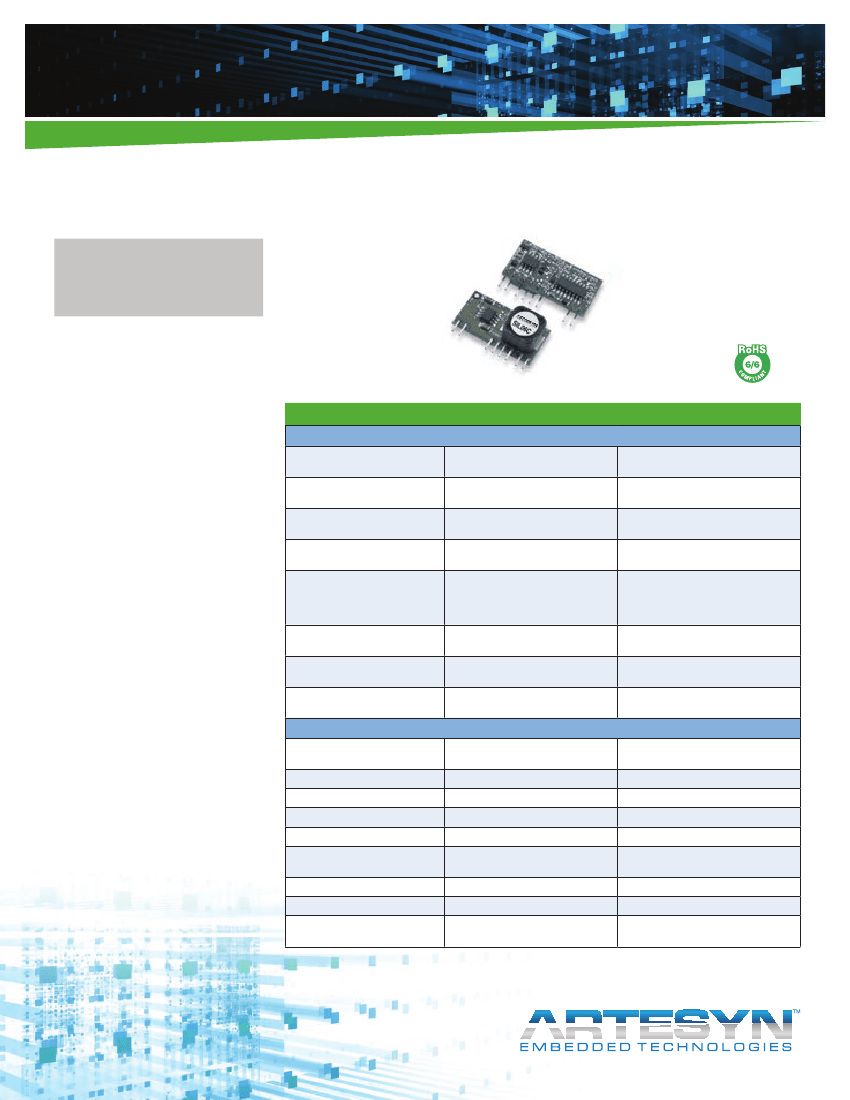

POWER
Data Sheet
Total Power:
Input Voltage:
# of Outputs:
30 Watts
4.5 - 13.8 Vdc
Single
SIL06C Series
C-Class Non-Isolated
SPECIAL FEATURES
6 A current rating
Input voltage range: 4.5 - 5.5 Vdc
or 10.2 - 13.8 Vdc
Output voltage: 0.9 - 5.0 V
Industry-leading value
Cost optimized design
Excellent transient response
Output voltage adjustability
Path for future upgrades
Supports silicon voltage migration
Reduced design-in and qual time
Designed-in reliability: MTBF of 7
million hours per Telcordia SR-332
Available RoHS compliant
Two year warranty
Input current (max.)
(See Note 9)
Input reflected ripple
(See Note 2)
Remote ON/OFF
Logic compatibility
ON
OFF
Start-up time
Turn ON threshold
Turn OFF threshold
Power up
Remote ON/OFF
5 Vin
12 Vin
5 Vin
12 Vin
Electrical Specifications
Input
Input voltage range
Input current
5 V input model
12 V input model
No load
Remote OFF
5 V input model
12 V input model
5 V input model
12 V input model
4.5 - 5.5 Vdc
10.2 - 13.8 Vdc
50 mA
5 mA
5.1 A @ lo max.
1.6 A @ Io max.
52 mA (pk-pk)
56 mA (pk-pk)
Active high
>2.4 Vdc
<0.8 Vdc
<20 ms
<20 ms
4.5 Vdc
9.0 Vdc
4.3 Vdc
7.5 Vdc
SAFETY
UL, cUL CAN/CSA 22.2 No.
E139421
UL6950 File No. E139421
TÜV Product Service (EN60950)
Certificate No. B 04 08 19870 228
CB report and certificate to
IEC60950
Output
Voltage adjustability
(See Note 7)
Output setpoint accuracy
Line regulation
Load regulation
Min/Max load
Overshoot
(at turn on)
Undershoot
Ripple and noise
Transient response
(See Note 1)
5 Hz to 20 MHz (See Note 2)
Deviation
5 V input model
12 V input model
5 V input model
12 V input model
with 1.0% trim resistors
Low line to high line
Full load to min. load
0.9 - 3.3 Vdc
0.9 - 5.0 Vdc
±2.5%
±0.2%
±0.5%
0 A/6 A
3.0% max.
1.0% max.
100 mV max.
See table
75 mV; 150 μs recovery to within
regulation band
All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
SIL06C Data Sheet
General Specifications
Efficiency
Switching frequency
Approvals and
standards
Material flammability
Weight
MTBF
Telcordia SR-332
Fixed
(See Note 4)
See Table
200 kHz typical
TÜV Product Services
EN60950, UL/cUL60950
UL94V-0
9.3 g (0.3 oz)
7,562,142 hours
Environmental Specifications
Thermal performance
(See Note 8)
Protection
Short-circuit
Input capacitance
Output capacitance
Hiccup, non latching
(See Note 11)
(See Note 11)
270 μF / 20 mW
ESR max.
680 μF / 10 mW
ESR max.
Recommended System Capacitance
Operating ambient temperature
Non-operating temperature
-0 °C to +80 °C
-40 °C to +125 °C
Ordering Information
Model
Number
(3,5)
Output Power
(Max.)
Input
Voltage
Output
Voltage
Output Current
(Min.)
Output Current
(Max.)
Efficiency
(Typical)
Regulation
Line
Load
SIL06C-05SADJ-VJ
SIL06C-12SADJ-VJ
20 W
30 W
4.5 - 5.5 Vdc
10.2 - 13.8 Vdc
0.9 - 3.3 V
0.9 - 5.0 V
0A
0A
6A
6A
89%
91%
±0.2%
±0.2%
±0.5%
±0.5%
Part Number System with Options
Product Family
Rated Output
Current
Performance
Input Voltage
Number of
Outputs
Mounting
Option
Packaging
Options
SIL
SIL = Single In Line
06
06 = 06 Amps
C
C = Cost Optimized
-
12
05 = 4.5 - 5.5
12 = 10.2 - 13.8
SADJ
Single Adjustable
Output
-
V
V = Vertical
H = Horizontal
J
J = Pb free (RoHS
6/6 compliant)
Output Voltage Adjustment
The ultra-wide output voltage trim range offers major advantages to users
who select the SIL06C series. It is no longer necessary to purchase a variety
of modules in order to cover different output voltages. The output voltage can
be trimmed in a range of 0.9 Vdc to 5.0 Vdc. When the SIL06C series
converterleaves the factory the output has been adjusted to the default
voltage of 0.9 V.
Notes:
1. di/dt = 10 A/μs, Vin = Nom, Tc = 25 °C, load change = 0.5 lo max. to 0.75 lo max. and 0.75 lo max
to 0.5 lo max.
2. Measured with external filter. See Application Note 131 for details.
3. Power up is the time from application of dc input to Power Good enabled. Remote ON/OFF is from
ON/OFF asserted high to Power Good enabled.
4. This product is only for inclusion by professional installers within other equipment and must not be
operated as a stand-alone product.
5. The standard unit with the suffix ‘-V’ is for vertical mounting. To order a unit with horizontal
mounting, please add the suffix ‘-H’ to the model number, e.g. SIL06C-05SADJ-HJ.6. Airflow
dependent, 300 LFM minimum required.
RMS
6.
Ripple and Noise Specification
Model
Output Voltage
Pk - Pk
5 V input models
12 V input models
0.9 - 2.5 Vdc
3.3 Vdc
0.9 - 2.5 Vdc
3.3 Vdc
30 mV
40 mV
40 mV
50 mV
15 mV
15 mV
20 mV
20 mV
Measured as per recommended set-up. Cin = 270 μF (20 mW ESR max.). Cout = 680 μF (10 mW
ESR max.).
7. Uses external resistor from trim to output ground. Minimum value 485 Ω for 5 V model, 280 Ω for
12 V model. See Applications Note 131 for details.
8. Signal line assumed <3 m.
9. External input fusing recommended.
10. See Application Note 131 for operation above 50 ºC.
11. See Application Note 131 for more details.
12. These models have a wide trim output. 5 Vin has an output of 0.9 Vdc to 3.3 Vdc and 12 Vin has an
output of 0.9 Vdc to 5 Vdc. An external resistor adjusts the output voltage.
13. To order a unit with a pin length of 0.150”, please add suffix ‘P4’ to the model number, e.g.
SIL06C-05SADJ-HP4J.
14. NOTICE: Some models do not support all options. Please contact your local Artesyn representative
or use the on-line model number search tool at http://www.artesyn.com/power to find a suitable
alternative.
SIL06C Data Sheet

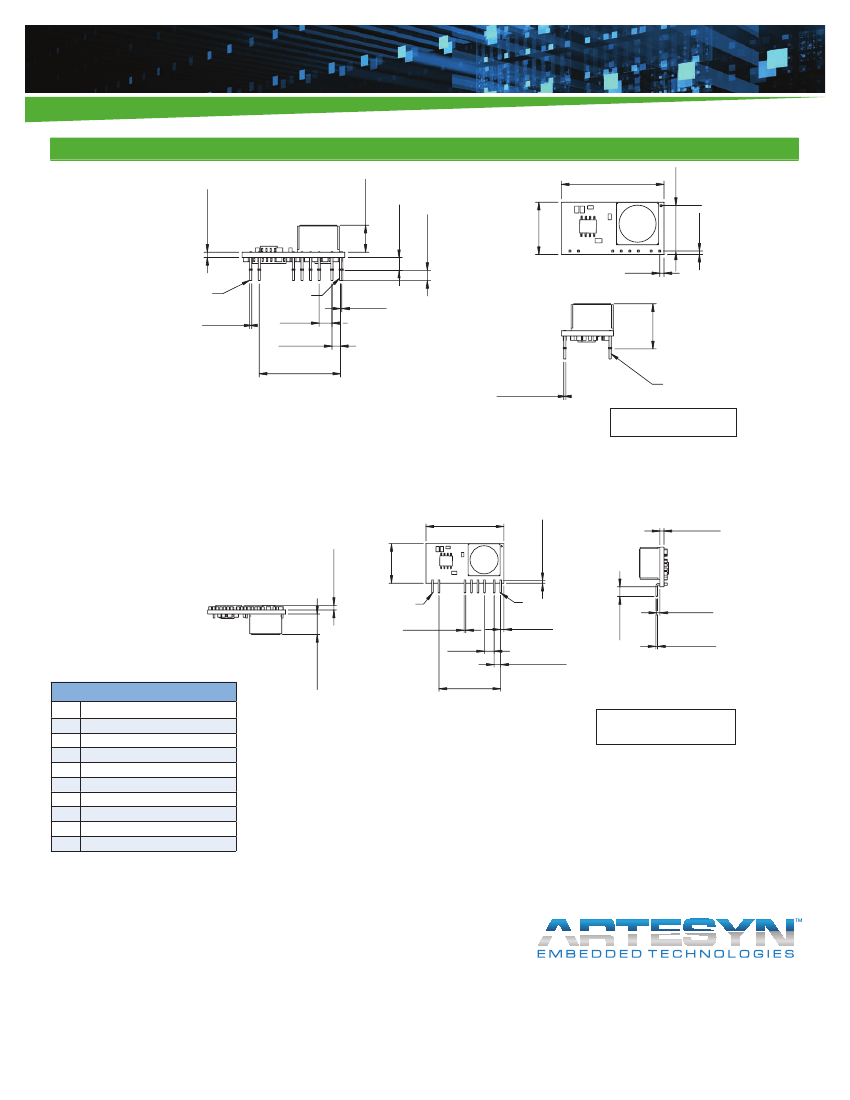

Mechanical Drawings
Mating Connectors
Horizontal Mount
0.062
(1.57) PCB Ref
0.315
(8.00) max
0.610
(15.49)
1.200
(30.48)
0.150
(3.81) Ref
0.530
(15.01)
0.050
(1.27)
0.527
(13.38)
Pin 8
Pin 1
0.150
(3.80)
5X 0.100
(2.54)
0.950
(24.13)
0.025
±0.001
(0.64) Typ.
±0.025
0.025
±0.001
(0.64) Typ.
±0.025
0.015
(0.38)
0.120
(3.05)
9 Places
Mechanical
Support Pin
All dimensions in INCHES (mm)
General tolerance
±0.01in
(
±0.25mm)
except where speci ed otherwise
Vertical Mount
1.200
(30.48)
0.610
(15.49)
0.070
(1.78)
Pin 8
0.025
±0.001
(0.64) Typ.
±0.025
0.315
(8.00) max.
0.150
(3.81)
0.950
(24.13)
Pin 1
0.050
(1.27)
5X 0.100
(2.54)
0.150
(3.81)
8 Places
0.040
(1.02) Ref.
0.062
(1.57) Ref.
0.050
(1.27) Typ.
0.025
±0.001
(0.64) Typ.
±0.025
Pin Assignments
Pin
1
2
3
4
5
6
7
8
9
Function
Vout
Trim
Ground
Power Good
Remote ON/OFF
Vin
Mechanical support
Mechanical support
Mechanical support (Horiz only)
All dimensions in inches (mm)
General tolerance
±0.01in
(
±0.25mm)
except where speci ed otherwise
WORLDWIDE OFFICES
Americas
2900 S.Diablo Way
Tempe, AZ 85282
USA
+1 888 412 7832
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
+44 (0) 1384 842 211
Asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
+852 2176 3333
www.artesyn.com
For more information:
www.artesyn.com/power
For support:
productsupport.ep@artesyn.com
SIL06C DS 26Mar2015
While every precaution has been taken to ensure accuracy and completeness in this literature, Artesyn
Embedded Technologies assumes no responsibility, and disclaims all liability for damages resulting from use
of this information or for any errors or omissions. Artesyn Embedded Technologies, Artesyn and the Artesyn
Embedded Technologies logo are trademarks and service marks of Artesyn Embedded Technologies, Inc.
All other names and logos referred to are trade names, trademarks, or registered trademarks of their respective
owners. © 2015 Artesyn Embedded Technologies, Inc.
0.040
(1.02)
