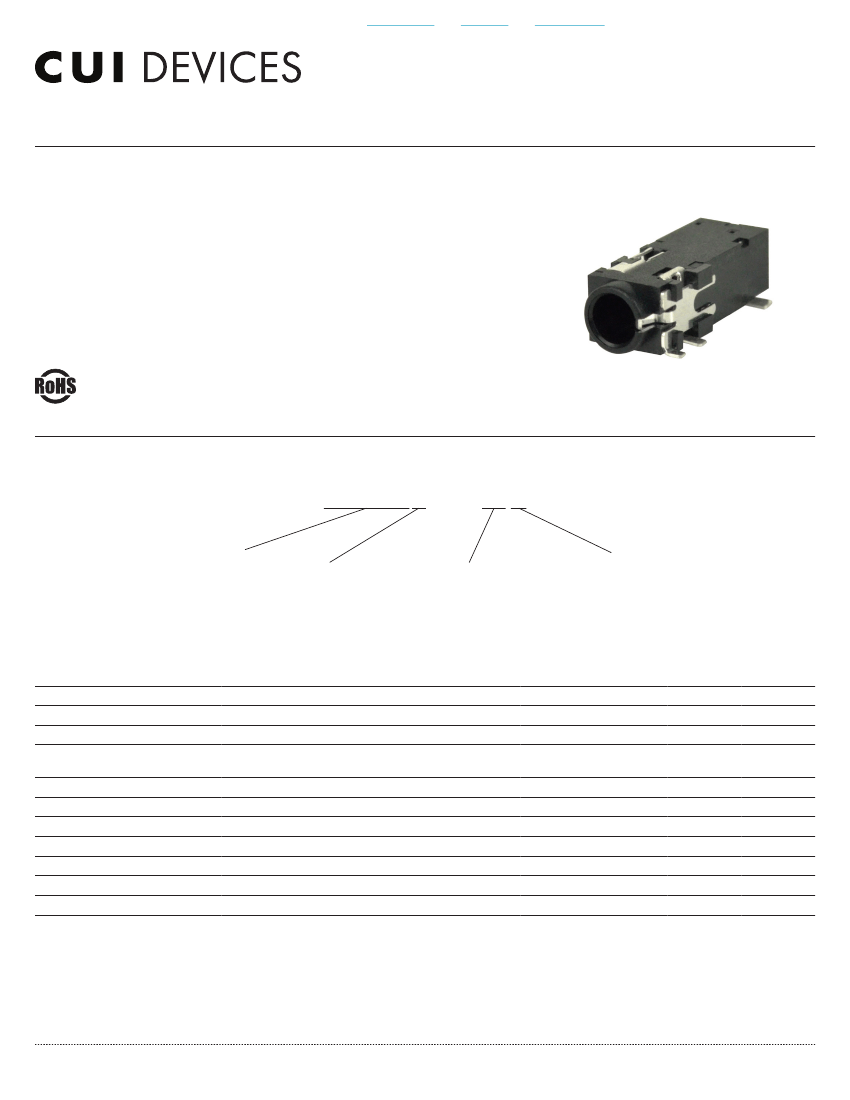

2. When measured at a current of less than 100 mA/1 kHz
3. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
SJ-4351X-SMT
│
DESCRIPTION:
3.5 MM AUDIO JACK
date
10/14/2019
│
page
2 of 4

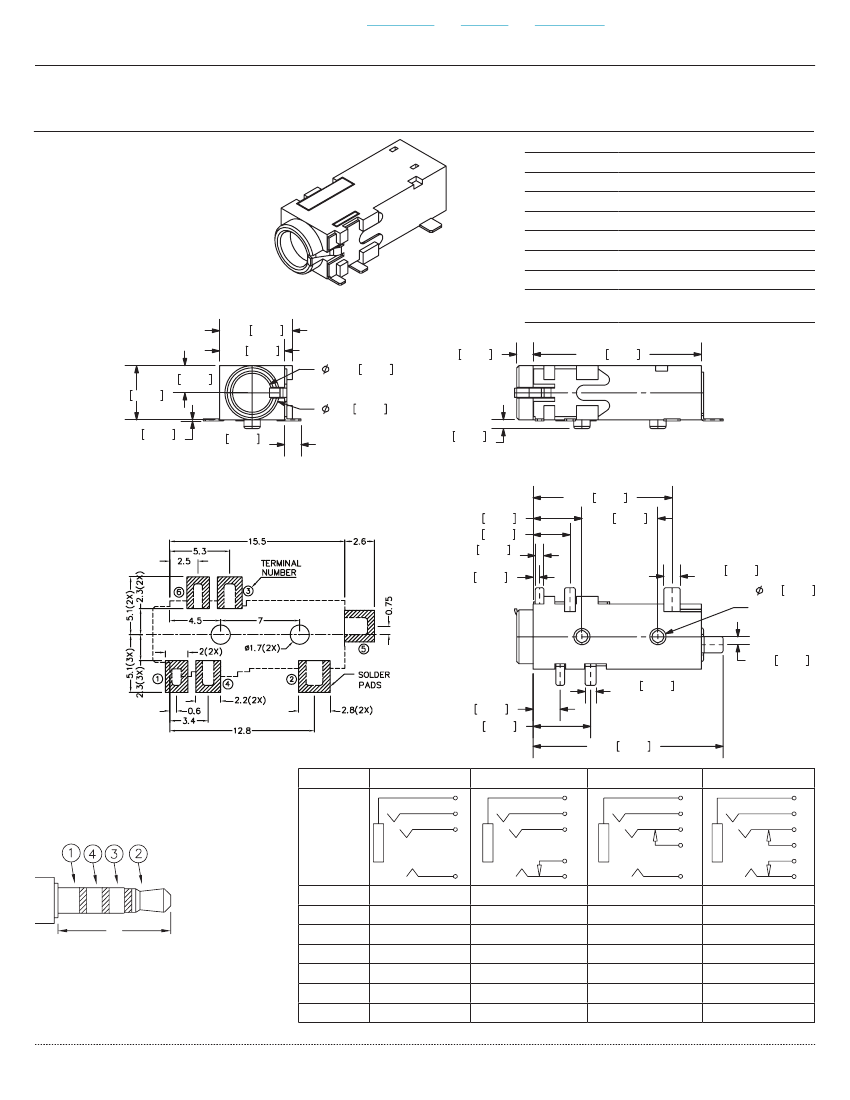

MECHANICAL DRAWING
units: mm[inches]
TOLERANCE:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
PCB: ±0.05 mm
MATERIAL
terminal 1
terminal 2
terminal 3
terminal 4
terminal 5
terminal 6
plastic
6.70 0.264
6.00 0.236
2.50 0.098
5.00 0.197
0.1 0.004
(TYP)
3.600 0.142
1.50 0.059
15.5 0.610
PLATING
silver
silver
silver
silver
silver
silver
copper alloy
copper alloy
copper alloy
copper alloy
brass
copper alloy
PA6T or
equivalent
5.00 0.197
1.5 0.059
(TYP)
0.80 0.031
(TYP)
12.8 0.504
4.50 0.177
3.4 0.134
0.80 0.031
(2 PLCS)
0.6 0.024
1
7.00 0.276
1.50 0.059
(2 PLCS)
4
6
3
1.00 0.039
(2 PLCS)
2
5
1.5 0.059
+0.0
-0.1
(2 PLCS)
0.75 0.030
2.5 0.098
Recommended PCB Layout
Top View
Model No.
SJ-43514-SMT
5.3 0.209
17.5 0.689
SJ-43515TS-SMT
1
4
3
5
2
SJ-43515RS-SMT
1
4
3
6
2
SJ-43516-SMT
1
4
3
6
5
2
Schematic
1
4
3
2
PIN
14
Ø 3.5 MATING PLUG
1
2
3
4
5
6
sleeve
tip
ring 1
ring 2
NP
NP
cuidevices.com
sleeve
tip
ring 1
ring 2
tip switch
NP
sleeve
tip
ring 1
ring 2
NP
ring switch
sleeve
tip
ring 1
ring 2
tip switch
ring switch
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
SJ-4351X-SMT
│
DESCRIPTION:
3.5 MM AUDIO JACK
date
10/14/2019
│
page
3 of 4
SOLDERABILITY
parameter
reel storage
reflow soldering
1
drying conditions
2
Note:
conditions/description
at relative humidity <80%
see reflow profile
min
255
typ
260
max
40
265
units
°C
°C
parts in reel: bake at 40°C ±5°C for 72 hours
parts removed from reel: bake at 40°C ±5°C for 10 hours
1. Must reflow solder within 72 hours from opening vacuum packaging at a temperature <30°C & relative humidity <60%.
2. When exceeding floor life by >72 hours.
270
260
250
240
Temperature (°C)
217
180
150
120
60
50
70
60
120
140
180
240
250
300
340
360
380
420
430
480
Time (sec)

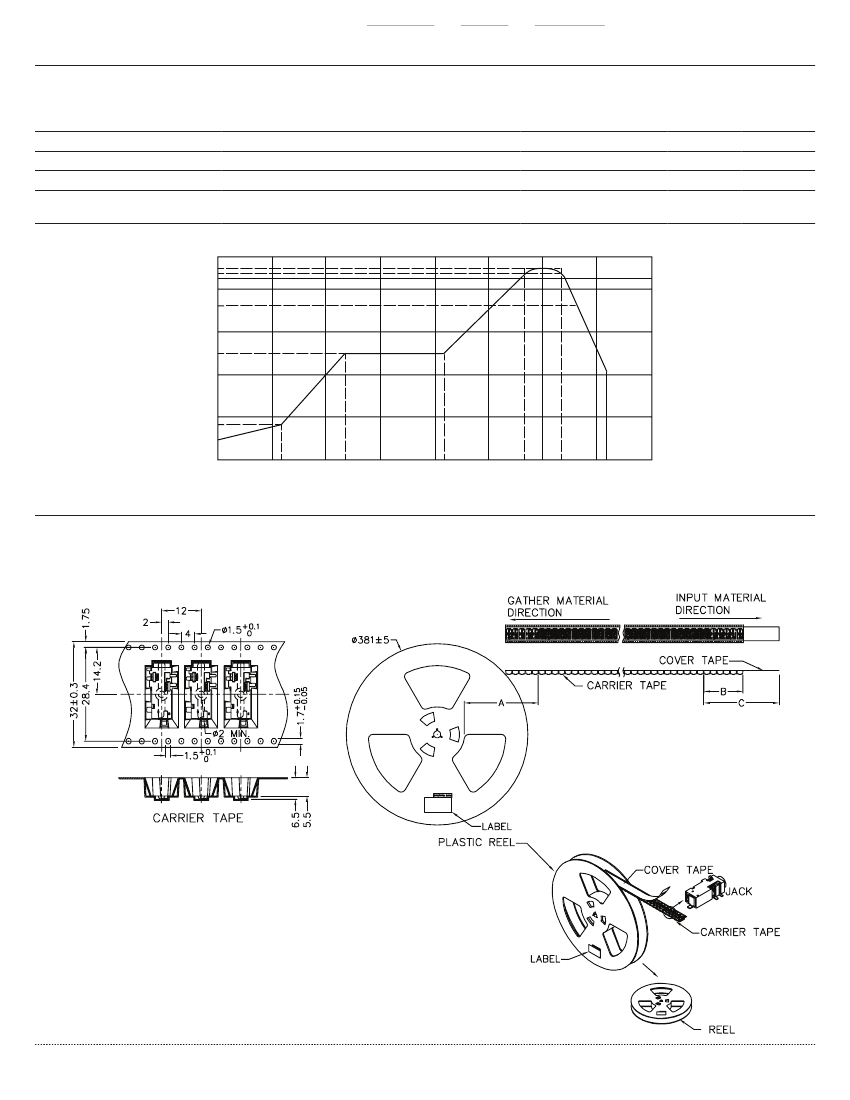

PACKAGING
units: mm
Reel Size: Ø381 mm
Reel QTY: 1,000 pcs per reel
A: Empty 160 mm min.
B: Empty 100 mm min.
C: Cover 400 mm min.
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
SJ-4351X-SMT
│
DESCRIPTION:
3.5 MM AUDIO JACK
date
10/14/2019
│
page
4 of 4
REVISION HISTORY
rev.
1.0
1.01
1.02
1.03
1.04
description
initial release
new template applied
added TR package and color options
added storage and drying conditions, and tape and
reel packaging details
brand update
date
01/17/2006
02/02/2012
11/01/2012
02/23/2018
10/14/2019
The revision history provided is for informational purposes only and is believed to be accurate.
CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website.
CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no
responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any
component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or
