69168-014LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 69168-014LF

69168-014LF: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size3MB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

69168-014LF Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

69168-014LF Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	69168
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

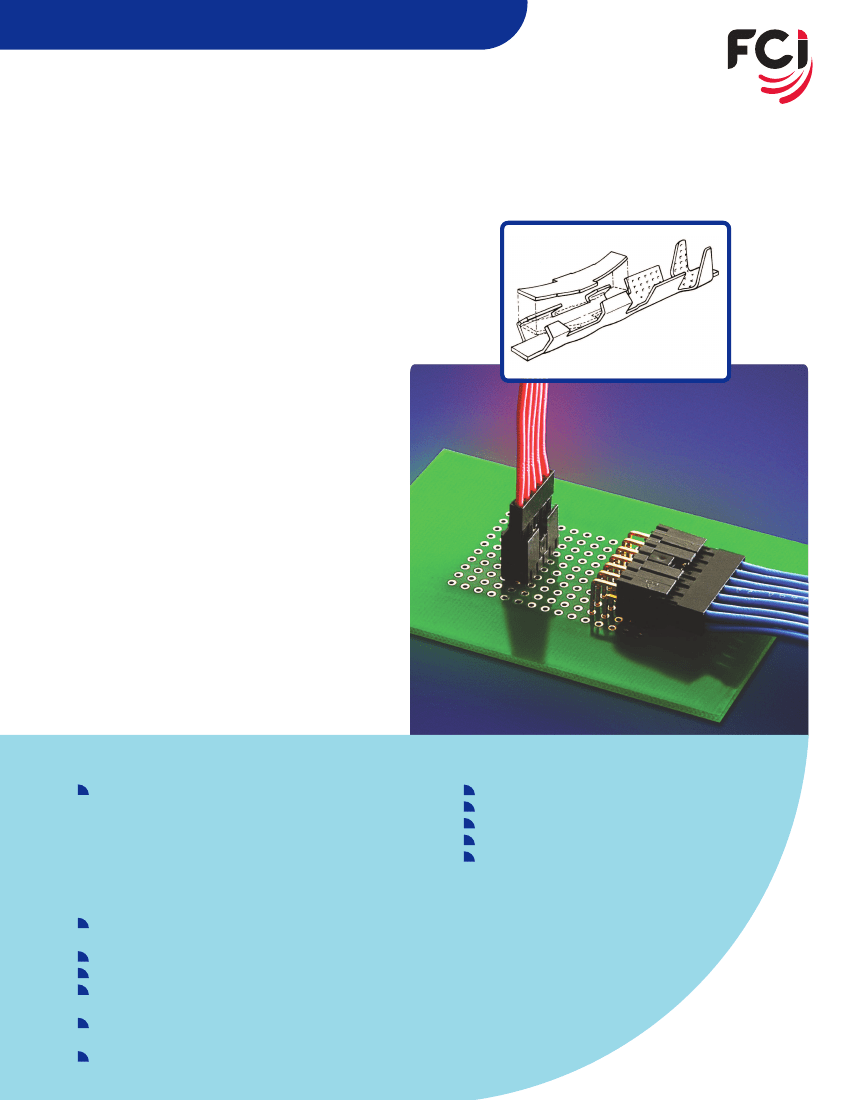

WIRE-TO-BOARD CONNECTORS

WIRE-TO-BOARD CONNECTOR SYSTEM

Unique Design Provides High Reliability, High Durability and High Retention

DESCRIPTION

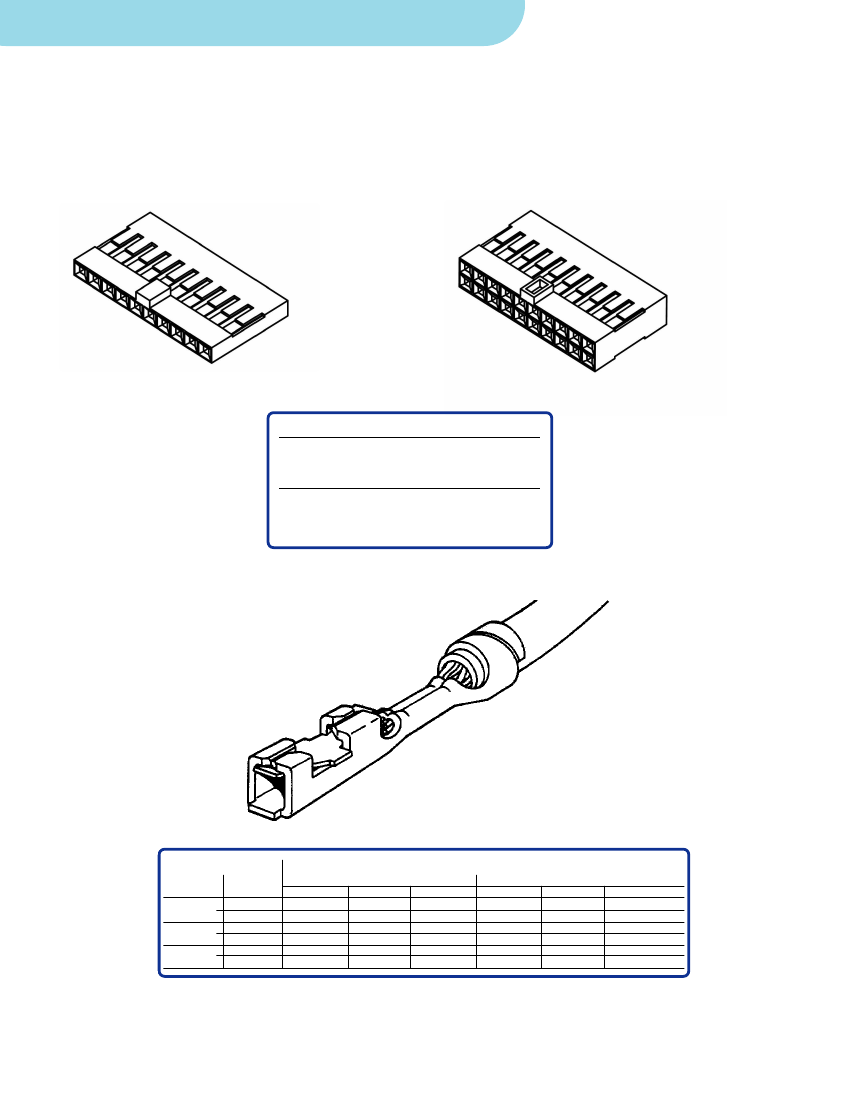

The innovative PV crimp-to-wire system connects

discrete wire to printed circuit boards. High-reliability,

dual-metal receptacle contacts are designed to plug

to industry-standard 0.025” (0.635mm) square posts.

The receptacle contacts can be installed in insulating

MINI-LATCH

™

connector housings or used discretely.

Contacts are spaced on 0.100" (2.54mm) pitch in single

or double-row housing configurations.

Terminated receptacle contacts and housing assemblies

can be plugged to staked pins, BERGSTIK

unshrouded

headers, or shrouded PCB headers. The side walls of

the shrouded headers include an integral “friction gripping”

feature that fits to the sides of the MINI-LATCH housing

and reduces the risk of disengagement. A side key on

the MINI-LATCH housing and a corresponding keyway

in the header side-wall provide polarization to prevent

mis-mating.

FEATURES & BENEFITS

Unique dual-metal PV receptacle contact maintains

contact pressure through 1000 mating cycles. A

beryllium copper spring provides high normal force

at the mating interface, while the brass contact body

produces a reliable, gas-tight crimp termination. The

choice of two different spring pressures allows the

user to customize insertion and withdrawal forces to

individual application requirements

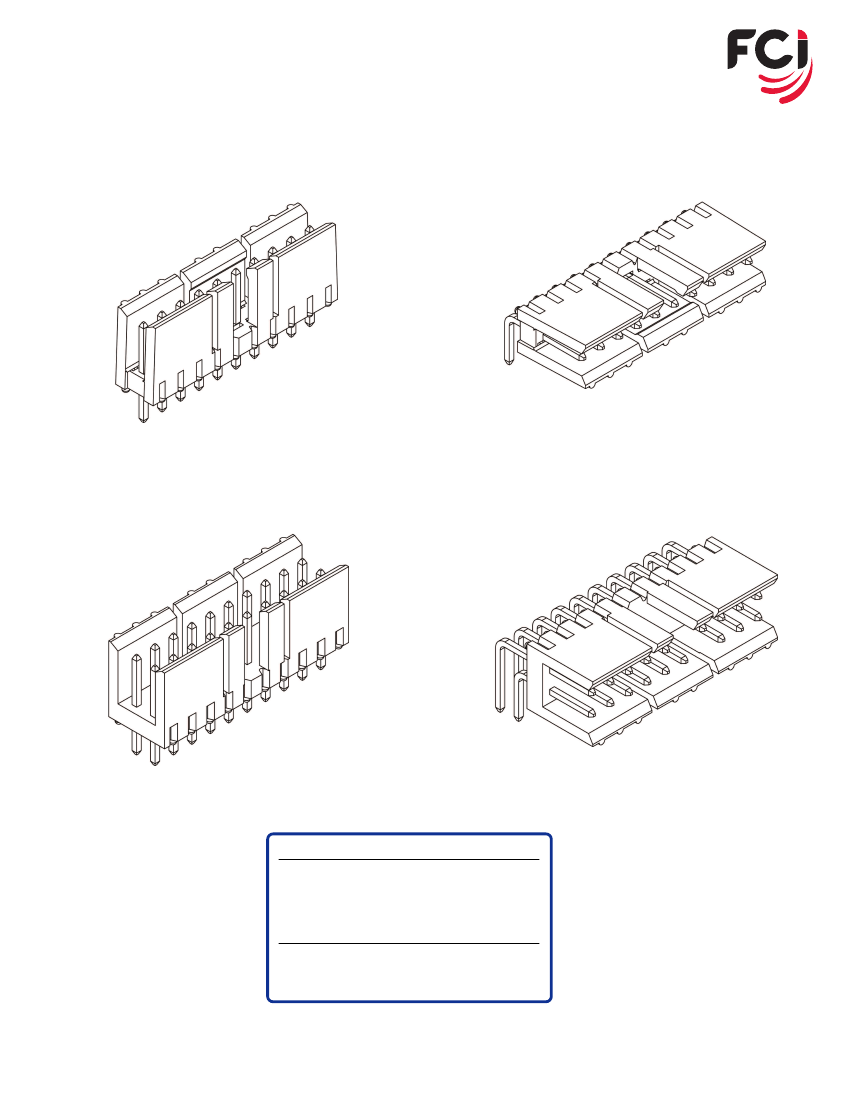

Shrouded header side walls engage with the sides of

the MINI-LATCH housing to provide additional retention

MINI-LATCH housing firmly retains PV wire contacts

Available in single or double row configurations

Keyed MINI-LATCH housings and header keyways

provide polarization to prevent mis-mating

Two wall header design provides mechanical benefits

plus economy

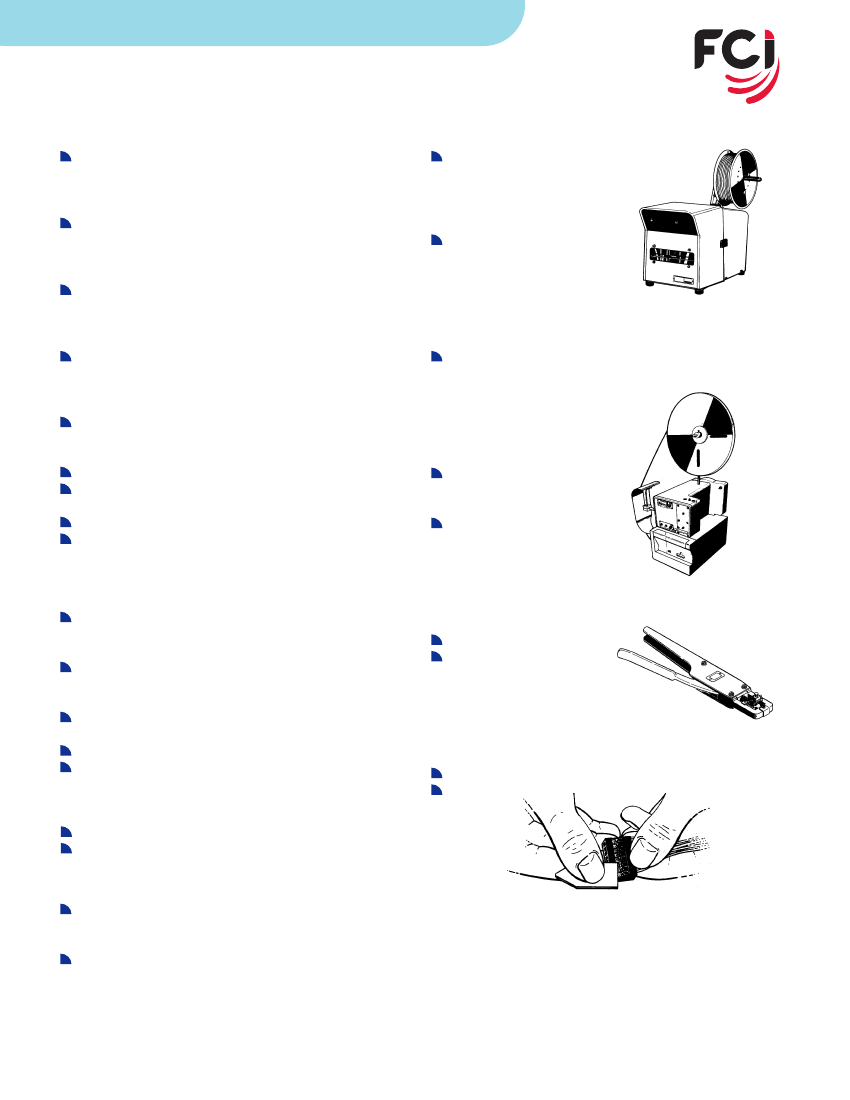

Application tooling is supported by FCI

TARGET MARKETS / APPLICATIONS

Instrumentation and Medical

Industrial Equipment

Consumer and White Goods

Motor Vehicle

Data and Communications
