863009PL: DescriptionD Subminiature Connector, 9 Contact(s), Male, Crimp Terminal; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

863009PL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	863009PL	-	-	View	Buy Now

D Subminiature Connector, 9 Contact(s), Male, Crimp Terminal

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	863009PL
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	STEEL
Housing size	1/E
Termination type	CRIMP
Total number of contacts	9
Base Number Matches	1

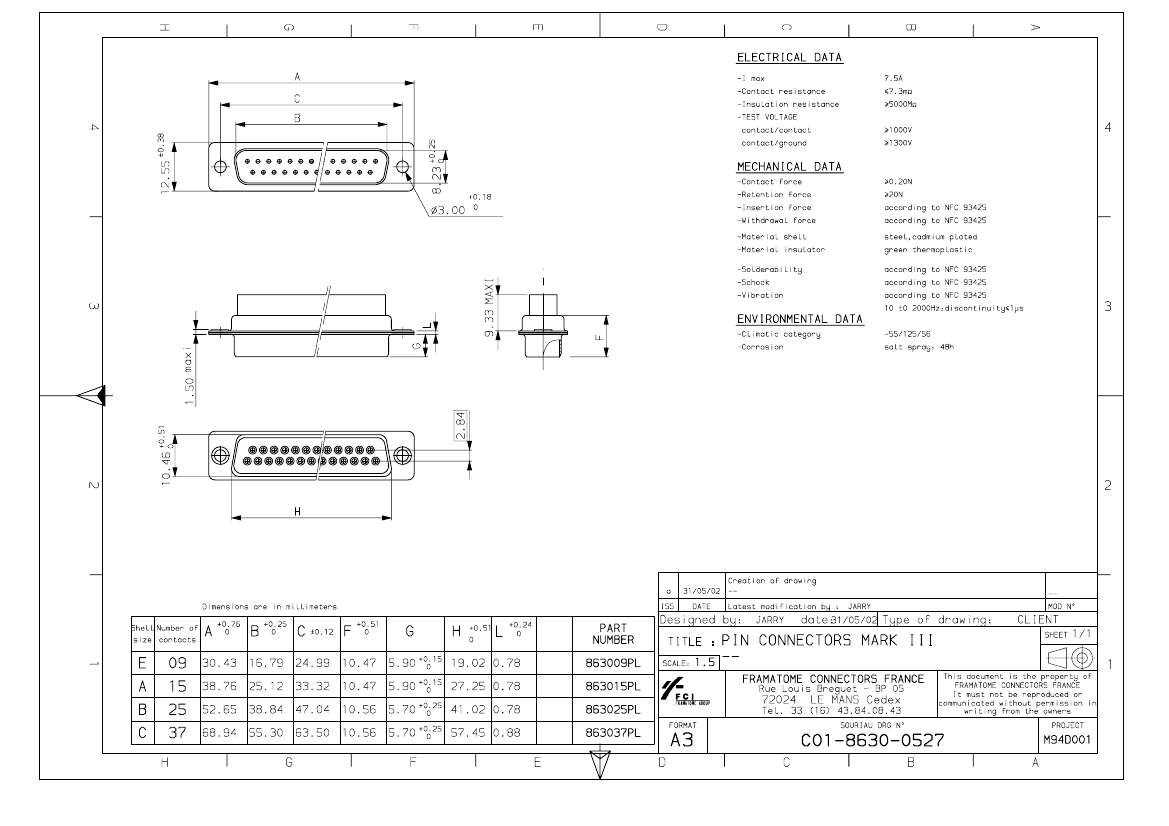

PDM: Rev:A

STATUS:

Released

Printed: Oct 01, 2002

	863009PL	863037PL	863015PL	863025PL
Description	D Subminiature Connector, 9 Contact(s), Male, Crimp Terminal	D Subminiature Connector, 37 Contact(s), Male, Crimp Terminal	D Subminiature Connector, 15 Contact(s), Male, Crimp Terminal	D Subminiature Connector, 25 Contact(s), Male, Crimp Terminal
Reach Compliance Code	compliant	compliant	compliant	compli
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	863009PL	863037PL	863015PL	863025PL
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CADMIUM	CADMIUM	CADMIUM	CADMIUM
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	1/E	4/C	2/A	3/B
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	9	37	15	25
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Maker	-	Amphenol	Amphenol	Amphenol
