DUP75-12D05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DUP75-12D05

DUP75-12D05: DescriptionDC-DC Unregulated Power Supply Module, 2 Output, 0.375W, Hybrid, PLASTIC, SIP-5; CategoryPower/power management The power supply circuit; File Size86KB，2 Pages; ManufacturerAstrodyne TDI

Download Datasheet Parametric View All

DUP75-12D05 Overview

DC-DC Unregulated Power Supply Module, 2 Output, 0.375W, Hybrid, PLASTIC, SIP-5

DUP75-12D05 Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	PLASTIC, SIP-5
Contacts	5
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALSO -5V OUPUT VOLTAGE IS AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	R-PSMA-T5
length	19.6 mm
Maximum load regulation	10%
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output current	0.075 A
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP6/7,.18
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum total power output	0.375 W
Fine-tuning/adjustable output	NO
width	10.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

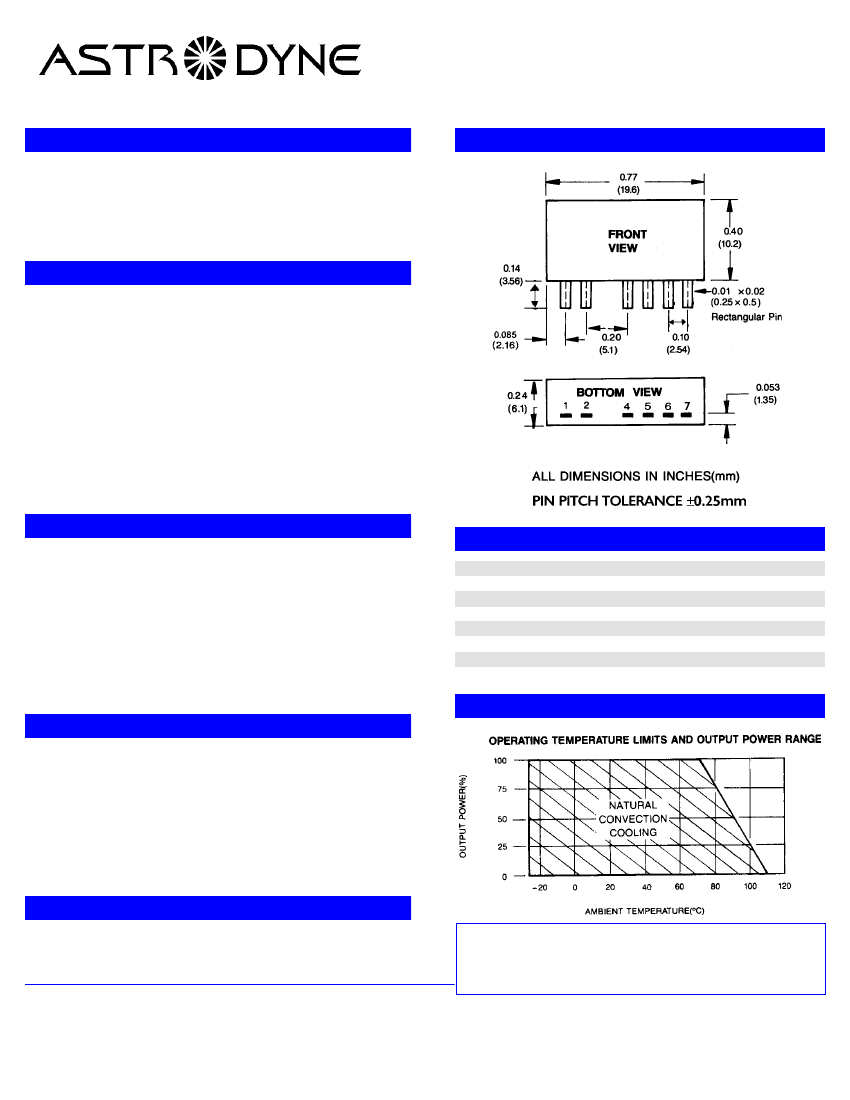

Isolated and Unregulated

0.75 WATT

Modular DC/DC Converters

CostCutter

Low Cost

0.75 Watt in SIP pkg

Unregulated Outputs

750VDC Isolation

Non-Conductive Case

Internal Filters

DUP75

Series

Unit measures 0.24”W x 0.77”L x 0.4”H

MODEL SELECTIONS

Output

Voltage

Output

mAmps

Input

Range

4.5-5.5 VDC

10.8-13.2 VDC

13.5-16.5 VDC

21.6-26.4 VDC

4.5-5.5 VDC

10.8-13.2 VDC

13.5-16.5 VDC

21.6-26.4 VDC

4.5-5.5 VDC

10.8-13.2 VDC

13.5-16.5 VDC

21.6-26.4 VDC

4.5-5.5 VDC

10.8-13.2 VDC

13.5-16.5 VDC

21.6-26.4 VDC

4.5-5.5 VDC

10.8-13.2 VDC

13.5-16.5 VDC

21.6-26.4 VDC

4.5-5.5 VDC

10.8-13.2 VDC

13.5-16.5 VDC

21.6-26.4 VDC

Model

Number

DUP75-05S05

DUP75-12S05

DUP75-15S05

DUP75-24S05

DUP75-05S12

DUP75-12S12

DUP75-15S12

DUP75-24S12

DUP75-05S15

DUP75-12S15

DUP75-15S15

DUP75-24S15

DUP75-05D05

DUP75-12D05

DUP75-15D05

DUP75-24D05

DUP75-05D12

DUP75-12D12

DUP75-15D12

DUP75-24D12

DUP75-05D15

DUP75-12D15

DUP75-15D15

DUP75-24D15

Price

$17

$19

$15

$17

SINGLE OUTPUT

5 VDC

150

12 VDC

+/-75

+/-30

+/-25

15 VDC

DUAL OUTPUT

+/-5 VDC

Contact

Factory

for

High Volume

Pricing

+/-12 VDC

+/-15 VDC

300 Myles Standish Blvd., Taunton, MA 02780

Ph: 1-800-823-8082

Fax: 508-823-8181

Rev. 2/02

WWW.ASTRODYNE.COM
