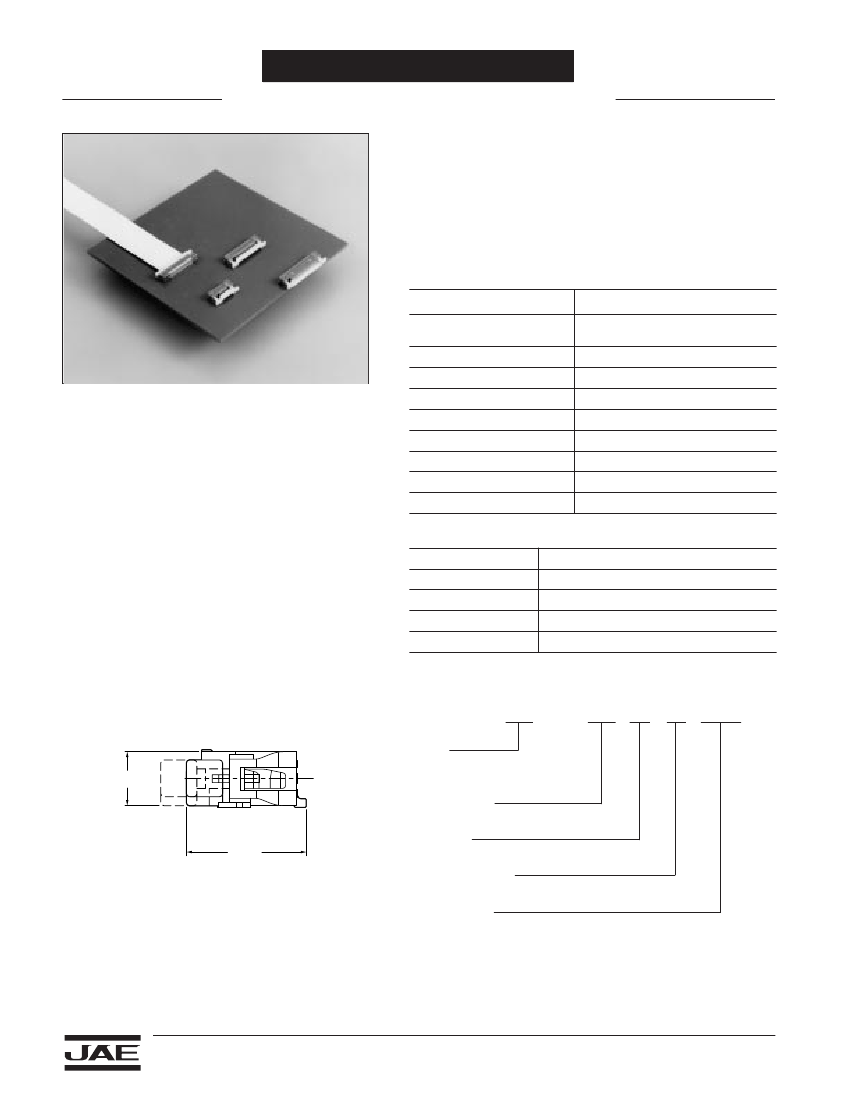

FA1/FA2 SERIES CONNECTORS
0.5mm (.020") Contact Spacing, ZIF Connectors for FPC
• • • • • • • • • • • • • •
FA1/FA2 Series connectors are high density, low profile connec-
tors for FPC applications. The ZIF (zero insertion force) structure
utilizes a slider for easy, yet reliable engagement of the flex
cable. Applications include AV and communications devices
such as DVC, notebook PCs, PDAs, LCD displays and mobile
phones.
GENERAL SPECIFICATIONS
Number of Contacts
Applicable FPC
Current Rating
Voltage Rating
5 through 30
0.5mm (.020") pitch, thickness 0.3mm
(.012")
±
0.05mm (.002") with back plate
0.5 Amps
50 VDC
Greater than 100 megohms min.
Less than 20 milliohms max.
0.5mm (.020")
20 insertions
-40°C to +85°C
Dielectric Withstanding Voltage 250 VAC r.m.s. (for one minute)
FEATURES
Insulation Resistance
Contact Resistance
Contact Pitch
Lifetime
Operating Temperature
• ZIF structure enables easy insertion and
removal of FPC
• 3.5mm (.138") and 4mm (.157") depth space
saving mounting type
• SMT type compatible with automated mounting
• Embossed tape packaging available
• Contact structure permits continuity test
• One-side contact structure withstands reverse
insertion
• Lower contact and upper contact
structures available
MATERIALS AND FINISHES
Description
Slide Insulator
Base Insulator
Contact
Hold-down
Materials/Finishes
Glass-filled PPS (UL94V-0, White)
Glass-filled PPS (UL94V-0, Brown)
Copper Alloy, Tin Plating
Phosphor Bronze, Tin-Lead Plating
ORDERING INFORMATION
FA*
Connector Profile (Ref.)
Series
FA1 – Bottom Contact Mating
FA2 – Top Contact Mating
No. of Contacts
5-30
Termination
H – Right Angle
Contact Finish Code
5 – Tin-Plating
Embossed Tape
E3000 – 3,000 Pieces/Reel
***
H
5
E3000
1.8
(.071)
4.0 (.157)
Dimensions and specifications subject to change without notice.
Dimensions in mm (inches).
70
FA1/FA2 SERIES CONNECTORS
0.5mm (.020") Contact Spacing, ZIF Connectors for FPC

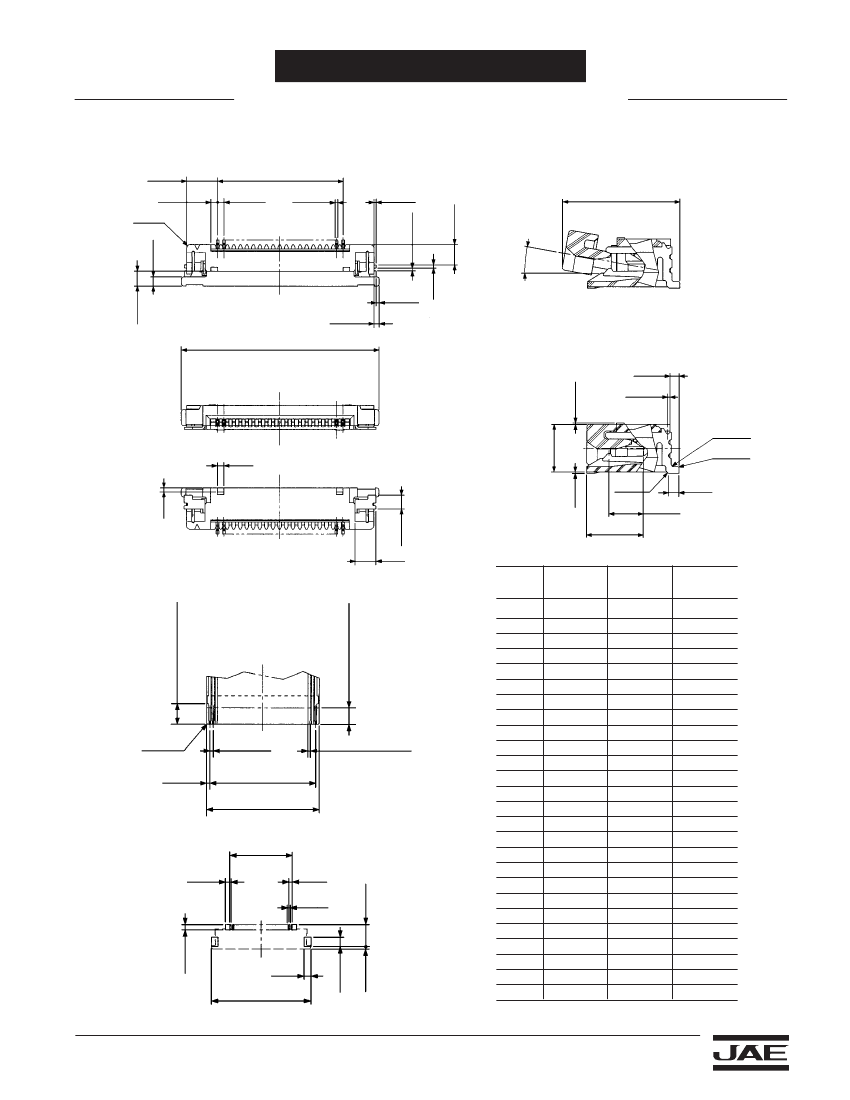

FA1: BOTTOM CONTACT
2.35
(.093)
0.5
(.020)
R 0.3
(.012)
B
±
0.1 (.004)
0.5 (.020)
±
0.1 (.004)
0.2 (.008)
+ 0.03 (.001)
- 0.02 (.001)
0.17
(.007)
4.4 (.173)
0.2
(.008)
0.7
(.028)
1.55
(.061)
1.1
(.043)
0.23
(.009)
0.4
(.016)
A
±
0.1 (.004)
0.25
(.010)
10
°
0.05
(.002)
0.35
(.014)
(0.1
(.004))
0.5
(.020)
C 0.05
(.002)
R 0.05
(.002)
1.8
(.071)
0.05
(.002)
0.3
(.012)
C 0.1
(.004)
1.3 (.051)
±
0.2 (.008)
0.4
(.016)
1.05
(.041)
2.15 (.085)
±
0.2 (.008)
1.6
(.063)
TABLE 1
No. of
Contacts
F.P.C. Pattern Layout (Ref.)
3.15 (.012)
(full insertion position)
2.5 (.098)
(exposure conductor)
A
7.5 (.295)
8.0 (.315)
8.5 (.335)
9.0 (.354)
9.5 (.374)
10.0 (.394)
10.5 (.413)
11.0 (.433)
11.5 (.453)
12.0 (.472)
12.5 (.492)
13.0 (.512)
13.5 (.531)
14.0 (.551)
14.5 (.571)
15.0 (.590)
15.5 (.610)
16.0 (.630)
16.5 (.650)
17.0 (.670)
17.5 (.689)
18.0 (.709)
18.5 (.728)
19.0 (.748)
19.5 (.768)
20.0 (.787)
B
2.0 (.079)
2.5 (.098)
3.0 (.118)
3.5 (.138)
4.0 (.157)
4.5 (.177)
5.0 (.197)
5.5 (.216)
6.0 (.236)
6.5 (.256)
7.0 (.275)
7.5 (.295)
8.0 (.315)
8.5 (.335)
9.0 (.354)
9.5 (.374)
10.0 (.394)
10.5 (.413)
11.0 (.433)
11.5 (.453)
12.0 (.472)
12.5 (.492)
13.0 (.512)
13.5 (.531)
14.0 (.551)
14.5 (.571)
C
7.6 (.299)
8.1 (.319)
8.6 (.339)
9.1 (.358)
9.6 (.378)
10.1 (.397)
10.6 (.417)
11.1 (.437)
11.6 (.457)
12.1 (.476)
12.6 (.496)
13.1 (.516)
13.6 (.535)
14.1 (.555)
14.6 (.575)
15.1 (.594)
15.6 (.614)
16.1 (.634)
16.6 (.653)
17.1 (.673)
17.6 (.693)
18.1 (.712)
18.6 (.732)
19.1 (.752)
19.6 (.772)
20.1 (.791)
Dimensions in mm (inches).
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
R 0.2
(.008)
0.5 (.020)
±
0.1 (.004)
0.5 (.020)
±
0.03 (.001)
0.35 (.014)
±
0.03 (.001)
(pitch)
B
±
0.05 (.002)
(B + 1)
±
0.05 (.002)
(pattern width)
Applicable PCB Layout (Ref.)
B
0.8
(.031)
0.5
(.020)
0.3
(.012)
0.8
(.031)
1.45
(.057)
1
(.039)
C
0.35
(.014)
3.35
(.132)
71
FA1/FA2 SERIES CONNECTORS
0.5mm (.020") Contact Spacing, ZIF Connectors for FPC

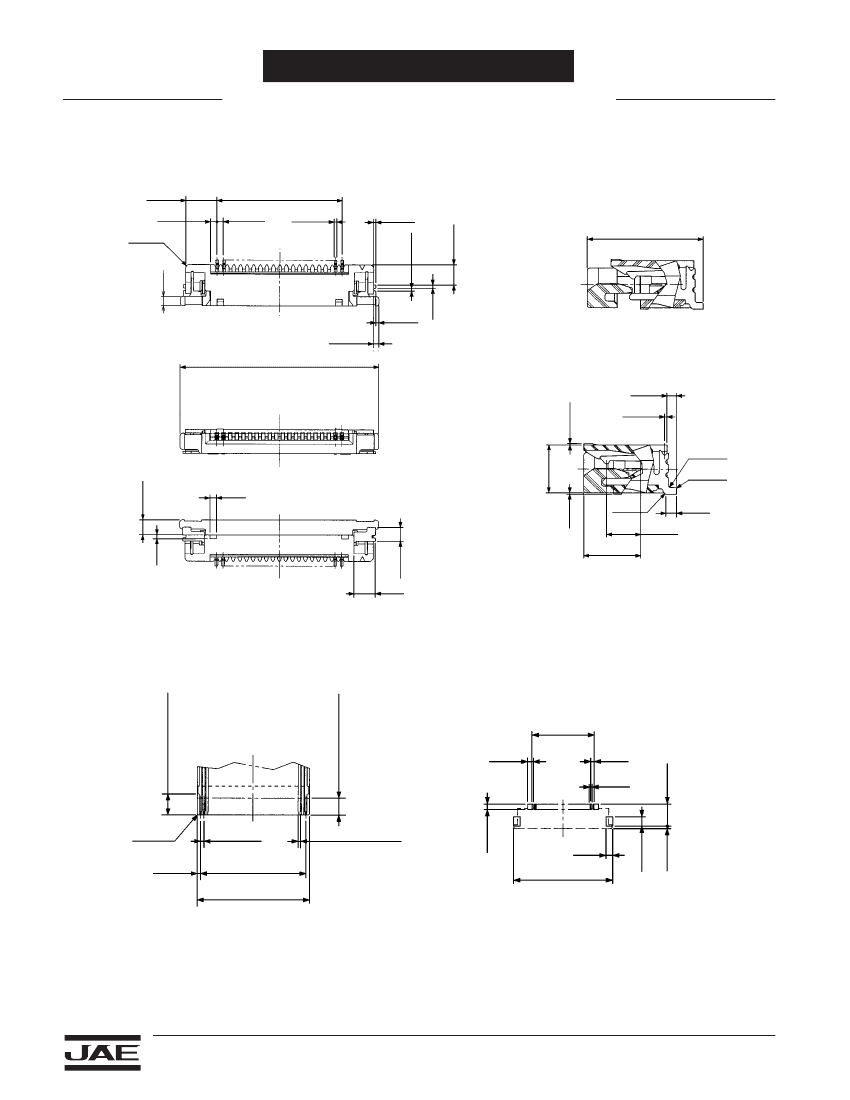

FA2: TOP CONTACT
0.7
(.028)
0.2
(.008)
2.35
(.093)
0.5
(.020)
R 0.3
(.012)
B
±
0.1 (.004)
0.5 (.020)
±
0.1 (.004)
0.2 (.008)
+ 0.03 (.001)
- 0.02 (.001)
1.55
(.061)
0.17
(.007)
4.4 (.173)
0.23
(.009)
0.4 (.016)
A
±
0.1 (.004)
0.25
(.010)
0.05
(.002)
0.35
(.014)
(0.1 (.004))
1.1
(.043)
0.05
(.002)
0.5
(.020)
C 0.05
(.002)
R 0.05
(.002)
C 0.1
(.004)
1.3 (.051)
±
0.2 (.008)
1.8
(.071)
0.4
(.016)
0.3
(.012)
1.05
(.041)
2.15 (.085)
±
0.2 (.008)
1.6
(.063)
F.P.C. Pattern Layout (Ref.)
3.15 (.012)
(full insertion position)
2.5 (.098)
(exposure conductor)
Applicable PCB Layout (Ref.)
B
0.8
(.031)
0.5
(.020)
0.3
(.012)
1.45
(.057)
(pitch)
B
±
0.05 (.002)
(B + 1)
±
0.05 (.002)
(pattern width)
C
0.5 (.020)
±
0.1 (.004)
1
(.039)
Dimensions in mm (inches).
72
0.35
(.014)
R 0.2
(.008)
0.5 (.020)
±
0.03 (.001)
0.35 (.014)
±
0.03 (.001)
0.8
(.031)
3.35
(.132)
