TR9C1710-66EC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> TR9C1710-66EC

TR9C1710-66EC: DescriptionD/A Converter, 6-Bit, 3 Func, CMOS, PQCC32; CategoryAnalog mixed-signal IC converter; File Size449KB，16 Pages; ManufacturerMusic Semiconductors Inc.

Download Datasheet Parametric Compare View All

TR9C1710-66EC Overview

D/A Converter, 6-Bit, 3 Func, CMOS, PQCC32

TR9C1710-66EC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCJ, LDCC32,.5X.6
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
JESD-30 code	R-PQCC-J32
JESD-609 code	e0
Maximum linear error (EL)	0.78%
Humidity sensitivity level	3
Number of digits	6
Number of functions	3
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC32,.5X.6
Package shape	RECTANGULAR
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Maximum stabilization time	0.0125 µs
Maximum slew rate	120 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

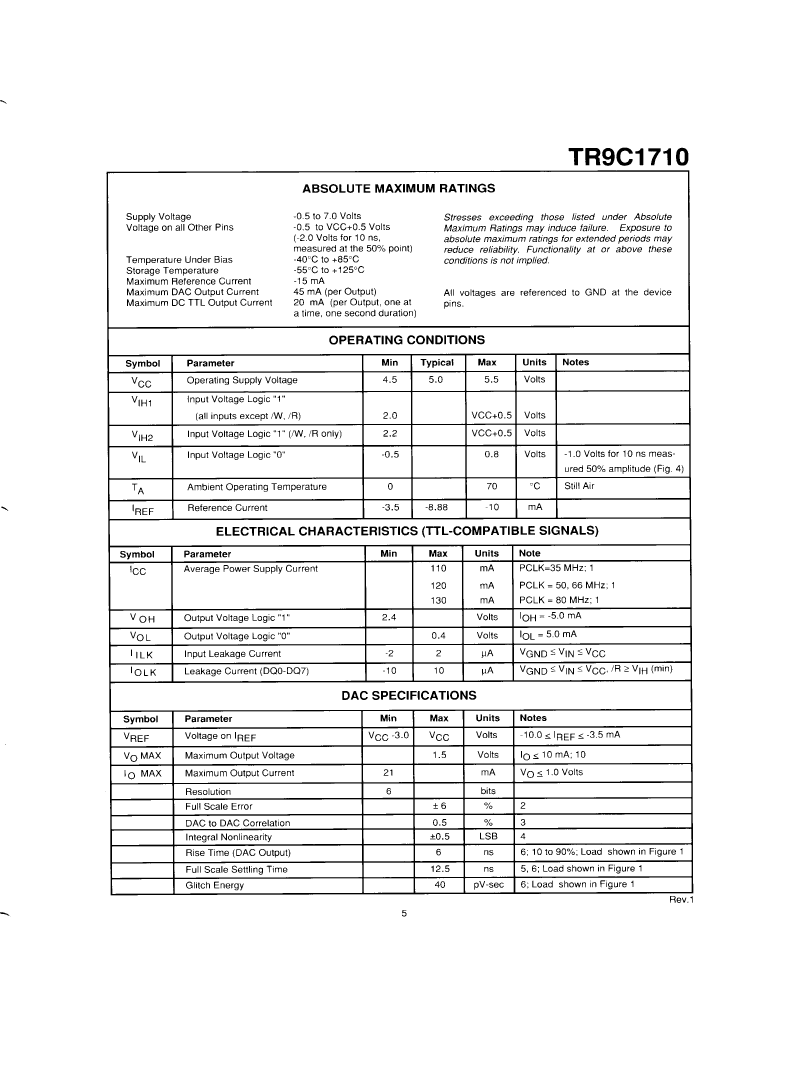

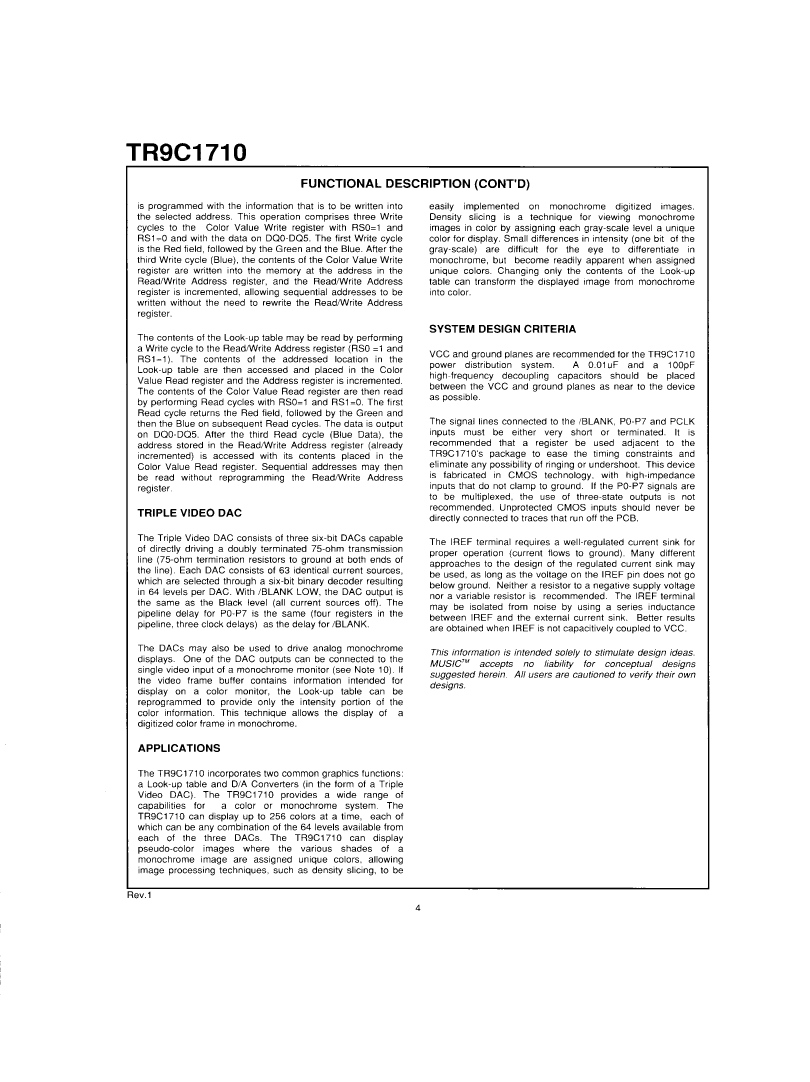

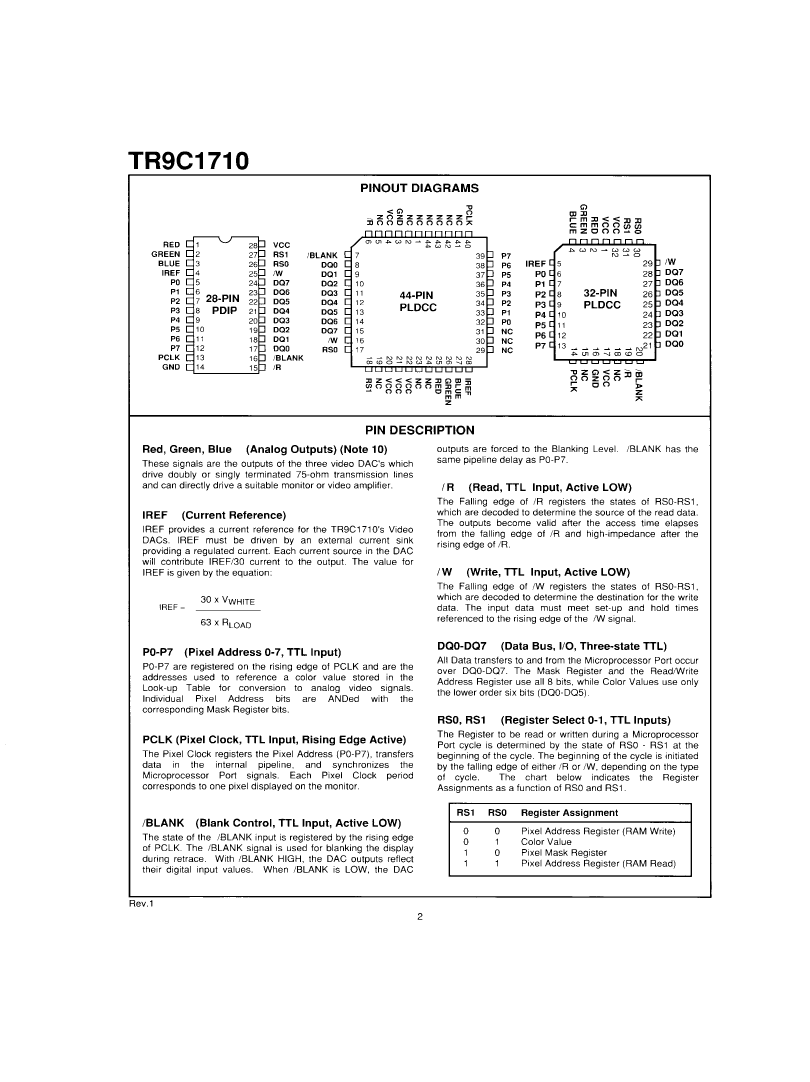

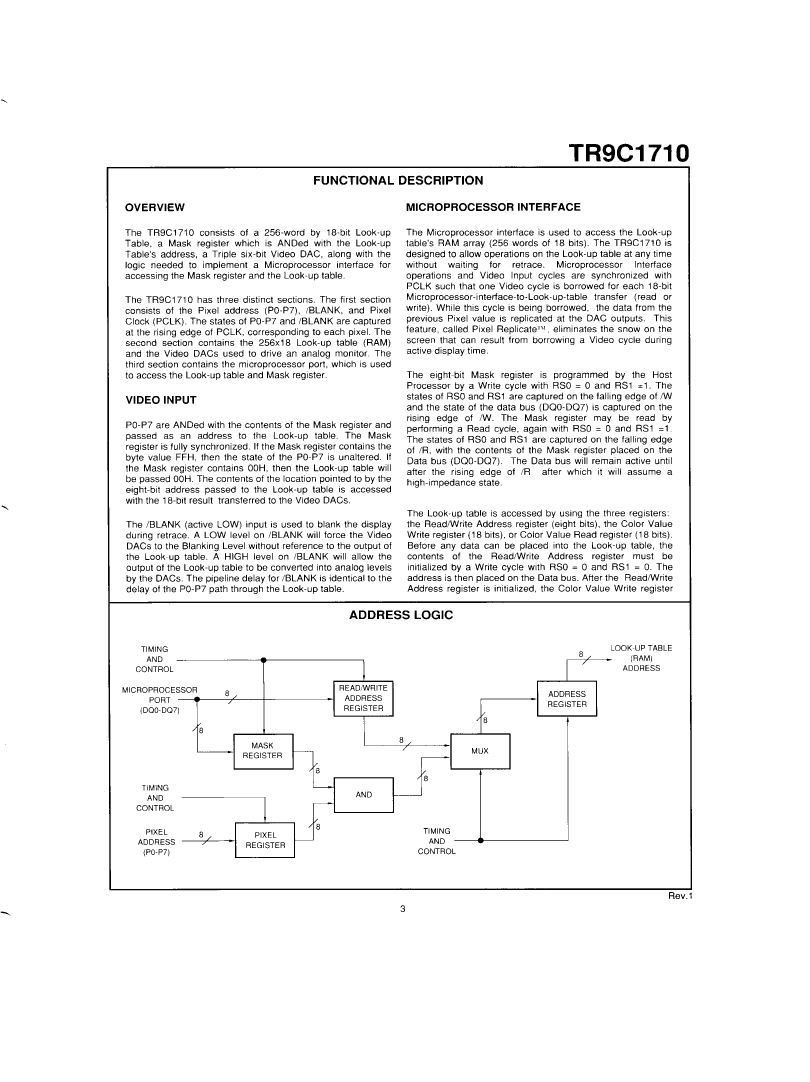

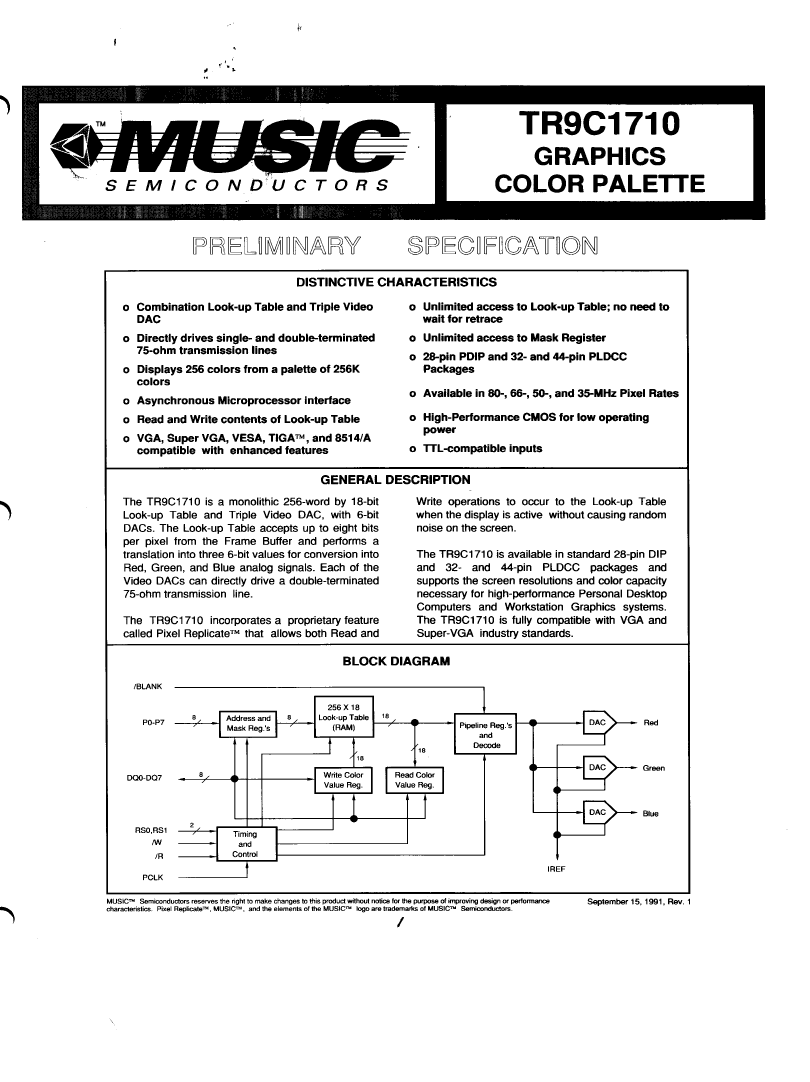

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

TR9C1710-66EC Related Products

	TR9C1710-66EC	TR9C1710-35DC	TR9C1710-66DC	TR9C1710-80DC	TR9C1710-35EC	TR9C1710-80EC	TR9C1710-50PC	TR9C1710-35PC
Description	D/A Converter, 6-Bit, 3 Func, CMOS, PQCC32	D/A Converter, 6-Bit, 3 Func, CMOS, PQCC44	D/A Converter, 6-Bit, 3 Func, CMOS, PQCC44	D/A Converter, 6-Bit, 3 Func, CMOS, PQCC44	D/A Converter, 6-Bit, 3 Func, CMOS, PQCC32	D/A Converter, 6-Bit, 3 Func, CMOS, PQCC32	D/A Converter, 6-Bit, 3 Func, CMOS, PDIP28	D/A Converter, 6-Bit, 3 Func, CMOS, PDIP28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	QCCJ, LDCC32,.5X.6	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ	QCCJ, LDCC32,.5X.6	QCCJ, LDCC32,.5X.6	DIP, DIP28,.6	DIP, DIP28,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
JESD-30 code	R-PQCC-J32	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	R-PQCC-J32	R-PQCC-J32	R-PDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.78%	0.78%	0.78%	0.78%	0.78%	0.78%	0.78%	0.78%
Humidity sensitivity level	3	3	3	3	3	3	3	3
Number of digits	6	6	6	6	6	6	6	6
Number of functions	3	3	3	3	3	3	3	3
Number of terminals	32	44	44	44	32	32	28	28
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	DIP	DIP
Encapsulate equivalent code	LDCC32,.5X.6	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ	LDCC32,.5X.6	LDCC32,.5X.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	0.0125 µs	0.0125 µs	0.0125 µs	0.0125 µs	0.0125 µs	0.0125 µs	0.0125 µs	0.0125 µs
Maximum slew rate	120 mA	110 mA	120 mA	130 mA	110 mA	130 mA	120 mA	110 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1	1
