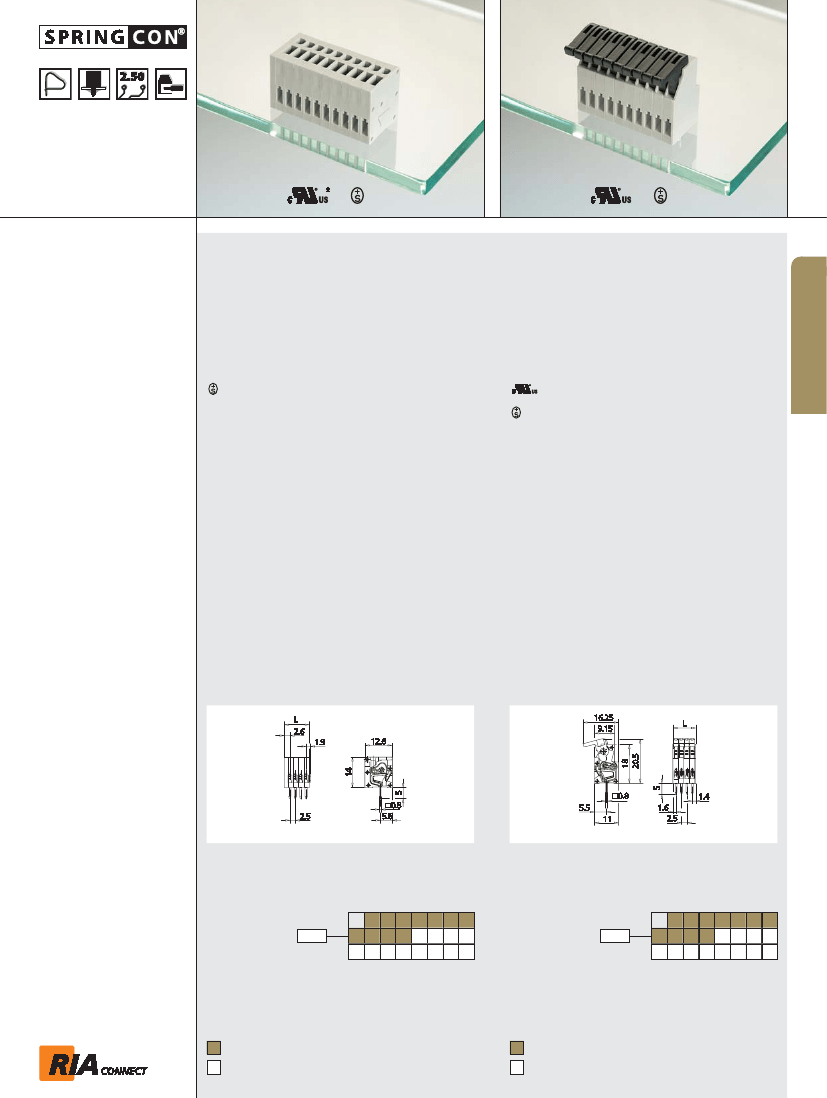

AST061
Spring clamp terminal block, solderable, centerline
2.5 mm / 0.098 inches, horizontal wire entry, without
eccentric lever
AST021
Spring clamp terminal block, solderable, centerline
2.5 mm / 0.098 inches, horizontal wire entry
A
Technical Data
0.08 - 0.5 mm² 80 V / 2.5 kV / 9 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 1.7 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
80
320
320
Rated test voltage
0.8
4
2.5
Protection category according
to IEC 529
IP20
Min. insul. strip length
6 mm
Solder pin dimension
0.8 x 0.8 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
5 mm
Pole size
2 - 24
Color
grey
Technical Data
V / A / AWG
150 / 8 / 28 - 20
0.08 - 0.5 mm² 80 V / 2.5 kV / 8 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 1.7 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
80
320
320
Rated test voltage
0.8
4
2.5
Protection category according
to IEC 529
IP20
Min. insul. strip length
6 mm
Solder pin dimension
0.8 x 0.8 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
5 mm
Pole size
2 - 24
Color
grey
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 4.5 mm / 0.177 inches
L = (pole size - 1) x centerline + 3 mm / 0.118 inches
Part numbers (P/N)
AST061
centerline 2.5 mm / 0.0984 inches
(information: page 16)
Complete the part number by
adding the pole size.
Part numbers (P/N)
AST021
(information: page 16)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
centerline 2.5 mm / 0.0984 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
AST061
P/N
AST021
* approval pending
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
