G5NB-1ADC18

Description
Power/Signal Relay, SPST, Momentary, 0.011A (Coil), 18VDC (Coil), 200mW (Coil), 3A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size272KB,6 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Environmental Compliance
Download Datasheet Parametric Compare View All

G5NB-1ADC18 Overview

Power/Signal Relay, SPST, Momentary, 0.011A (Coil), 18VDC (Coil), 200mW (Coil), 3A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

G5NB-1ADC18 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
body width7.2 mm
body height15.3 mm
Body length or diameter20.5 mm
Maximum coil current (DC)0.011 A
Coil operating voltage (DC)13.5 V
Coil power200 mW
Coil release voltage (DC)1.8 V
Coil resistance1620 Ω
Maximum coil voltage (DC)18 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load3A@250VAC
Maximum contact current (AC)3 A
Maximum contact current (DC)3 A
Contact (DC) maximum rated R load3A@30VDC
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)30 V
Contact/Output Power TypeAC/DC
Electrical life200000 Cycle(s)
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours10 ms
Maximum operating temperature70 °C
Minimum operating temperature-40 °C
physical size20.5mm x 7.2mm x 15.3mm
GuidelineCSA; UL; VDE
Relay actionMOMENTARY
Relay functionSPST
Relay typePOWER/SIGNAL RELAY
release time10 ms
surface mountNO
Termination typeSOLDER
Base Number Matches1
PCB Relay
G5NB
A Miniature Relay with 1-pole 3-A
Switching Capability and 10-kV Impulse
Withstand Voltage
• Highly efficient magnetic circuit for high sensitivity (200
mW) operation.
• 10-kV impulse withstand voltage (between coil and con-
tacts).
• Standard model conforms to UL and CSA and VDE
standards.
• RoHS Compliant.
R
C
Ordering Information
Classification
Standard
Contact form
SPST-NO
Enclosure ratings
Flux protection
Model
G5NB-1A
Note:
When ordering, add the rated coil voltage to the model number.
Example: G5NB-1A DC 12
Rated coil voltage
Model Number Legend
G5NB-@@
DC@
1 2
3
1. Number of Poles
1: 1 pole
2. Contact Form
A: SPST-NO
3. Rated Coil Voltage
5, 12, 18, 24 VDC
Application Examples
Water heaters, refrigerators, air conditioners, and small electric appliances
PCB Relay
G5NB
1

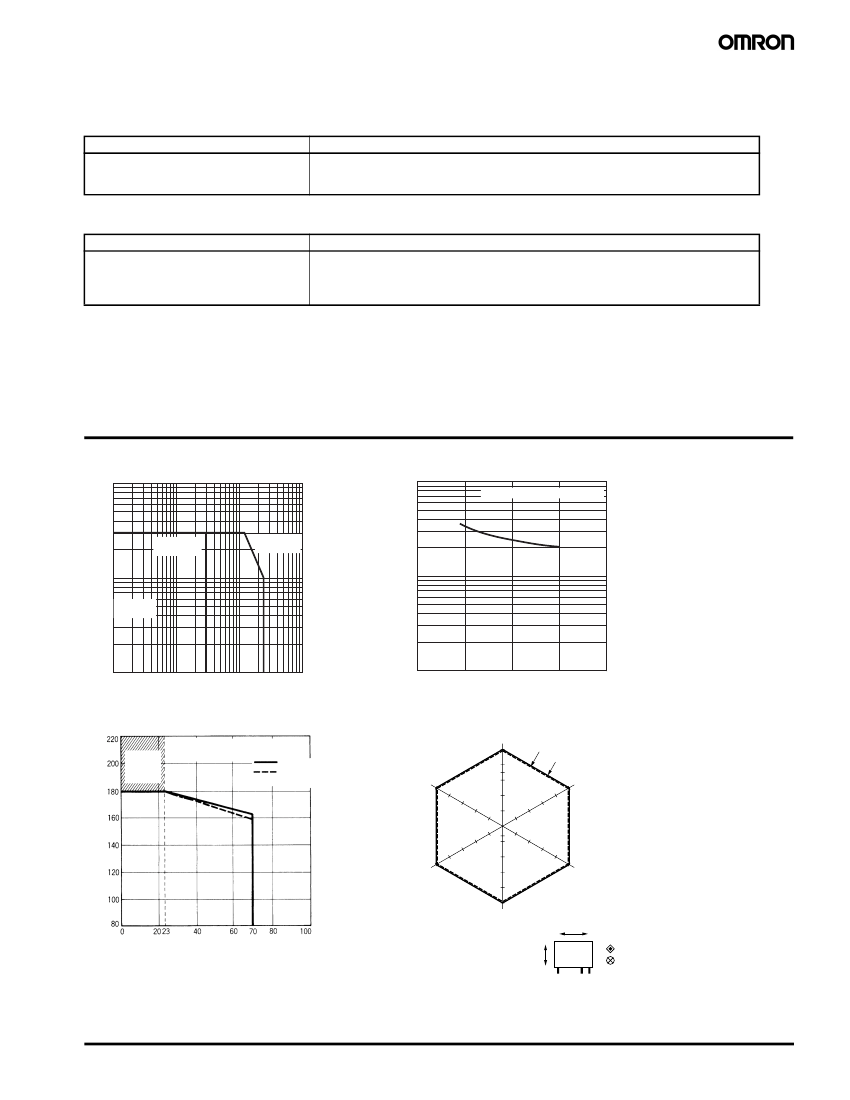

G5NB-1ADC18 Related Products

G5NB-1ADC18 G5NB-1ADC5 G5NB-1ADC12 G5NB-1ADC24
Description Power/Signal Relay, SPST, Momentary, 0.011A (Coil), 18VDC (Coil), 200mW (Coil), 3A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT Power/Signal Relay, SPST, Momentary, 0.04A (Coil), 5VDC (Coil), 200mW (Coil), 3A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT Power/Signal Relay, SPST, Momentary, 0.017A (Coil), 12VDC (Coil), 200mW (Coil), 3A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT Power/Signal Relay, SPST, Momentary, 0.008A (Coil), 24VDC (Coil), 200mW (Coil), 3A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
Is it lead-free? Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99
body width 7.2 mm 7.2 mm 7.2 mm 7.2 mm
body height 15.3 mm 15.3 mm 15.3 mm 15.3 mm
Body length or diameter 20.5 mm 20.5 mm 20.5 mm 20.5 mm
Maximum coil current (DC) 0.011 A 0.04 A 0.017 A 0.008 A
Coil operating voltage (DC) 13.5 V 3.75 V 9 V 18 V
Coil power 200 mW 200 mW 200 mW 200 mW
Coil release voltage (DC) 1.8 V 0.5 V 1.2 V 2.4 V
Coil resistance 1620 Ω 125 Ω 720 Ω 2880 Ω
Maximum coil voltage (DC) 18 V 5 V 12 V 24 V
Coil/Input Power Type DC DC DC DC
Contact (AC) maximum rated R load 3A@250VAC 3A@250VAC 3A@250VAC 3A@250VAC
Maximum contact current (AC) 3 A 3 A 3 A 3 A
Maximum contact current (DC) 3 A 3 A 3 A 3 A
Contact (DC) maximum rated R load 3A@30VDC 3A@30VDC 3A@30VDC 3A@30VDC
Maximum contact voltage (AC) 250 V 250 V 250 V 250 V
Maximum contact voltage (DC) 30 V 30 V 30 V 30 V
Contact/Output Power Type AC/DC AC/DC AC/DC AC/DC
Electrical life 200000 Cycle(s) 200000 Cycle(s) 200000 Cycle(s) 200000 Cycle(s)
Installation features THROUGH HOLE-STRAIGHT MOUNT THROUGH HOLE-STRAIGHT MOUNT THROUGH HOLE-STRAIGHT MOUNT THROUGH HOLE-STRAIGHT MOUNT
operating hours 10 ms 10 ms 10 ms 10 ms
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
physical size 20.5mm x 7.2mm x 15.3mm 20.5mm x 7.2mm x 15.3mm 20.5mm x 7.2mm x 15.3mm 20.5mm x 7.2mm x 15.3mm
Guideline CSA; UL; VDE CSA; UL; VDE CSA; UL; VDE CSA; UL; VDE
Relay action MOMENTARY MOMENTARY MOMENTARY MOMENTARY
Relay function SPST SPST SPST SPST
Relay type POWER/SIGNAL RELAY POWER/SIGNAL RELAY POWER/SIGNAL RELAY POWER/SIGNAL RELAY
release time 10 ms 10 ms 10 ms 10 ms
surface mount NO NO NO NO
Termination type SOLDER SOLDER SOLDER SOLDER
Base Number Matches 1 1 1 1
