ATH4007-H3L-4F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> ATH4007-H3L-4F

ATH4007-H3L-4F: DescriptionCard Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

ATH4007-H3L-4F Overview

Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

ATH4007-H3L-4F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	GOLD (15)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	ATH40
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	240
UL Flammability Code	94V-0
Base Number Matches	1

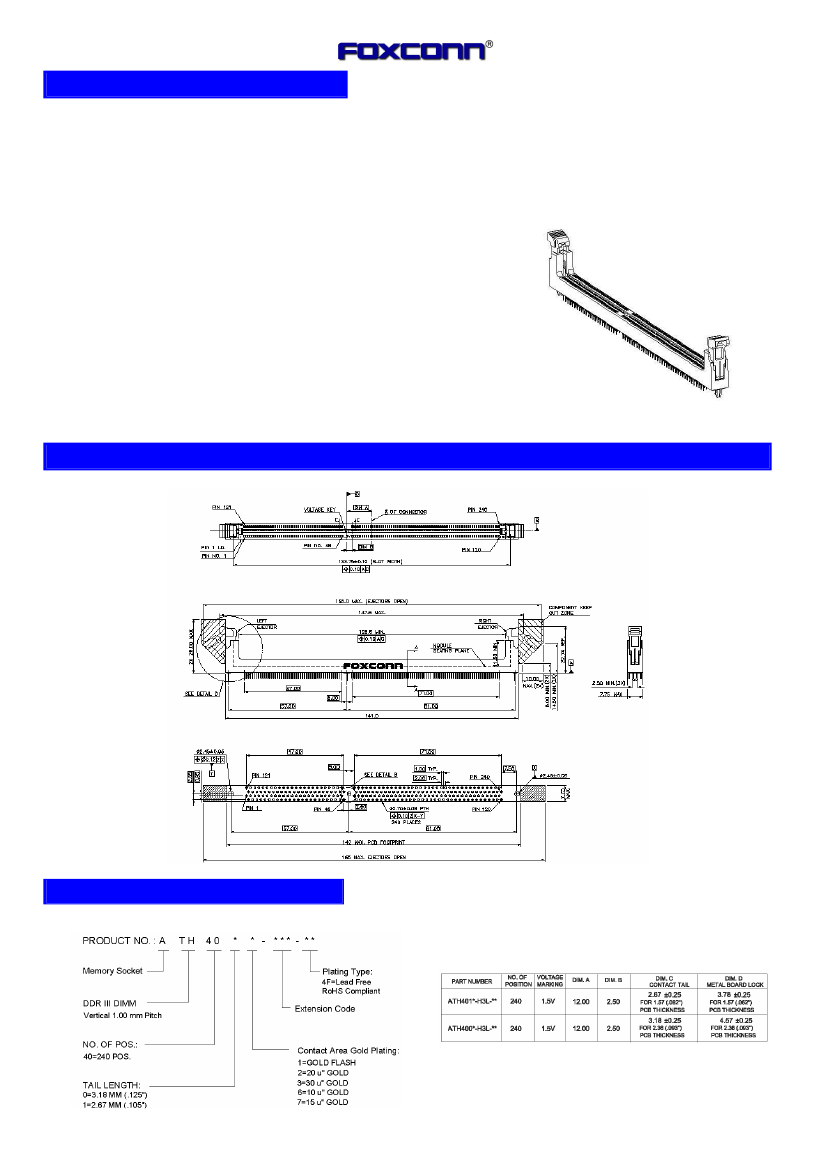

ATH4007-H3L-4F Preview

Download Datasheet

View All

SPECIFICATIONS

DDR3 Connector

ATH40 Series

Vertical, T/H Type

1.00mm [.039”] Pitch

240 Pos.

Mechanical

Contact Retention Force:

0.30Kg (0.66Lbs) min. per Contact

Durability:

25 Cycles

Insertion Force:

6.8 Kg

(15Lbs)

Electrical

Current Rating:

0.5Amps max.

Insulation Resistance:

1000M

Ω

min. at 500V DC

Dielectric Withstanding Voltage:

500V DC at Sea Level

Low Level Contact Resistance:

30m

Ω

max. initial

Physical

Housing:

Thermoplastic, UL 94V-0 rated in Blue Color

Contact:

Copper alloy

Ejector:

Thermoplastic, UL 94V-0 rated in Ivory or Natural Color

Metal Hold Down:

Copper alloy

Operating Temperature:

℃

to +85

℃

DRAWING

ORDERING I NF OR MATI ON

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
