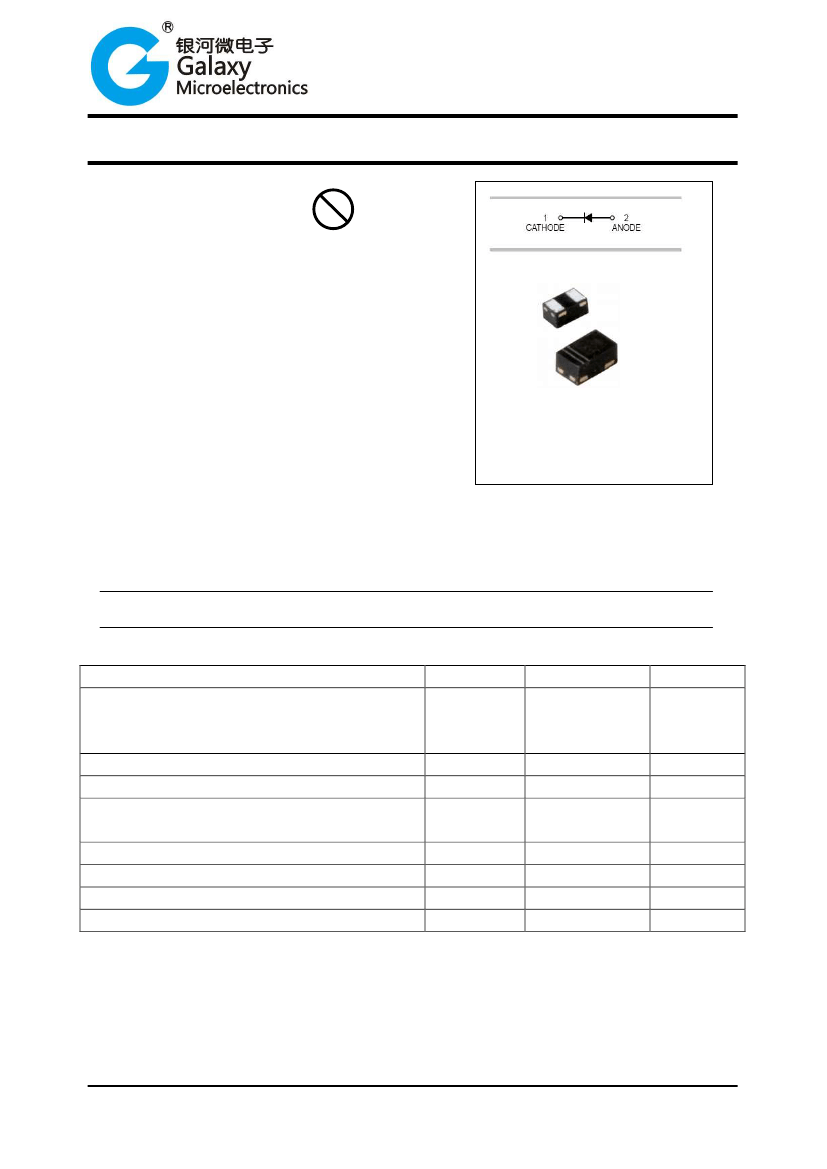

Production specification
Surface mount schottky barrier diode
FEATURES
Low turn-on voltage.
Fast switching.
BAS70L
Pb
Lead-free
.
PN Junction guard ring for transient and
Ultra-small surface mount package.
Also available in lead free version.
APPLICATIONS
High speed switching applications.
Circuit protecting.
Voltage clamping.

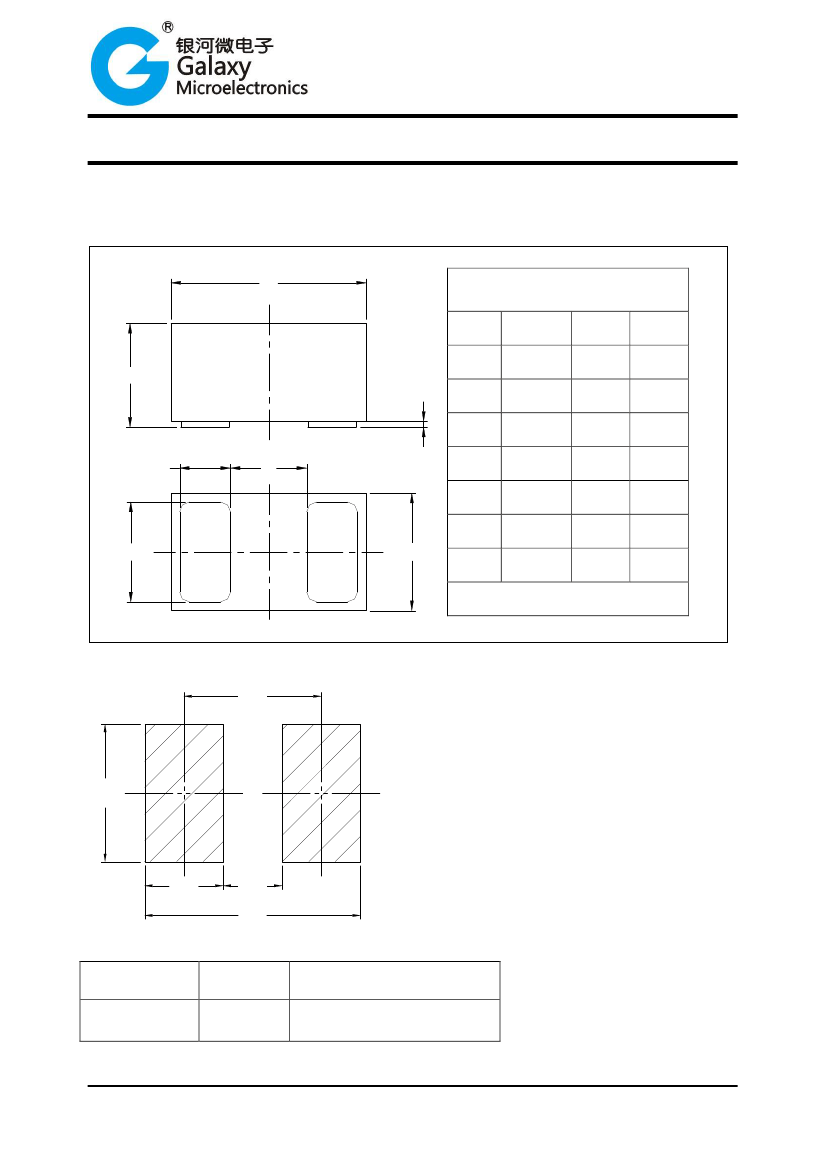

DFN1006-2
ORDERING INFORMATION
Type No.
BAS70L
Marking
73
Package Code
DFN1006-2
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Reverse Voltage
RMS Reverse voltage
Forward Continuous Current
Non-Repetitive Peak Forward Surge Current
@t
p
<1.0s
Power Dissipation
Thermal Resistance, Junction to Ambient Air
Operating Junction Temperature Range
Storage Temperature Range
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
F
I
FSM
P
d
R
θjA
T
j
T
STG
Limits
70
49
70
100
200
625
-55 to +125
-65 to +150
Unit
V
V
mA
mA
mW
℃/W
℃
℃
Q019
Rev.A
www.gmesemi.com
1
Production specification
Surface mount schottky barrier diode
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Characteristic
Reverse Breakdown Voltage
Forward Voltage
Reverse Leakage Current
Junction Capacitance
Reverse Recovery Time
Symbol
V
(BR)R
V
F
I
R
C
j
t
rr
Min
70
-
1000
-
-
-
100
2.0
5.0
nA
pF
ns
MAX
-
410
mV
UNIT
V
BAS70L
Test Condition
I
(BR)
= 10μA
t
P
<300μs,I
F
=1.0mA
t
P
<300μs,I
F
=15mA
t
P
<300μs,V
R
=50V
V
R
=0V,f=1.0MHz
I
F
=I
R
=10mA to
I
R
=1.0mA,R
L
=100Ω

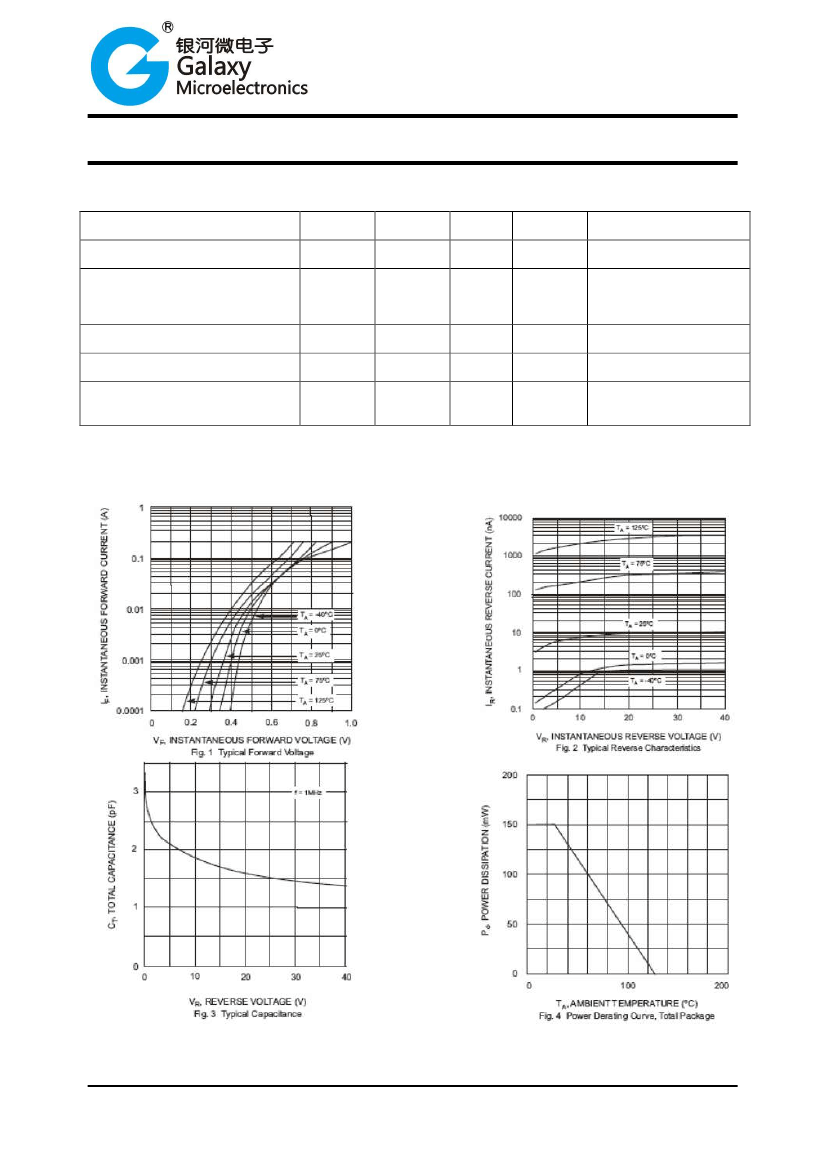

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Q019
Rev.A
www.gmesemi.com
2
