BDS28B-N2: DescriptionPOWER TRANSISTOR, TO-276AB, HERMETIC SEALED, CERAMIC, SMD1, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size449KB，3 Pages; ManufacturerSEMELAB

Download Datasheet Parametric Compare View All

BDS28B-N2 Overview

POWER TRANSISTOR, TO-276AB, HERMETIC SEALED, CERAMIC, SMD1, 3 PIN

BDS28B-N2 Parametric

Parameter Name	Attribute value
Parts packaging code	TO-276AB
package instruction	CHIP CARRIER, R-CBCC-N3
Contacts	3
Reach Compliance Code	unknown
JEDEC-95 code	TO-276AB
JESD-30 code	R-CBCC-N3
Number of terminals	3
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Certification status	Not Qualified
surface mount	YES
Terminal form	NO LEAD
Terminal location	BOTTOM
Base Number Matches	1

Preview

Download Datasheet

View All

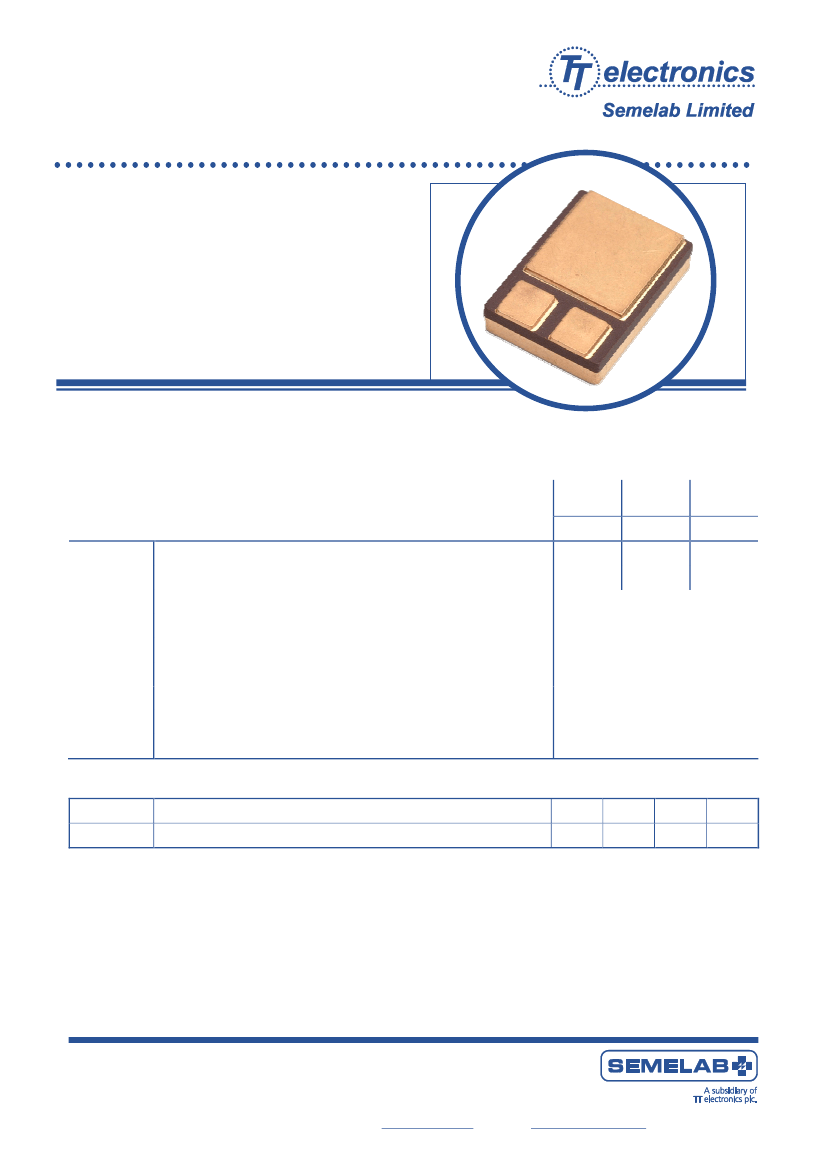

COMPLEMENTARY POWER

DARLINGTON

BDS 28A,B,C -N2

BDS 29A,B,C -N2

•

High DC Current Gain

Hermetic Ceramic Surface Mount Package

Screening Options Available

Designed for General Purpose Amplifier Applications

ABSOLUTE MAXIMUM RATINGS

(TC = 25°C unless otherwise stated)

PNP BDS28A

NPN BDS29A

BDS28B

BDS29B

BDS28C

BDS29C

VCBO

VCEO

VEBO

IC

IB

PD

TJ

Tstg

Collector – Base Voltage

Collector – Emitter Voltage

Emitter – Base Voltage

Continuous Collector Current

Base Current

TC = 25°C

Total Power Dissipation at

Derate Above 25°C

Junction Temperature Range

Storage Temperature Range

60V

90V

120V

90V

120V

5V

30A

1.0A

150W

0.857W/°C

-65 to +200°C

THERMAL PROPERTIES

Symbols

R

θJC

Parameters

Thermal Resistance, Junction To Case

Min.

Typ.

Max.

1.16

Units

°C/W

Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.

Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However

Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to

verify that datasheets are current before placing orders.

Semelab Limited

Coventry Road, Lutterworth, Leicestershire, LE17 4JB

Telephone +44 (0) 1455 556565

Fax +44 (0) 1455 552612

Email:

sales@semelab-tt.com

Document Number 8946

Issue 1

Page 1 of 3

Website:

http://www.semelab-tt.com

BDS28B-N2 Related Products

	BDS28B-N2	BDS29A-N2	BDS28A-N2	BDS29B-N2
Description	POWER TRANSISTOR, TO-276AB, HERMETIC SEALED, CERAMIC, SMD1, 3 PIN	POWER TRANSISTOR, TO-276AB, HERMETIC SEALED, CERAMIC, SMD1, 3 PIN	POWER TRANSISTOR, TO-276AB, HERMETIC SEALED, CERAMIC, SMD1, 3 PIN	POWER TRANSISTOR, TO-276AB, HERMETIC SEALED, CERAMIC, SMD1, 3 PIN
Parts packaging code	TO-276AB	TO-276AB	TO-276AB	TO-276AB
package instruction	CHIP CARRIER, R-CBCC-N3	CHIP CARRIER, R-CBCC-N3	CHIP CARRIER, R-CBCC-N3	CHIP CARRIER, R-CBCC-N3
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
JEDEC-95 code	TO-276AB	TO-276AB	TO-276AB	TO-276AB
JESD-30 code	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3
Number of terminals	3	3	3	3
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Base Number Matches	1	1	1	-

Recommended Resources

Working principle of series switching power supply (c)

Photoelectric relay circuit diagram

Refrigerator undervoltage, overvoltage and power failure protector circuit

pause timer

Preamplifier for infrared remote control system

555 public toilet urinal automatic water-discharging water-saving device circuit
