BDS28C-N2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BDS28C-N2

BDS28C-N2: DescriptionPOWER TRANSISTOR, TO-276AB, HERMETIC SEALED, CERAMIC, SMD1, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size449KB，3 Pages; ManufacturerSEMELAB

Download Datasheet Parametric View All

BDS28C-N2 Overview

POWER TRANSISTOR, TO-276AB, HERMETIC SEALED, CERAMIC, SMD1, 3 PIN

BDS28C-N2 Parametric

Parameter Name	Attribute value
Parts packaging code	TO-276AB
package instruction	HERMETIC SEALED, CERAMIC, SMD1, 3 PIN
Contacts	3
Reach Compliance Code	unknown
JEDEC-95 code	TO-276AB
JESD-30 code	R-CBCC-N3
Number of terminals	3
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Certification status	Not Qualified
surface mount	YES
Terminal form	NO LEAD
Terminal location	BOTTOM
Base Number Matches	1

Preview

Download Datasheet

View All

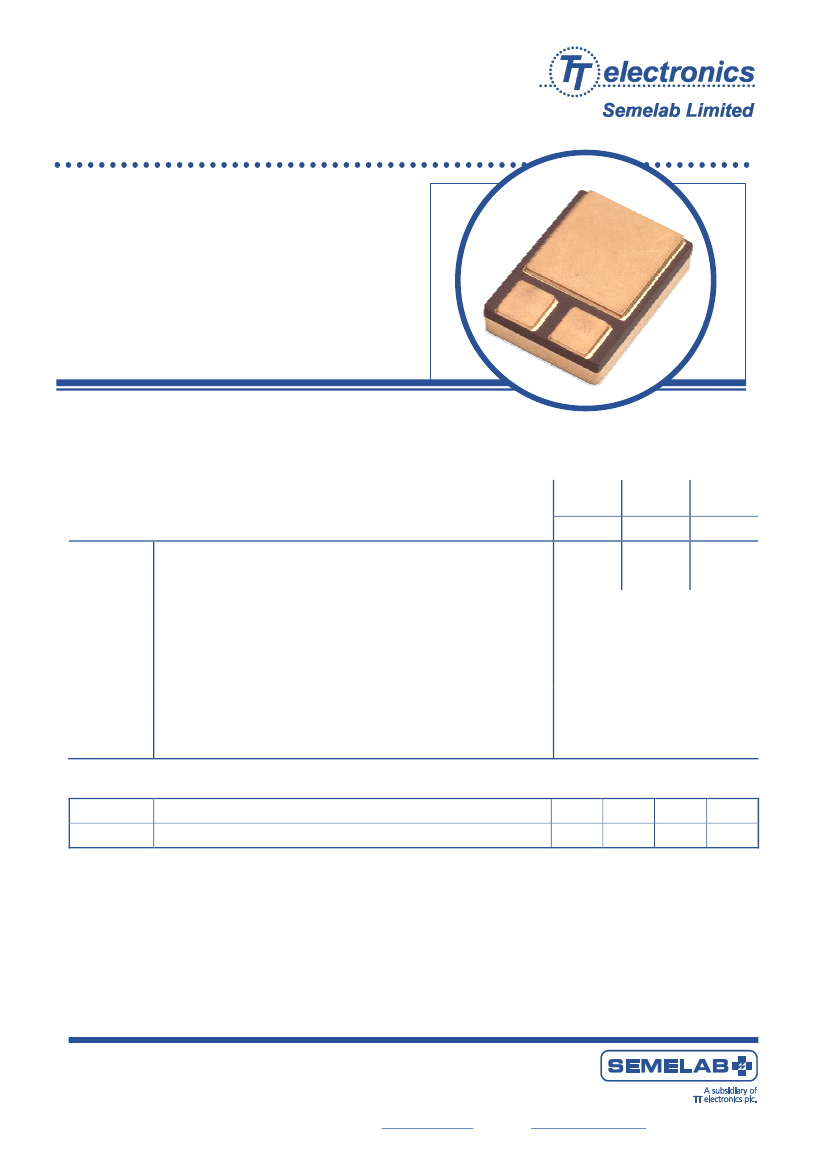

COMPLEMENTARY POWER

DARLINGTON

BDS28A/B/CN2

BDS29A/B/CN2

•

High DC Current Gain

Hermetic Ceramic Surface Mount Package

Screening Options Available

Designed for General Purpose Amplifier Applications

ABSOLUTE MAXIMUM RATINGS

(TC = 25°C unless otherwise stated)

PNP BDS28A

NPN BDS29A

BDS28B

BDS29B

BDS28C

BDS29C

VCBO

VCEO

VEBO

Tstg

Collector – Base Voltage

Collector – Emitter Voltage

Emitter – Base Voltage

Continuous Collector Current

Base Current

TC = 25°C

Total Power Dissipation at

Derate Above 25°C

Junction Temperature Range

Storage Temperature Range

60V

90V

120V

90V

120V

30A

1.0A

150W

0.857W/°C

-65 to +200°C

THERMAL PROPERTIES

Symbols

θJC

Parameters

Thermal Resistance, Junction To Case

Min.

Typ.

Max.

1.16

Units

°C/W

Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.

Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However

Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to

verify that datasheets are current before placing orders.

Semelab Limited

Coventry Road, Lutterworth, Leicestershire, LE17 4JB

Telephone +44 (0) 1455 556565

Fax +44 (0) 1455 552612

Email:

sales@semelab-tt.com

Document Number 8946

Issue 2

Page 1 of 3

Website:

http://www.semelab-tt.com
