MC143150FU datasheet, PDF - EEWORLD Datasheet

MC143150FU: DescriptionLAN Controller, 1 Channel(s), 0.15625MBps, MOS, PQFP64, PLASTIC, QFP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size41KB，1 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

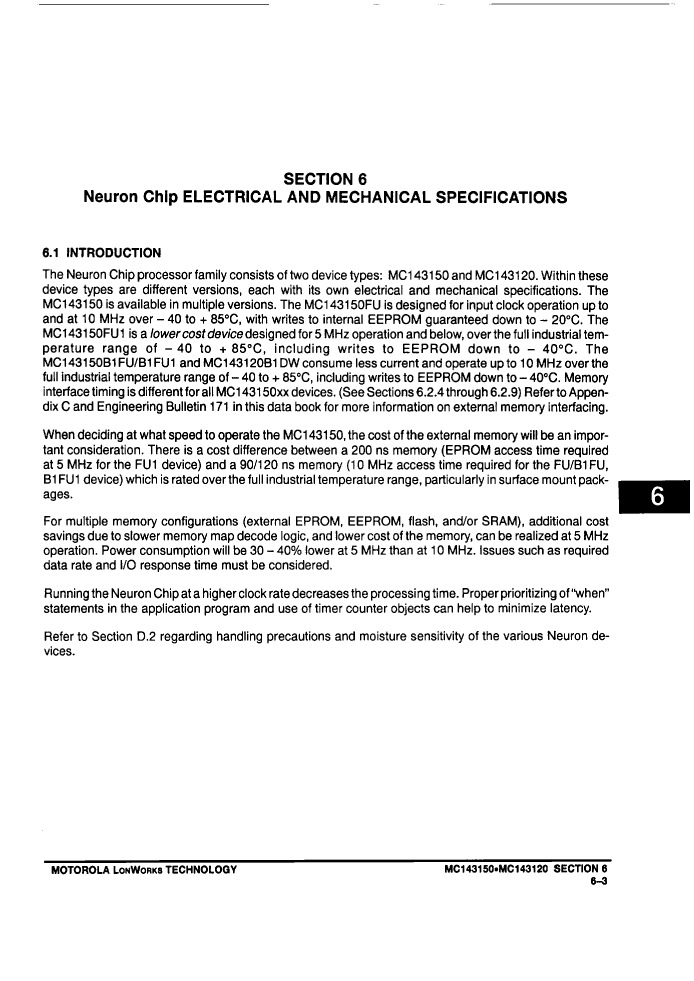

MC143150FU Overview

LAN Controller, 1 Channel(s), 0.15625MBps, MOS, PQFP64, PLASTIC, QFP-64

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QFP,
Reach Compliance Code	unknown
Other features	3 PIPELINED PROCESSORS; 512 X 8 EEPROM
Address bus width	16
boundary scan	NO
maximum clock frequency	10 MHz
Data encoding/decoding methods	BIPH-SPACE(FM0)
Maximum data transfer rate	0.15625 MBps
External data bus width	8
JESD-30 code	S-PQFP-G64
JESD-609 code	e0
length	14 mm
low power mode	YES
Number of DMA channels
Number of I/O lines	11
Number of serial I/Os	1
Number of terminals	64
On-chip data RAM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
RAM (number of words)	2000
Maximum seat height	2.46 mm
Maximum slew rate	60 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	MOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN
Base Number Matches	1

	MC143150FU	SC143150B1FU
Description	LAN Controller, 1 Channel(s), 0.15625MBps, MOS, PQFP64, PLASTIC, QFP-64	LAN Controller, 1 Channel(s), 0.15625MBps, MOS, PQFP64, PLASTIC, QFP-64
package instruction	QFP,	PLASTIC, QFP-64
Reach Compliance Code	unknown	unknown
Other features	3 PIPELINED PROCESSORS; 512 X 8 EEPROM	3 PIPELINED PROCESSORS; 512 X 8 EEPROM
Address bus width	16	16
boundary scan	NO	NO
maximum clock frequency	10 MHz	10 MHz
Data encoding/decoding methods	BIPH-SPACE(FM0)	BIPH-SPACE(FM0)
Maximum data transfer rate	0.15625 MBps	0.15625 MBps
External data bus width	8	8
JESD-30 code	S-PQFP-G64	S-PQFP-G64
length	14 mm	14 mm
low power mode	YES	YES
Number of I/O lines	11	11
Number of serial I/Os	1	1
Number of terminals	64	64
On-chip data RAM width	8	8
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified
RAM (number of words)	2000	1024
Maximum seat height	2.46 mm	2.46 mm
Maximum slew rate	60 mA	25 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	MOS	MOS
Temperature level	OTHER	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD
width	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN
