51940-470LF datasheet, PDF - EEWORLD Datasheet

51940-470LF: DescriptionBoard Connector, 27 Contact(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle; CategoryThe connector The connector; File Size216KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51940-470LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51940-470LF	-	-	View	Buy Now

Board Connector, 27 Contact(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	0.47 inch
subject depth	0.5 inch
body length	2.15 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P3
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51940
Mixed contacts	YES
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Termination type	PRESS FIT
Total number of contacts	27
Evacuation force-minimum value	.1668 N
Base Number Matches	1

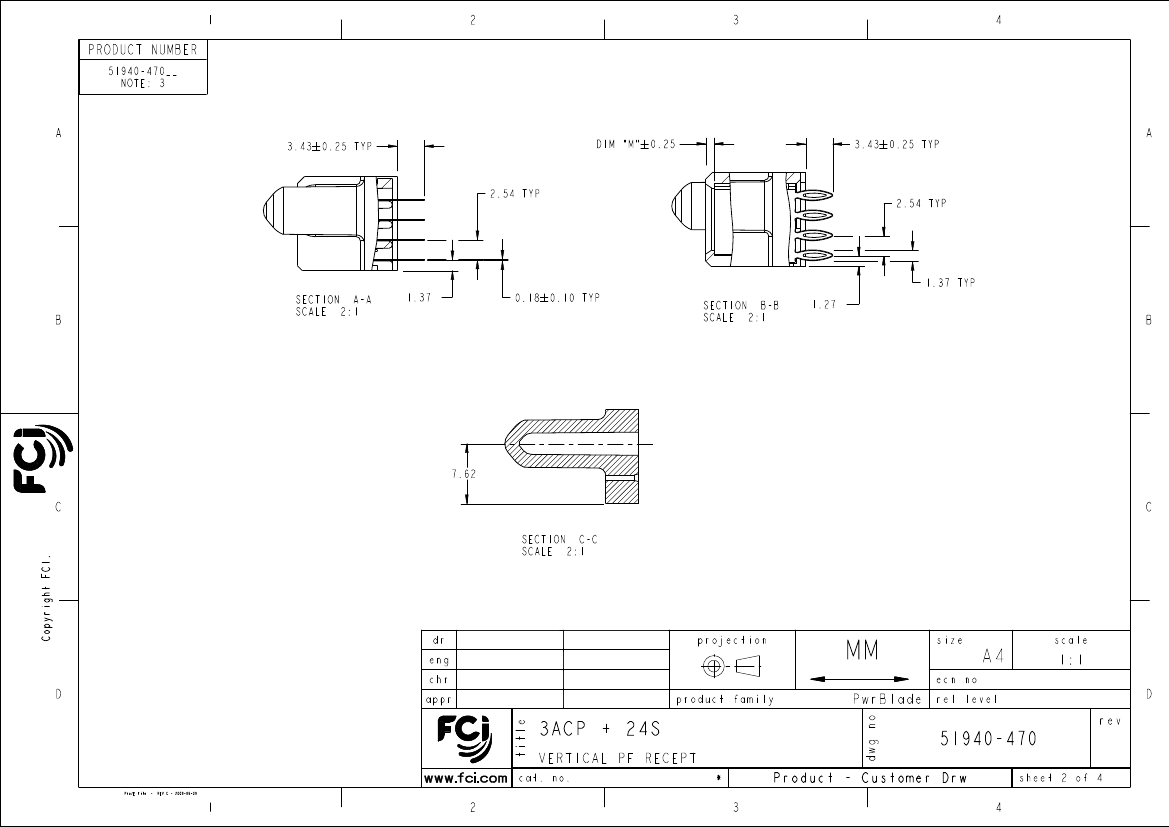

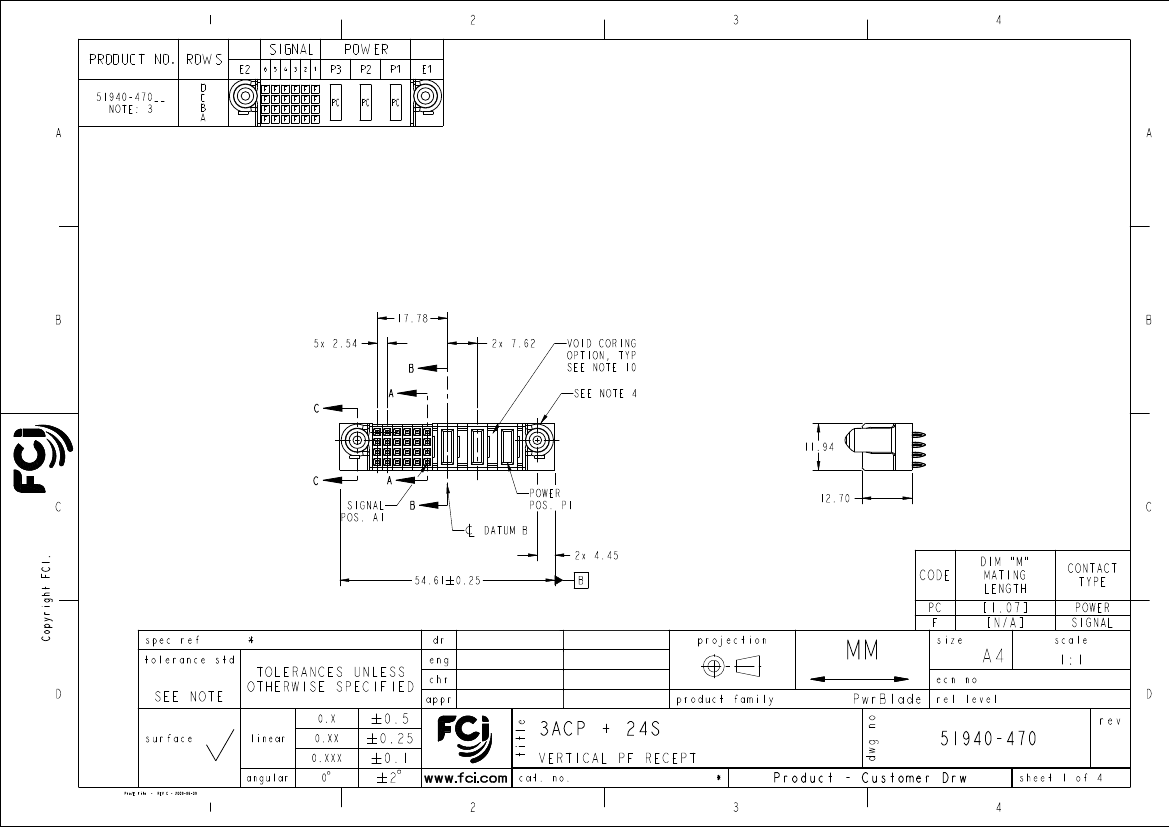

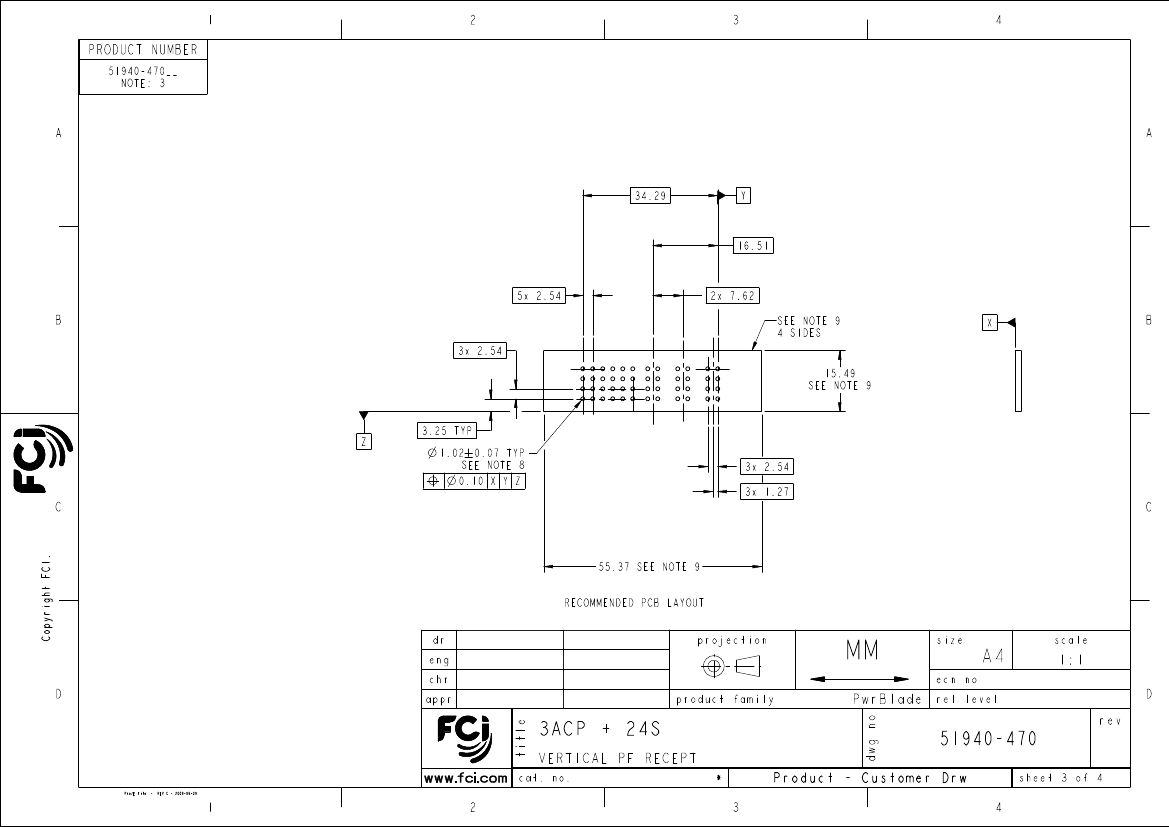

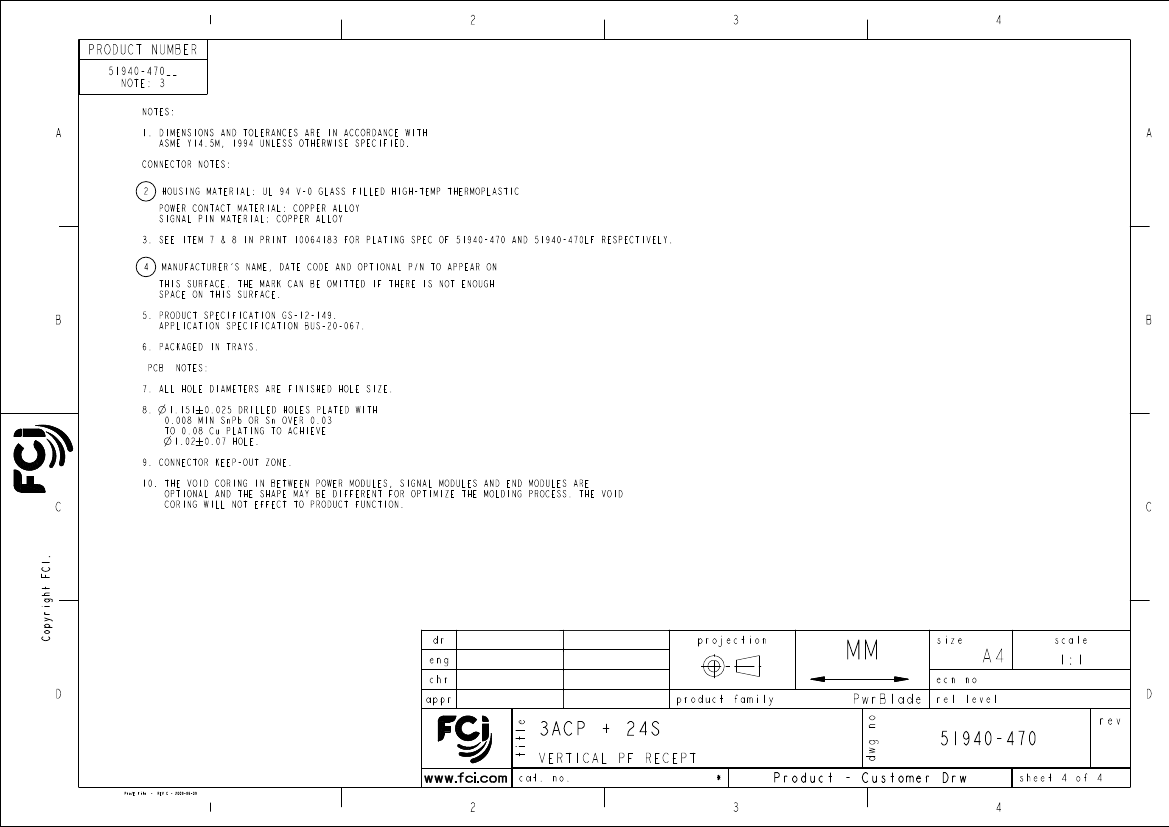

Sky Chen

-

Pei-Ming Zheng

2012/12/28

2013/03/26

-

2013/03/26

-

Released

A

PDS: Rev :A

STATUS:Released

Printed: Mar 26, 2013

	51940-470LF	51940-470
Description	Board Connector, 27 Contact(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle	Board Connector, 27 Contact(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle
Reach Compliance Code	compliant	compliant
body width	0.47 inch	0.47 inch
subject depth	0.5 inch	0.5 inch
body length	2.15 inch	2.15 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S24P3	S24P3
Contact completed and terminated	TIN OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51940	51940
Mixed contacts	YES	YES
Installation option 1	GUIDE PIN	GUIDE PIN
Installation option 2	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	27	27
Evacuation force-minimum value	.1668 N	.1668 N
Base Number Matches	1	1
