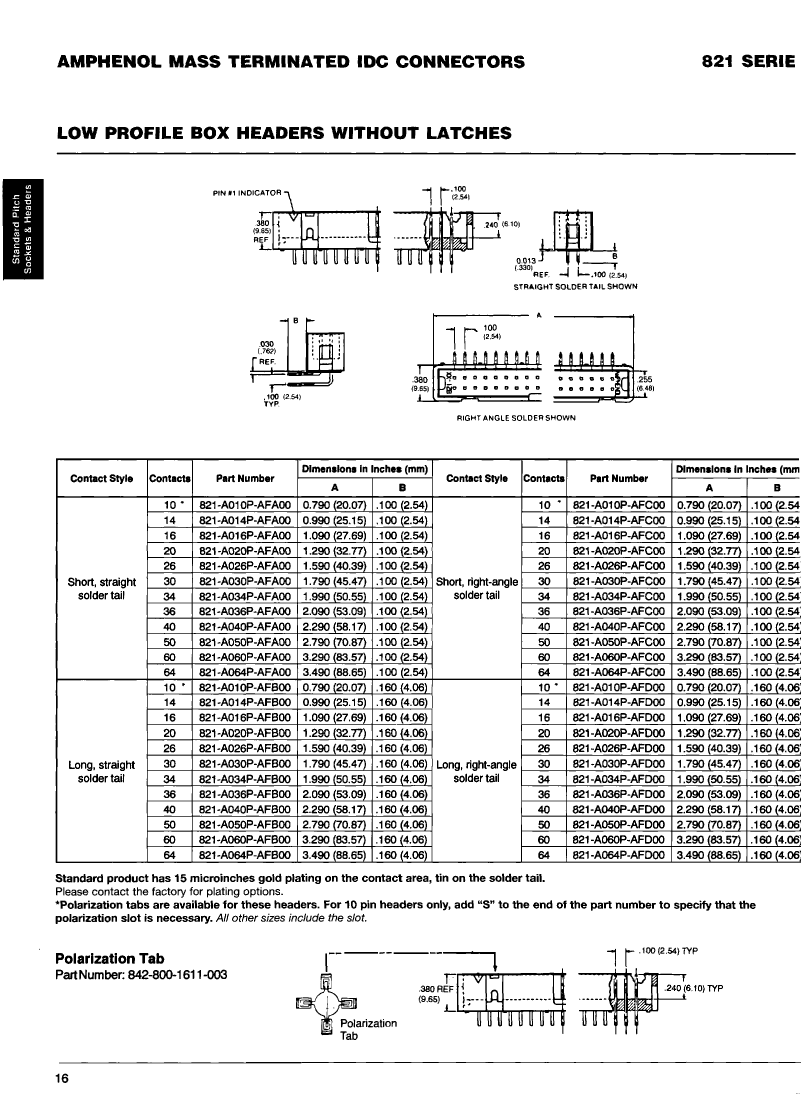

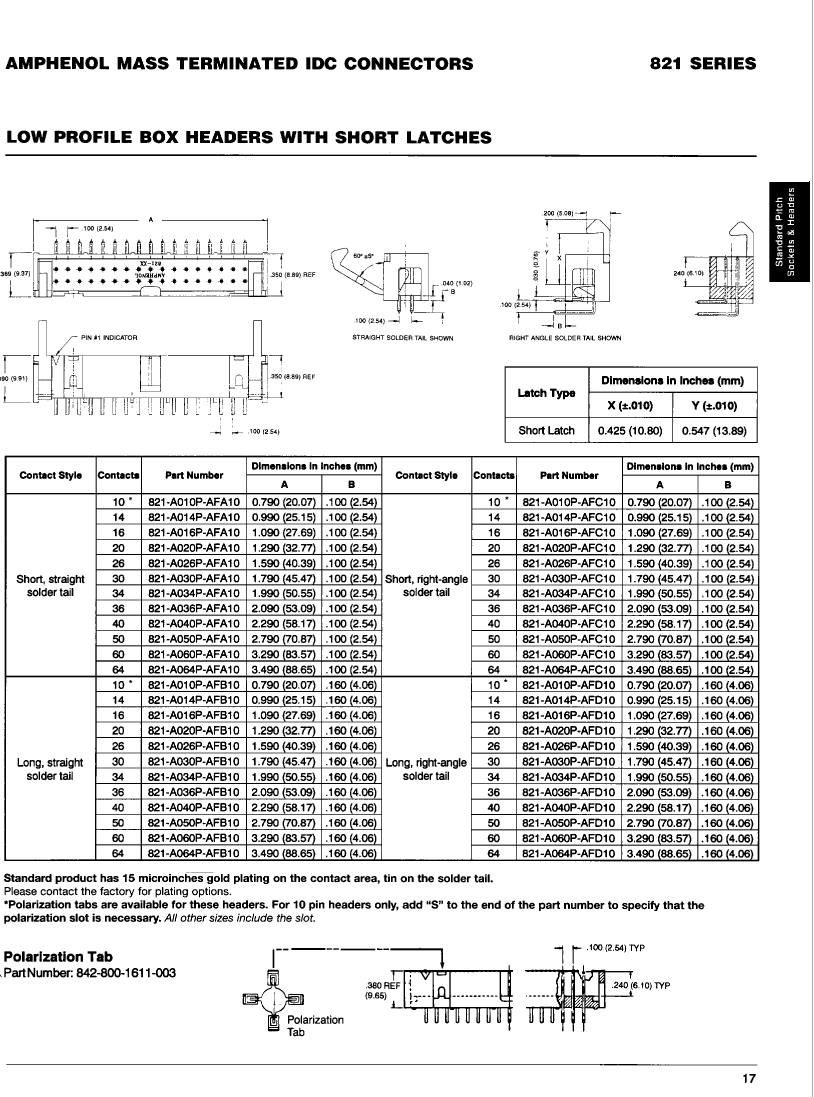

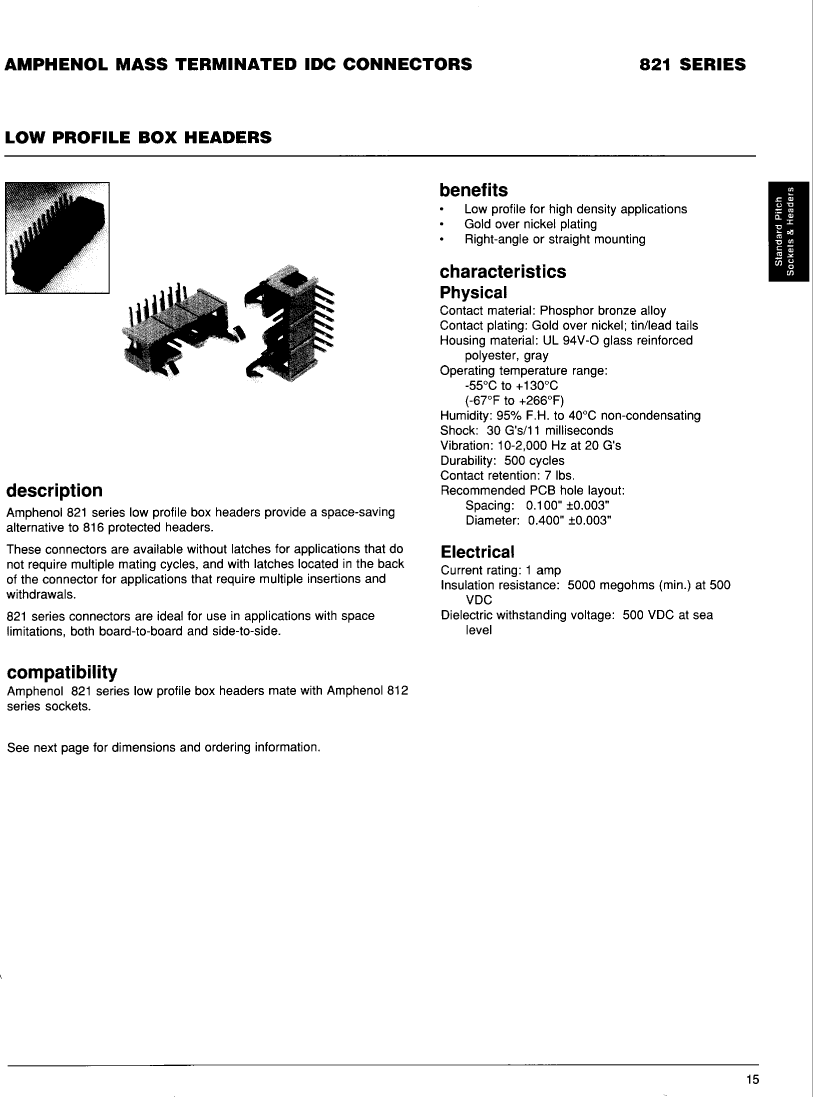

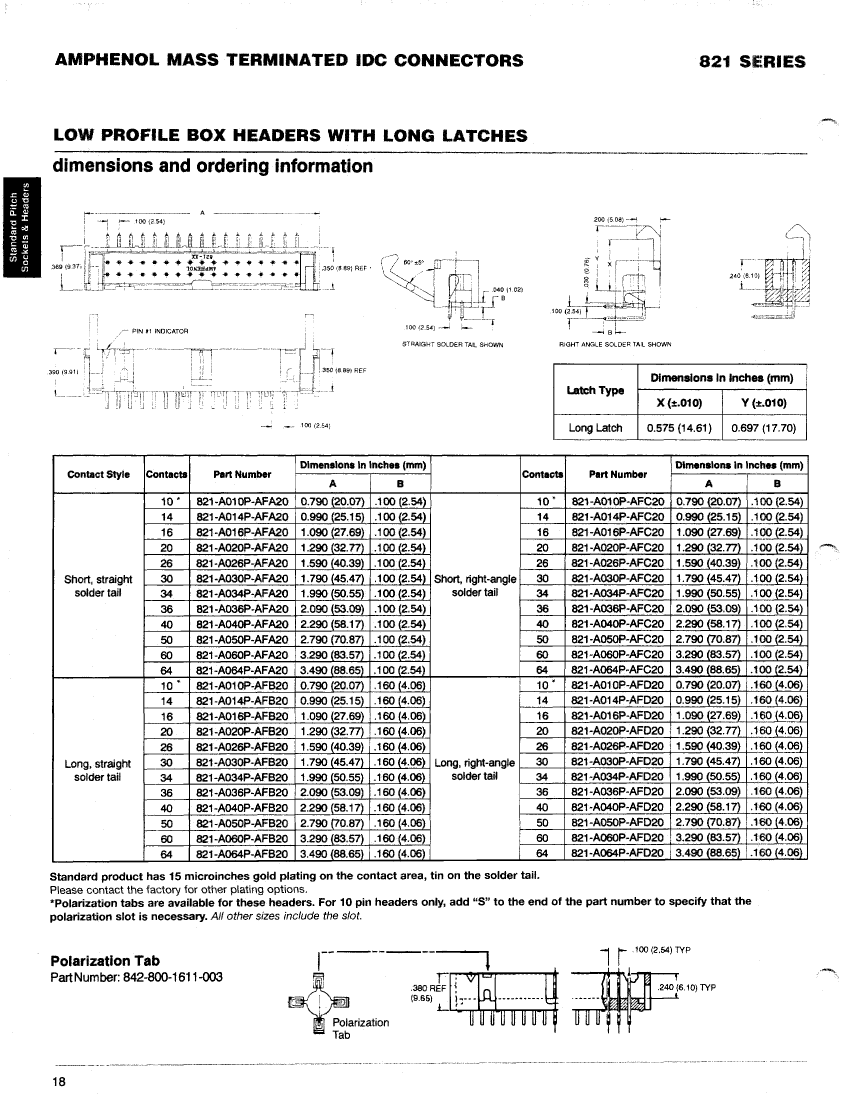

Preview

821-A010P-AFD20S: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size282KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

821-A010P-AFD20S Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

821-A010P-AFD20S Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	LOW PROFILE, POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	821
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

821-A010P-AFD20S Related Products

	821-A010P-AFD20S	821-A010P-AFC20S	821-A010P-AFB10S	821-A010P-AFA20S	821-A010P-AFA10S	821-A010P-AFB20S	821-A010P-AFD10S	821-A010P-AFC10S
Description	Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	10	10	10	10	10	10	10	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	821	-	821	-	821	821	821	-
Maker	-	Amphenol	-	-	Amphenol	Amphenol	Amphenol	Amphenol
