BFY50-QR-BG4: Description1000mA, 35V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-205AD, METAL CAN, TO-39, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size130KB，3 Pages; ManufacturerSEMELAB; Environmental Compliance

Download Datasheet Parametric Compare View All

BFY50-QR-BG4 Overview

1000mA, 35V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-205AD, METAL CAN, TO-39, 3 PIN

BFY50-QR-BG4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	BCY
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	35 V
Configuration	SINGLE
Minimum DC current gain (hFE)	30
JEDEC-95 code	TO-205AD
JESD-30 code	O-MBCY-W3
JESD-609 code	e4
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	GOLD
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

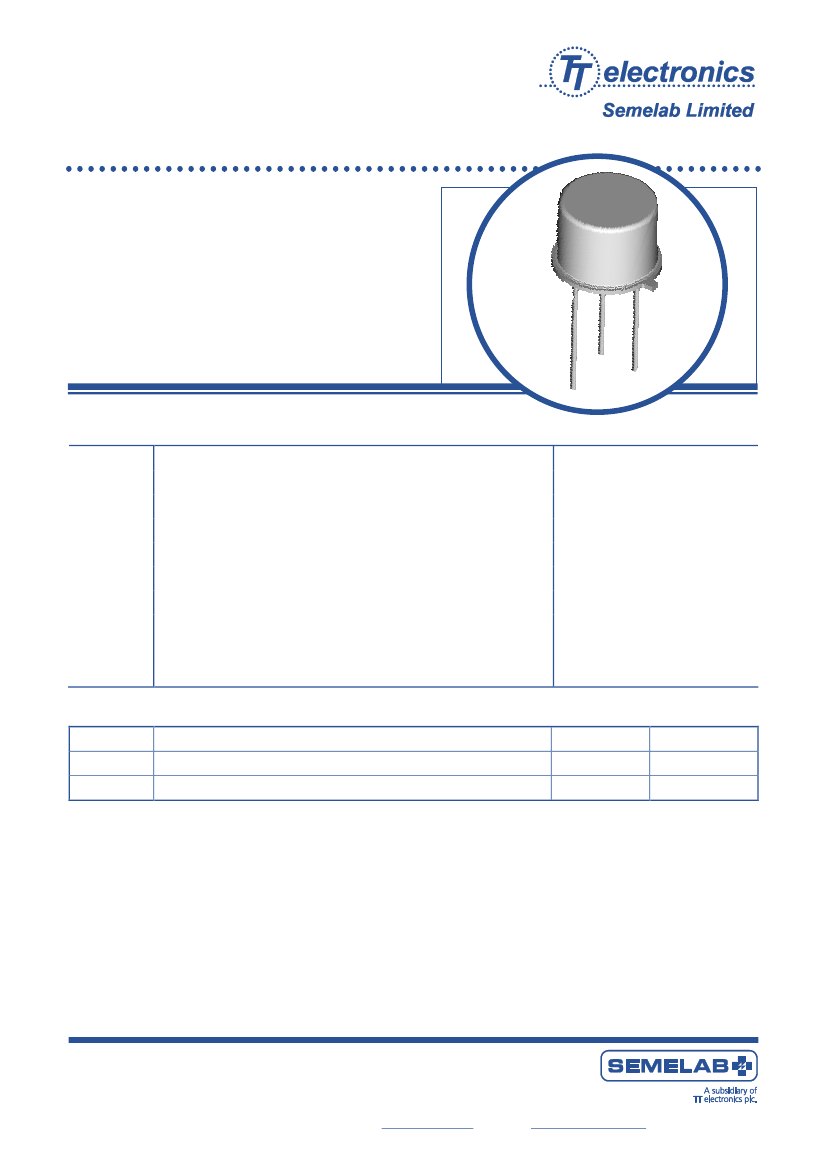

SILICON

NPN TRANSISTOR

BFY50

•

V(BR)CEO = 35V (Min).

Hermetic TO-39 Metal Package.

Ideally Suited General Purpose Amplifier Applications

Screening Options Available

•

ABSOLUTE MAXIMUM RATINGS

(TA = 25°C unless otherwise stated)

VCBO

VCEO

VEBO

IC

PD

TJ

Tstg

Collector – Base Voltage

Collector – Emitter Voltage

Emitter – Base Voltage

Continuous Collector Current

TA = 25°C

Total Power Dissipation at

Derate Above 25°C

TC = 25°C

Total Power Dissipation at

Derate Above 25°C

Junction Temperature Range

Storage Temperature Range

80V

35V

6V

1.0A

0.8W

4.57mW/°C

5W

28.6mW/°C

-65 to +200°C

THERMAL PROPERTIES

Symbols

R

θJA

R

θJC

Parameters

Thermal Resistance, Junction To Ambient

Thermal Resistance, Junction To Case

Max.

218.75

35

Units

°C/W

Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.

Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However

Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to

verify that datasheets are current before placing orders.

Semelab Limited

Coventry Road, Lutterworth, Leicestershire, LE17 4JB

Telephone +44 (0) 1455 556565

Fax +44 (0) 1455 552612

Email:

sales@semelab-tt.com

Document Number 3085

Issue 2

Page 1 of 3

Website:

http://www.semelab-tt.com
