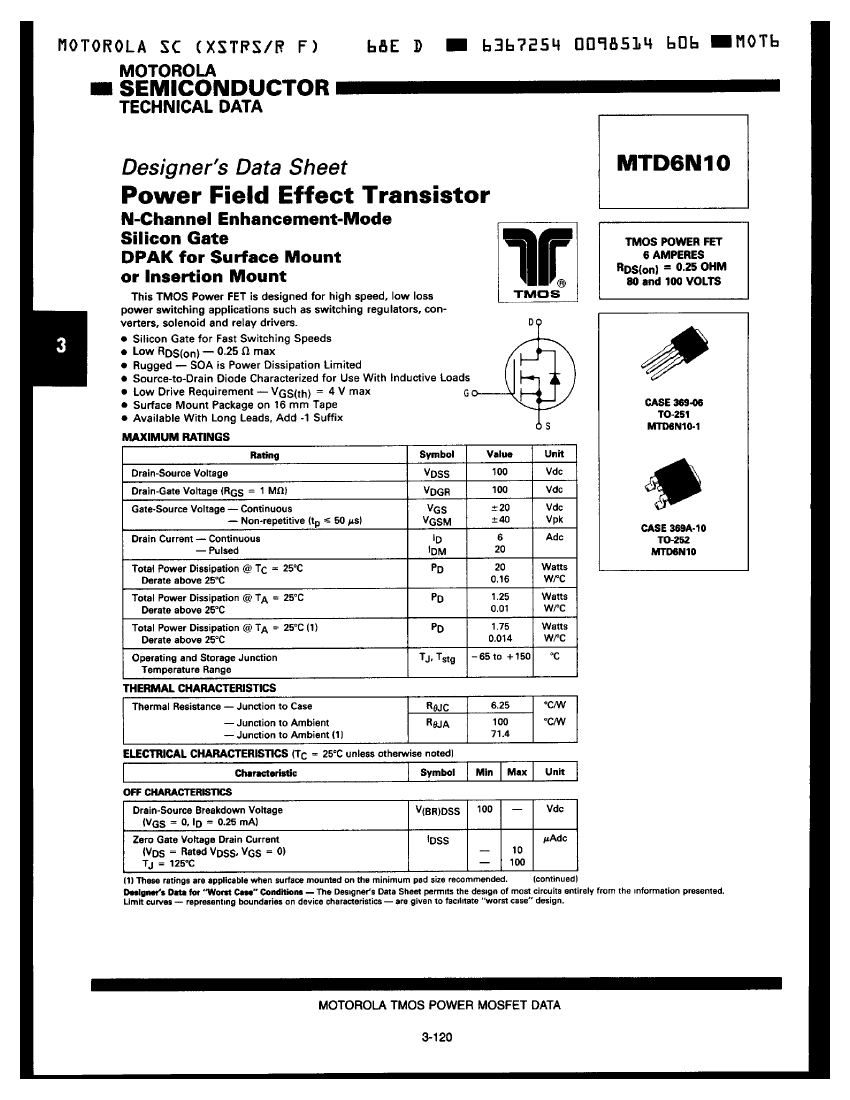

Power Field-Effect Transistor, 6A I(D), 100V, 0.25ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-251

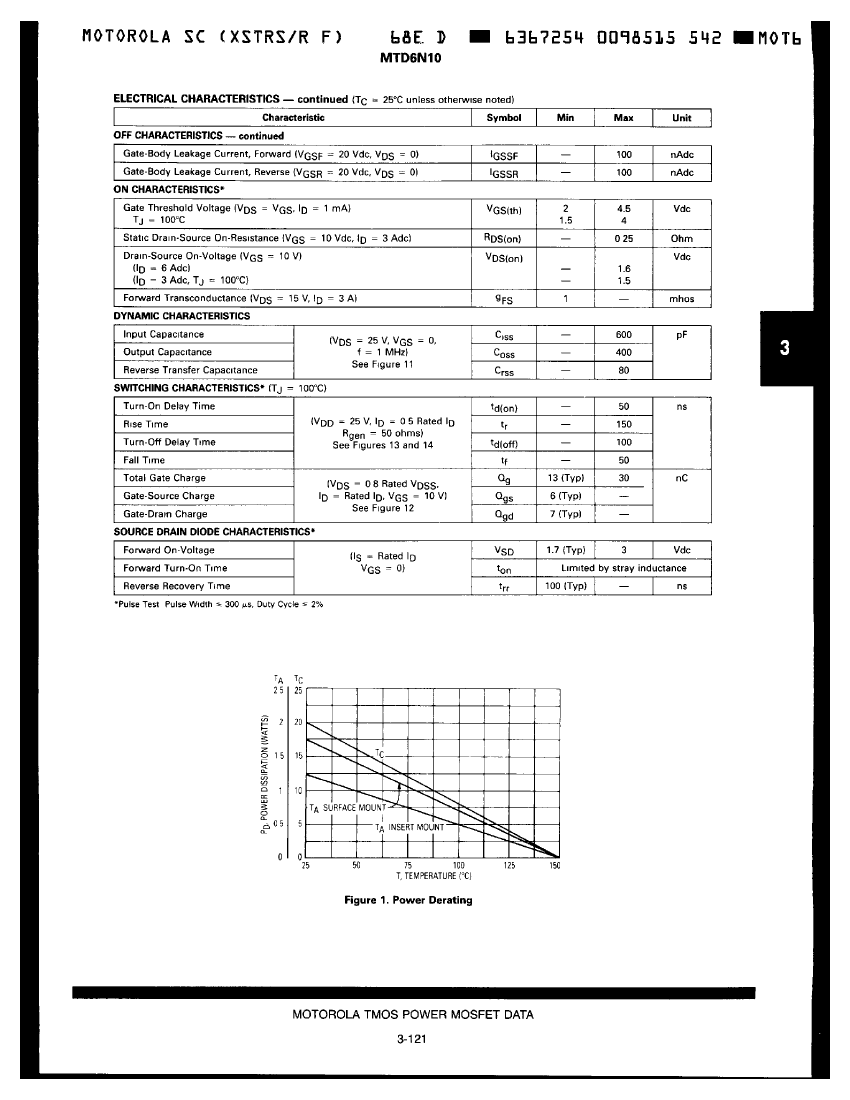

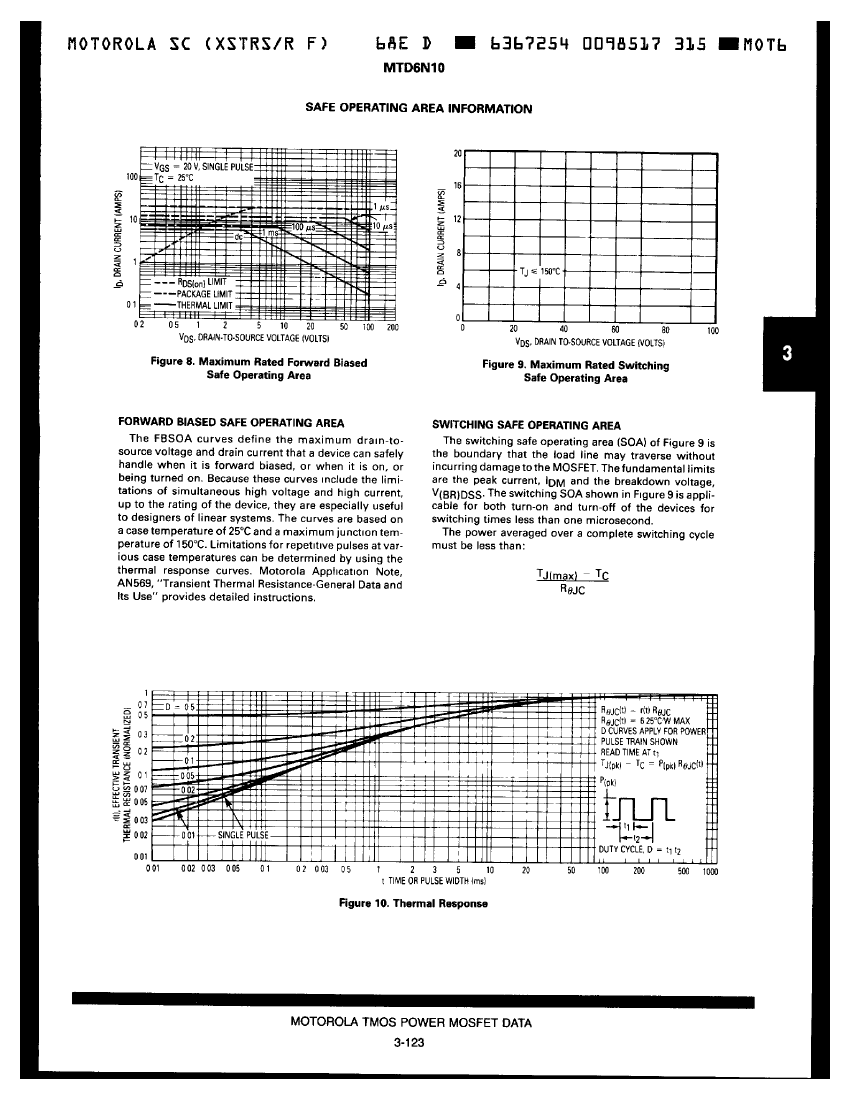

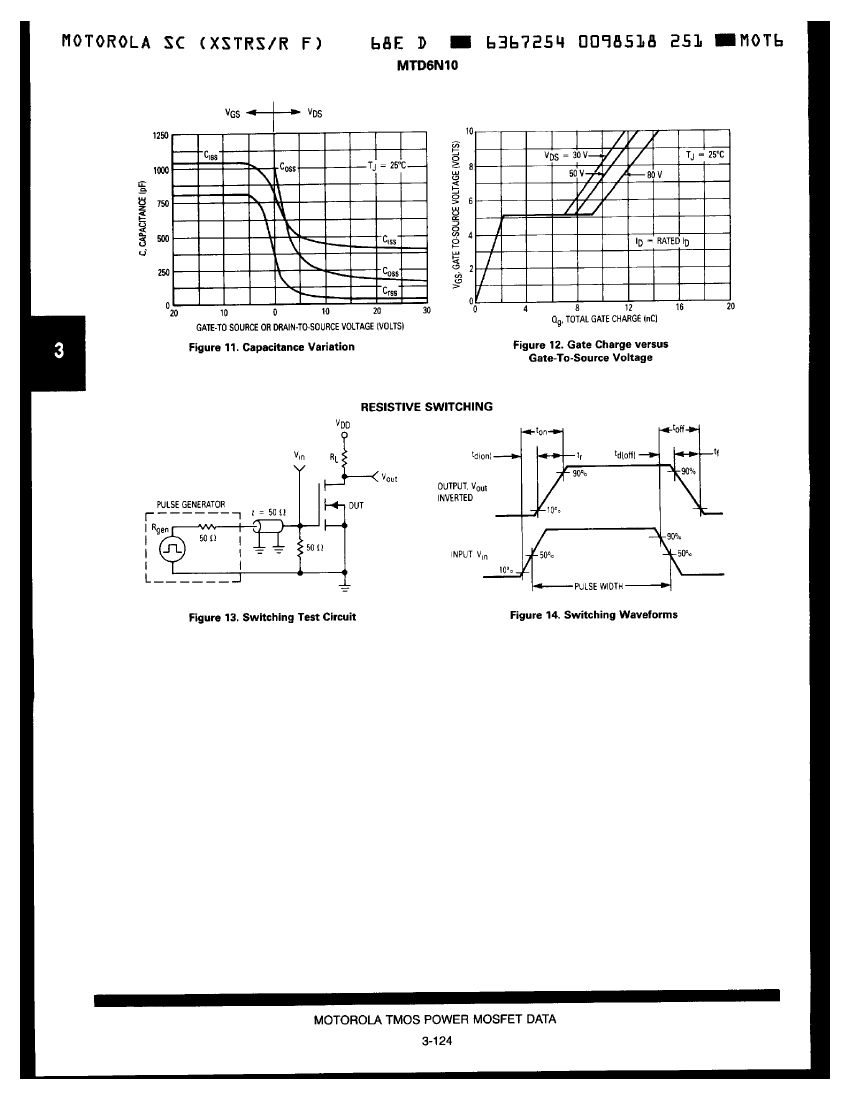

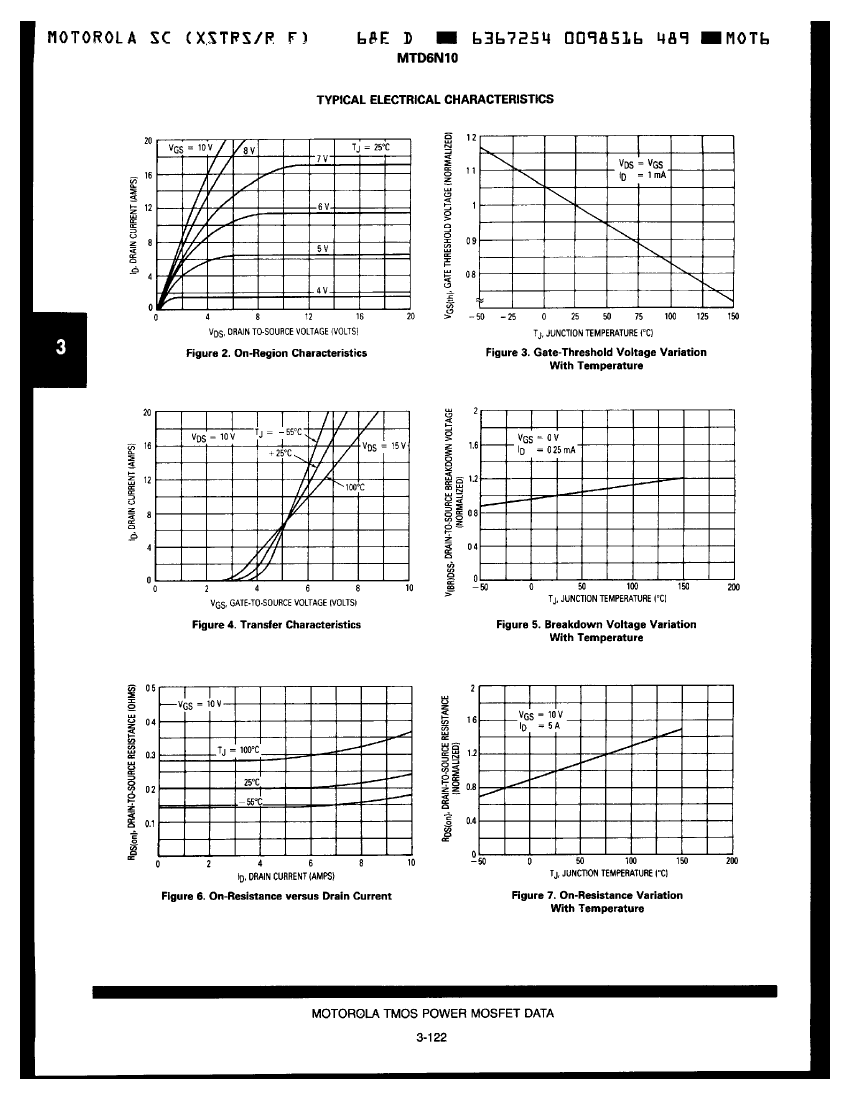

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | IN-LINE, R-PSIP-T3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Shell connection | DRAIN |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 100 V |
| Maximum drain current (Abs) (ID) | 6 A |
| Maximum drain current (ID) | 6 A |
| Maximum drain-source on-resistance | 0.25 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR |
| Maximum feedback capacitance (Crss) | 80 pF |
| JEDEC-95 code | TO-251 |
| JESD-30 code | R-PSIP-T3 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 3 |
| Operating mode | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | N-CHANNEL |
| Maximum power consumption environment | 20 W |
| Maximum power dissipation(Abs) | 20 W |
| Maximum pulsed drain current (IDM) | 20 A |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Maximum off time (toff) | 150 ns |
| Maximum opening time (tons) | 200 ns |
| Base Number Matches | 1 |
