LMT2903DR2 datasheet, PDF - EEWORLD Datasheet

LMT2903DR2: DescriptionComparator, 2 Func, 15000uV Offset-Max, 1500ns Response Time, PDSO8, PLASTIC, SO-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size69KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

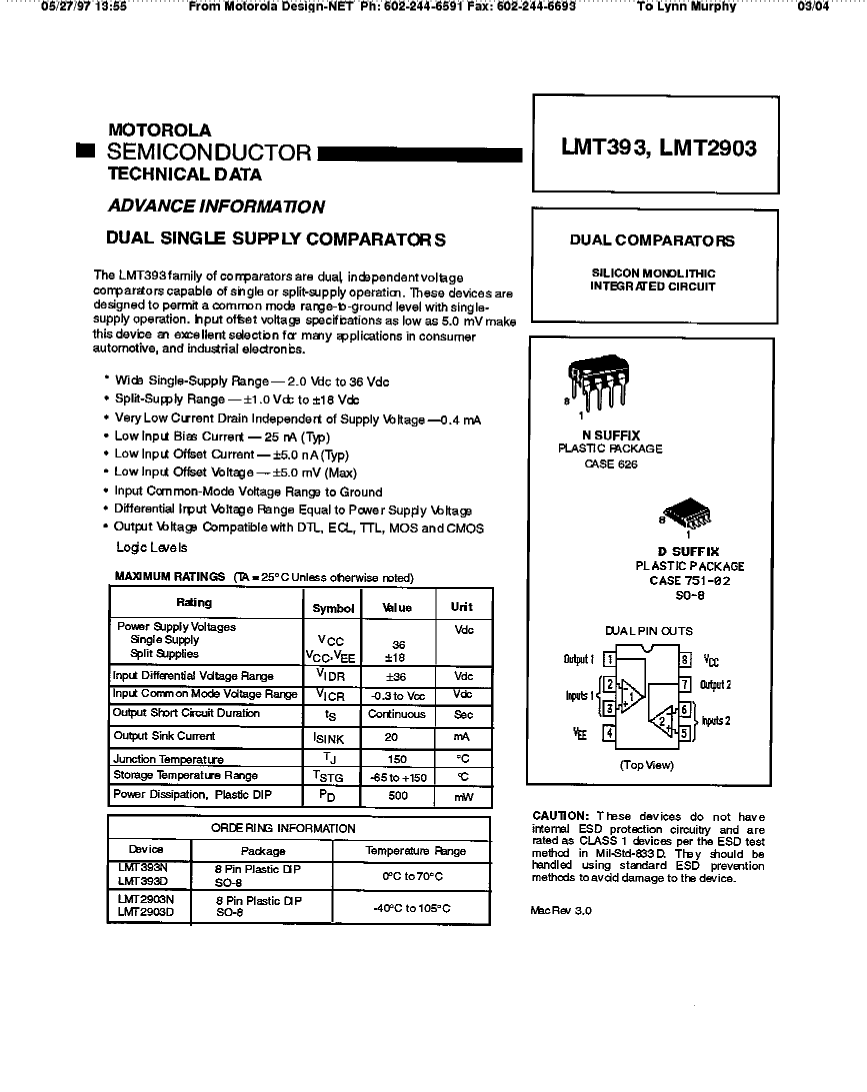

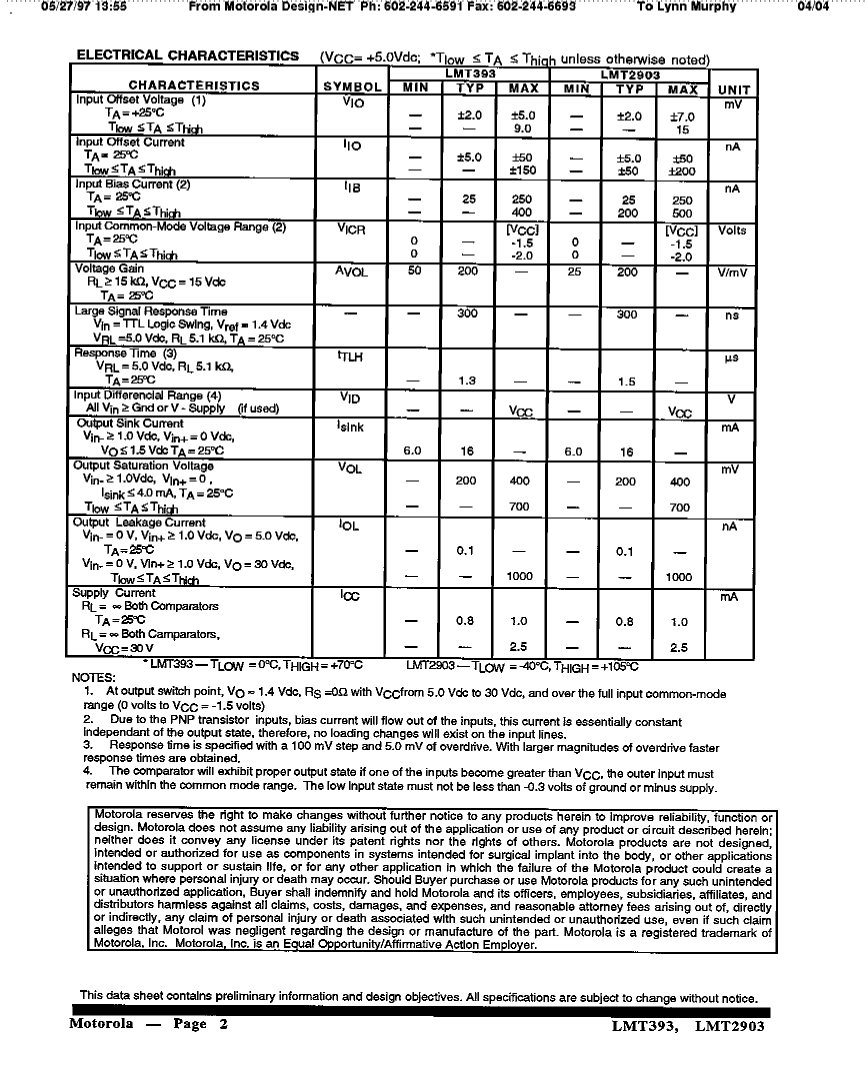

LMT2903DR2 Overview

Comparator, 2 Func, 15000uV Offset-Max, 1500ns Response Time, PDSO8, PLASTIC, SO-8

Parameter Name	Attribute value
package instruction	PLASTIC, SO-8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.5 µA
Maximum input offset voltage	15000 µV
JESD-30 code	R-PDSO-G8
length	4.9 mm
Number of functions	2
Number of terminals	8
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Nominal response time	1500 ns
Maximum seat height	1.75 mm
Maximum slew rate	2.5 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

	LMT2903DR2	LMT2903N	LMT2903D
Description	Comparator, 2 Func, 15000uV Offset-Max, 1500ns Response Time, PDSO8, PLASTIC, SO-8	Comparator, 2 Func, 15000uV Offset-Max, 1500ns Response Time, PDIP8, PLASTIC, DIP-8	DUAL COMPARATOR, 15000uV OFFSET-MAX, 1500ns RESPONSE TIME, PDSO8, PLASTIC, SO-8
package instruction	PLASTIC, SO-8	PLASTIC, DIP-8	SOP,
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.5 µA	0.5 µA	0.5 µA
Maximum input offset voltage	15000 µV	15000 µV	15000 µV
JESD-30 code	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8
length	4.9 mm	9.78 mm	4.9 mm
Number of functions	2	2	2
Number of terminals	8	8	8
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal response time	1500 ns	1500 ns	1500 ns
Maximum seat height	1.75 mm	4.45 mm	1.75 mm
Maximum slew rate	2.5 mA	2.5 mA	2.5 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	7.62 mm	3.9 mm
Base Number Matches	1	1	1
