D15P13A6RL09LF: DescriptionD Subminiature Connector, 15 Contact(s), Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size177KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D15P13A6RL09LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D15P13A6RL09LF	-	-	View	Buy Now

D15P13A6RL09LF Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, ROHS COMPLIANT

D15P13A6RL09LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	11 weeks
Other features	STANDARD: DIN 41652
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

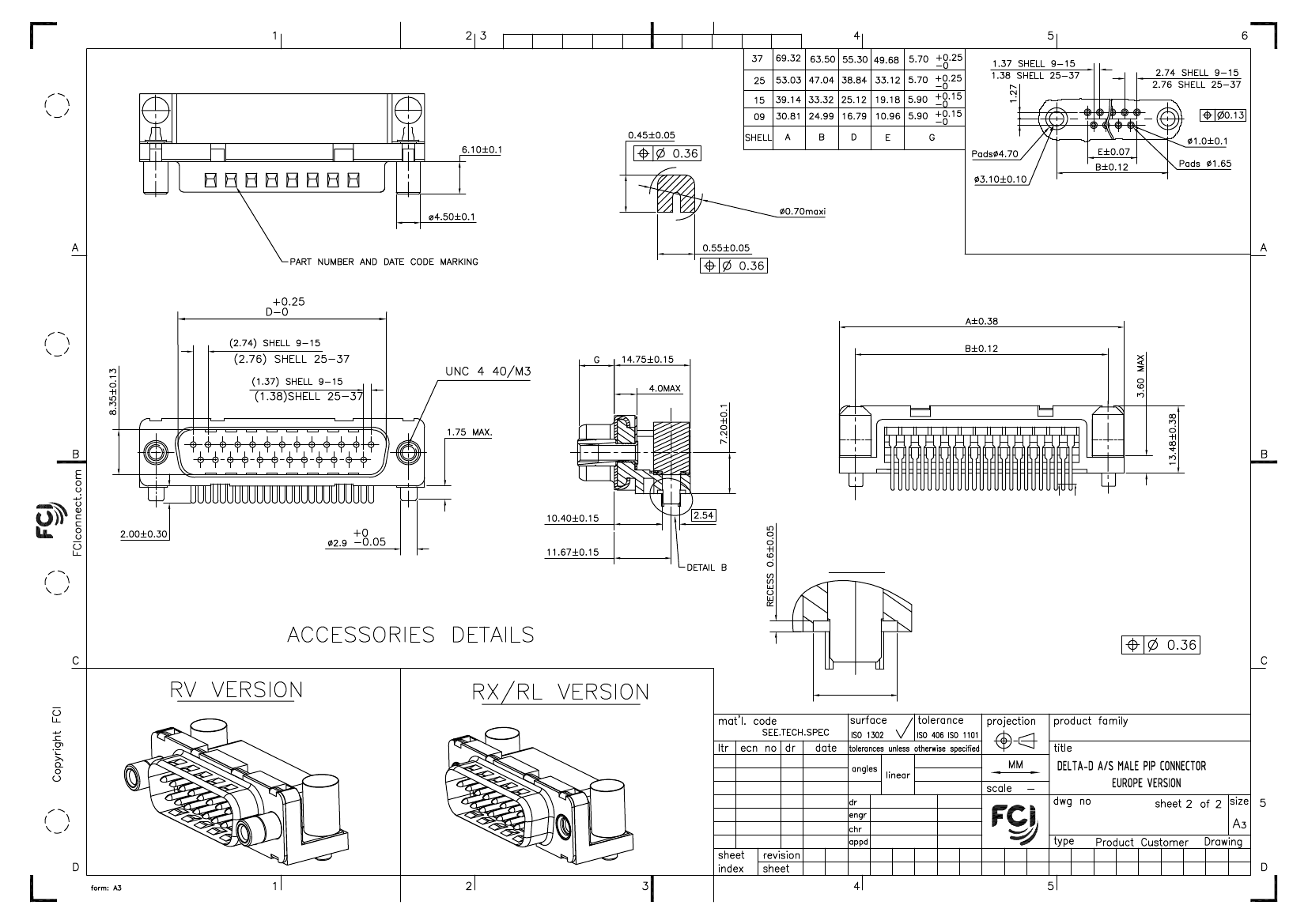

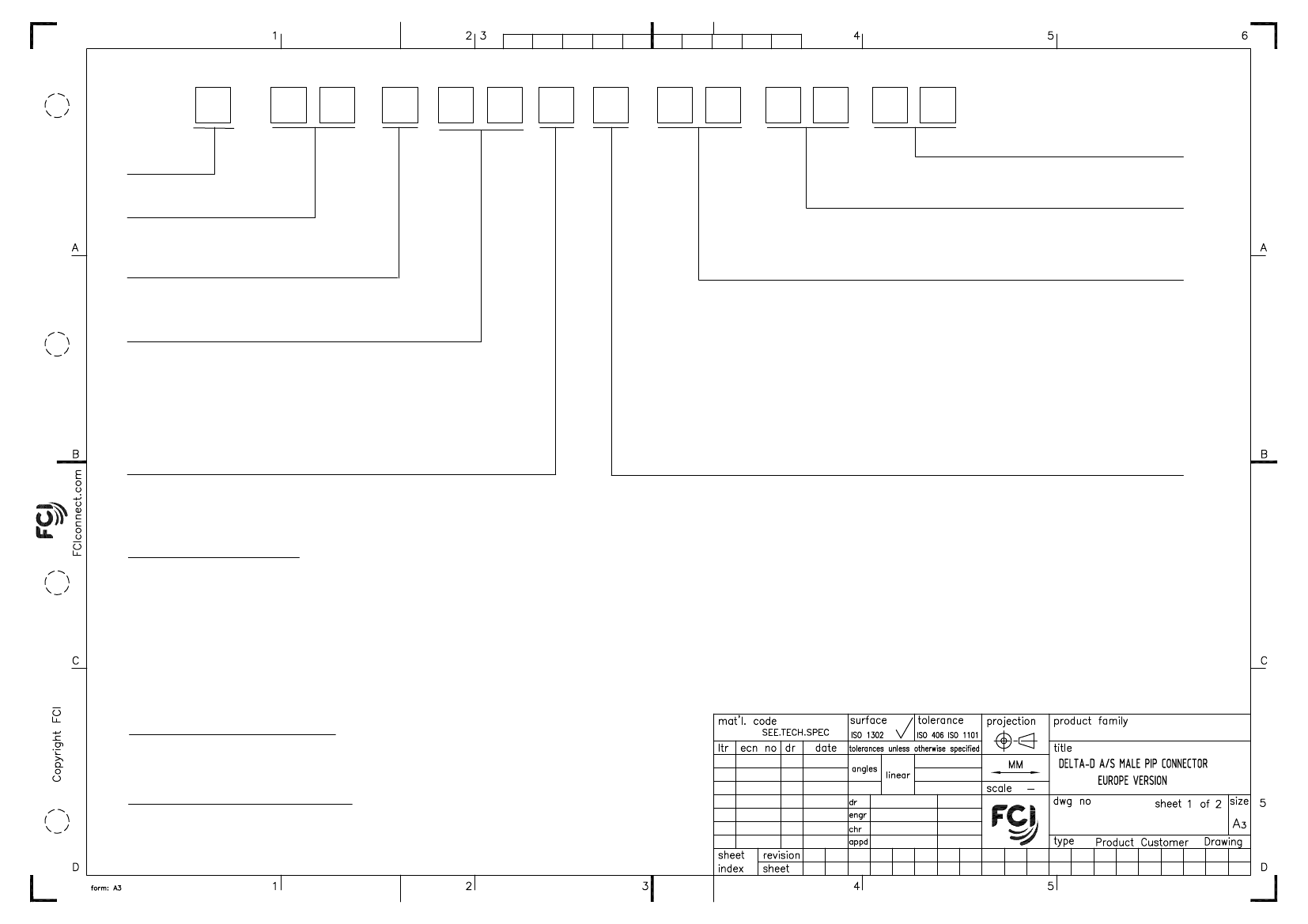

D

SERIES

NO.OF CONTACTS

09,15,25,37

X

P

1

3

A

6

X

0

9

L

F

SEE NOTE RoHS

PACKAGING SPECIFICATION

09-TRAY PACKAGING

MOUNTING OPTIONS

TYPE OF CONTACTS

P-PIN

TYPE OF TERMINATION

13-ANGLED SPILL

PITCH 2.54

FOOT PRINT 10.40 EUROPE

HEIGHT OF TERMINATION

A-2.00mm COMPATIBLE FOR 1.6mm PCB

RoHS INFORMATIONS

"This LF product meets European Union Directives and other country

regulations as described in GS-22-008"

The housing will withstand exposure to 260°C peak temperature for 30 seconds

in a convection,infra-red or vapor reflow oven solder application.

Packaging as per GS-14-920

RV->LIF METAL PEG+F.SCREW LOCK UNC 4 40+METAL BRACKET

RL->LIF METAL PEG+ INSERT M3+METAL BRACKET

RX->LIF METAL PEG+ INSERT UNC 4-40 +METAL BRACKET

PLATING

6-500 Mating/Un-mating performance

PRODUCT SPECIFICATION

See :- GS-12-433

PACKAGING SPECIFICATION

See :- GS-14-1157

C

1

C

2

A

B

C

I07-0167

I08-0175

I09-0162

AS

2007-12-04

2008-12-23

2009-08-17

DELTA-D

.00±0.1

0°±1°

ANISH.SALAM

ANISH.SLAM

ANISH.SALAM

.000±.00X

2007-12-04

2009-08-17

C-DD-0103

6

PDM: Rev:C

STATUS:

Released

Printed: Jan 18, 2011

.

D15P13A6RL09LF Related Products

	D15P13A6RL09LF	D09P13A6RX09LF	D15P13A6RX09LF	D25P13A6RL09LF	D25P13A6RV09LF	D25P13A6RX09LF	D37P13A6RX09LF
Description	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	2/A	1/E	2/A	3/B	3/B	3/B	4/C
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	9	15	25	25	25	37
Base Number Matches	1	1	1	1	1	1	1
Factory Lead Time	11 weeks	-	17 weeks	-	17 weeks	-	17 weeks
Other features	STANDARD: DIN 41652	-	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	-
insulator material	POLYETHYLENE	-	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Shell surface	NICKEL	-	NICKEL	NICKEL	NICKEL	NICKEL	-
Shell material	STEEL	-	STEEL	STEEL	STEEL	STEEL	-
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	94V-0	-
