VC-TCXO-145CB-16.384MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> VC-TCXO-145CB-16.384MHZ

VC-TCXO-145CB-16.384MHZ: DescriptionTCVCXO, Clock, TCVCXO, CLOCK, 16.384 MHz, CMOS OUTPUT; CategoryPassive components oscillator; File Size166KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

VC-TCXO-145CB-16.384MHZ Overview

TCVCXO, Clock, TCVCXO, CLOCK, 16.384 MHz, CMOS OUTPUT

VC-TCXO-145CB-16.384MHZ Parametric

Parameter Name	Attribute value
package instruction	DIP6,.6,300
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	YES
Frequency offset/pull rate	10 ppm
frequency stability	1%
JESD-609 code	e0
Manufacturer's serial number	VC-TCXO-145CB
Installation features	THROUGH HOLE MOUNT
Number of terminals	6
Maximum operating frequency	30 MHz
Minimum operating frequency	1.5 MHz
Nominal operating frequency	16.384 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
Package body material	METAL
Encapsulate equivalent code	DIP6,.6,300
physical size	20mm x 20mm x 9mm
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	20 mA
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

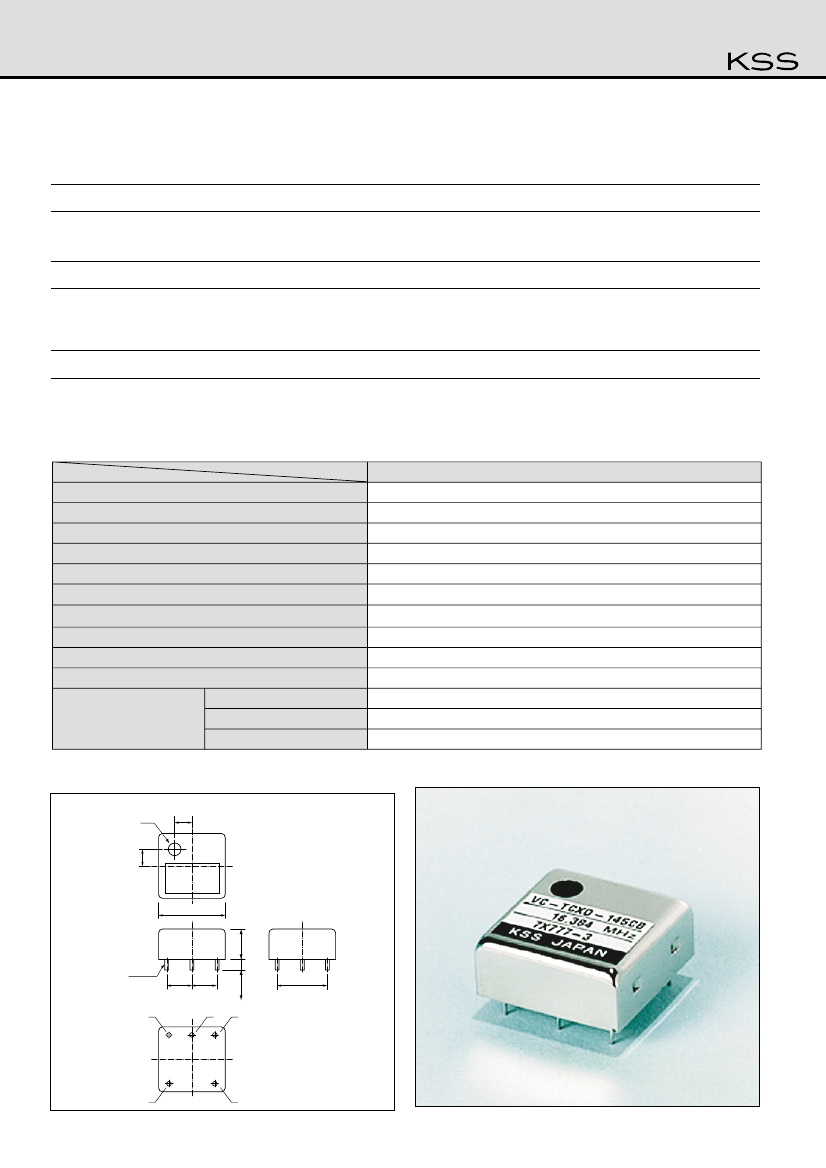

(VC-)TCXO-145CB

Temperature Compensated Crystal Oscillator

Features

¡Small

package.

Typical Applications

¡PLL

Oscillator for ISDN.

¡T.V.camera.

Standard Frequencies

¡14.318181MHz.

¡16.384MHz.

Specifications

Item

Frequency Range

Operating Temperature Range

Storage Temperature Range

Frequency Temperature Characteristics

Frequency Aging

Supply Voltage Change

Frequency Deviation/Contorol Voltage (only VC-TCXO)

Frequency Tuning Range

Power Supply Voltage

Power Supply Current

Level

Output

Load

Symmetry

Type

TCXO-145CB

VC-TCXO-145CB

1.5MHz~30MHz

-10:~+60:

-40:~+85:

±1×10

–6

MAX./-10:~+60:(Reference at +25:)

±1×10

–6

MAX./year

±0.2×10

–6

MAX./+5.0V±5%

±10×10

–6

MIN./+2.5V±2.0V(positive)

±3×10

–6

MIN./(VS.internal trimmer)

+5.0V±5%

20mA MAX.

: +4.5V MIN./V

: +0.5V MAX.(V

= +5.0V)

C-MOS(15pF)

40~60% at+2.5V Point(Square wave)

Outline

(VC-)TCXO-145CB

φ4

N.P.

20±1.0

9MAX.

5-φ0.5

±0.3 ±0.3

7.5 7.5

3.5±0.5

15±0.3

Pin Connection

1:+DC

2:OUTPUT

3:GND

4:VC VC-TCXO

NC TCXO

5:GND

Dimensions(mm)

VC-TCXO-145CB-16.384MHZ Related Products

	VC-TCXO-145CB-16.384MHZ	TCXO-145CB-16.384MHZ	TCXO-145CB-14.318181MHZ	VC-TCXO-145CB-14.318181MHZ	TCXO-145CB-FREQ-OUT21	VC-TCXO-145CB-FREQ-OUT21
Description	TCVCXO, Clock, TCVCXO, CLOCK, 16.384 MHz, CMOS OUTPUT	TCXO, Clock, TCXO, CLOCK, 16.384 MHz, CMOS OUTPUT	TCXO, Clock, TCXO, CLOCK, 14.318181 MHz, CMOS OUTPUT	TCVCXO, Clock, TCVCXO, CLOCK, 14.318181 MHz, CMOS OUTPUT	TCXO, Clock, TCXO, CLOCK, 1.5 MHz - 30 MHz, CMOS OUTPUT	CMOS Output Clock Oscillator, 1.5MHz Min, 30MHz Max
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Ageing	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
Frequency Adjustment - Mechanical	YES	YES	YES	YES	YES	YES
frequency stability	1%	1%	1%	1%	1%	1%
Manufacturer's serial number	VC-TCXO-145CB	TCXO-145CB	TCXO-145CB	VC-TCXO-145CB	TCXO-145CB	VC-TCXO-145CB
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating frequency	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz
Minimum operating frequency	1.5 MHz	1.5 MHz	1.5 MHz	1.5 MHz	1.5 MHz	1.5 MHz
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Output load	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF
physical size	20mm x 20mm x 9mm	20mm x 20mm x 9mm	20mm x 20mm x 9mm	20mm x 20mm x 9mm	20mm x 20mm x 9mm	20mm x 20mm x 9mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
maximum symmetry	60/40 %	60/40 %	60/40 %	60/40 %	60/40 %	60/40 %
package instruction	DIP6,.6,300	DIP6,.6,300	DIP6,.6,300	DIP6,.6,300	-	-
Number of terminals	6	6	6	6	-	-
Nominal operating frequency	16.384 MHz	16.384 MHz	14.318181 MHz	14.318181 MHz	-	-
Package body material	METAL	METAL	METAL	METAL	-	-
Encapsulate equivalent code	DIP6,.6,300	DIP6,.6,300	DIP6,.6,300	DIP6,.6,300	-	-
power supply	5 V	5 V	5 V	5 V	-	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-
Maximum slew rate	20 mA	20 mA	20 mA	20 mA	-	-
Maker	-	-	Kyocera	Kyocera	Kyocera	Kyocera
