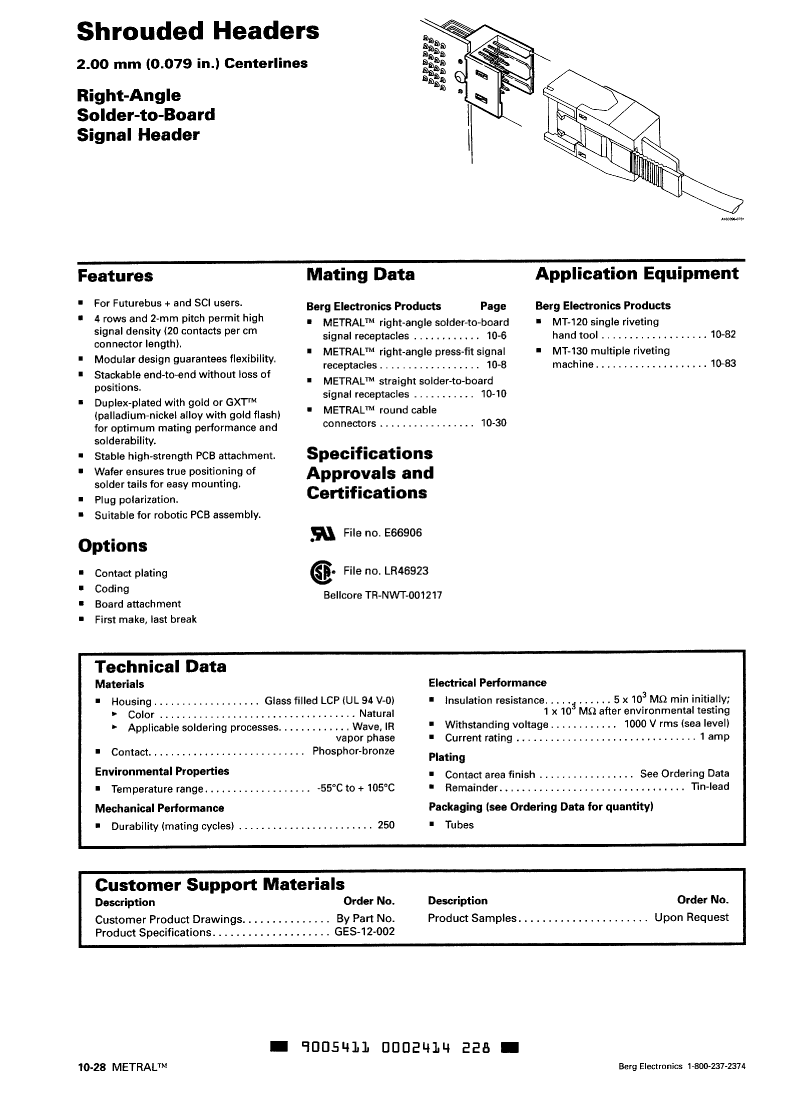

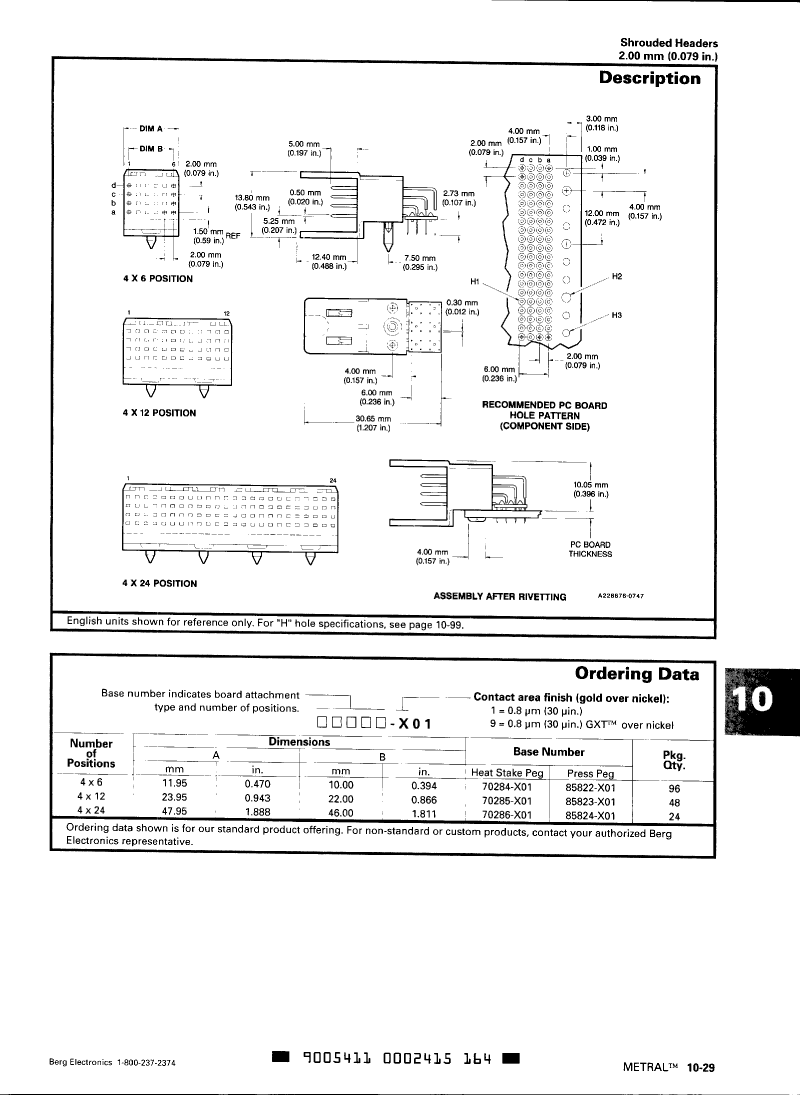

Board Connector, 96 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | compliant |
| Other features | SCSI BUS, FUTUREBUS |
| Board mount options | LOCATING POSTS |
| body width | 0.543 inch |
| subject depth | 1.207 inch |
| body length | 1.888 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | Tin/Lead (Sn/Pb) |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 250 Cycles |
| Insulation resistance | 1000000000 Ω |
| Insulator color | NATURAL |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| JESD-609 code | e0 |
| Manufacturer's serial number | 70286 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 4 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZING PEG |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.107 inch |
| Terminal pitch | 2.0066 mm |
| Termination type | SOLDER |
| Total number of contacts | 96 |
| Base Number Matches | 1 |
| 70286-101 | 70285-101 | 70285-901 | 70286-901 | |
|---|---|---|---|---|
| Description | Board Connector, 96 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle | Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle | Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle | Board Connector, 96 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| Other features | SCSI BUS, FUTUREBUS | SCSI BUS, FUTUREBUS | SCSI BUS, FUTUREBUS | SCSI BUS, FUTUREBUS |
| Board mount options | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS |
| body width | 0.543 inch | 0.543 inch | 0.543 inch | 0.543 inch |
| subject depth | 1.207 inch | 1.207 inch | 1.207 inch | 1.207 inch |
| body length | 1.888 inch | 0.943 inch | 0.943 inch | 1.888 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI | NOT SPECIFIED | AU ON PD-NI | AU ON PD-NI |
| Contact point gender | MALE | MALE | MALE | MALE |
| Contact material | PHOSPHOR BRONZE | NOT SPECIFIED | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V |
| Durability | 250 Cycles | 250 Cycles | 250 Cycles | 250 Cycles |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | NATURAL | NATURAL | NATURAL | NATURAL |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE |
| PCB row number | 4 | 4 | 4 | 4 |
| Number of rows loaded | 4 | 4 | 4 | 4 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Plating thickness | 30u inch | 30u inch | FLASH inch | FLASH inch |
| polarization key | POLARIZING PEG | POLARIZING PEG | POLARIZING PEG | POLARIZING PEG |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.107 inch | 0.107 inch | 0.107 inch | 0.107 inch |
| Terminal pitch | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 96 | 48 | 48 | 96 |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Contact completed and terminated | Tin/Lead (Sn/Pb) | - | TIN OVER NICKEL | TIN OVER NICKEL |
| Manufacturer's serial number | 70286 | - | 70285 | 70286 |
