T618N14TOF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> T618N14TOF

T618N14TOF: DescriptionSilicon Controlled Rectifier, 1250A I(T)RMS, 618000mA I(T), 1400V V(DRM), 1400V V(RRM), 1 Element,; CategoryAnalog mixed-signal IC Trigger device; File Size182KB，4 Pages; ManufacturerEUPEC [eupec GmbH]

Download Datasheet Parametric Compare View All

T618N14TOF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T618N14TOF	-	-	View	Buy Now

T618N14TOF Overview

Silicon Controlled Rectifier, 1250A I(T)RMS, 618000mA I(T), 1400V V(DRM), 1400V V(RRM), 1 Element,

T618N14TOF Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Nominal circuit commutation break time	250 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	250 mA
Maximum DC gate trigger voltage	2.2 V
JESD-30 code	O-CEDB-N2
On-state non-repetitive peak current	9500 A
Number of components	1
Number of terminals	2
Maximum on-state current	618000 A
Maximum operating temperature	125 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	1250 A
Off-state repetitive peak voltage	1400 V
Repeated peak reverse voltage	1400 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

European Power-

Semiconductor and

Electronics Company

Marketing Information

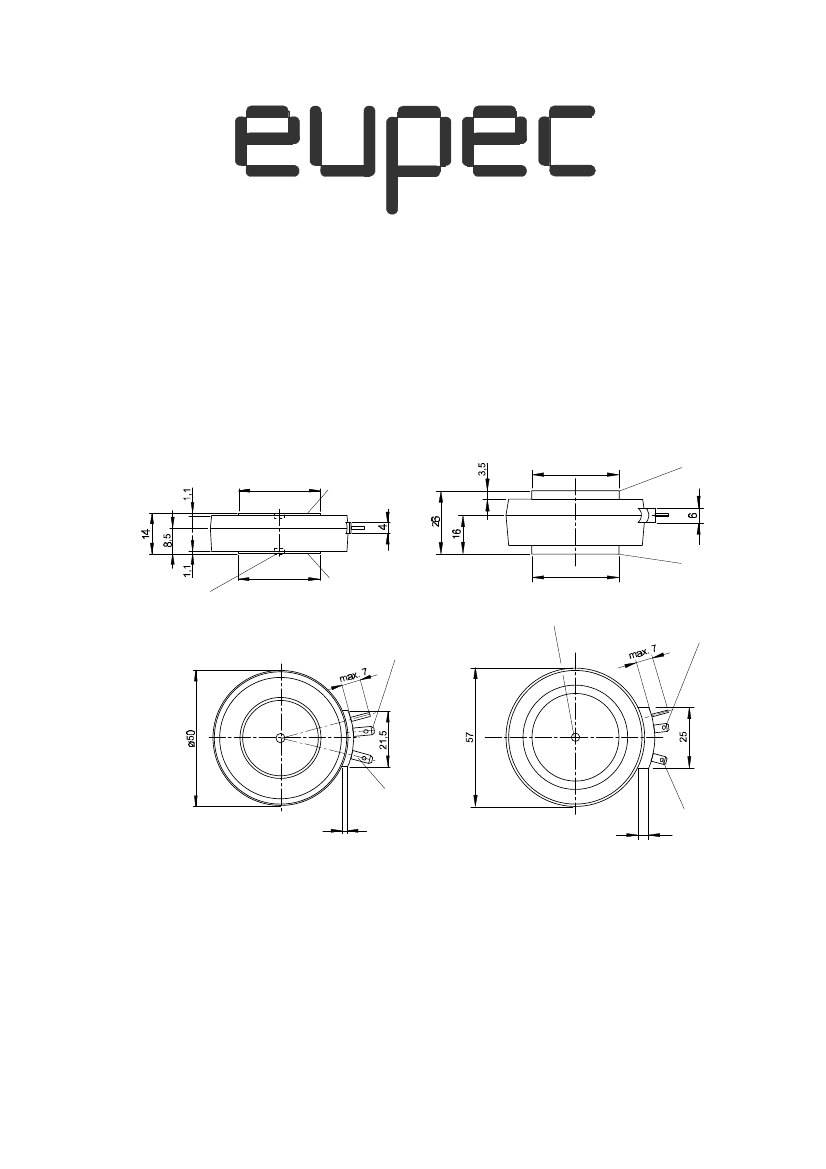

T 618 N

ø30

T 619 N

ø36

ø30

ø3,5 x 2 deep

on both sides

ø36

plug 2,8 x 0,8

3,5 x 3,5 deep

on both sides

plug 4,8 x 0,8

plug

2,8 x 0,8

plug

2,8 x 0,8

VWK Nov. 1996

T618N14TOF Related Products

	T618N14TOF	T618N08TOF	T618N06TOF	T618N12TOF	T618N10TOF	T619N06TOF	T619N10TOF	T619N08TOF	T619N12TOF
Description	Silicon Controlled Rectifier, 1250A I(T)RMS, 618000mA I(T), 1400V V(DRM), 1400V V(RRM), 1 Element,	Silicon Controlled Rectifier, 1250A I(T)RMS, 618000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element,	Silicon Controlled Rectifier, 1250A I(T)RMS, 618000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element,	Silicon Controlled Rectifier, 1250A I(T)RMS, 618000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element,	Silicon Controlled Rectifier, 1250A I(T)RMS, 618000mA I(T), 1000V V(DRM), 1000V V(RRM), 1 Element,	Silicon Controlled Rectifier, 1250A I(T)RMS, 618000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element,	Silicon Controlled Rectifier, 1250A I(T)RMS, 618000mA I(T), 1000V V(DRM), 1000V V(RRM), 1 Element,	Silicon Controlled Rectifier, 1250A I(T)RMS, 618000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element,	Silicon Controlled Rectifier, 1250A I(T)RMS, 618000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Nominal circuit commutation break time	250 µs	250 µs	250 µs	250 µs	250 µs	250 µs	250 µs	250 µs	250 µs
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA
Maximum DC gate trigger voltage	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V
JESD-30 code	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2
On-state non-repetitive peak current	9500 A	9500 A	9500 A	9500 A	9500 A	9500 A	9500 A	9500 A	9500 A
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum on-state current	618000 A	618000 A	618000 A	618000 A	618000 A	618000 A	618000 A	618000 A	618000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	1250 A	1250 A	1250 A	1250 A	1250 A	1250 A	1250 A	1250 A	1250 A
Off-state repetitive peak voltage	1400 V	800 V	600 V	1200 V	1000 V	600 V	1000 V	800 V	1200 V
Repeated peak reverse voltage	1400 V	800 V	600 V	1200 V	1000 V	600 V	1000 V	800 V	1200 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	END	END	END	END	END	END	END	END
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1	1	1	1
