T828N07TOF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> T828N07TOF

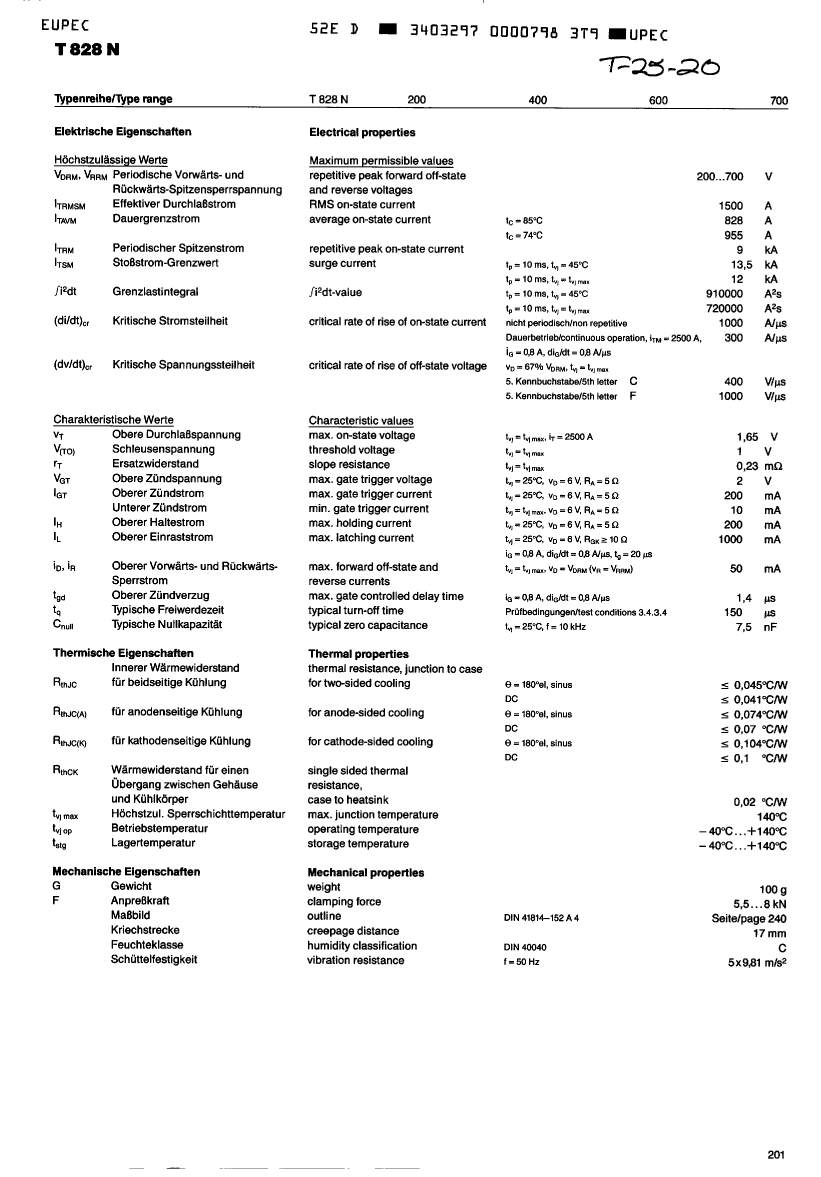

Preview

T828N07TOF: DescriptionSilicon Controlled Rectifier, 828000mA I(T), 700V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size313KB，5 Pages; ManufacturerEUPEC [eupec GmbH]

Download Datasheet Parametric Compare View All

T828N07TOF Overview

Silicon Controlled Rectifier, 828000mA I(T), 700V V(DRM),

T828N07TOF Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Nominal circuit commutation break time	150 µs
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	200 mA
Maximum leakage current	50 mA
On-state non-repetitive peak current	12000 A
Maximum on-state voltage	1.65 V
Maximum on-state current	828000 A
Maximum operating temperature	140 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	700 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

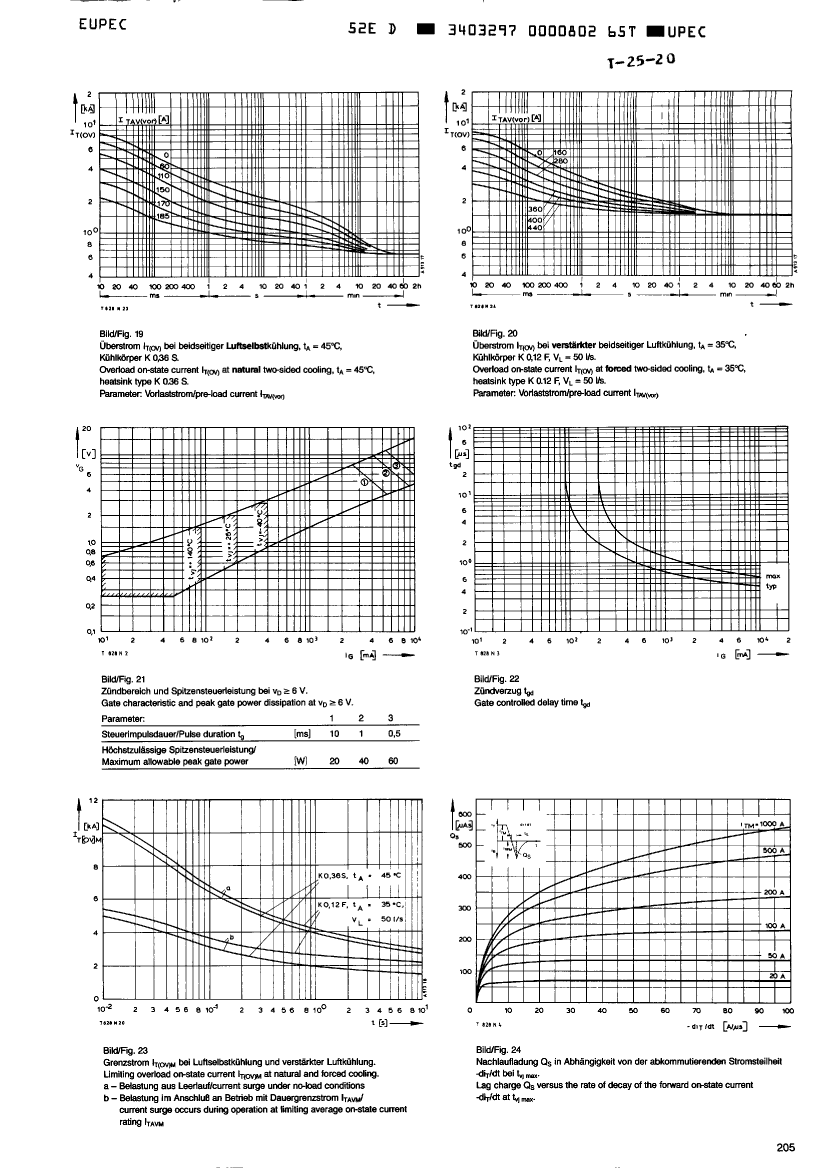

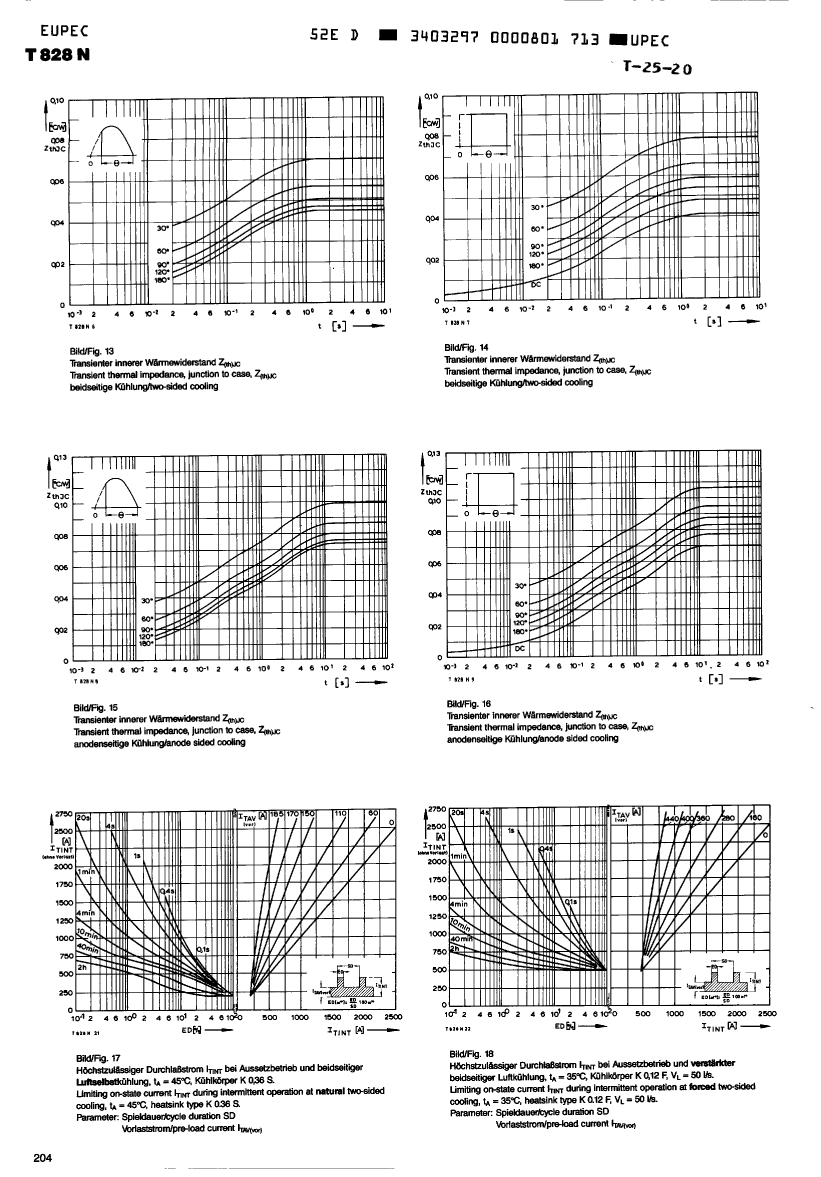

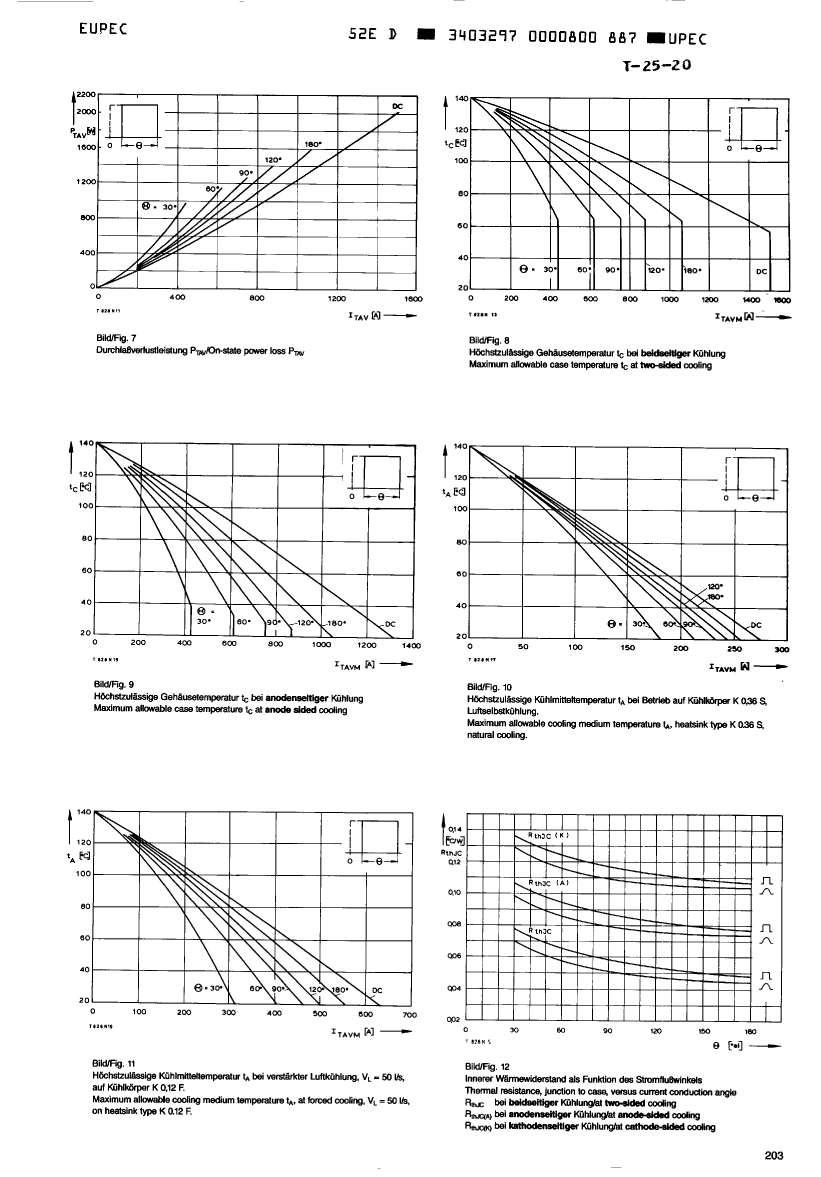

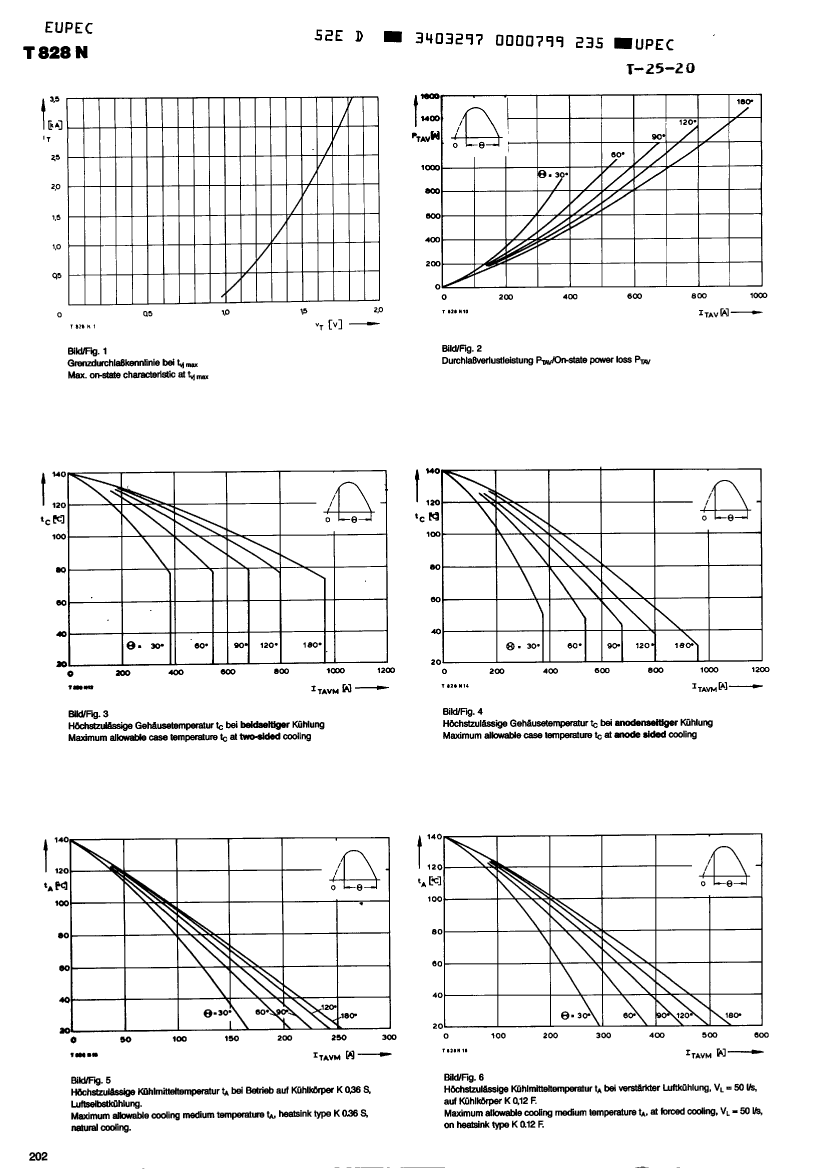

Preview

Download Datasheet

View All

T828N07TOF Related Products

	T828N07TOF	T828N06TOF	T828N04TOF	T828N02TOF	T828N02TOC	T828N07TOC	T828N04TOC	T828N06TOC
Description	Silicon Controlled Rectifier, 828000mA I(T), 700V V(DRM),	Silicon Controlled Rectifier, 1500A I(T)RMS, 828000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element,	Silicon Controlled Rectifier, 1500A I(T)RMS, 828000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element,	Silicon Controlled Rectifier, 1500A I(T)RMS, 828000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element,	Silicon Controlled Rectifier, 828000mA I(T), 200V V(DRM),	Silicon Controlled Rectifier, 828000mA I(T), 700V V(DRM),	Silicon Controlled Rectifier, 828000mA I(T), 400V V(DRM),	Silicon Controlled Rectifier, 828000mA I(T), 600V V(DRM),
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Nominal circuit commutation break time	150 µs	150 µs	150 µs	150 µs	150 µs	150 µs	150 µs	150 µs
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us	1000 V/us	400 V/us	400 V/us	400 V/us	400 V/us
Maximum DC gate trigger current	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Maximum holding current	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum leakage current	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA
On-state non-repetitive peak current	12000 A	12000 A	12000 A	12000 A	12000 A	12000 A	12000 A	12000 A
Maximum on-state current	828000 A	828000 A	828000 A	828000 A	828000 A	828000 A	828000 A	828000 A
Maximum operating temperature	140 °C	140 °C	140 °C	140 °C	140 °C	140 °C	140 °C	140 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Off-state repetitive peak voltage	700 V	600 V	400 V	200 V	200 V	700 V	400 V	600 V
surface mount	NO	YES	YES	YES	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1	1	1
Maximum on-state voltage	1.65 V	-	-	-	1.65 V	1.65 V	1.65 V	1.65 V
