BYT56M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYT56M

BYT56M: DescriptionRectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, HERMETICALLY SEALED, GLASS PACKAGE-2; CategoryDiscrete semiconductor diode; File Size147KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric View All

BYT56M Overview

Rectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, HERMETICALLY SEALED, GLASS PACKAGE-2

BYT56M Parametric

Parameter Name	Attribute value
package instruction	E-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
application	FAST SOFT RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JESD-30 code	E-LALF-W2
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	GLASS
Package shape	ELLIPTICAL
Package form	LONG FORM
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.1 µs
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

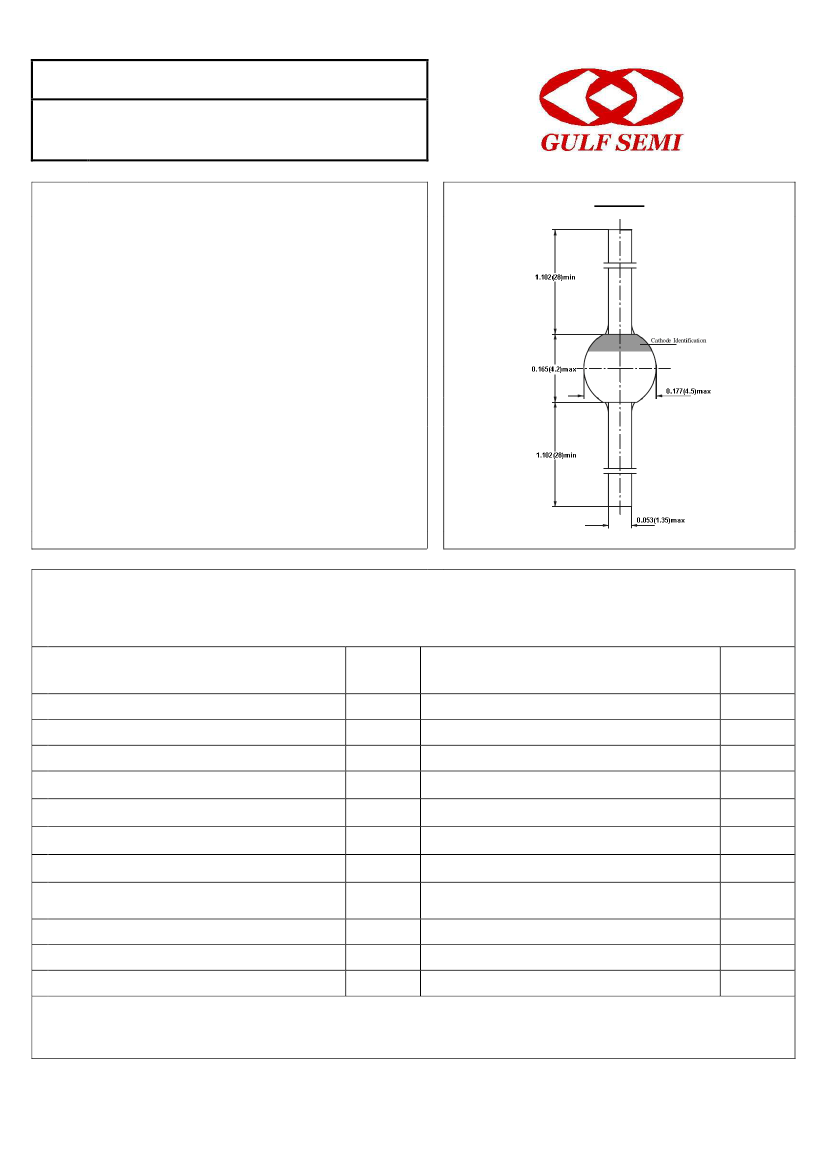

BYT56M

SINTERED GLASS JUNCTION

FAST AVALANCHE RECTIFIER

VOLTAGE：1000V

：

CURRENT: 3.0A

FEATURE

Glass passivated

Hermetically sealed package

Low reverse current

Soft recovery characteristics

SOD-64

MECHANICAL DATA

Case: SOD-64 sintered glass case

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Polarity: color band denotes cathode end

Mounting position: any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8”lead length at I =10mm

Peak Forward Surge Current

at tp=10ms,half sinewave

Maximum Forward Voltage at rated Forward Current

at IF=3.0A

Non-repetitive peak reverse avalanche energy

at I

BR(R)

=0.4A

Maximum DC Reverse Current

at rated DC blocking voltage

Maximum Reverse Recovery Time

Typical Thermal Resistance

Storage and Operating Junction Temperature

Ta =25

°C

Ta =150

°C

(Note 1)

(Note 2)

BYT56M

1000

700

1000

3.0

1.4

5.0

150.0

100

-55 to +175

units

RRM

RMS

FAV

FSM

RSM

Trr

Rth(ja)

Tstg, Tj

°C

Note:

1. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

2. on PC board with spacing 25 mm

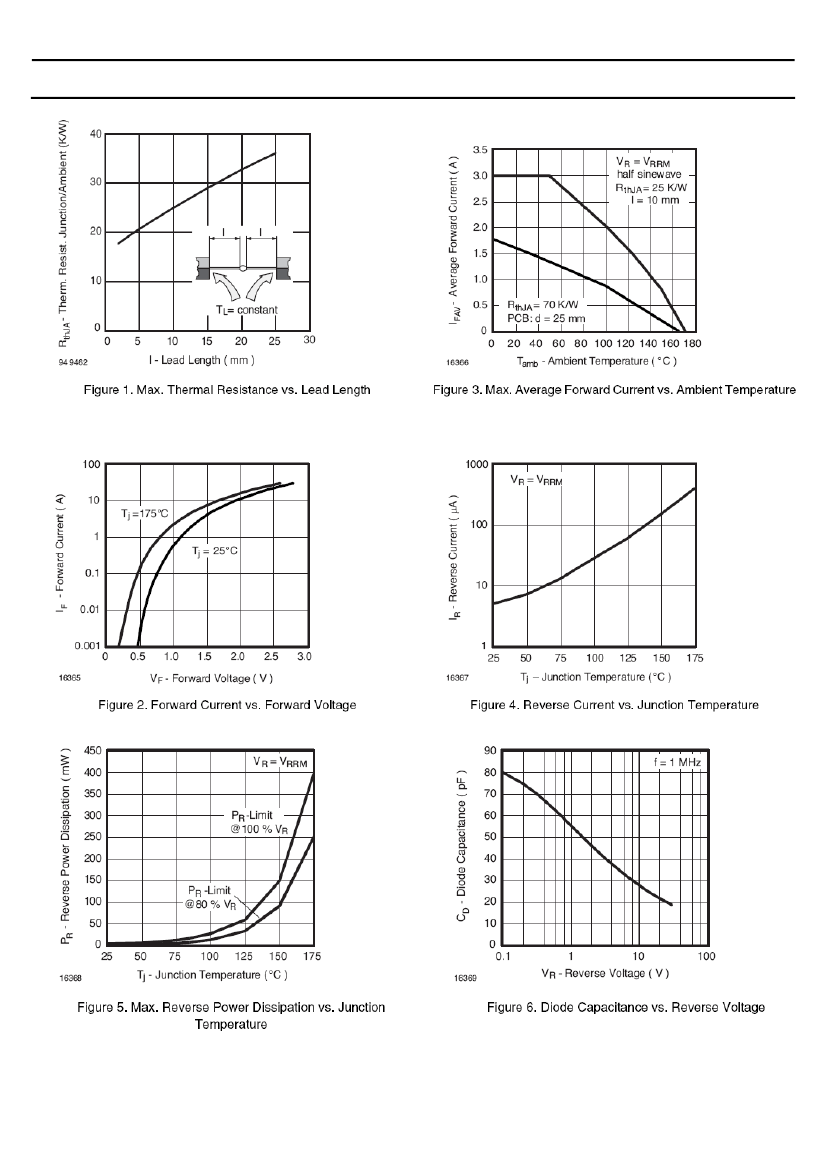

Rev.A1

www.gulfsemi.com
