KS1347N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> KS1347N

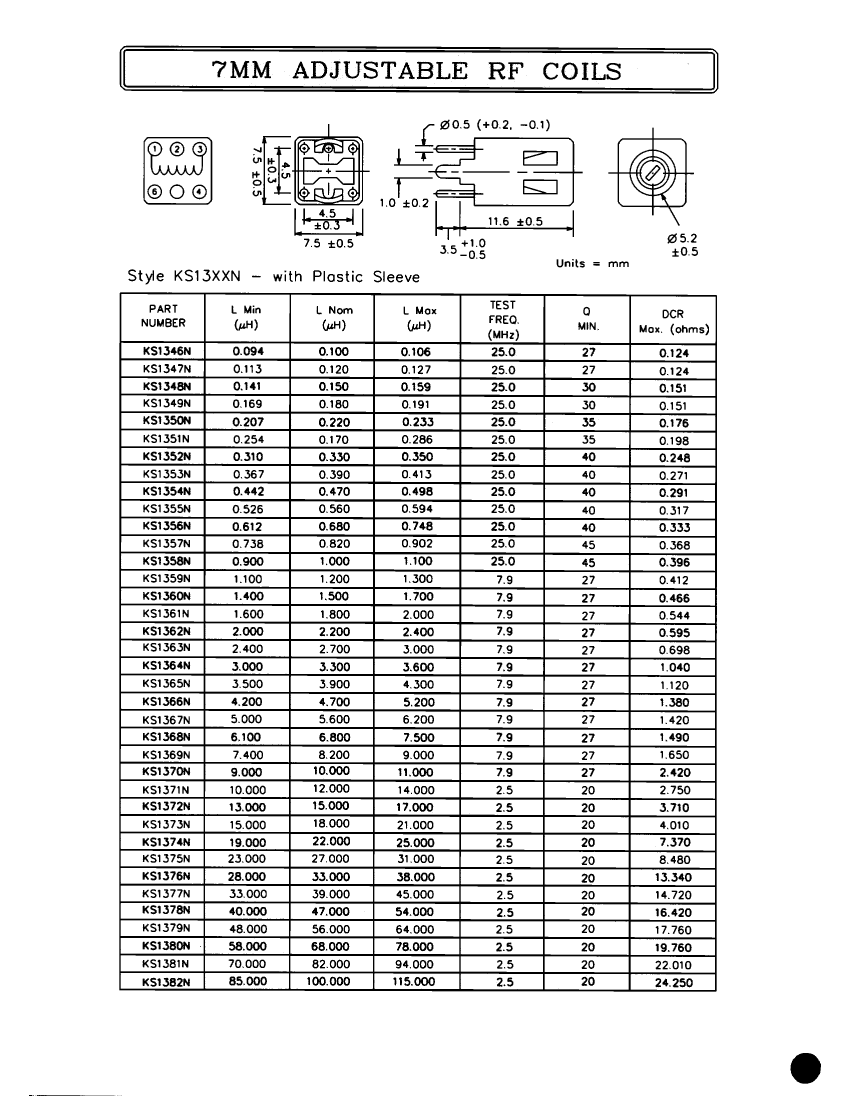

KS1347N: DescriptionVariable Inductor, 0.113uH Min, 0.127uH Max, Unshielded; CategoryPassive components inductor; File Size45KB，1 Pages; ManufacturerFRONTIER; Websitehttp://www.frontierusa.com/

Download Datasheet Parametric Compare View All

KS1347N Overview

Variable Inductor, 0.113uH Min, 0.127uH Max, Unshielded

KS1347N Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.124 Ω
Maximum inductance(L)	0.127 µH
Minimum inductance(L)	0.113 µH
Nominal inductance(L)	0.12 µH
Inductor Applications	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR
Number of functions	1
Number of terminals	5
Minimum quality factor (at nominal inductance)	27
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER
shield	NO
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	PRINTED WIRING PIN
Test frequency	25 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

KS1347N Related Products

	KS1347N	KS1346N	KS1367N	KS1375N	KS1376N	KS1350N	KS1363N	KS1371N	KS1373N
Description	Variable Inductor, 0.113uH Min, 0.127uH Max, Unshielded	Variable Inductor, 0.094uH Min, 0.106uH Max, Unshielded	Variable Inductor, 5uH Min, 6.2uH Max, Unshielded	Variable Inductor, 23uH Min, 31uH Max, Unshielded	Variable Inductor, 28uH Min, 38uH Max, Unshielded	Variable Inductor, 0.207uH Min, 0.233uH Max, Unshielded	Variable Inductor, 2.4uH Min, 3uH Max, Unshielded	Variable Inductor, 10uH Min, 14uH Max, Unshielded	Variable Inductor, 15uH Min, 21uH Max, Unshielded
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.124 Ω	0.124 Ω	1.42 Ω	8.48 Ω	13.34 Ω	0.176 Ω	0.698 Ω	2.75 Ω	4.01 Ω
Maximum inductance(L)	0.127 µH	0.106 µH	6.2 µH	31 µH	38 µH	0.233 µH	3 µH	14 µH	21 µH
Minimum inductance(L)	0.113 µH	0.094 µH	5 µH	23 µH	28 µH	0.207 µH	2.4 µH	10 µH	15 µH
Nominal inductance(L)	0.12 µH	0.1 µH	5.6 µH	27 µH	33 µH	0.22 µH	2.7 µH	12 µH	18 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5	5	5	5
Minimum quality factor (at nominal inductance)	27	27	27	20	20	35	27	20	20
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN
Test frequency	25 MHz	25 MHz	7.9 MHz	2.5 MHz	2.5 MHz	25 MHz	7.9 MHz	2.5 MHz	2.5 MHz
Base Number Matches	1	1	1	1	1	1	1	1	-
Maker	-	-	FRONTIER	FRONTIER	FRONTIER	-	-	FRONTIER	FRONTIER
