7311E-777.6M-NSA3327A datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 7311E-777.6M-NSA3327A

7311E-777.6M-NSA3327A: DescriptionPECL Output Clock Oscillator, 777.6MHz Nom, ROHS COMPLIANT PACKAGE-6; CategoryPassive components oscillator; File Size80KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric View All

7311E-777.6M-NSA3327A Overview

PECL Output Clock Oscillator, 777.6MHz Nom, ROHS COMPLIANT PACKAGE-6

7311E-777.6M-NSA3327A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-6
Reach Compliance Code	compliant
Other features	COMPLEMENTARY OUTPUT
Maximum control voltage	3.15 V
Minimum control voltage	0.15 V
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	7311E
Installation features	SURFACE MOUNT
Nominal operating frequency	777.6 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	PECL
Output load	50 OHM
physical size	11.4mm x 9.6mm x 3.9mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Base Number Matches	1

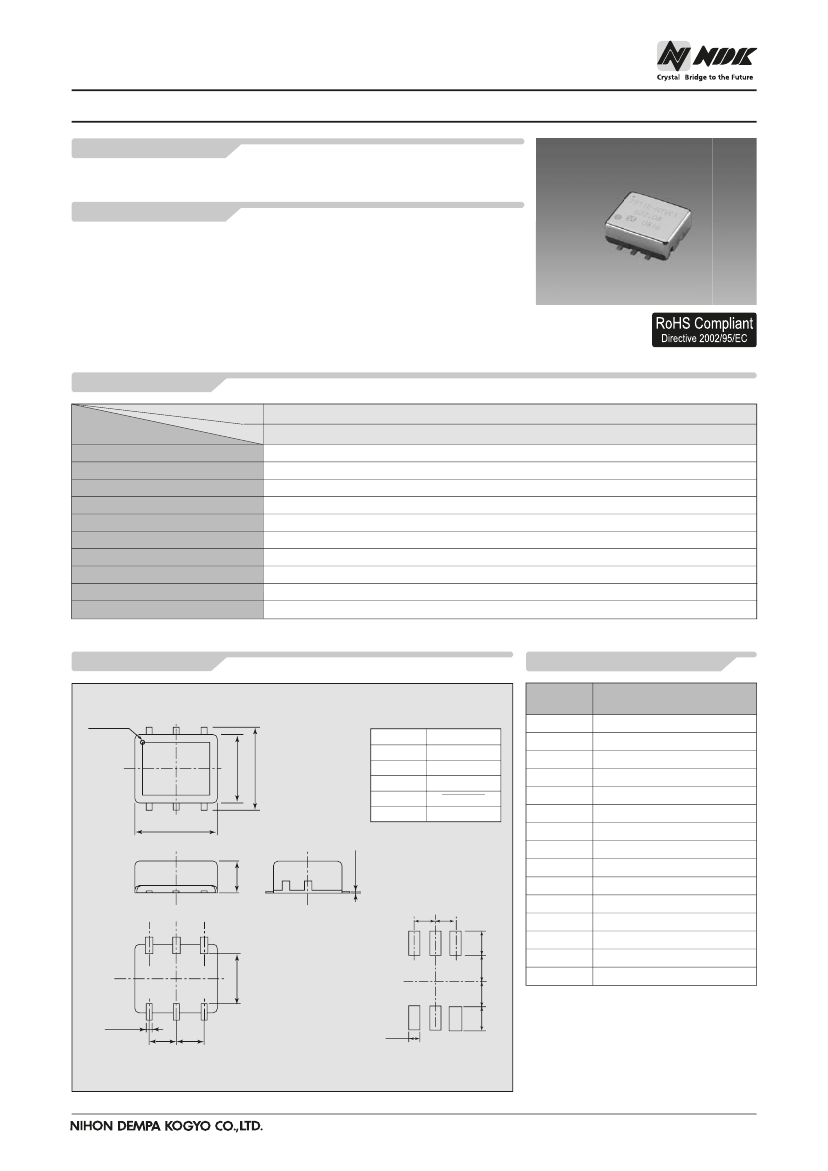

Preview

Download Datasheet

View All

Crystal Oscillator

Model Name 7311E

Main Application

For SONET-, SDH-, and GbEthernet-related equipment

Voltage-Controlled Crystal Oscillator (VCXO) 7300 Series

Features

Frequency range: 600 to 780 MHz.

A surface-mount crystal oscillator.

Complies with the RoHS Directive.

Specifications

Item

Model

Classification

7311E

NTVC1

600 to 780

+3.3 ± 5 %

Max. 100

LVPECL (Complementary)

40 to 60 (V

− 1.3 V)

50 (V

− 2.0 V)

−10 to +70

Max. ± 50 × 10

−6

Min. ± 100 × 10

−6

/ + 1.65 ± 1.5 V

Positive

Nominal frequency range (MHz)

Supply voltage [V

] (V)

Current consumption (mA)

Output voltage

Symmetry (%)

Output load condition (LVPECL) (Ω)

Operating temperature range (℃)

Overall frequency tolerance

Frequency control range

Frequency change polarity

Dimensions

HOLLOW

11.4 ± 0.2

9.6 ± 0.5

List of Ordering Codes

Frequency

(MHz)

622.08

624.7048

625

644.5313

666.5143

669.1281

669.3266

0.15 ± 0.1

Ordering Code

7311E-622.08M-NSA3327A

7311E-624.7048M-NSA3327A

7311E-625M-NSA3327A

7311E-644.5313M-NSA3327A

7311E-666.5143M-NSA3327A

7311E-669.1281M-NSA3327A

7311E-669.3266M-NSA3327A

7311E-672.1627M-NSA3327A

7311E-690.5692M-NSA3327A

7311E-693.483M-NSA3327A

7311E-714.5514M-NSA3327A

7311E-719.7344M-NSA3327A

7311E-773.0702M-NSA3327A

7311E-775.5803M-NSA3327A

7311E-777.6M-NSA3327A

Terminal land connections

11.4 ± 0.5

CONT

GND

OUTPUT

672.1627

690.5692

Land pattern (Typical)

2.54 2.54

3.0

3.9 ± 0.2

693.483

714.5514

719.7344

773.0702

775.5803

777.6

7.0 ± 0.5

3.0 2.9

2.9

0.8 ± 0.1

1.27

The above frequencies are NDK’ s standard frequencies.

Frequencies other than the above are available.

Feel free to contact our sales representatives.

2.54 ± 0.2 2.54 ± 0.2

co32_090925_7311E_e
