SEMICONDUCTORS
BD909 – BD911
SILICON POWER TRANSISTORS
The BD909 and DB911, are silicon epitaxial-base NPN power transistors in a TO-220
envelope. They are intended for use in power linear and switching applications.
Compliance to RoHS.
ABSOLUTE MAXIMUM RATINGS
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
E
I
B
P
t
T
j
T
stg
Ratings
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Emitter Current
Base Current
Power Dissipation
Junction Temperature
Storage Temperature range
I
E
= 0
I
B
= 0
I
C
= 0
Value
BD909
80
80
BD911
100
100
Unit
V
V
V
A
A
A
W
°C
5
15
15
5
90
150
-65 to 150
Limiting values in accordance with the Absolute Maximum System (IEC 134)
THERMAL CHARACTERISTICS
Symbol
R
thJ-mb
Ratings
From junction to mounting base
Value
1.4
Unit
°C/W
25/09/2012
COMSET SEMICONDUCTORS
1|3
SEMICONDUCTORS
BD909 – BD911

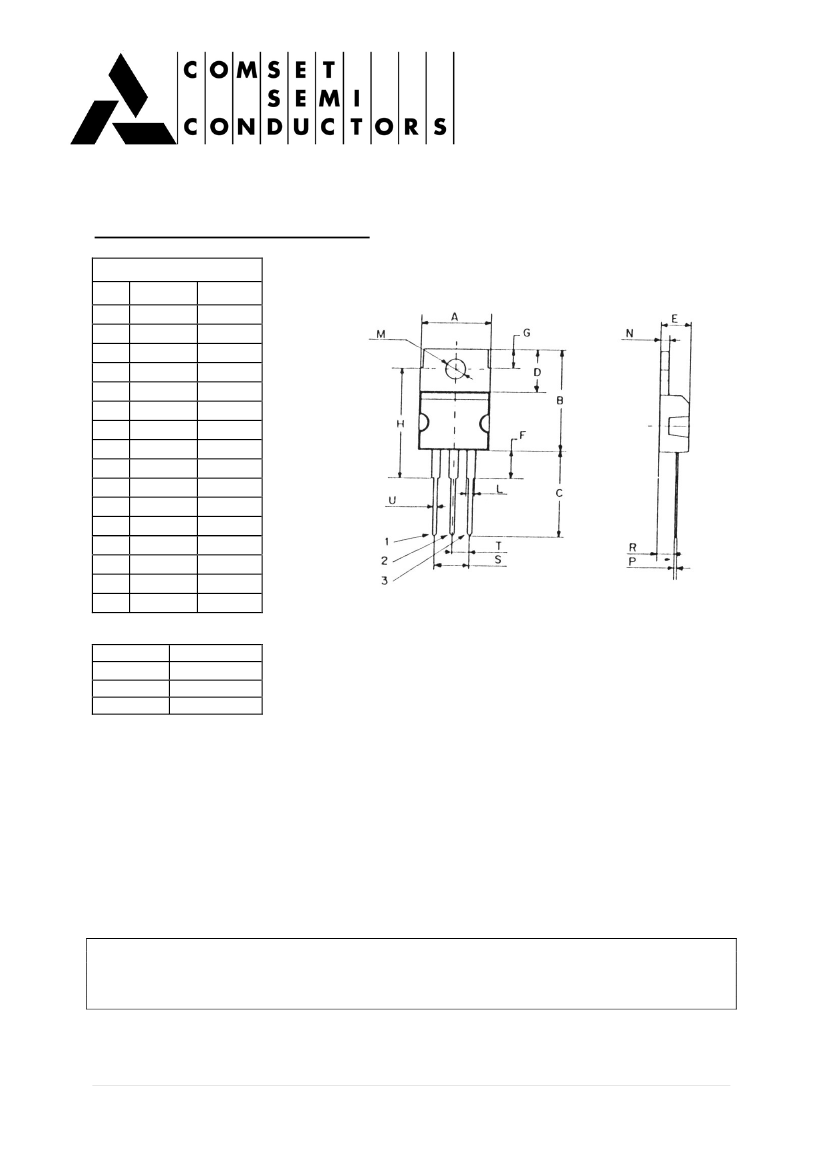

MECHANICAL DATA CASE TO-220
DIMENSIONS (mm)
Min.
A
B
C
D
E
F
G
H
L
M
N
P
R
S
T
U
9,90
15,65
13,20
6,45
4,30
2,70
2,60
15,75
1,15
3,50
-
0,46
2,50
4,98
2.49
0,70
Max.
10,30
15,90
13,40
6,65
4,50
3,15
3,00
17.15
1,40
3,70
1,37
0,55
2,70
5,08
2.54
0,90
Pin 1 :
Pin 2 :
Pin 3 :
Package
Base
Collector
Emitter
Collector
