FPK-1914-15SE10 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> FPK-1914-15SE10

Preview

FPK-1914-15SE10: DescriptionMIL Series Connector, 15 Contact(s), Stainless Steel, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size194KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

FPK-1914-15SE10 Overview

MIL Series Connector, 15 Contact(s), Stainless Steel, Female, Crimp Terminal, Receptacle

FPK-1914-15SE10 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-26500, COMPATIBLE CONTACT: ZZL-4120-36LD
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	FPK
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	14
Termination type	CRIMP
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

Firewall Class K

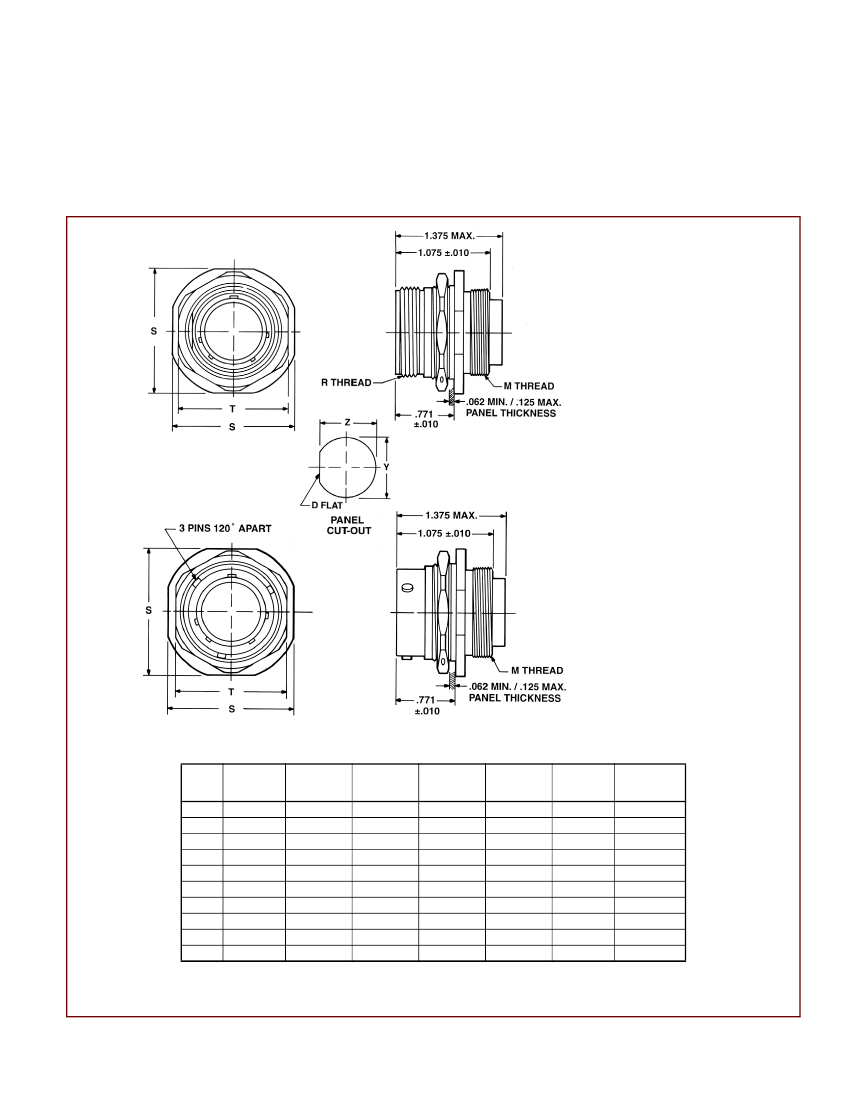

D-Hole Mounted Receptacle

Class K stainless steel,

threaded/bayonet coupling

THREADED COUPLING

Class K Stainless Steel

Pyle FPK-19XX* Series

MS27614KXXTXX*

Military Class K

BAYONET COUPLING

Class K Stainless Steel

Pyle FYL-19XX* Series

MS27614KXXBXX*

Military Class K

* To complete order number,

see how to order, page 21.

Shell

Size

Cable

Support

Thread M

Coupling

Thread

R

Flange

Width

S

Lock Nut

Flats

T

Mounting

Hole

Dia. Y

Mounting

Hole

Flat Z

Recom. min.

Torque

Jam Nut

08

10

12**

14

16

18

20

22**

24

28

NA

.733-36

.803-36

.930-36

1.036-36

NA

1.286-36

NA

.875-20

.937-20

1.062-18

1.187-18

NA

1.437-18

NA

1.291

1.391

1.516

1.614

NA

1.954

NA

1.215

1.062

1.187

1.312

NA

1.562

NA

.947

1.010

1.135

1.260

NA

1.510

NA

.917

.980

1.105

1.225

NA

1.475

NA

33

36

56

65

69

81

100

123

133

NA

NA designates not available. ** Available in Threaded Coupling only.

All dimensions for reference only.
