TLM.310.
Vishay Telefunken
SMD LED in P–LCC–2 Package
Color
High efficiency red
Soft orange
Yellow
Green
Pure green
Type
TLMH310.
TLMO310.
TLMY310.
TLMG310.
TLMP310.
Technology
GaAsP on GaP
GaAsP on GaP
GaAsP on GaP
GaP on GaP
GaP on GaP
Angle of Half Intensity
±
ö
60
°
60
°
60
°
60
°
60
°
Description
These devices have been designed to meet the
increasing demand for surface mounting technology.
The package of the TLM.310. is the P–LCC–2
(equivalent to a size B tantalum capacitor).
It consists of a lead frame which is embedded in a
white thermoplast. The reflector inside this package is
filled up with clear epoxy.
Features
D
D
D
D
D
SMD LEDs with exceptional brightness
Luminous intensity categorized
Compatible with automatic placement equipment
EIA and ICE standard package
Compatible with infrared, vapor phase and wave
solder processes according to CECC
94 8553
D
Available in 8 mm tape
D
Low profile package
D
Non-diffused lens: excellent for coupling to light
pipes and backlighting
D
Low power consumption
D
Luminous intensity ratio in one packaging unit
I
Vmax
/I
Vmin
x
2.0, optional
x
1.6
Applications
Automotive: backlighting in dashboards and switches
Telecommunication: indicator and backlighting in telephone and fax
Indicator and backlight for audio and video equipment
Indicator and backlight in office equipment
Flat backlight for LCDs, switches and symbols
General use
Document Number 83032
Rev. A3, 07-Sep-00
www.vishay.com
1 (11)
TLM.310.
Vishay Telefunken
Absolute Maximum Ratings
T
amb
= 25
_
C, unless otherwise specified
TLMH310.
,TLMO310. ,TLMY310. ,TLMG310. ,TLMP310.
Parameter
Reverse voltage
DC forward current
Surge forward current
Power dissipation
Junction temperature
Operating temperature range
Storage temperature range
Soldering temperature
Thermal resistance junction/ambient
Test Conditions
T
amb
≤
60
°
C
t
p
≤
10
m
s
T
amb
≤
60
°
C
Symbol
V
R
I
F
I
FSM
P
V
T
j
T
amb
T
stg
T
sd
R
thJA
Value
6
30
0.5
100
100
–40 to +100
–55 to +100
260
400
Unit
V
mA
A
mW
°
C
°
C
°
C
°
C
K/W
t
≤
5s
mounted on PC board
(pad size > 16 mm
2
)
Optical and Electrical Characteristics
T
amb
= 25
_
C, unless otherwise specified
High efficiency red
(TLMH310.
)
Parameter
Luminous intensity
y
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Junction capacitance
Test Conditions
I
F
= 10 mA
mA,
Min./ Max.
I
V
Min / I
V
Max
Type
Symbol
TLMH3100
I
V
TLMH3101
I
V
TLMH3102
I
V
l
d
l
p
ϕ
V
F
V
R
C
j
Min
2.5
4
6.3
612
Typ
6
Max
12.5
20
625
635
±60
2.4
15
15
Unit
mcd
mcd
mcd
nm
nm
deg
V
V
pF
1:2
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
I
R
= 10
m
A
V
R
= 0, f = 1 MHz
3
6
Soft orange
(TLMO310.
)
Parameter
Luminous intensity
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Junction capacitance
Test Conditions
I
F
= 10 mA,
,
I
V
Min./ I
V
Max.
1:2
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
I
R
= 10
m
A
V
R
= 0, f = 1 MHz
Type
Symbol
TLMO3100
I
V
TLMO3101
I
V
l
d
l
p
ϕ
V
F
V
R
C
j
Min
2.5
4
598
Typ
8
Max
12.5
611
605
±60
2.2
15
15
Unit
mcd
mcd
nm
nm
deg
V
V
pF
3
6
www.vishay.com
2 (11)
Document Number 83032
Rev. A3, 07-Sep-00
TLM.310.
Vishay Telefunken
Yellow
(TLMY310.
)
Parameter
Luminous intensity
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Junction capacitance
Test Conditions
I
F
= 10 mA,
I
V
Min./ I
V
Max.
1:2
I
F
= 10 mA,
,
I
V
Min./ I
V
Max.
1:1.6
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
I
R
= 10
m
A
V
R
= 0, f = 1 MHz
Type
TLMY3100
TLMY3101
TLMY3102
Symbol
I
V
I
V
I
V
l
d
l
p
ϕ
V
F
V
R
C
j
Min
2.5
4
6.3
581
585
±60
2.4
15
15
Typ
6
12.5
20
594
Max
Unit
mcd
mcd
mcd
nm
nm
deg
V
V
pF
3
6
Green
(TLMG310.
)
Parameter
Test Conditions
Type
Symbol
TLMG3100
I
V
TLMG3101
I
V
TLMG3102
I
V
TLMG3105
I
V
TLMG3106
I
V
l
d
l
p
ϕ
V
F
V
R
C
j
Min
4
4
10
6.3
6.3
562
Typ
9
Max
12.5
20
20
12.5
575
565
±60
2.2
15
15
Unit
mcd
mcd
mcd
mcd
mcd
nm
nm
deg
V
V
pF
Luminous intensity
y
I
F
= 10 mA
mA,
Min./ Max.
I
V
Min / I
V
Max
1:2
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Junction capacitance
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
I
R
= 10
m
A
V
R
= 0, f = 1 MHz
3
6
Pure green
(TLMP310.
)
Parameter
Test Conditions
I
F
= 10 mA,
,
I
V
Min./ I
V
Max.
Type
Symbol
TLMP3100
I
V
TLMP3101
I
V
TLMP3106
I
V
TLMP3107
I
V
TLMP3102
I
V
l
d
l
p
ϕ
V
F
V
R
C
j
Luminous intensity
1:2
Min
1
1.6
1.6
2.5
2.5
555
Typ
4
Max
5
3.2
5
8
565
Unit
mcd
mcd
mcd
mcd
mcd
nm
nm
deg
V
V
pF
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Junction capacitance
I
F
= 10 mA,
I
V
Min./ I
V
Max.
1:1.6
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
I
R
= 10
m
A
V
R
= 0, f = 1 MHz
6
555
±60
2.4
15
15
3
Document Number 83032
Rev. A3, 07-Sep-00
www.vishay.com
3 (11)
TLM.310.
Vishay Telefunken

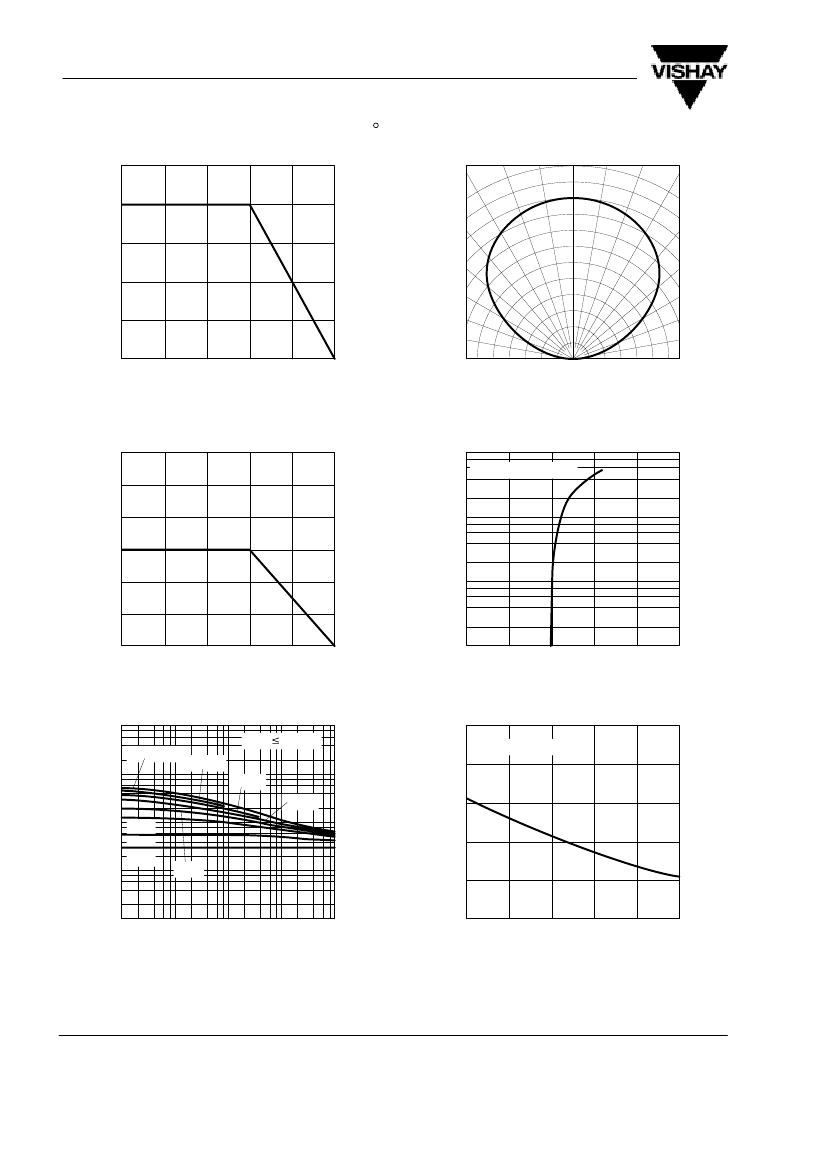

Typical Characteristics
(T
amb
= 25
_
C, unless otherwise specified)
125
I
v rel
– Relative Luminous Intensity
P
V
– Power Dissipation ( mW )
0°
10
°
20
°
30°
100
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
0.6
0.4
0.2
0
0.2
0.4
0.6
75
50
25
0
0
20
40
60
80
100
95 10904
T
amb
– Ambient Temperature (
°C
)
95 10319
Figure 1 Power Dissipation vs. Ambient Temperature
60
I
F
– Forward Current ( mA )
I
F
– Forward Current ( mA )
50
40
30
20
10
0
0
95 10905
Figure 4 Rel. Luminous Intensity vs.
Angular Displacement
100
High Efficiency Red
10
1
0.1
20
40
60
80
100
95 9989
0
1
2
3
4
5
T
amb
– Ambient Temperature (
°C
)
V
F
– Forward Voltage ( V )
Figure 2 Forward Current vs. Ambient Temperature
10000
T
amb
I
F
– Forward Current ( mA )
t
p
/T=0.005
1000
0.01
0.02
0.05
100
0.2
0.5
DC
10
0.1
I
v rel
– Relative Luminous Intensity
Figure 5 Forward Current vs. Forward Voltage
2.0
High Efficiency Red
1.6
v
60°C
1.2
0.8
0.4
0
1
0.01
95 9985
0.1
1
10
100
95 9993
0
20
40
60
80
100
t
p
– Pulse Length ( ms )
T
amb
– Ambient Temperature (
°C
)
Figure 3 Forward Current vs. Pulse Length
Figure 6 Rel. Luminous Intensity vs.
Ambient Temperature
www.vishay.com
4 (11)
Document Number 83032
Rev. A3, 07-Sep-00
TLM.310.
Vishay Telefunken
2.4
I
v rel
– Relative Luminous Intensity
High Efficiency Red
I
F
– Forward Current ( mA )
2.0
1.6
1.2
0.8
0.4
0
10
95 10321
100
Soft Orange
10
1
0.1
20
0.5
50
0.2
100
0.1
200
0.05
500
0.02
I
F
(mA)
t
p
/T
95 9990
0
1
2
3
4
5
1
V
F
– Forward Voltage ( V )
Figure 7 Rel. Lumin. Intensity vs.
Forw. Current/Duty Cycle
10
I
v rel
– Relative Luminous Intensity
High Efficiency Red
Figure 10 Forward Current vs. Forward Voltage
2.0
I
v rel
– Relative Luminous Intensity
Soft Orange
1.6
1
1.2
0.1
0.8
0.4
0
0.01
1
95 9995
10
I
F
– Forward Current ( mA )
100
95 9994
0
20
40
60
80
100
T
amb
– Ambient Temperature (
°C
)
Figure 8 Relative Luminous Intensity vs. Forward Current
1.2
I
v rel
– Relative Luminous Intensity
High Efficiency Red
1.0
0.8
0.6
0.4
0.2
0
590
95 10040
Figure 11 Rel. Luminous Intensity vs.
Ambient Temperature
2.4
I
v rel
– Relative Luminous Intensity
Soft Orange
2.0
1.6
1.2
0.8
0.4
0
610
630
650
670
690
95 10259
10
1
20
0.5
50
0.2
100
0.1
200
0.05
500
0.02
I
F
(mA)
t
p
/T
l
– Wavelength ( nm )
Figure 9 Relative Luminous Intensity vs. Wavelength
Figure 12 Rel. Lumin. Intensity vs.
Forw. Current/Duty Cycle
Document Number 83032
Rev. A3, 07-Sep-00
www.vishay.com
5 (11)
