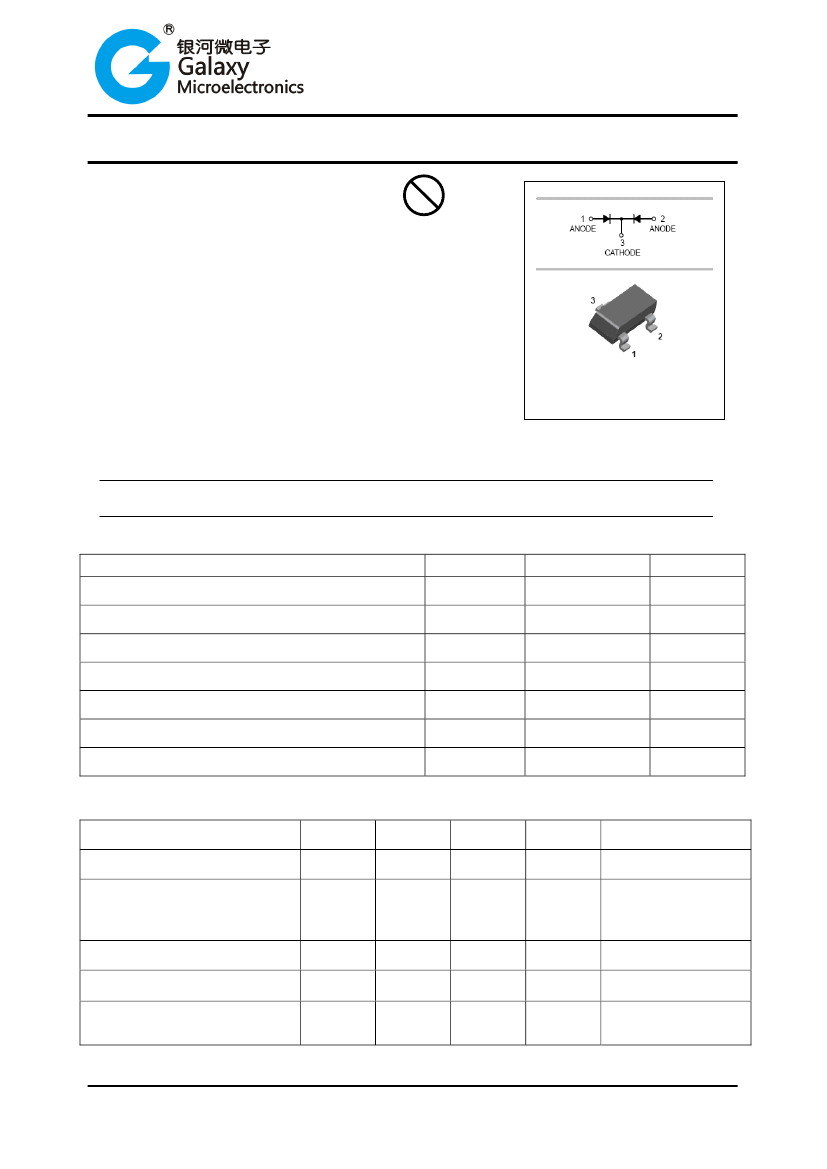

Production specification
Surface mount switching diode
FEATURES
High conductance.
Fast switching.
Surface mount package ideally suited for
automatic insertion.
MMBD6100
Pb
Lead-free
APPLICATIONS
For general purpose and switching application.
SOT-23
ORDERING INFORMATION
Type No.
MMBD6100
Marking
T4
Package Code
SOT-23
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Characteristic
Continuous Reverse Voltage
Average rectified output current
Peak suge forward Current,
Power Dissipation
Typical Thermal Resistance,Junction to Ambient
Operating Junction Temperature Range
Storage Temperature Range
t<1.0μs
Symbol
V
R
I
O
I
FSM
P
d
R
θ
JA
T
j
T
STG
Limits
70
200
2.0
350
357
150
-65 to +150
Unit
V
mA
A
mW
℃/W
℃
℃

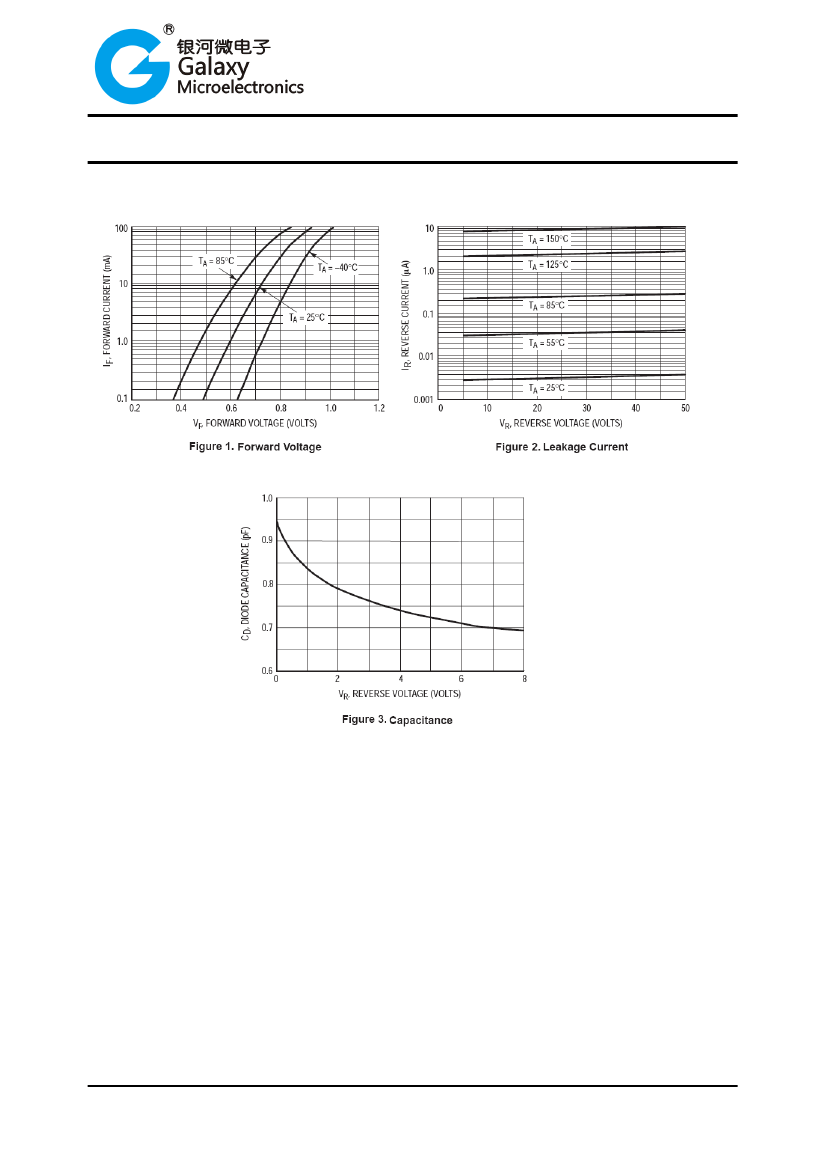

ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Characteristic
Reverse Breakdown Voltage
Forward Voltage
Reverse Leakage Current
Junction Capacitance
Reverse Recovery Time
Symbol
V
(BR)R
V
F
I
R
C
j
t
rr
Min
70
0.55
0.85
0.7
1.1
0.1
2.5
4
MAX
UNIT
V
V
μA
pF
ns
Test Condition
I
R
= 100μA
I
F
=1mA
I
F
=100mA
V
R
=50V
V
R
=0V,f=1MHz
I
F
=I
R
=10mA,
I
RR
=0.1*I
R
R
L
=100Ω
C134
Rev.A
www.gmesemi.com
1
