51732-052LF datasheet, PDF - EEWORLD Datasheet

51732-052LF: DescriptionBoard Connector, 14 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Guide Slot, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size356KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

51732-052LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51732-052LF	-	-	View	Buy Now

Board Connector, 14 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Guide Slot, Receptacle, LEAD FREE

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	SPLIT BOARD LOCK
body width	0.574 inch
subject depth	0.93 inch
body length	1.45 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S12P2
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51732-052
Mixed contacts	YES
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.092 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N
Base Number Matches	1

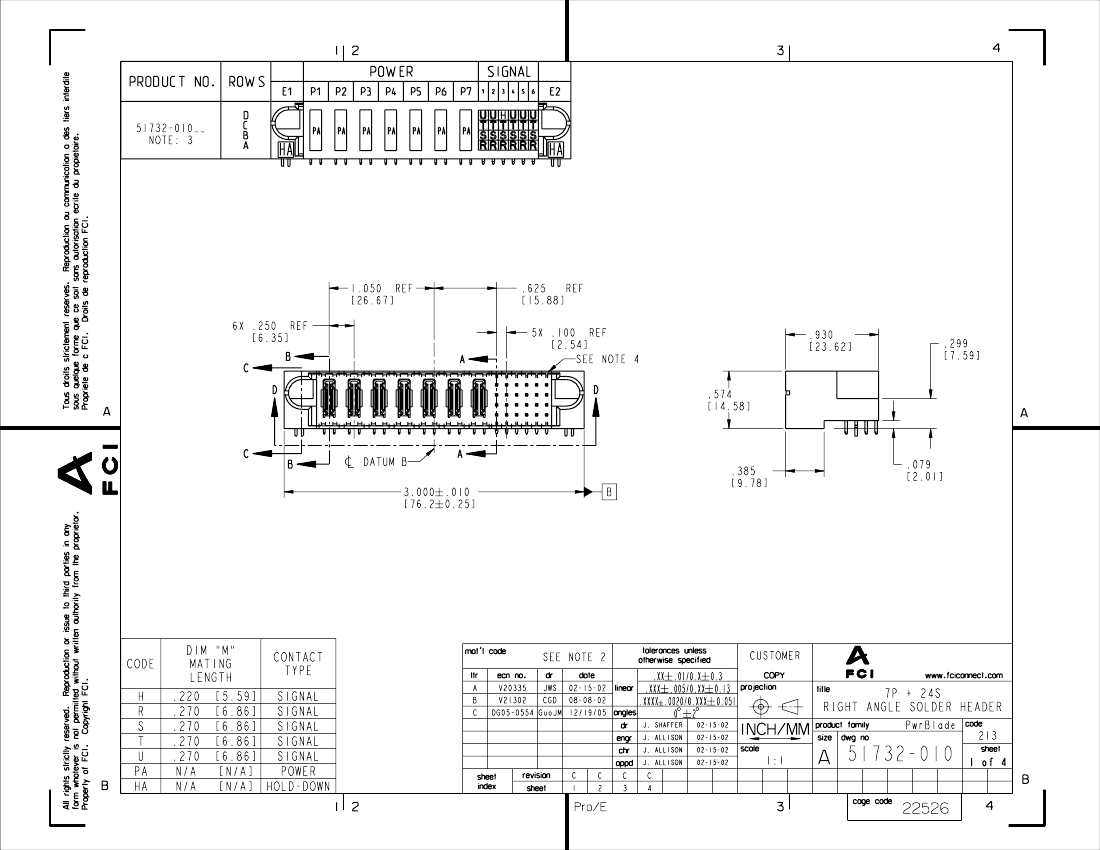

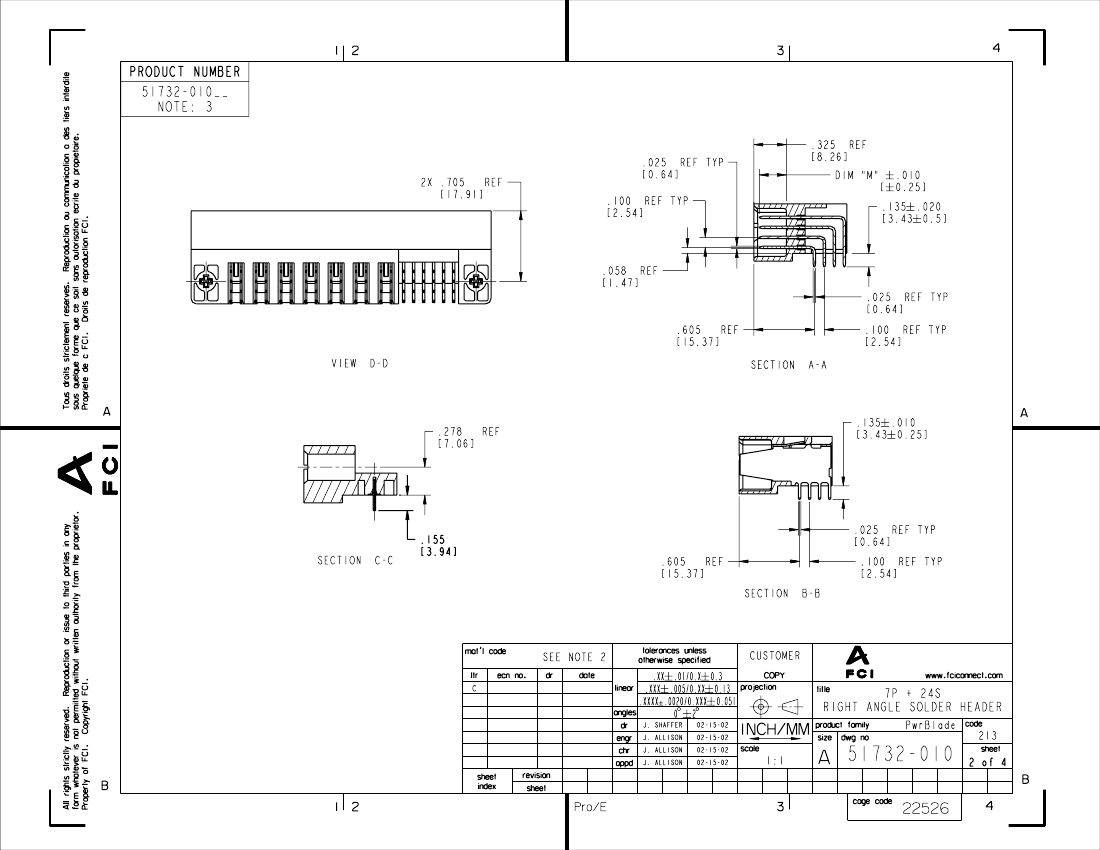

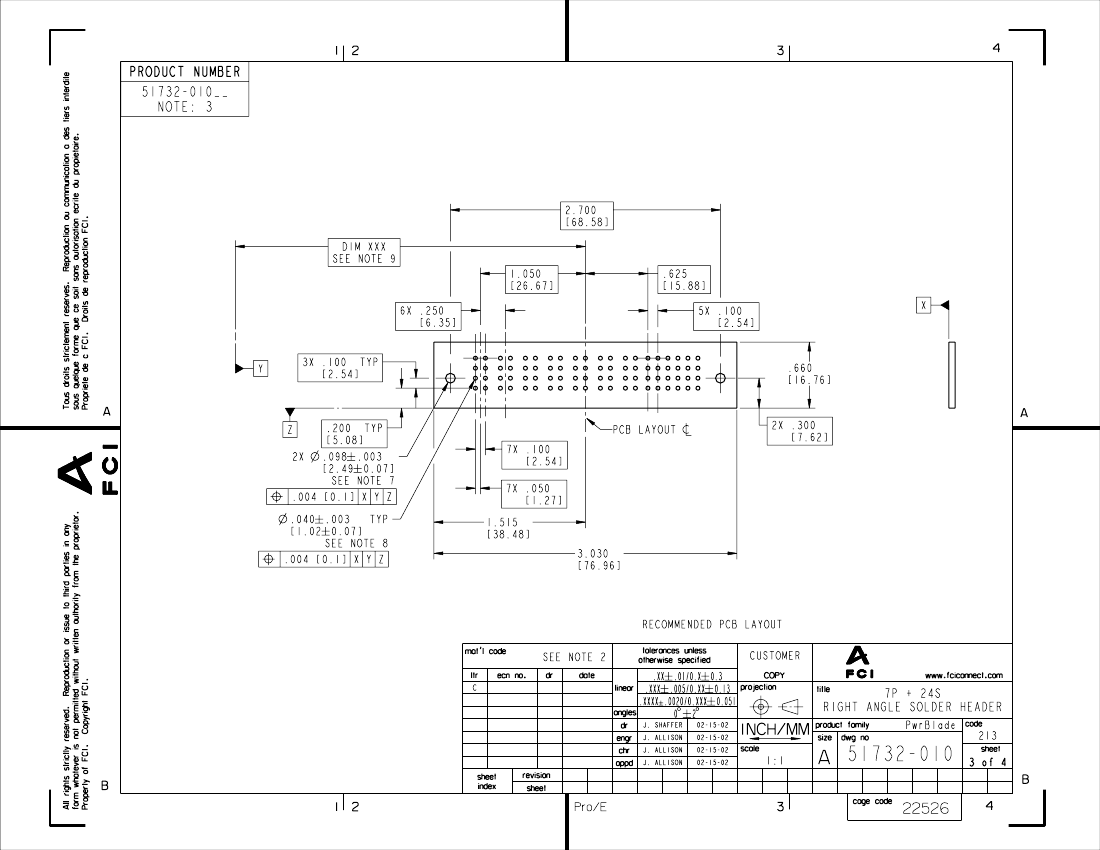

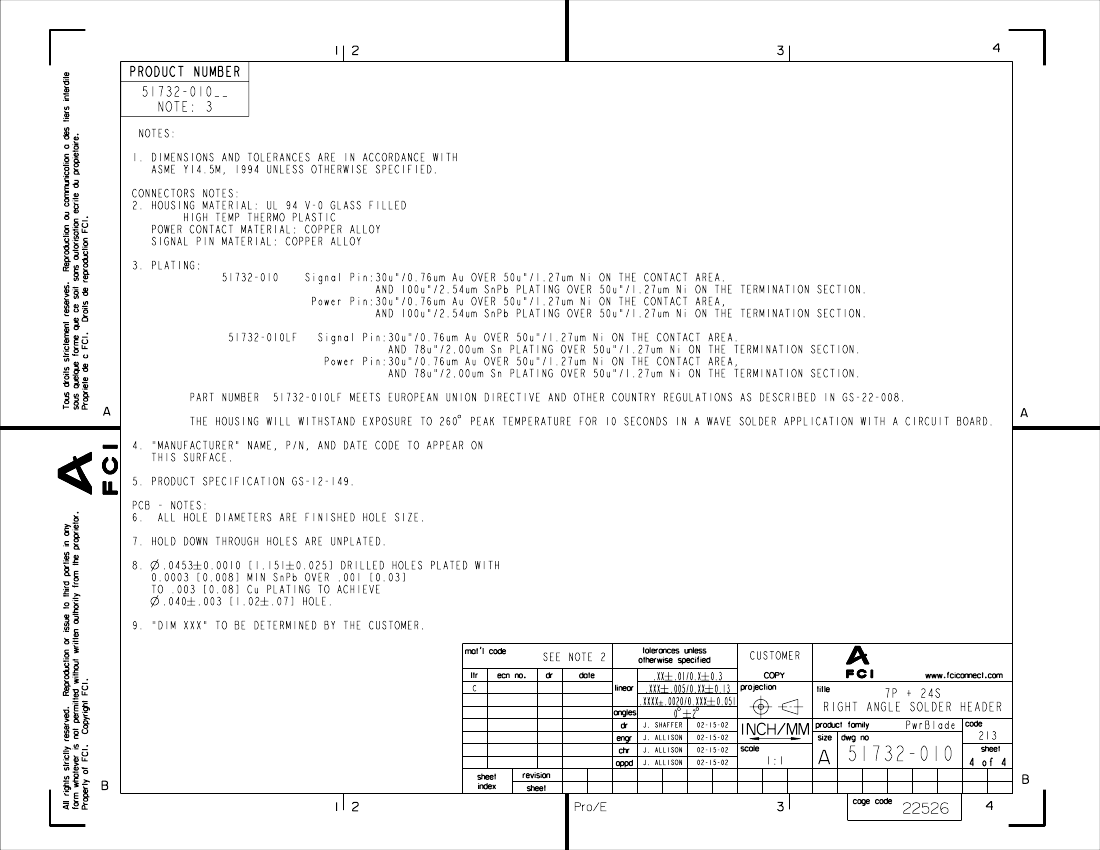

PDM: Rev:C

STATUS:

Released

Printed: Dec 20, 2010
