SMFL2805D/OO

Description
DC-DC Regulated Power Supply Module, 2 Output, 50W, Hybrid, PACKAGE-12
CategoryPower/power management    The power supply circuit
File Size317KB,14 Pages
ManufacturerCrane Co.
Download Datasheet Parametric View All

SMFL2805D/OO Overview

DC-DC Regulated Power Supply Module, 2 Output, 50W, Hybrid, PACKAGE-12

SMFL2805D/OO Parametric

Parameter NameAttribute value
package instruction, FLANGE MT,1.5X3.0
Reach Compliance Codecompliant
ECCN codeEAR99
Other features-5V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage40 V
Minimum input voltage16 V
Nominal input voltage28 V
JESD-30 codeR-XDMA-P12
JESD-609 codee4
length63.5 mm
Number of functions1
Output times2
Number of terminals12
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum output current10 A
Maximum output voltage5.05 V
Minimum output voltage4.85 V
Nominal output voltage5 V
Package body materialUNSPECIFIED
Encapsulate equivalent codeFLANGE MT,1.5X3.0
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Certification statusNot Qualified
Filter levelMIL-PRF-38534
Maximum seat height10.16 mm
surface mountNO
technologyHYBRID
Temperature levelMILITARY
Terminal surfaceGOLD
Terminal formPIN/PEG
Terminal pitch5.08 mm
Terminal locationDUAL
Maximum total power output50 W
Fine-tuning/adjustable outputYES
width38.1 mm
Base Number Matches1

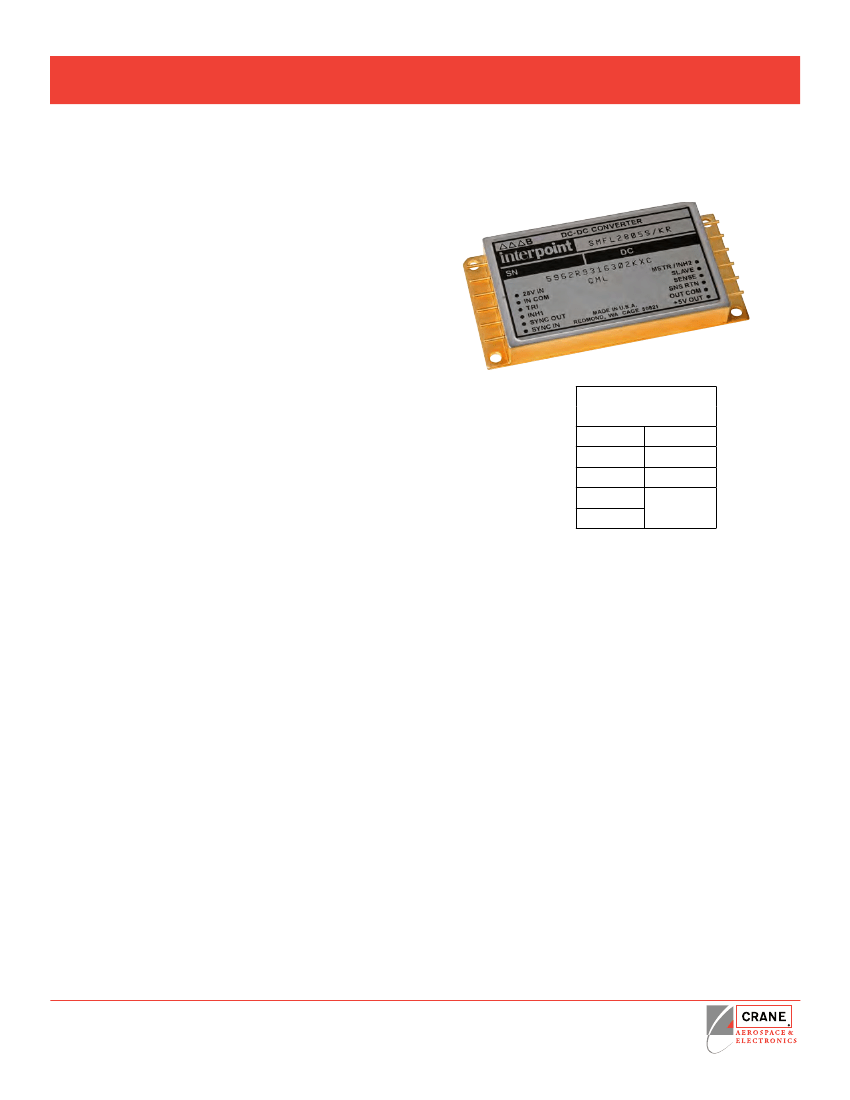

Crane Aerospace & Electronics Power Solutions
sMFL single and dual dc-dc converters
28 VoLt input – 65 Watt
Features
Radiation tolerant space DC-DC converter
- Single event effects (SEE) LET performance to
86 MeV cm
2
/mg
- Total ionizing dose (TID) guaranteed per MIL-STD-883
method 1019, radiation hardness assurance (RHA)
P = 30 krad(Si), L = 50 krad(Si), R = 100 krad(Si)
- 50 - 300 rad(Si)/sec dose rate (Condition A)
- 10 mrad(Si)/sec dose rate (Condition D)
Parallel up to 3 converters—maximum recommended power
is 80% of the total available power.
Operating temperature -55°C to +125°C
Input voltage range 16 to 40 volts
Qualified to MIL-PRF-38534 Class H and K
Transient protection up to 80 volts for 50 ms
MODELS
OuTPuT VOLTAgE (V)
Fully isolated, magnetic feedback
Fixed high switching frequency
- Converter will shut down at an input voltage above
approximately 45 volts
SINgLE
3.3
5
12
15
DuAL
±5
±12
±15
Remote sense and output trim on single output models
Primary and secondary inhibit function
Synchronization input and output
Indefinite short circuit protection
High power density with up to 85% typical efficiency
description
The Interpoint
®
SMFL Series™ 28 volt DC-DC converters are
rated up to 65 watts output power over a -55°C to +125°C
temperature range with a 28 volt nominal input. On dual output
models, up to 70% of the rated output power can be drawn from
either the positive or negative outputs. The welded, hermetically
sealed package is only 3.005 x 1.505 x 0.400 inches.
Isolation between input and output circuits is provided with a
transformer in the forward path and wide bandwidth magnetic
coupling in the feedback control loop. The SMFL Series uses a
unique dual loop feedback technique that controls output current
with an inner feedback loop and output voltage with a cascaded
voltage mode feedback loop.
The additional secondary current mode feedback loop improves
transient response in a manner similar to primary current mode
control and allows for ease of paralleling.
Tight load regulation is achieved through a wide-bandwidth
magnetic feedback circuit.
The SMFL Series converters have two inhibit terminals (Inhibit
1 and Inhibit 2) that can be used to disable power conversion,
resulting in a very low quiescent input current. See Table 5 on
page 6 for specifications.
Converters may be synced to an external clock (525 to 675 kHz)
or to one another by using the sync in or out pins. See Table 5
on page 6 for specifications.
S
creening
SMFL converters offer screening options to space prototype (O),
Class H or K and radiation hardness assurance (RHA) levels
P - 30 krad(Si), L - 50 krad(Si) or R - 100 krad(Si). Single event
effects (SEE) LET performance to 86 MeV cm
2
/mg. See Table 9
on page 13 and Table 10 on page 14 for more information.
D
eSign
F
eatureS
The SMFL Series converters are switching regulators that use a
quasi-square wave, single ended forward converter design with a
constant switching frequency of 600 kHz.
i
nhibit
S
ync
Crane Aerospace & Electronics
Power Solutions – Interpoint Products
10301 Willows Rd. NE, Redmond, WA 98052
+1 425.882.3100 • power@crane-eg.com
www.craneae.com/interpoint
SMFL Rev AD - 2017.05.24
Page 1 of 14
